HamKing - SWL-01

Product code: 6124
Factory code: 6124

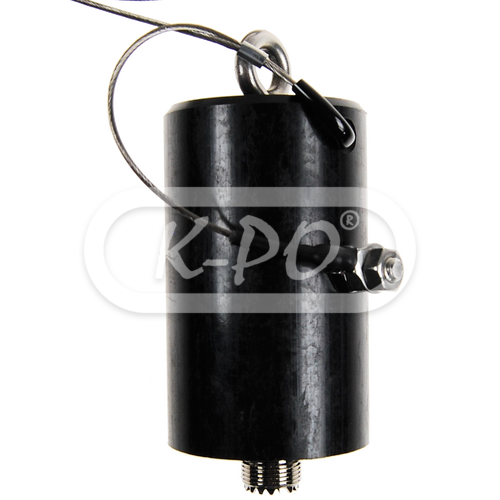

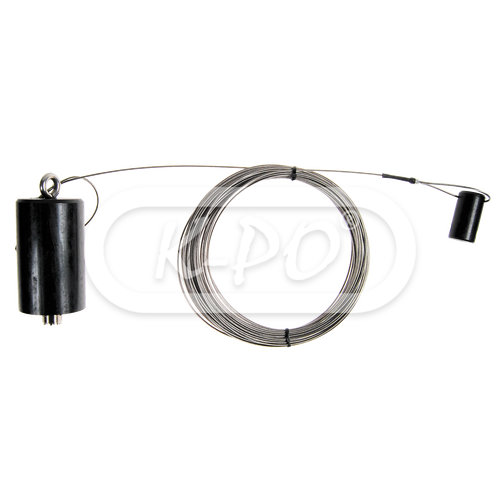

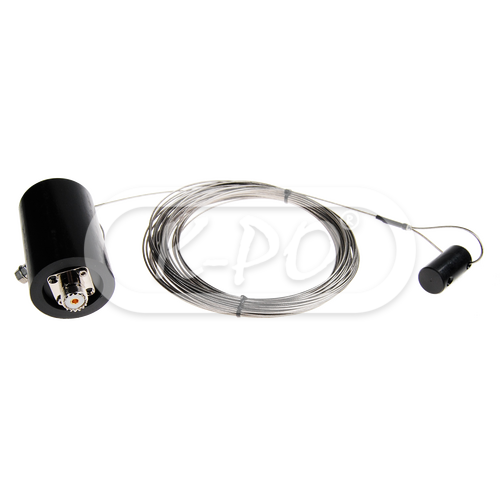

The HamKing SWL-01 is an excellent RX wire antenna for 0.1 - 30 MHz. With UnUn 1:9 wired on a Amidon Toroidal core. Ideal receiving antenna for shortwave and world receivers.

Frequency range: RX: 0.1 - 30 MHz
Out of stock - Longer delivery time
€51.98 (51.98 excl. 0% VAT)

Electrical data

  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • QRP operation: possible with 1 Watt and antenna tuner

Mechanical data

  • Materials: 1.5 mm thick stainless steel cables
  • Width: ± 16 meter cable
  • Weight: 500 gram
  • Antenna connector: UHF-female
  • Housing: PA6 housing and insulators are UV resistant

Inside the box

  • Antenna: Yes
  • Installation manual: English
