HamKing - SWL-01

Product code: 6124

Factory code: 6124

Barcode: 8718375102909

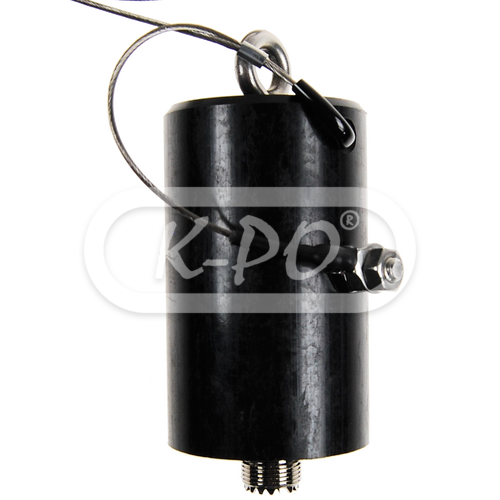

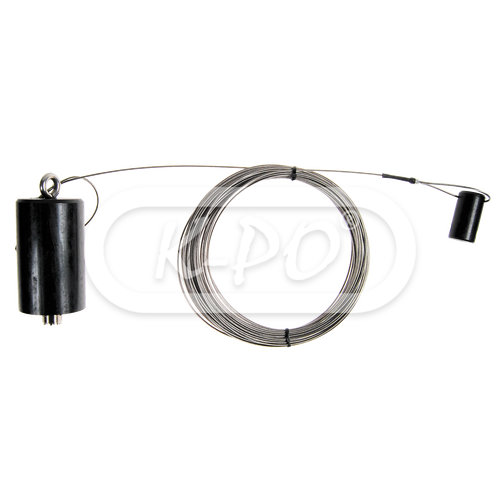

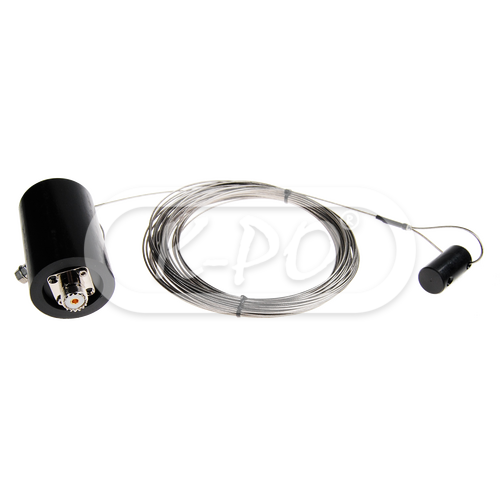

The HamKing SWL-01 is an excellent RX wire antenna for 0.1 - 30 MHz. With UnUn 1:9 wired on a Amidon Toroidal core. Ideal receiving antenna for shortwave and world receivers.

Frequency range: RX: 0.1 - 30 MHz

Shipped next business day - Stock: 4

€62.90 (51.98 excl. 21% VAT)

Electrical data

• Impedance: 50 Ohm
• Polarization: Linear vertical
• QRP operation: possible with 1 Watt and antenna tuner

Mechanical data

• Materials: 1.5 mm thick stainless steel cables
• Width: ± 16 meter cable
• Weight: 500 gram
• Antenna connector: UHF-female
• Housing: PA6 housing and insulators are UV resistant

Inside the box

• Antenna: Yes
• Installation manual: English
