Himunication - HM360 MAX DCS/GPS (ATIS)

Product code: 48360
Barcode: 6970344030268

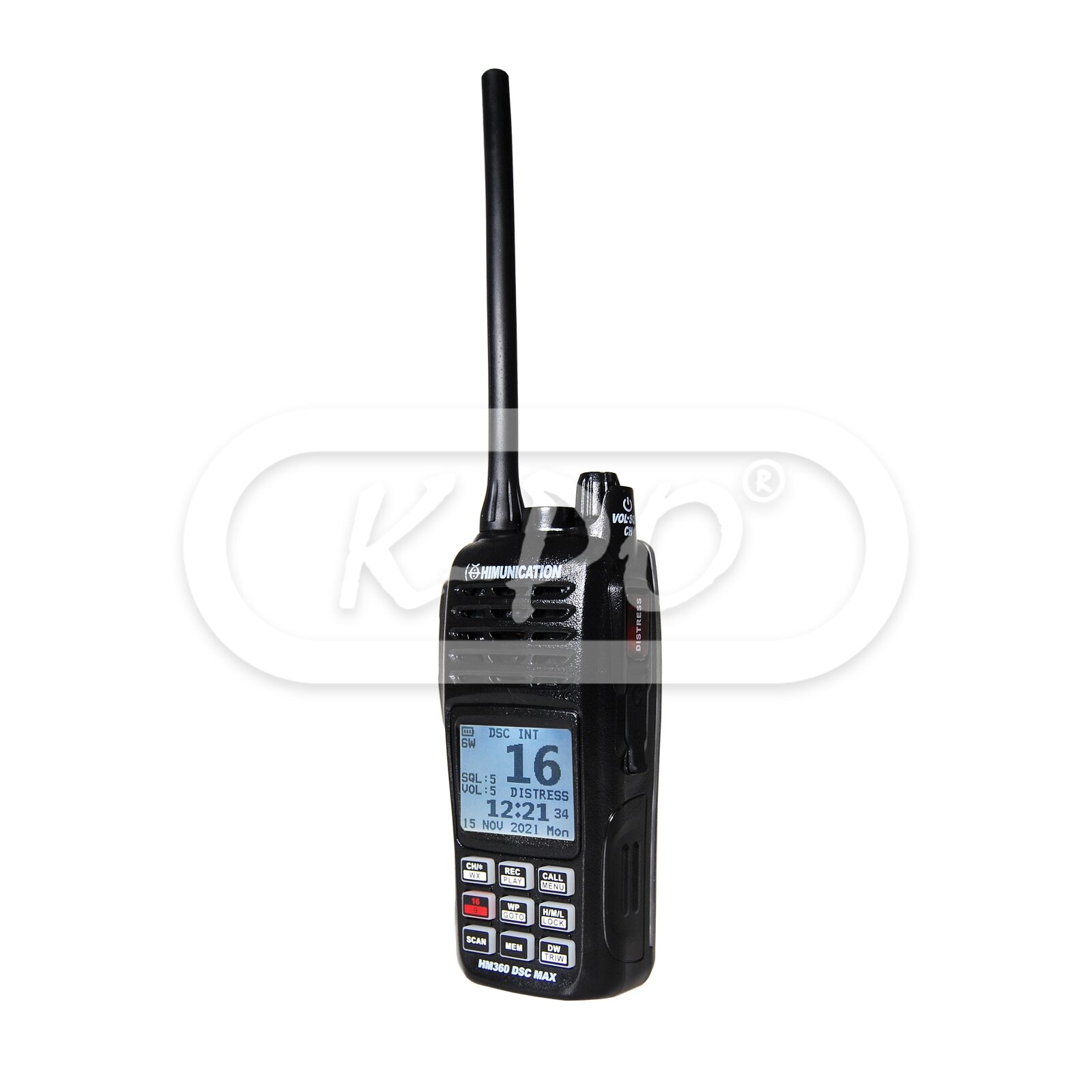

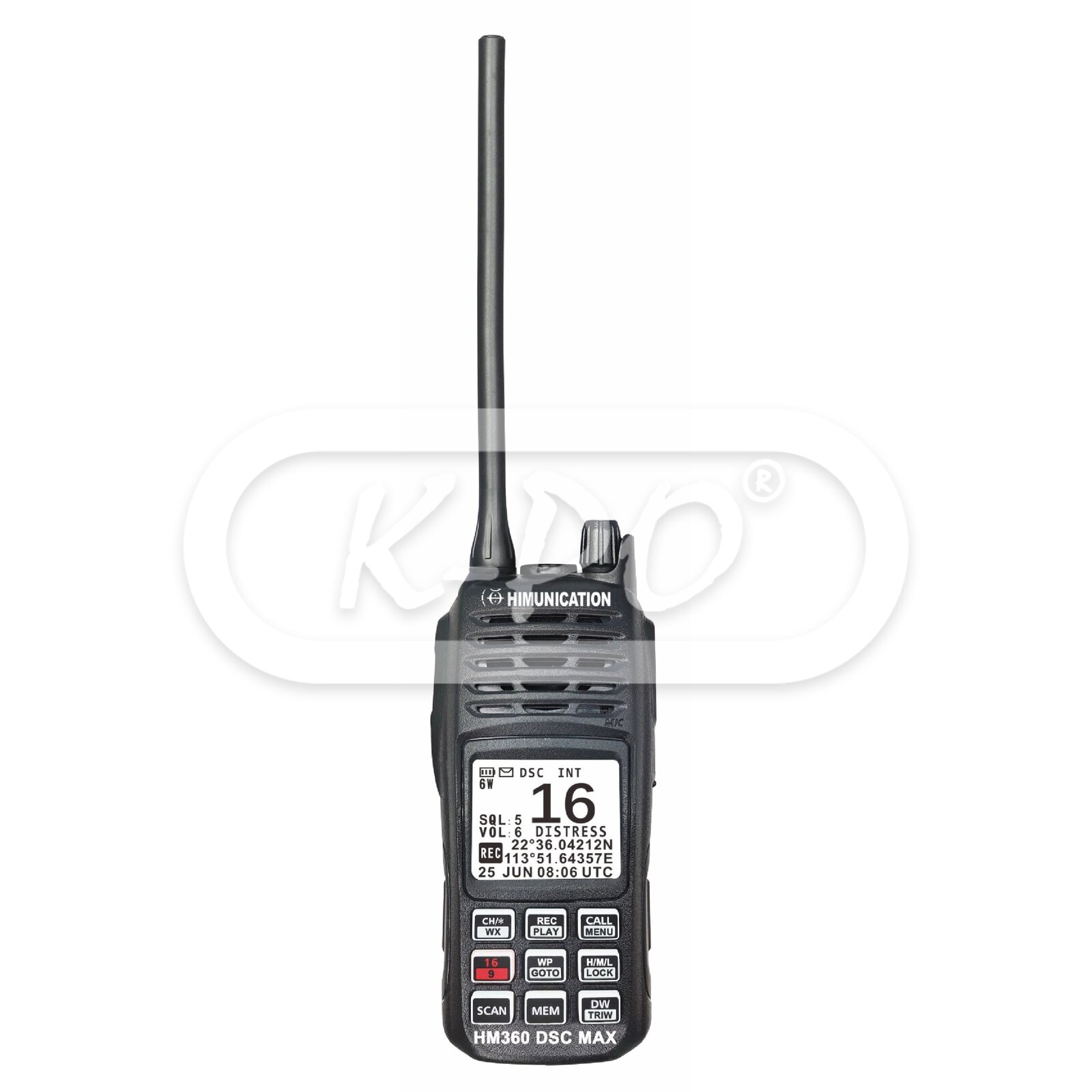

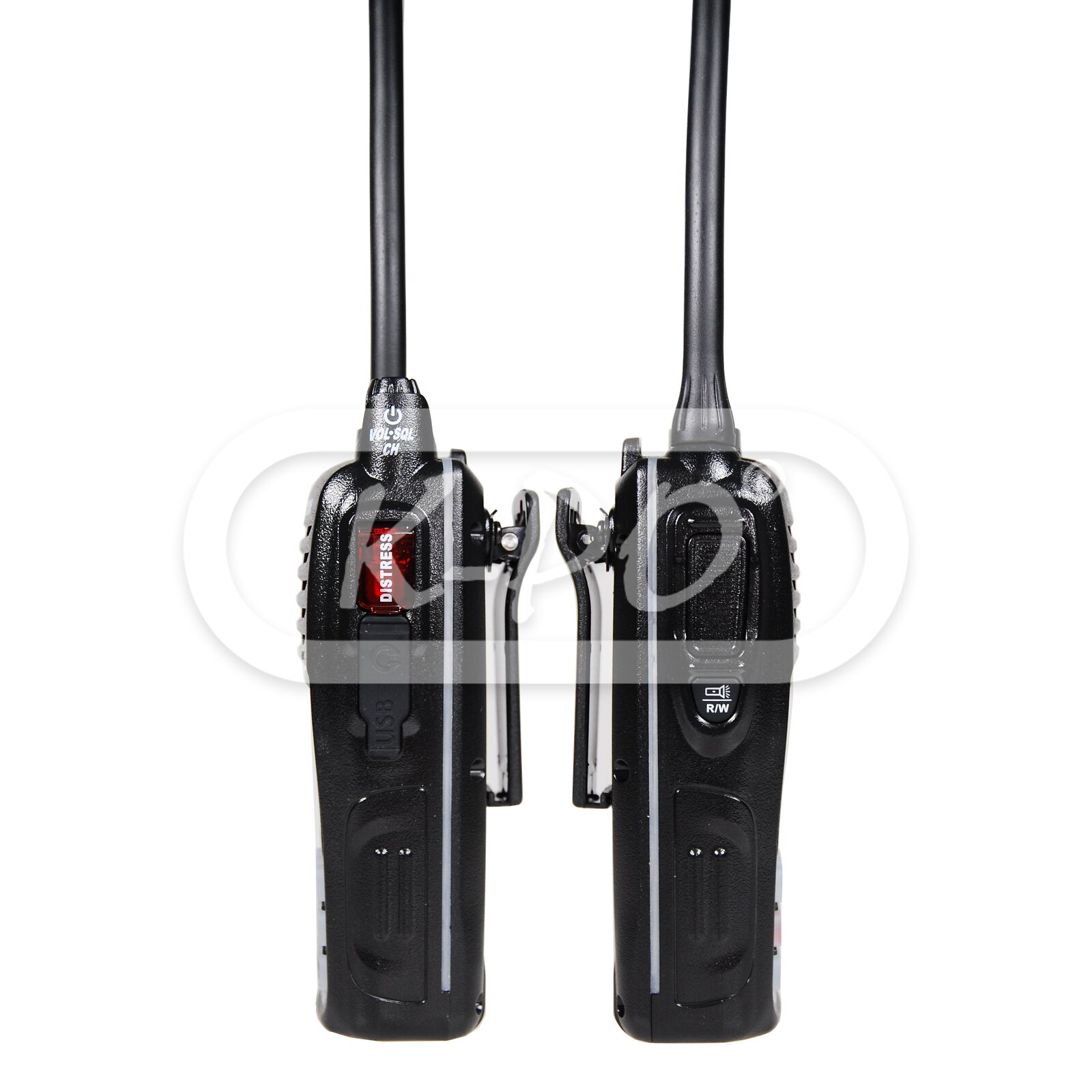

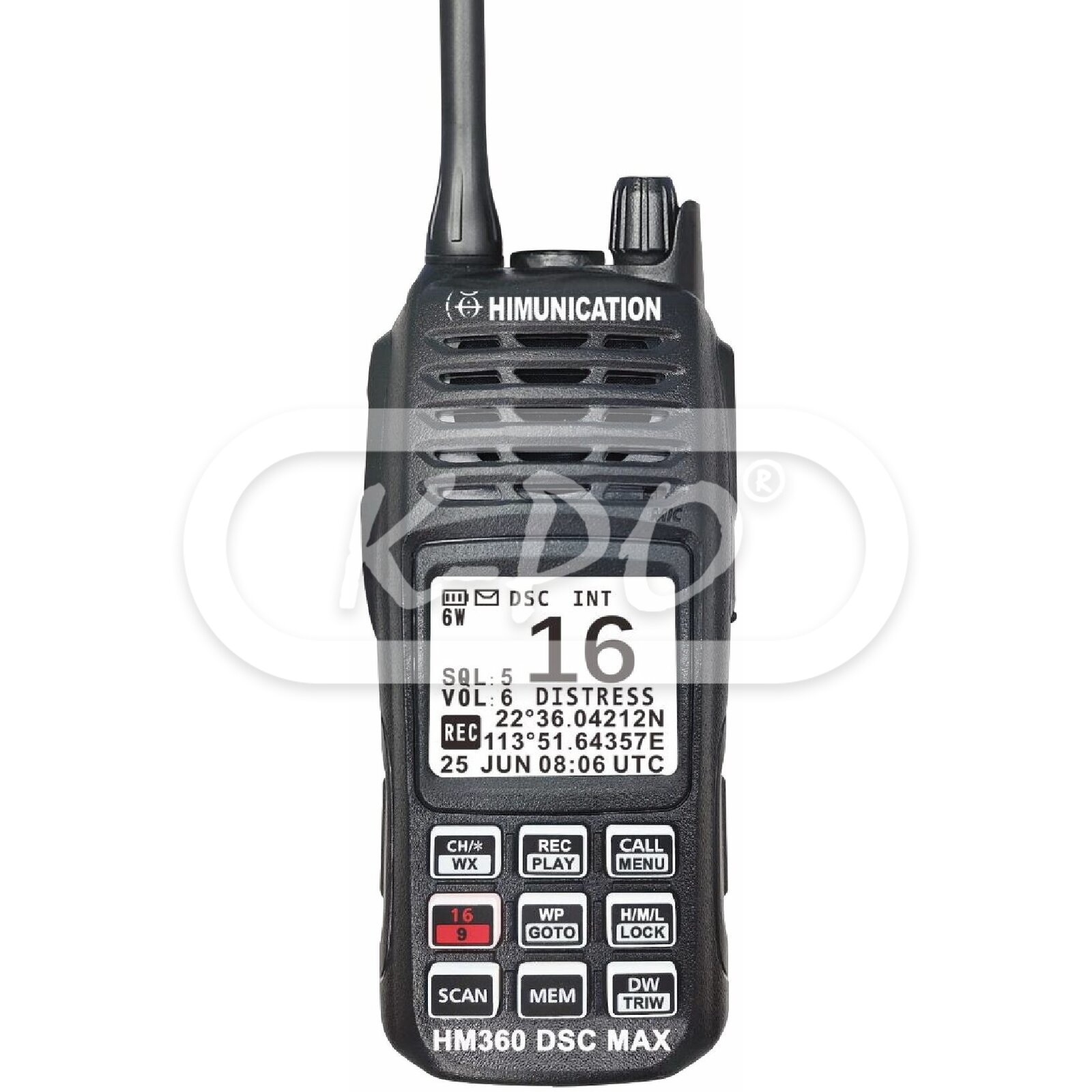

The Himunication HM360 MAX is Himunication' new top handheld marineradio with DSC and GNSS (GPS). It replaces the Himunication HM360

Frequency range: TX: 156.025 to 162.425 MHz / RX: 156.025 to 163.275 MHz
Shipped next business day
€247.89 (247.89 excl. 0% VAT)

Features

  • Float and flash: Yes
  • Channel 31: Yes
  • 5/1 Watts switchable power: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Dot-Matrix 128x108 2.0 inch LCD with white back light
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Distress key: Yes
  • Torch: Yes
  • ATIS: Yes, one-time programmable by keypad
  • Digital Selectivity Calling (DSC): Yes, Class 'H'
  • GPS, GNNS: Yes, built-in GPS receiver
  • COG & SOG: Yes

Electrical data

  • Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55 °C
  • Battery lifetime: (TX 5% / RX 5% / Stand-by 90%): ≥ 10 hours

Transmitter

  • Power output (Watts): 6 / 3 / 1 Watts
  • Modulation: FM (16K0G3E) / DSC (16K0G2B)
  • Channel spacing: 25 KHz
  • Oscillate mode: PLL
  • Normal working voltage: 3.7 V (With Li-Polymer Battery 4000mAh)
  • Low limit working voltage: 3 V
  • Memory: EEPROM

Mechanical data

  • Length: 155 mm
  • Height: 40 mm
  • Width: 60 mm
  • Weight: 287 gram
  • Antenna connector: SMA

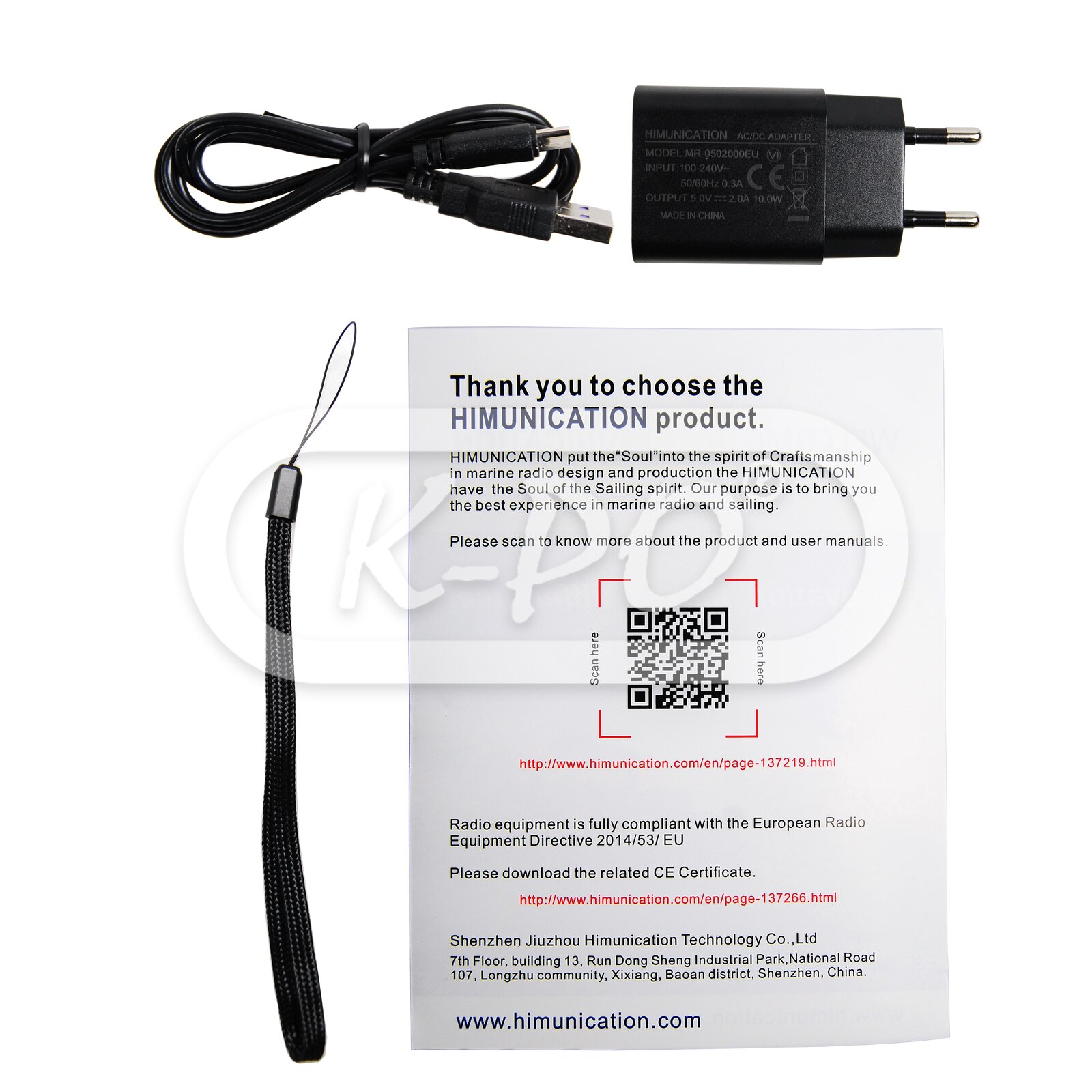

Inside the box

  • Transceiver: Yes
  • Battery: Li-ion 4000 mAh
  • Charger: C-type USB charging cable (can used for programming too)
  • Wrist strap: Yes
  • Installation manual: English
  • Hi-gain flexible antenna: Yes
  • Belt clip: Yes
