Himunication - TS18S AIS/DSC/GPS (ATIS)

Product code: 48019

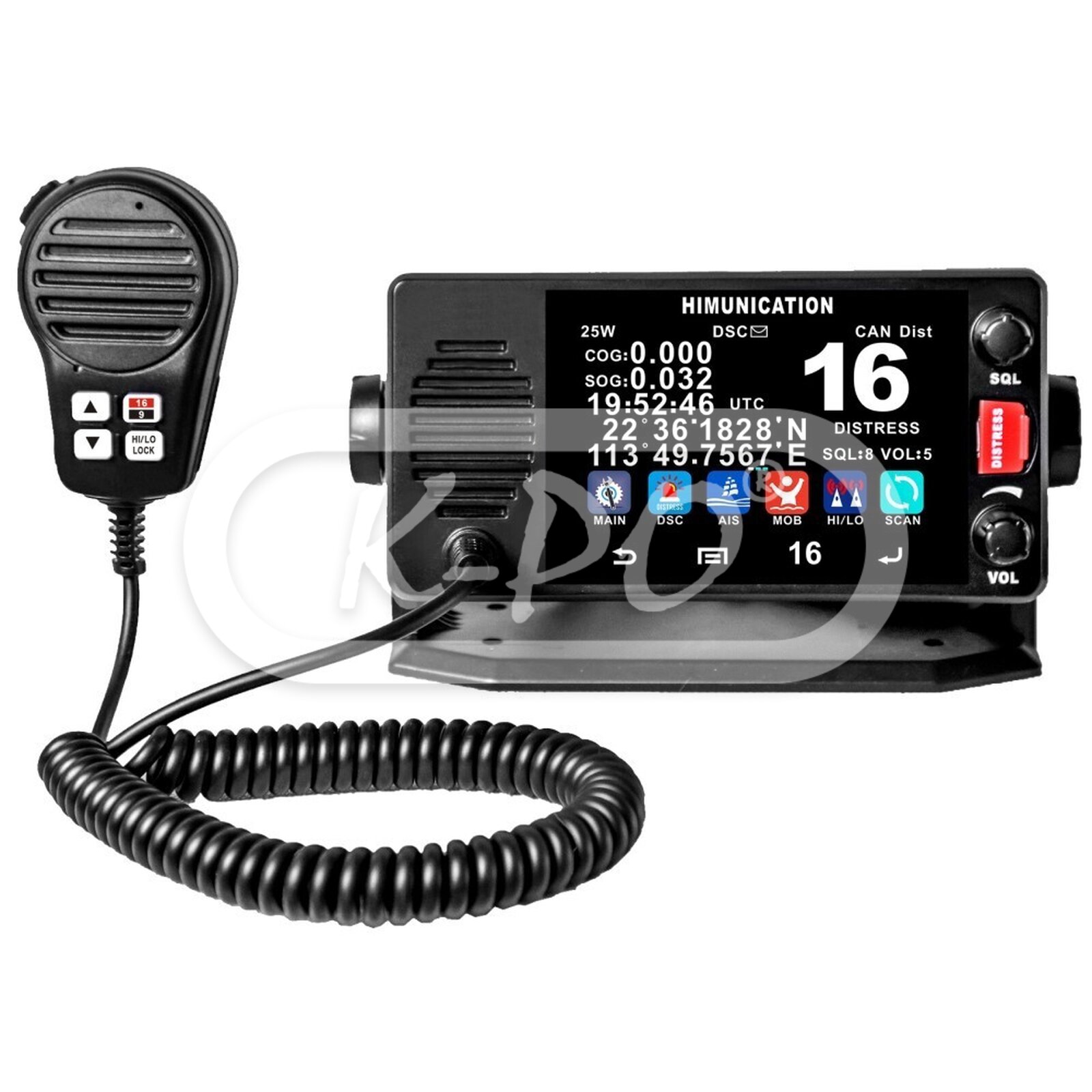

The Himunication TS18 is the first fixed smart touch-screen VHF DSC Class 'D' marine radio in the market. With integrated GPS receiver and connector for an optional external GPS antenna. ATIS one time programmable by keypad.

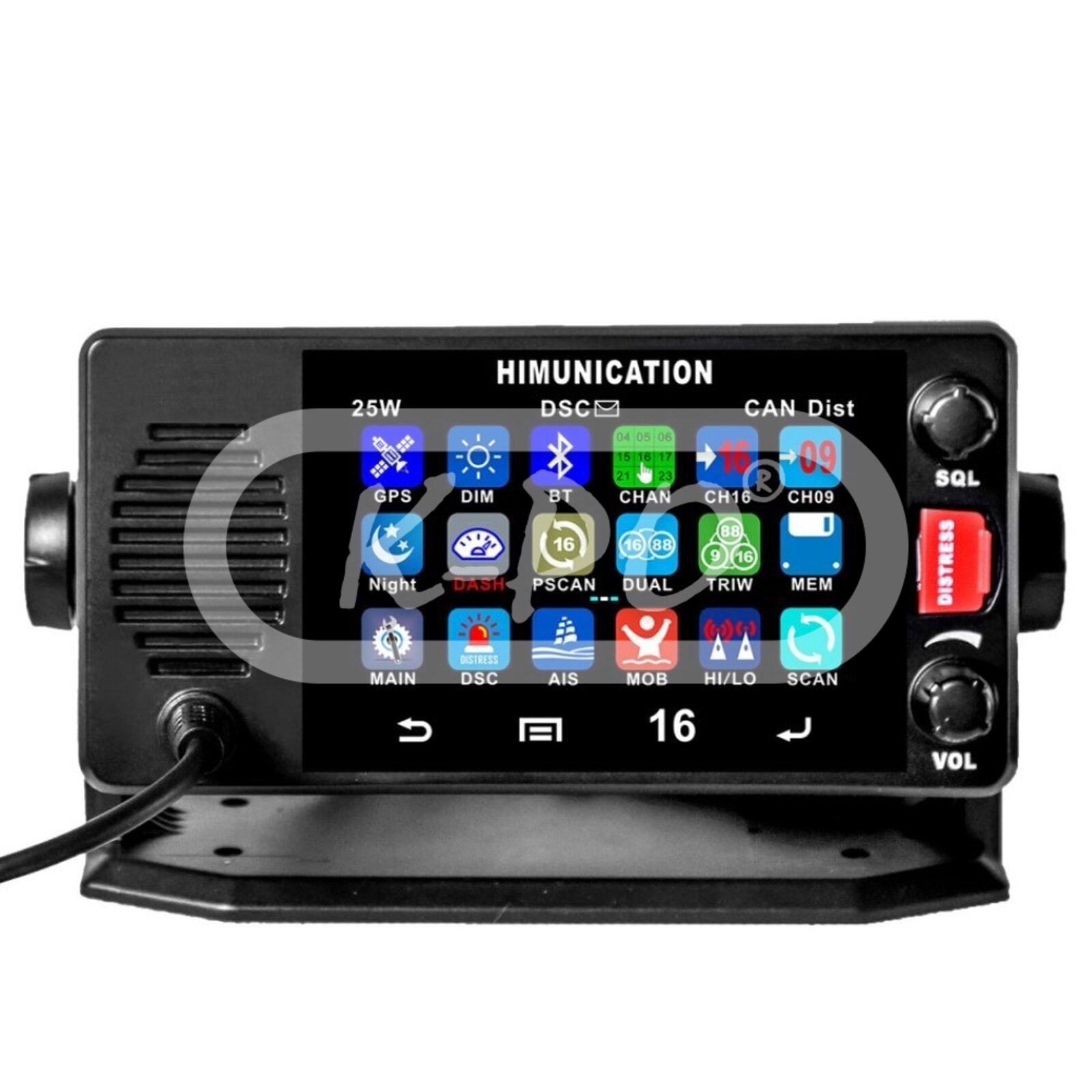

The TS18 radio is equipped with a 4.3 inch HD touch-screen LCD, on which clearly shows all the function icons one by one, for example VHF, PSCAN, DSC, MOB, AIS, Fog-Anchor alarm etc. All are very simple and convenient to achieve by clicking the screen, like a smart phone or tablet.

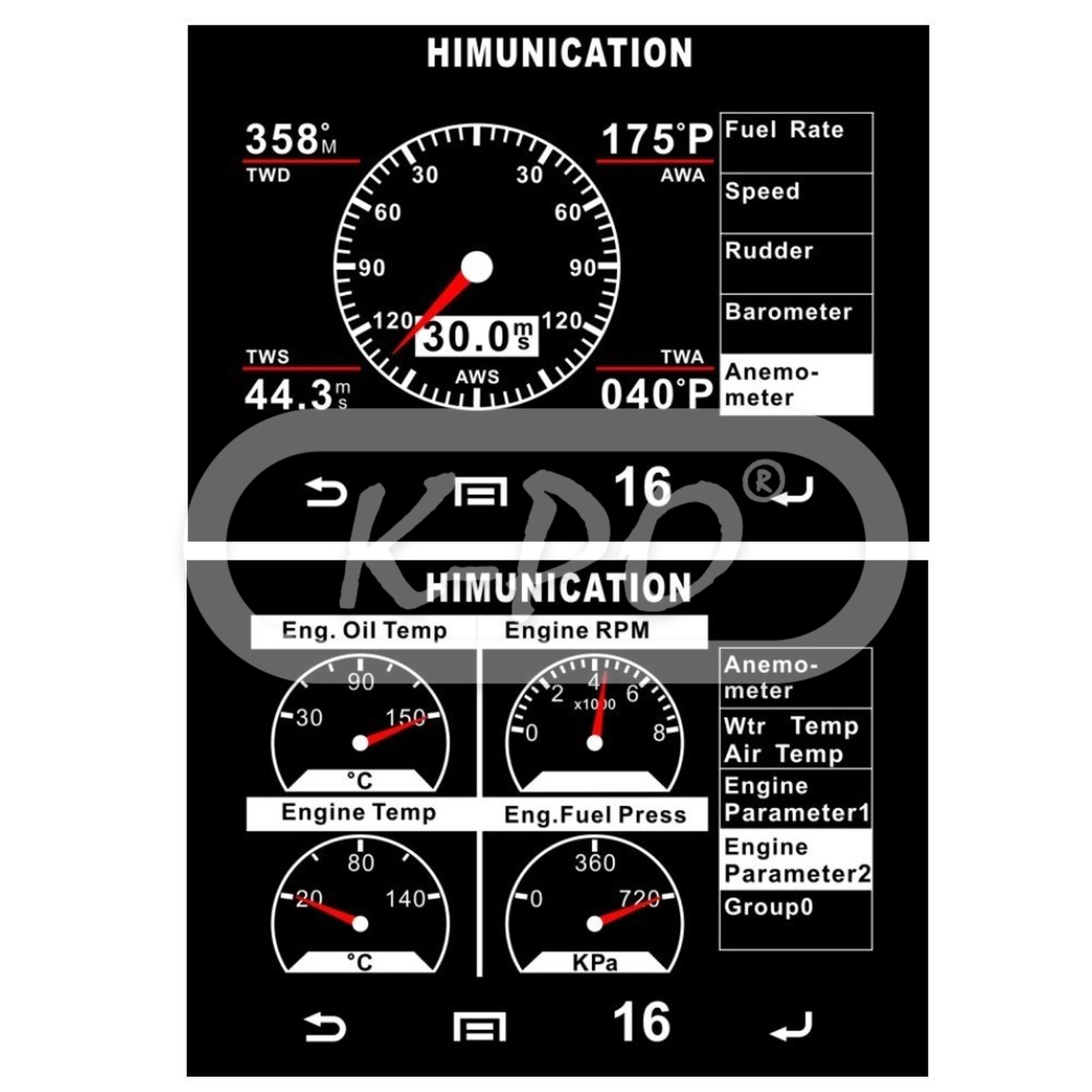

Besides the marine radio functions the TS18 display can show the marine instruments that are connected to the NMEA2000 network too. That means everyone can save the money of separate marine instruments and save the space on the dashboard.

Equipped with a large loudspeaker which greatly benefits the audio quality of the messages received.

In short, the TS18 is an excellent innovation for both marine communication and navigation industry, that will be a great pleasure for professional daily users who want to have a lot of extra features in a device together.

Frequency range: TX: 156.025 to 162.425 MHz / RX: 156.025 to 162.025 MHz
Shipped next business day
€380.12 (380.12 excl. 0% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Touchscreen 4.3 inch color TFT LCD (480x272 dots)
  • Bandwidth: TX: 156.025 to 157.425 MHz / RX: 156.300 to 162.000 MHz
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Automatic Identification System (AIS): Yes
  • Automatic Identification System (AIS) frequency: 161.975 MHz to 162.025 MHz
  • Automatic Identification System (AIS) channels: 2 dual channels
  • Distress key: Yes
  • ATIS: Yes, one-time programmable by keypad
  • Digital Selectivity Calling (DSC): Yes, Class 'D'
  • CH70: Yes, 156.525 MHz
  • GPS: Yes, built-in GPS receiver
  • GPS frequency: 2.401 - 2.480 GHz
  • COG & SOG: Yes
  • 1 / 25 Watts switchable power: Yes
  • Weather channel: Yes

Electrical data

  • Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55˚C

Transmitter

  • Power output (Watts): 1 / 25 Watts
  • Modulation: FM (16K0G3E) / DSC (16K0G2B)
  • Channel spacing: 25 KHz
  • Oscillate mode: PLL
  • Built-in speaker: Yes

Mechanical data

  • Length: 180 mm
  • Height: 91 mm
  • Width: 38 mm
  • Weight: 1000 gram

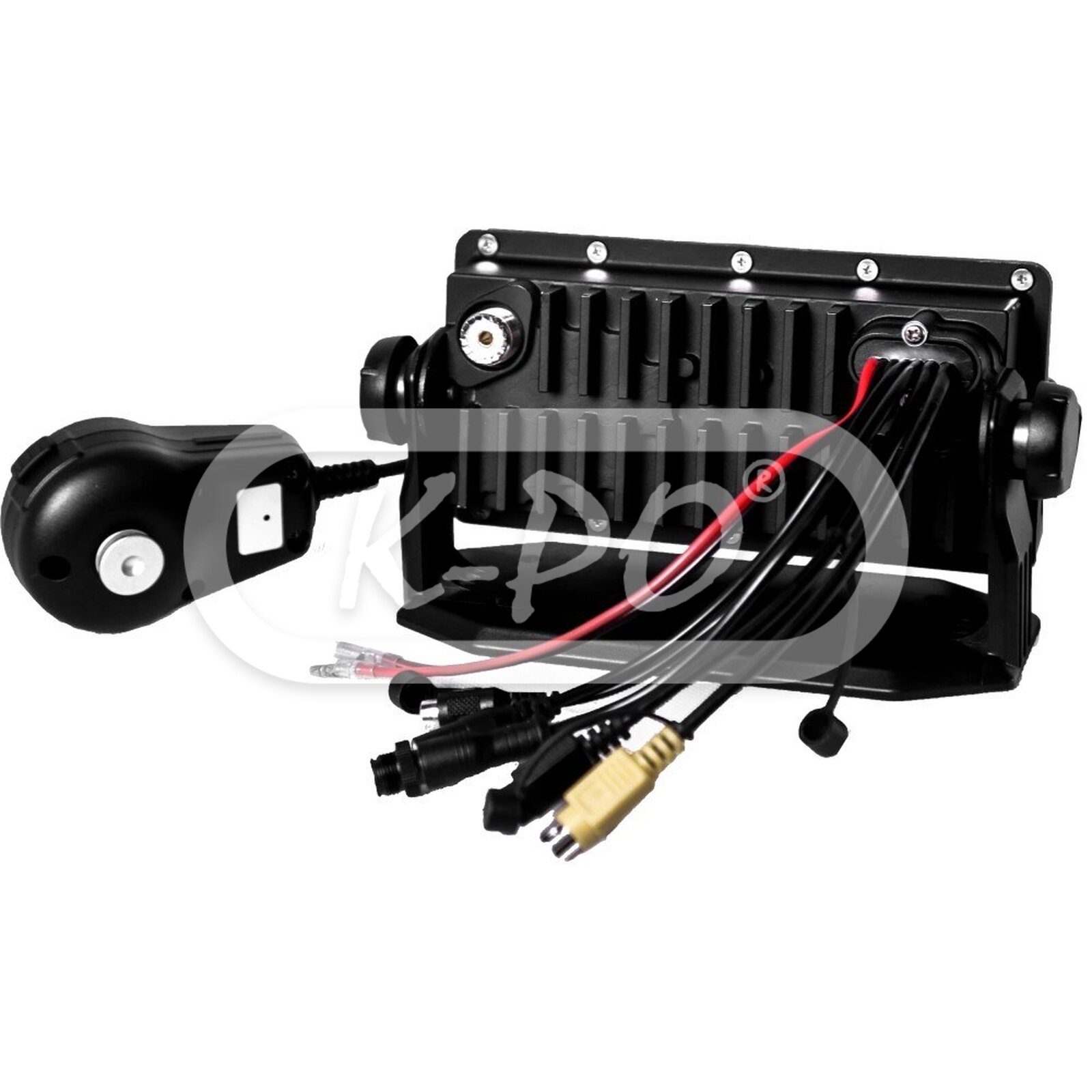

  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes

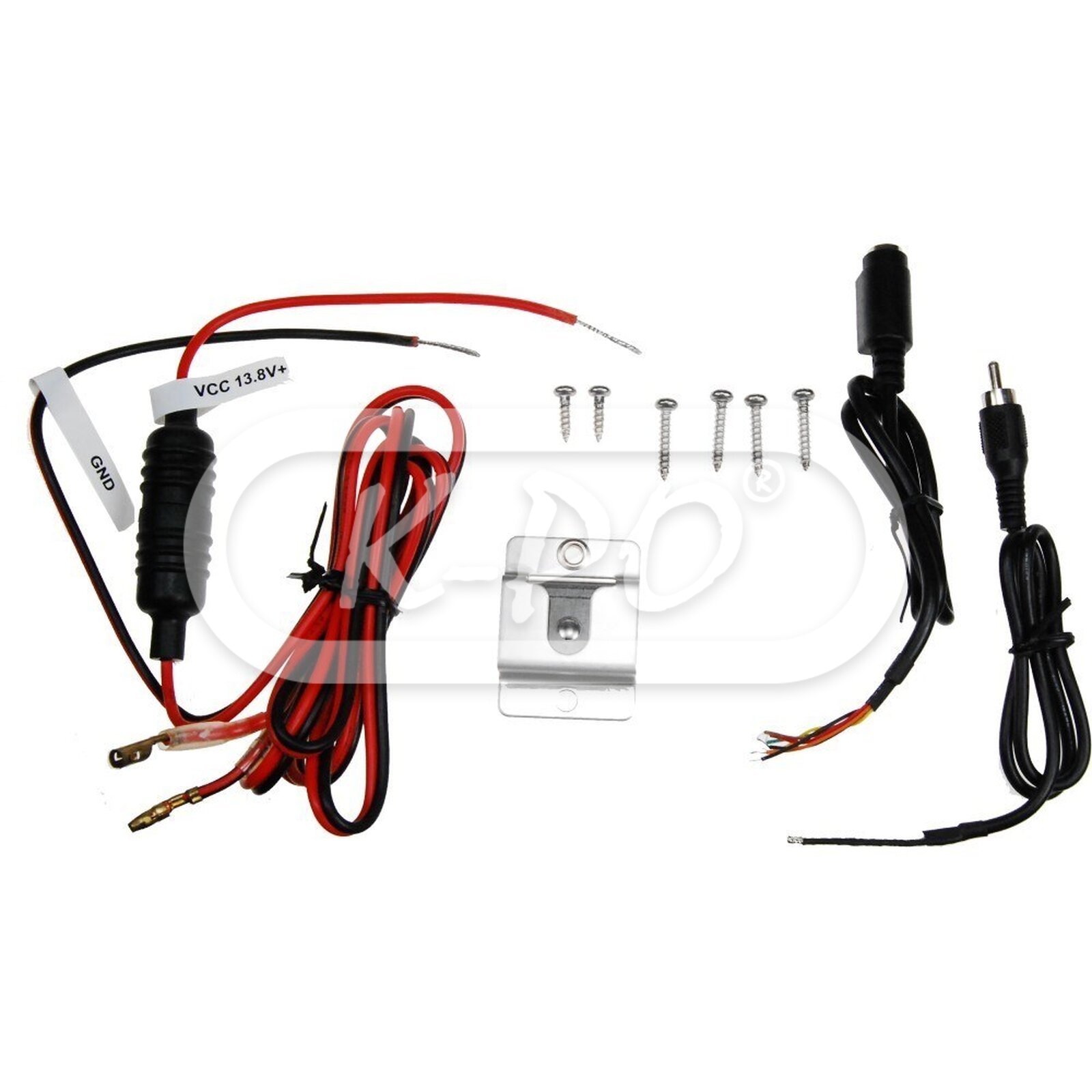

Inside the box

  • Transceiver: Yes

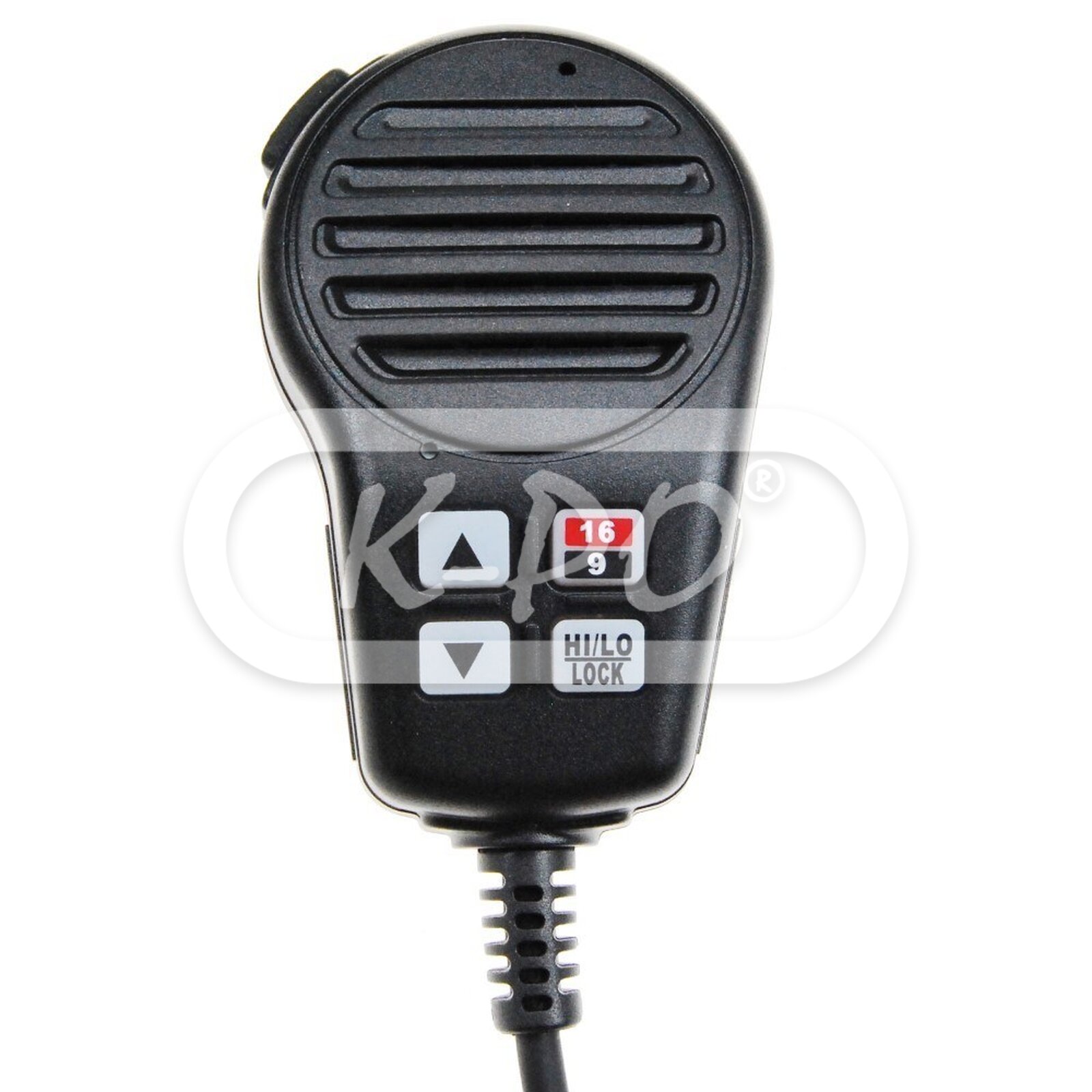

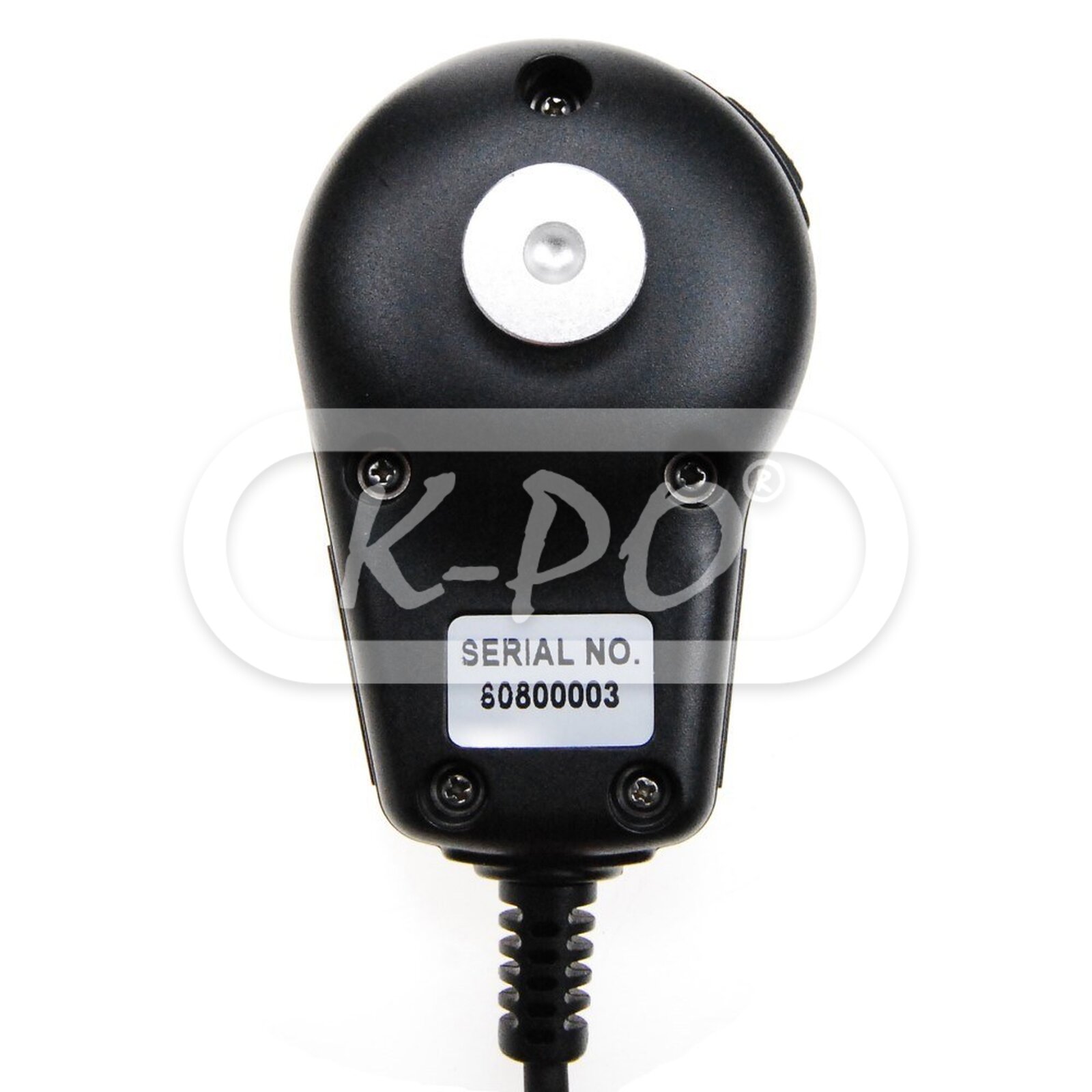

  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English
  • Microphone holder: Yes
