Himunication - TS19 DSC/GPS (ATIS)

Product code: 48020
Barcode: 6970344030206

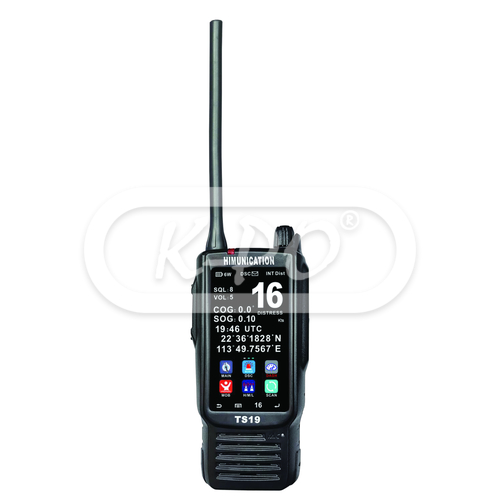

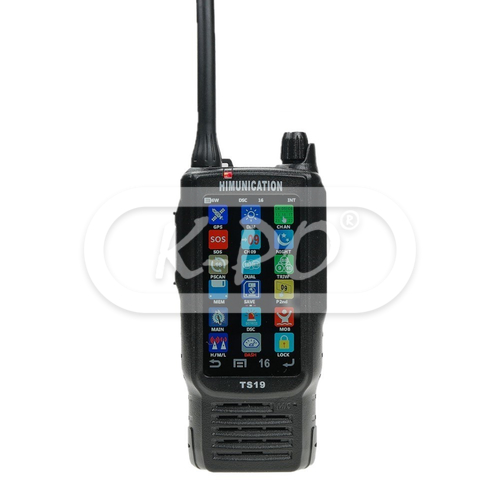

The Himunication TS19 is the first 3.5 inch high-definition touch-screen VHF handheld marine radio in the market. Touch-screen operation similar to a smartphone or tablet. Class 'H' DSC. ATIS one time programmable by keypad.

Can be used as stand alone VHF handheld marine radio or can be connected to the Himunication TS18 series or directly to the NMEA2000 network with the optional ‘small fish’ and ‘big fish’ dongles.

Built-in 2.4 GHz wireless data transmission module to communicate with the optional ‘small fish’ and ‘big fish' dongles.

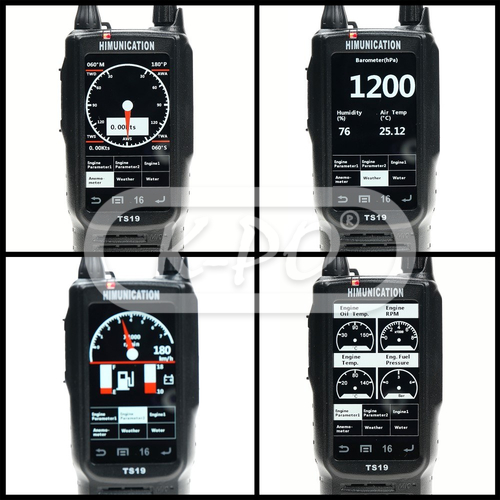

It can display the marine instrument data when connected to the TS18 series or NMEA2000 network.

It can display the AIS information when connected to the TS18S AIS.

DISTRESS high power forwarding function when connected to the TS18 series.

Frequency range: TX: 156.025 to 162.425 MHz / RX: 156.025 to 163.275 MHz
Out of stock - Longer delivery time
€479.95 (479.95 excl. 0% VAT)

Features

  • Float and flash: Yes
  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: 480x800 pixel bit mapped full touch screen LCD with backlight
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Distress key: Yes
  • ATIS: Yes, one-time programmable by keypad
  • Digital Selectivity Calling (DSC): Yes, Class 'H'
  • GPS: Yes, built-in GPS receiver
  • GPS frequency: 2.401 - 2.480 GHz
  • COG & SOG: Yes
  • Weather channel: Yes

Electrical data

  • Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
  • Frequency stability: ≤ ±5 kHz
  • Operating temperature (Celsius): -15 to +55 °C
  • Battery lifetime: With GPS/DSC on and 6W (TX 5% / RX 5% / Stand-by 90%) 8 Hours

Transmitter

  • Power output (Watts): 6 / 3 / 1 Watt
  • Modulation: FM (16K0G3E) / DSC (16K0G2B)
  • Channel spacing: 25 kHz
  • Oscillate mode: PLL
  • Built-in speaker: Yes

Mechanical data

  • Length: 170 mm
  • Height: 70 mm
  • Width: 50 mm
  • Weight: 350 gram
  • Antenna connector: SMA

Inside the box

  • Transceiver: Yes
  • Battery: Li-Polymer 2200 mAh

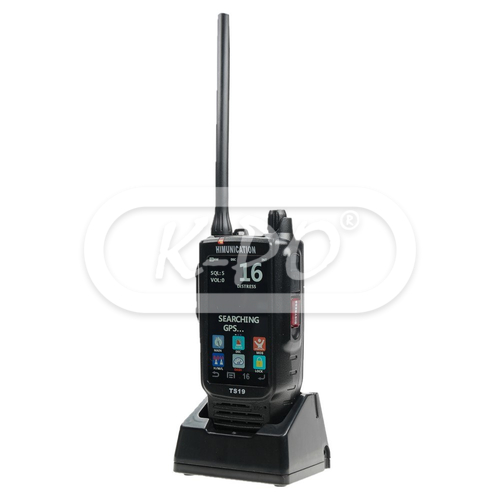

  • Charger: AC 100 - 240V / DC 12 V Desktop charger
  • Wrist strap: Yes
  • Installation manual: English, Dutch
  • Hi-gain flexible antenna: Yes
  • Belt clip: Yes
