JCD - 201M P8

Product code: 401201

Replaced by the JCD 201M P8 HF Proof, product code: 401203

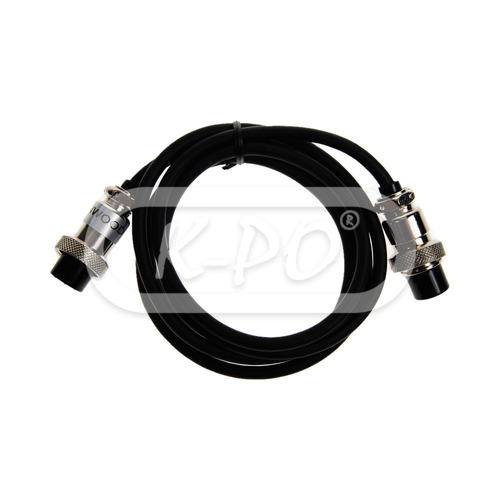

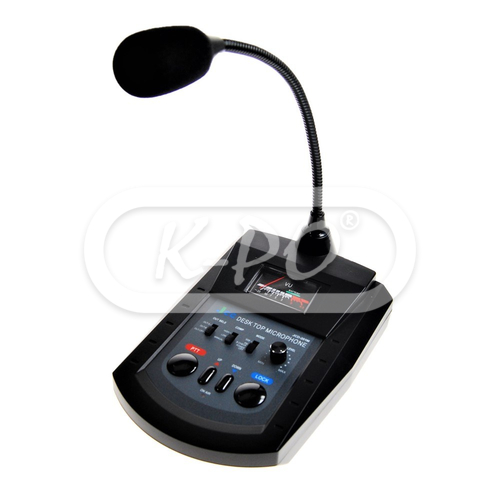

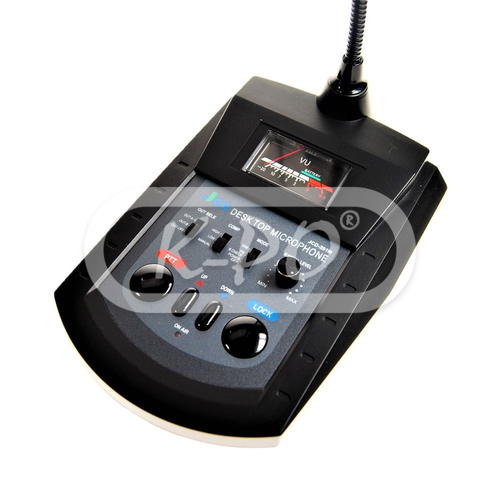

The JCD 201M 8P is a very solid desk microphone and will be delivered with a free adapter cable for standard Kenwood 8 pin radios. The JCD 201M has many functions to set and it is possible to connect 2 radios on the microphone. Separately are RJ45 adapter cables available for Icom, Yaesu, Alinco and Kenwood radios.

Always check carefully if your transceiver is compatible with your version of the JCD-201M microphone. We are not responsible for any damage caused due wrong usage (or wiring) of the microphone to your microphone or transceiver.

Note - Discontinued
€ -- (Discontinued)

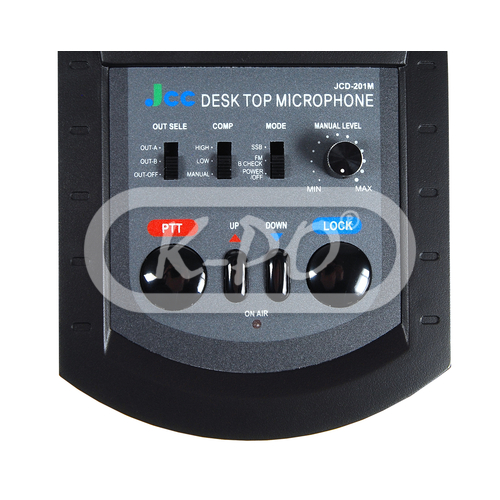

Features

  • Up down: Yes
  • Lock button: Yes
  • Echo Function: Yes
  • TX warning: Yes
  • Connector for optional PTT: Yes
  • Microphone type: Power microphone

Microphone wiring

  • Up: Pin 4
  • Down: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 8
  • DC: Pin 5
  • PTT: Pin 2
  • MIC GND: Pin 7
