K-PO - DG-103 K-PO - DG-103 K-PO - DG-103

K-PO - DG-103

Product code: 900501
Factory code: 900501
Barcode: 8718375101704

Replaced by the K-PO DG-103MAX, product code: 900502

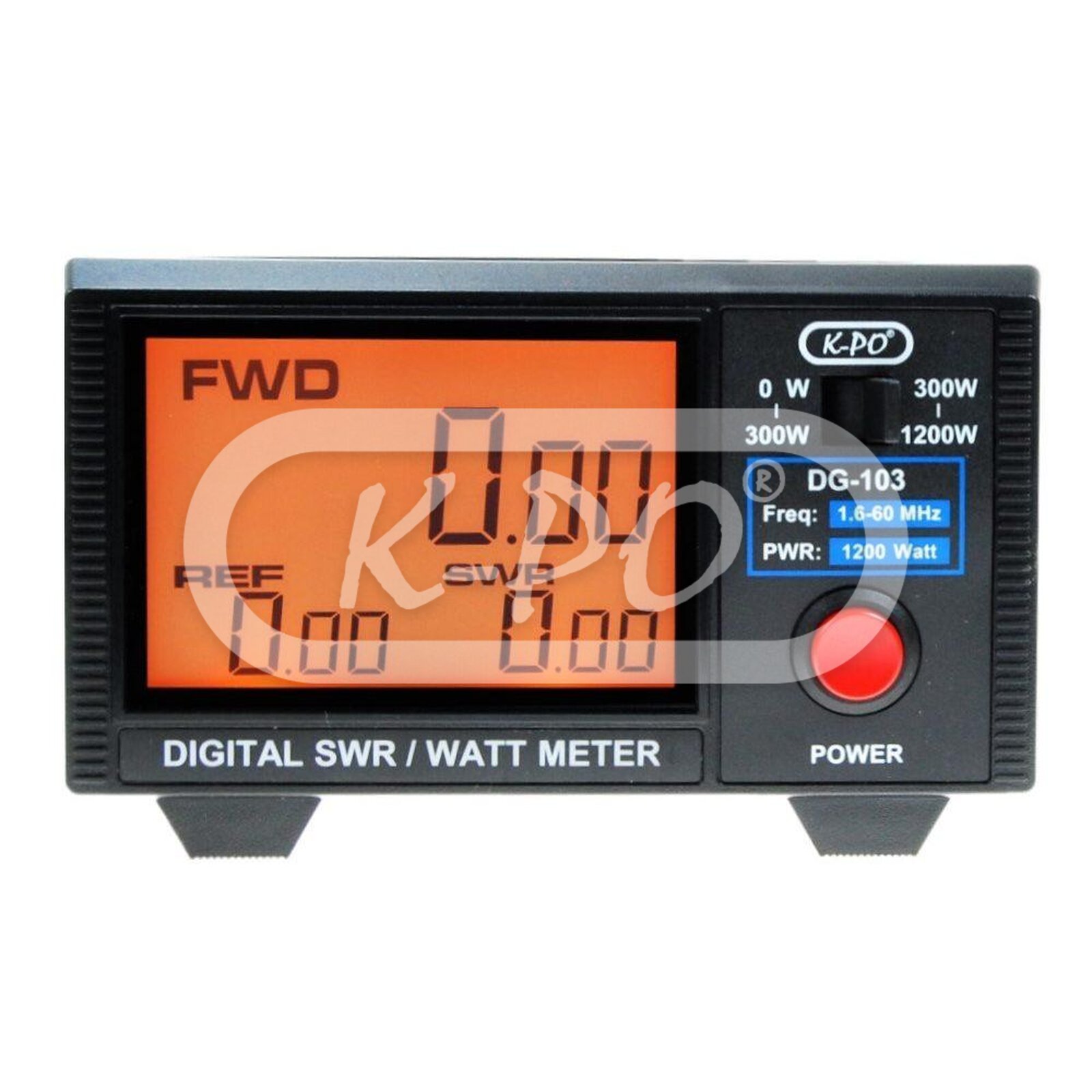

Newly designed digital HF meter with 1200 Watts power handling. Based on the popular K-PO DG-503N. Designed to operate between 1.6 to 60 MHz, with 5% power accuracy between 1.6 to 30 MHz. To measure Forward Power, Reflected Power and SWR.

For use with analogue and FDMA modulations. Digital meters don't always measure PEP / SSB modulations correctly, for that you need an analogue meter with PEP function.

Made by Nissei, Taiwan.

Frequency range: 1.6 - 60 MHz
Note - Discontinued
€ -- (Discontinued)

Electrical data

  • Backlight display / meter: Yes, LCD display
  • Impedance: 50 Ohm
  • Power range: 300 mW - 300 Watts / 300 - 1200 Watts
  • Accuracy: 1.6 - 30 MHz: ±5% / 30 - 60 MHz: ±10-15%
  • Minimum Power for SWR: 300 mW
  • Insertion loss: 0.1 dB
  • Testing function: SWR and Power (FWD and REF)
  • Voltage: 13.8 Volt

Mechanical data

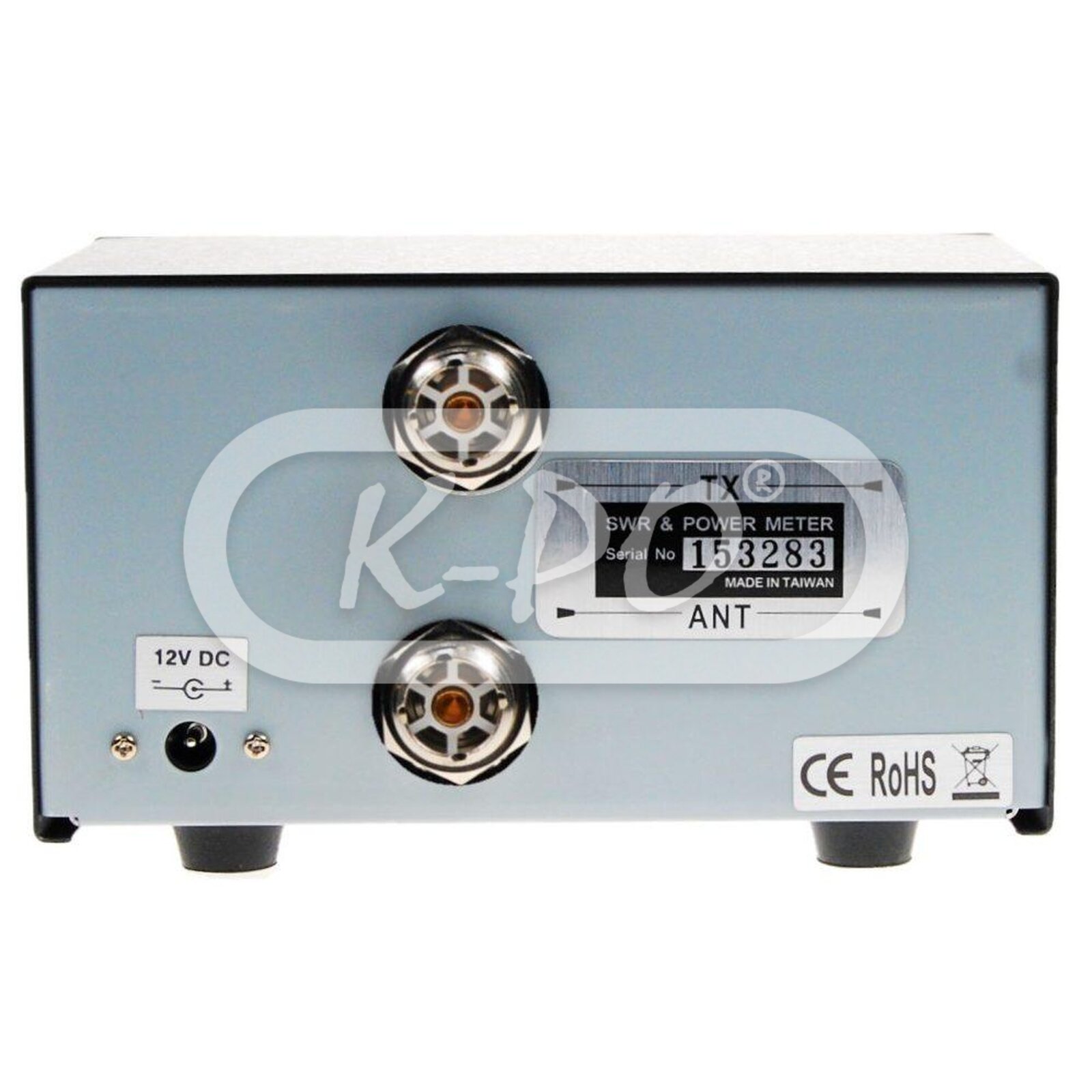

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 140 mm
  • Height: 84 mm
  • Width: 122 mm
  • Weight: 750 gram

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
