K-PO - Flex 3 Spring NGP

Product code: 300811
Factory code: 300811
Barcode: 8781375102125

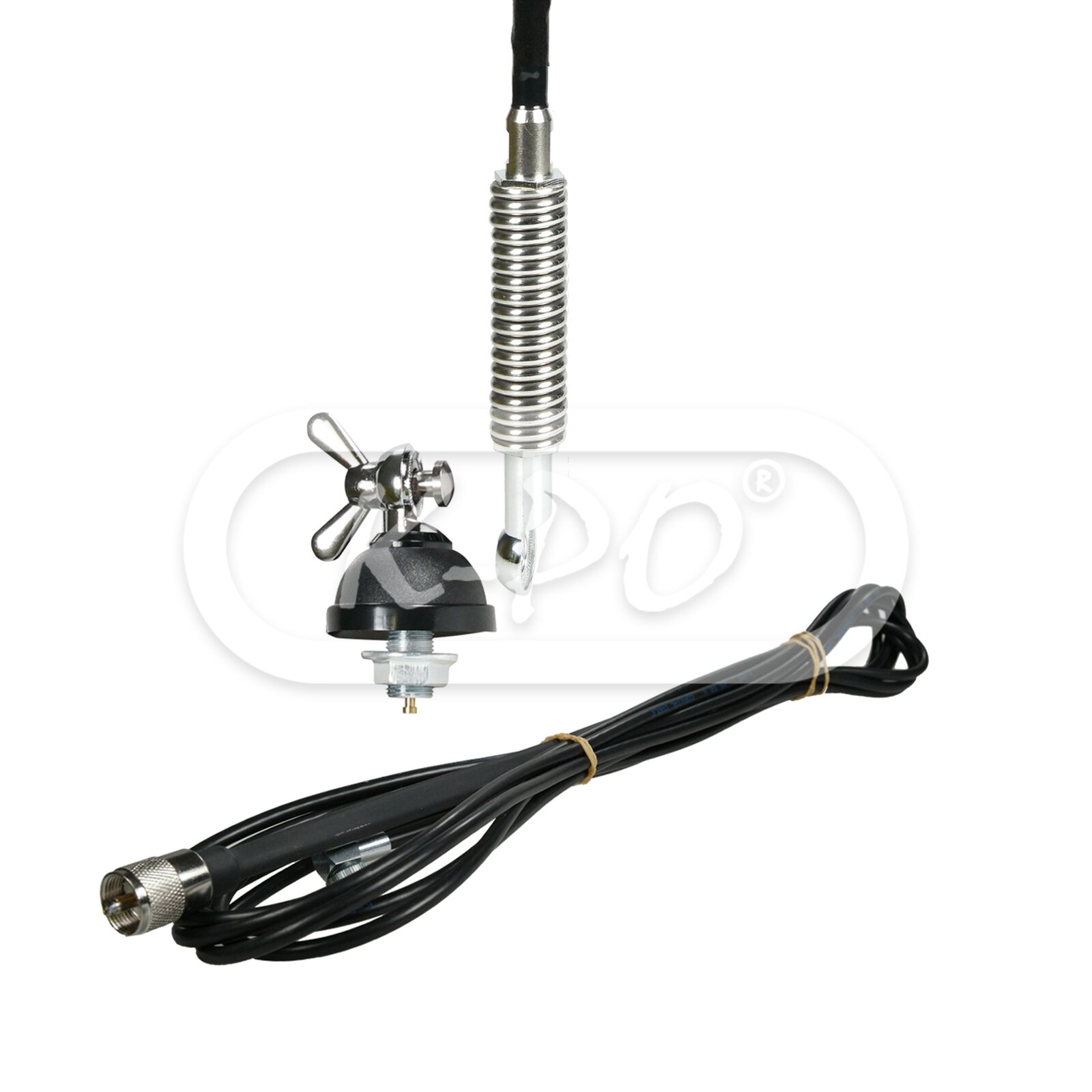

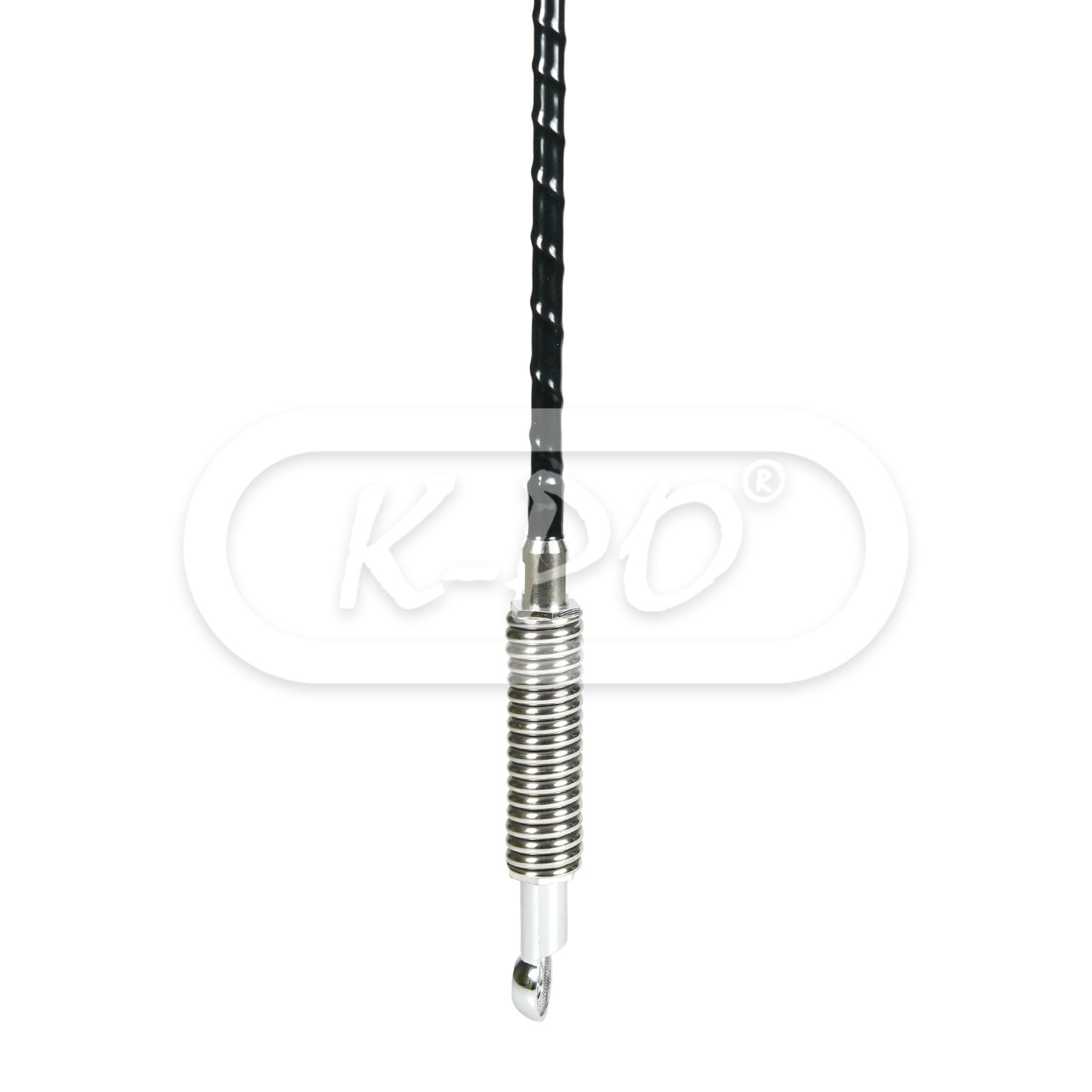

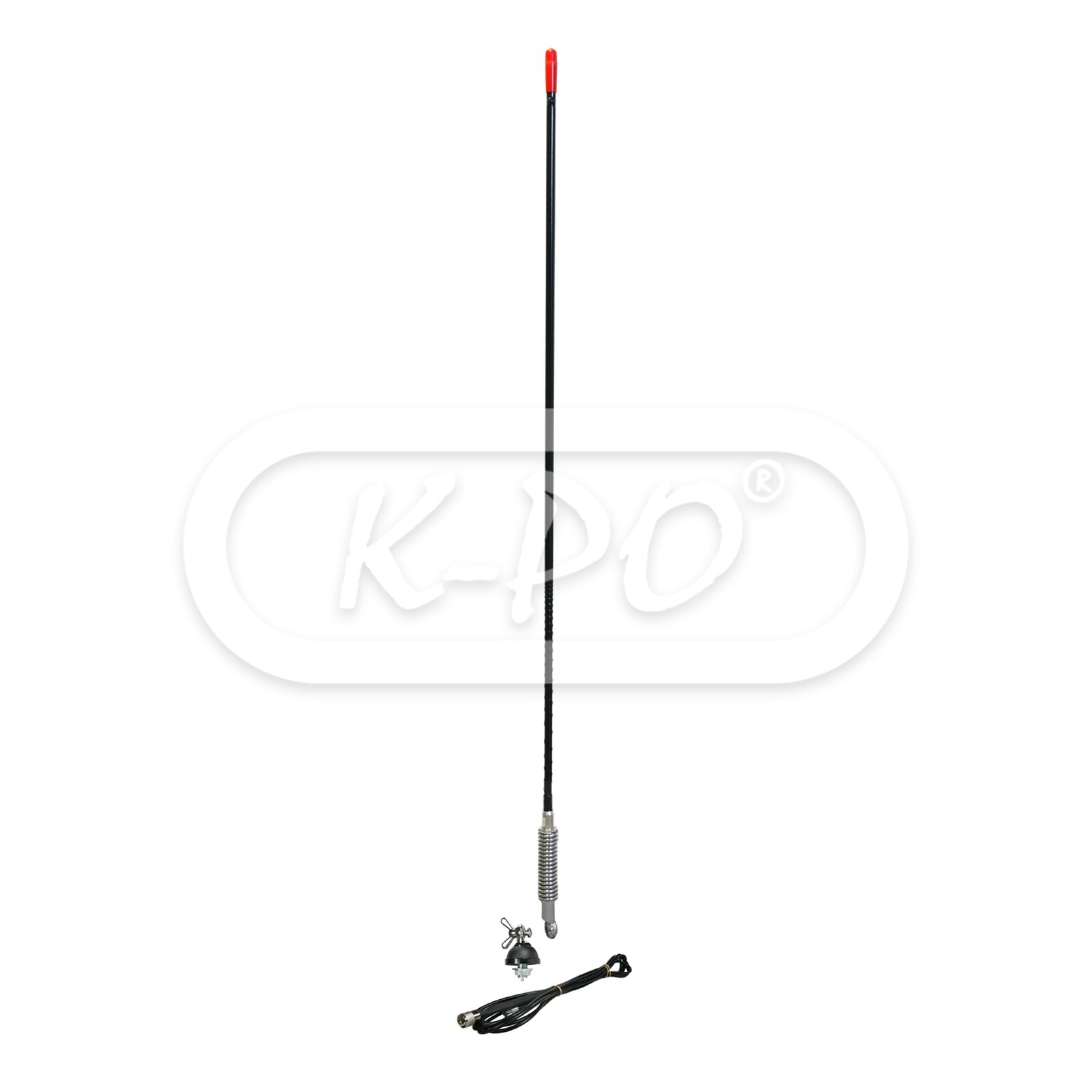

A flexible high power no ground plane antenna with spring and DV mount. Can be placed on plastic surfaces or any other surfaces that don't give enough ground to the antenna. Can be used on agricultural machines, trucks, campers, 4x4 and others.

Frequency range: 26.9 - 27.4 MHz
Shipped next business day
€74.34 (74.34 excl. 0% VAT)

Electrical data

  • Electrical type: Logarithmic loaded
  • VSWR: ≤ 1.4
  • Power continues: 100 Watts (CW)
  • Power peak: 300 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 5.15 meter / RG 58

Mechanical data

  • Materials: Copper, chromed brass, fiberglass
  • Height: 1030 mm
  • Weight: 155 gram
  • Mounting type: Thru-hole

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
