K-PO - RG 58 CU H.Q. K-PO - RG 58 CU H.Q.

K-PO - RG 58 CU H.Q.

Product code: 4075

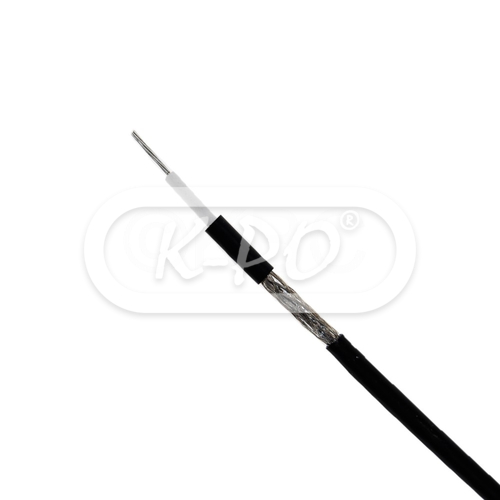

The K-PO RG 58 CU H.Q. is a high quality coax cable with CPR/ECA classification.

100 meter on roll.

Out of stock - Longer delivery time
€79.94 (66.07 excl. 21% VAT)

Features

  • Plain copper inner conductor: 19 x 0,18 mm
  • Low density polyethylene dielectric: ø 2.95 ± 0.10 mm
  • Percentage coverage: 75%
  • Non-contaminating polyvinyl-chloride sheath: ø 5.00 ± 0.10 mm
  • Sheath color: Black - RAL 9004
  • Copper weight: 1.15 kg (100m)
  • Cable weight: 3.37 kg (100m)
  • Impedance: 50 Ohm
  • Capacitance: 100 pF/m
  • Velocity ratio: 66%
  • Inner conductor resistance: 36.5 Ohm/km
  • Temperature range: -30°C to +70°C
  • Tinned copper outer conductor: 96 x 0,10 mm

    Attenuations dB/100m

  • 5 MHz: 2.7 dB
  • 10 MHz: 4.1 dB
  • 50 MHz: 9.7 dB
  • 100 MHz: 14.0 dB
  • 200 MHz: 20.5 dB
  • 400 MHz: 30.2 dB
  • 500 MHz: 34.5 dB
  • 600 MHz: 38.3 dB
  • 800 MHz: 45.5 dB
  • 1000 MHz: 52.3 dB
