K-PO - Switch wire P6

Product code: 5600
Factory code: 5600

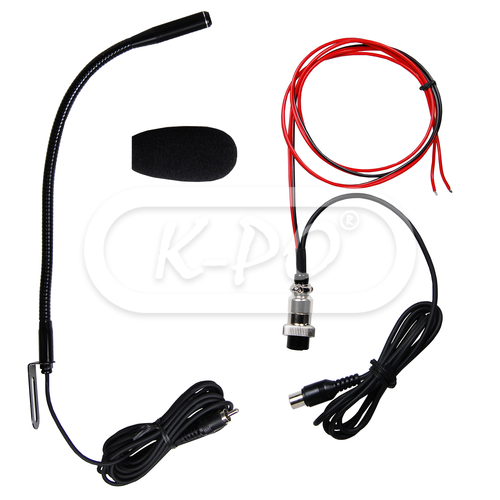

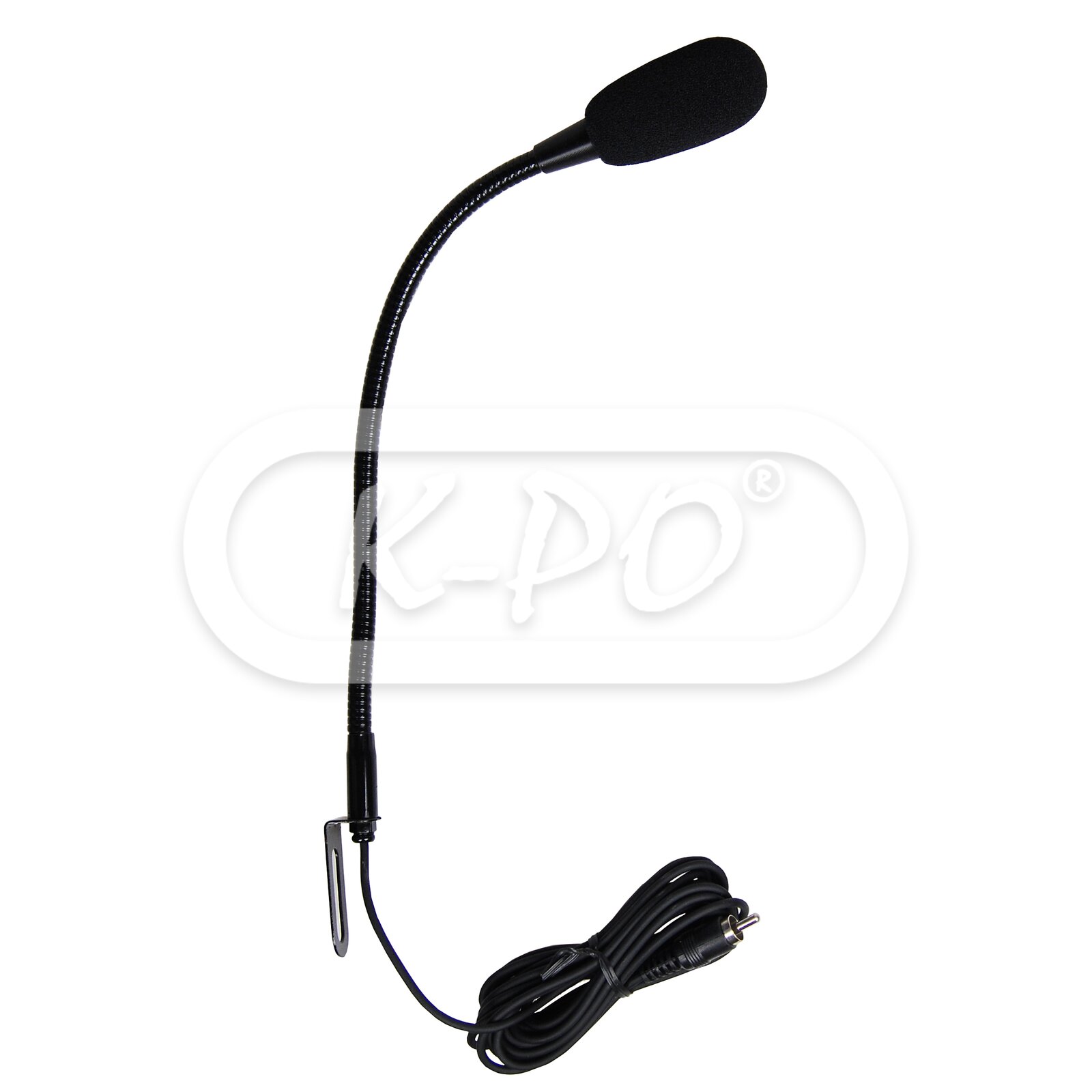

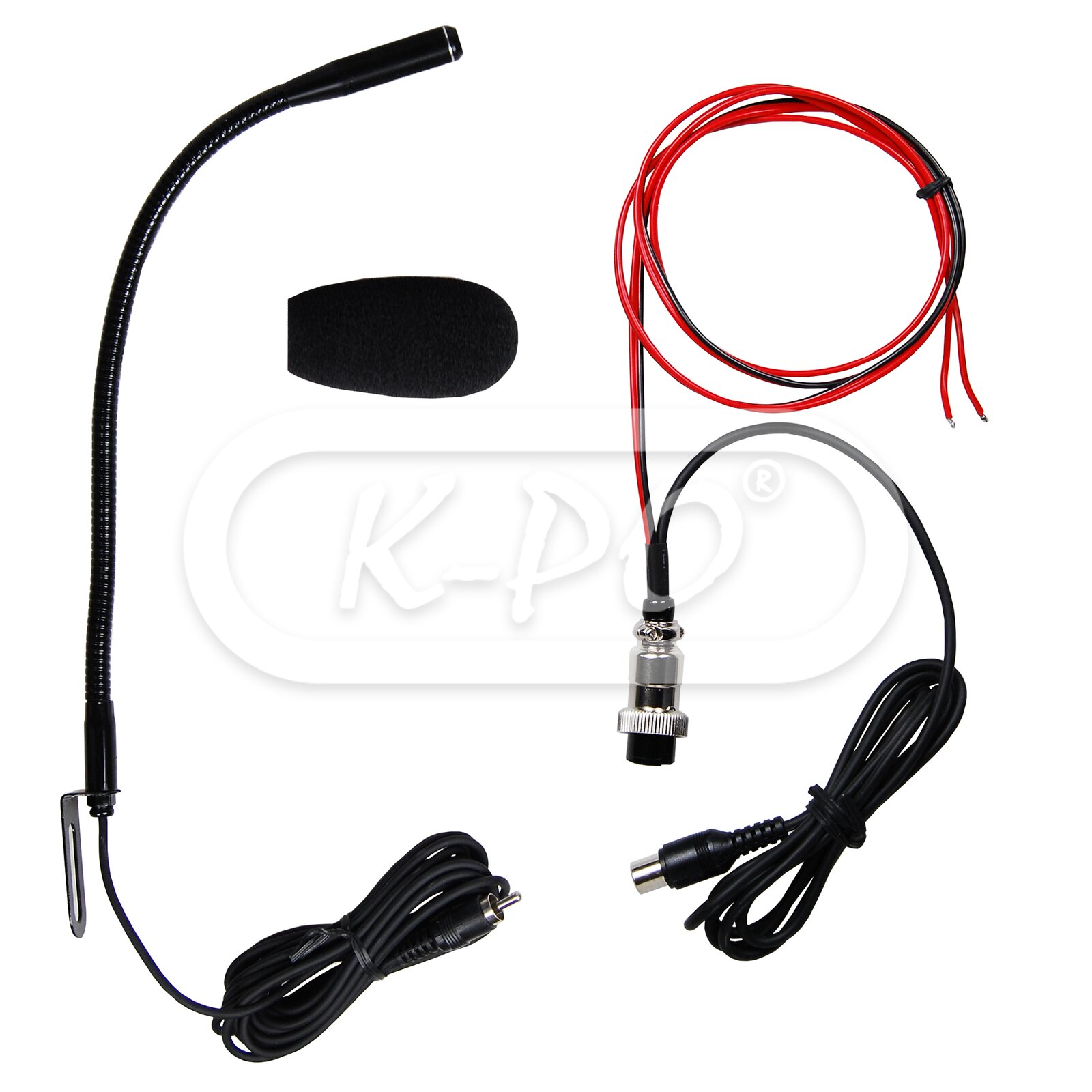

The K-PO switch wire with Gooseneck microphone can be used to make your own semi-handsfree kit. It can be connected to any free joystick button or to a foot pedal in your truck, crane, tractor, excavator or any other machinery.

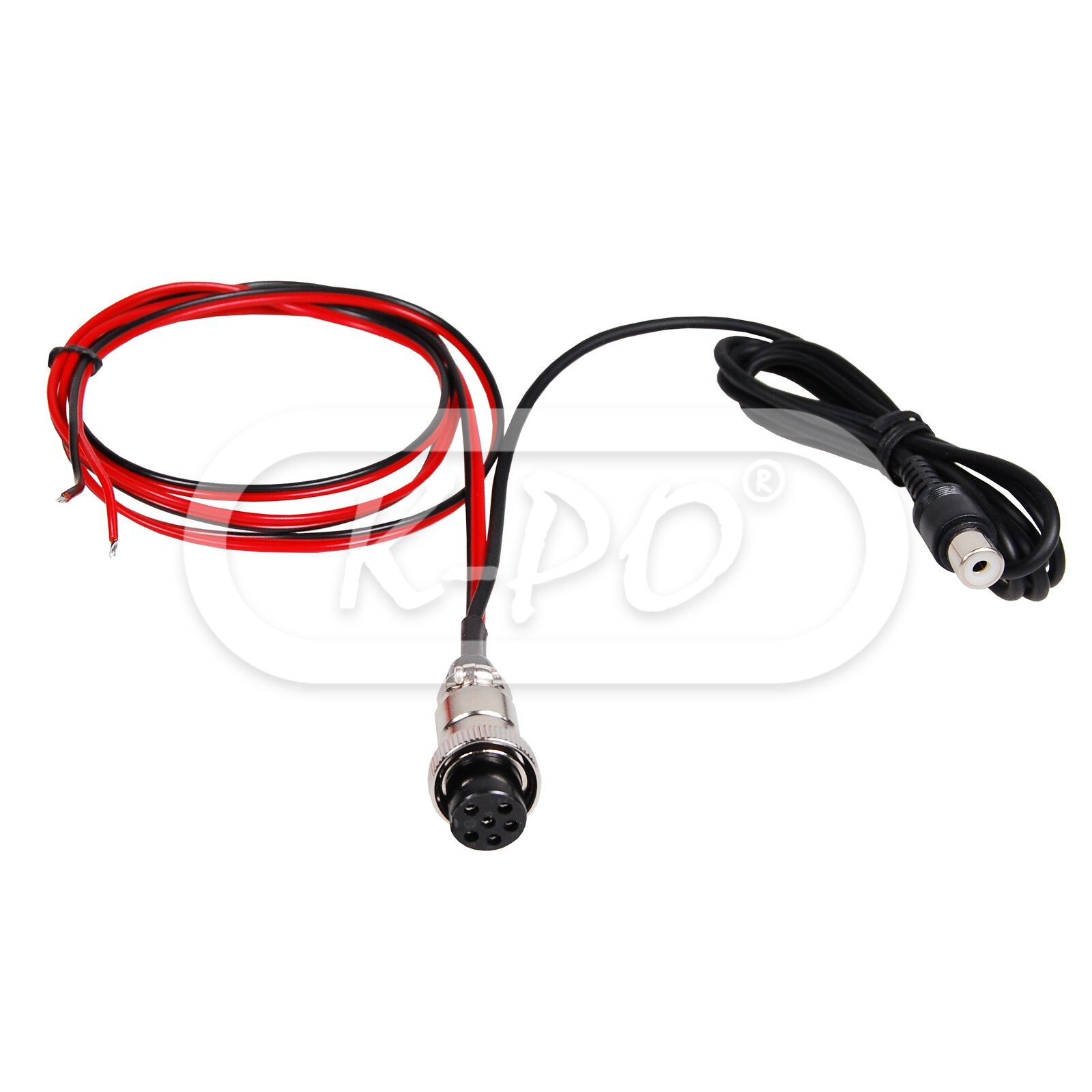

The 6-pin connector is standard wired for direct use with Midland and President 6-pin radios.

Contact us for the installation details.

Shipped today
€66.07 (66.07 excl. 0% VAT)

Features

  • Suitable for: Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Bill II ASC / President Grant II ASC / President Harrison II ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson ASC / President Johnson II / President Johnson II VOX / President Martin ASC / President MC Kinley / President Richard / President Ronald / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Walker / President Walker II ASC /
  • Gooseneck microphone: Yes
  • Switch wire: Yes
  • Microphone type: Handsfree microphone

Mechanical data

  • Microphone connector: 6-pin
  • Switch wire: 100 cm

Microphone wiring

  • Receive: Pin 2
  • Transmit: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 5
