K-PO - T3 NGP

Product code: 300800
Factory code: 300800
Barcode: 8718375101414

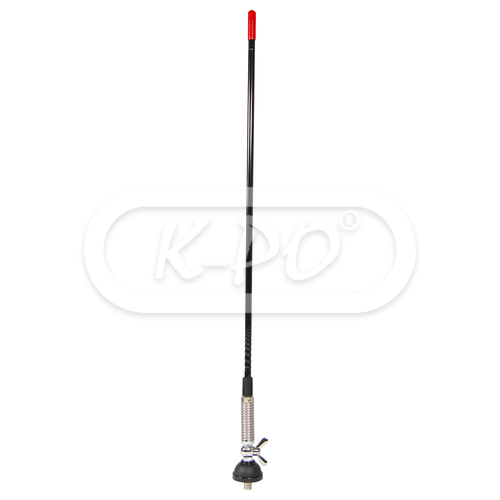

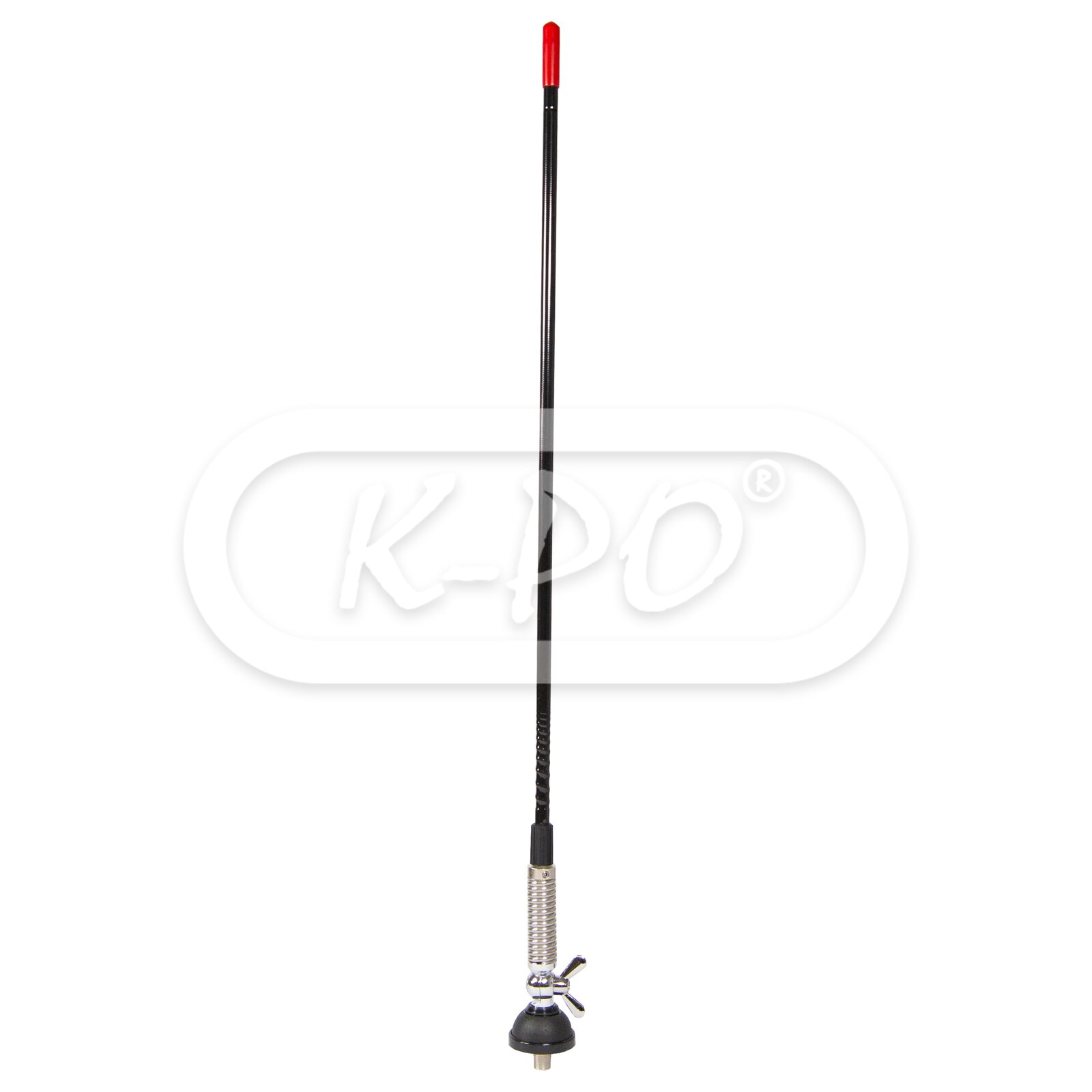

Together with the K-PO New KBC 27 NGP one of the most used no ground plane antennas. Can be placed on plastic surfaces or any other surface that don't give enough ground to the antenna. Can be used on agricultural and construction machines, trucks, campers, 4x4 and others.

Frequency range: 26.9 - 27.4 MHz
Shipped next business day
€66.07 (66.07 excl. 0% VAT)

Electrical data

  • Electrical type: Logarithmic loaded
  • VSWR: < 1.4
  • Bandwidth: 700 kHz
  • Power continues: 20 Watts (CW)
  • Power peak: 100 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes

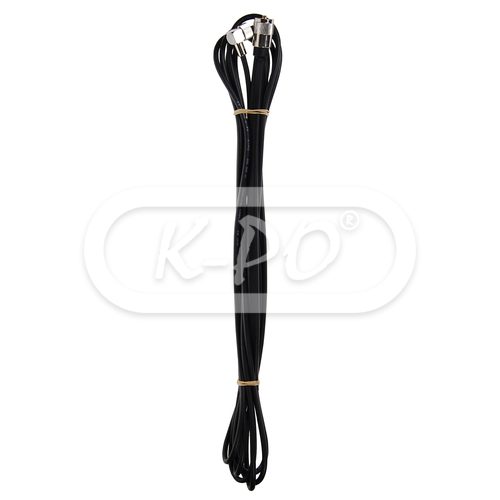

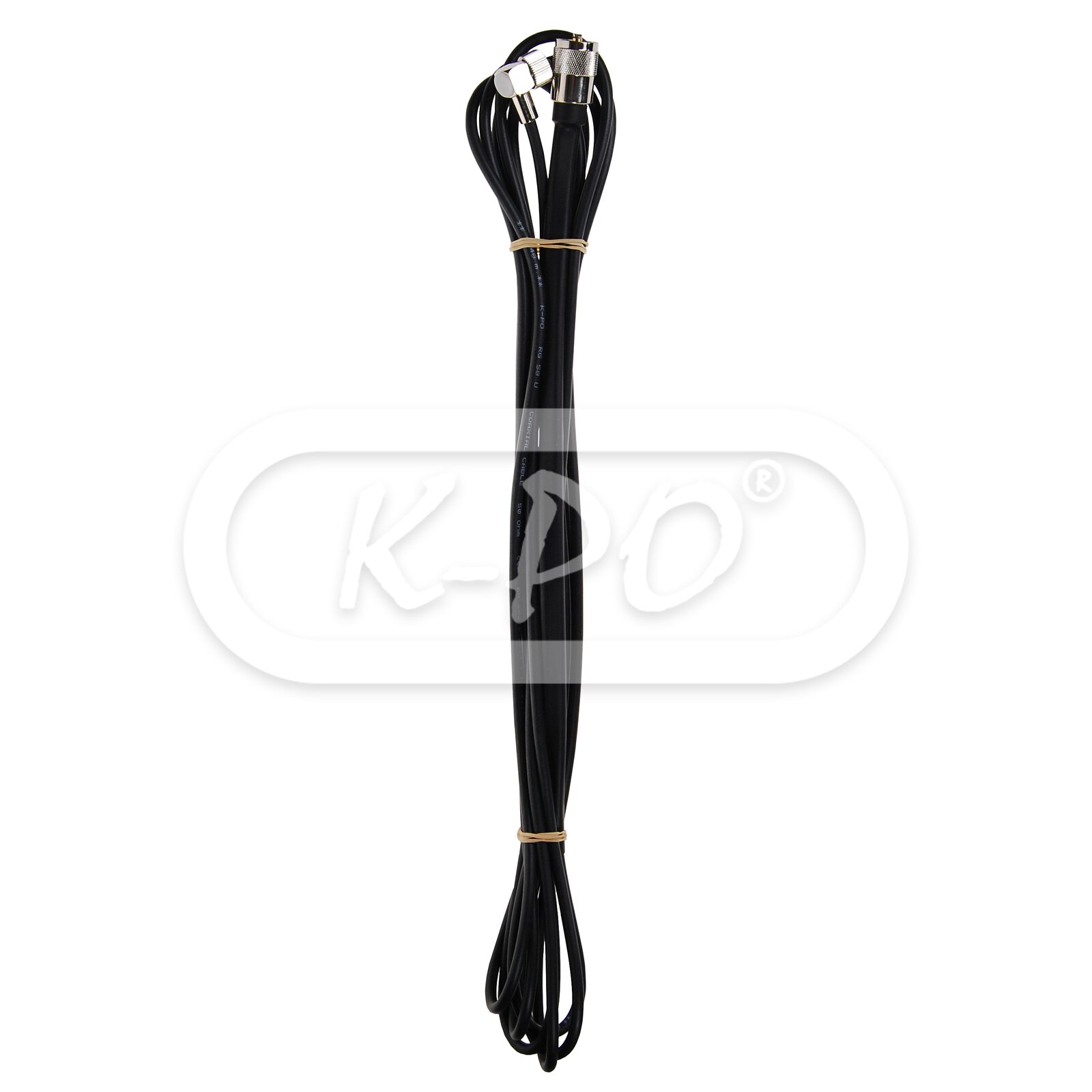

  • Cable length: 5.15 meter / RG 58

Mechanical data

  • Materials: Brass, stainless steel, nylon
  • Height: 620 mm
  • Weight: 400 gram
  • Mounting type: Thru-hole

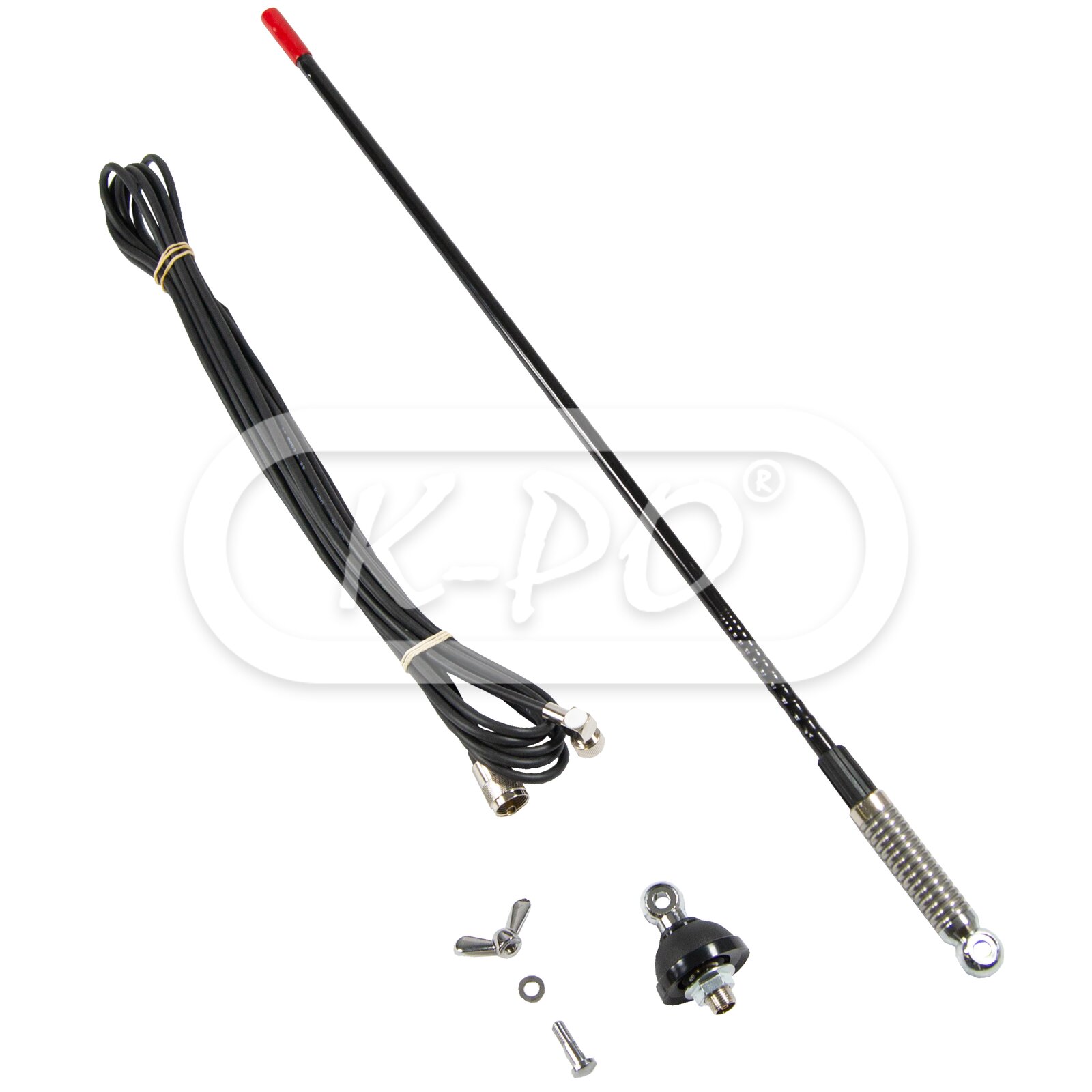

Inside the box

  • Antenna: Yes

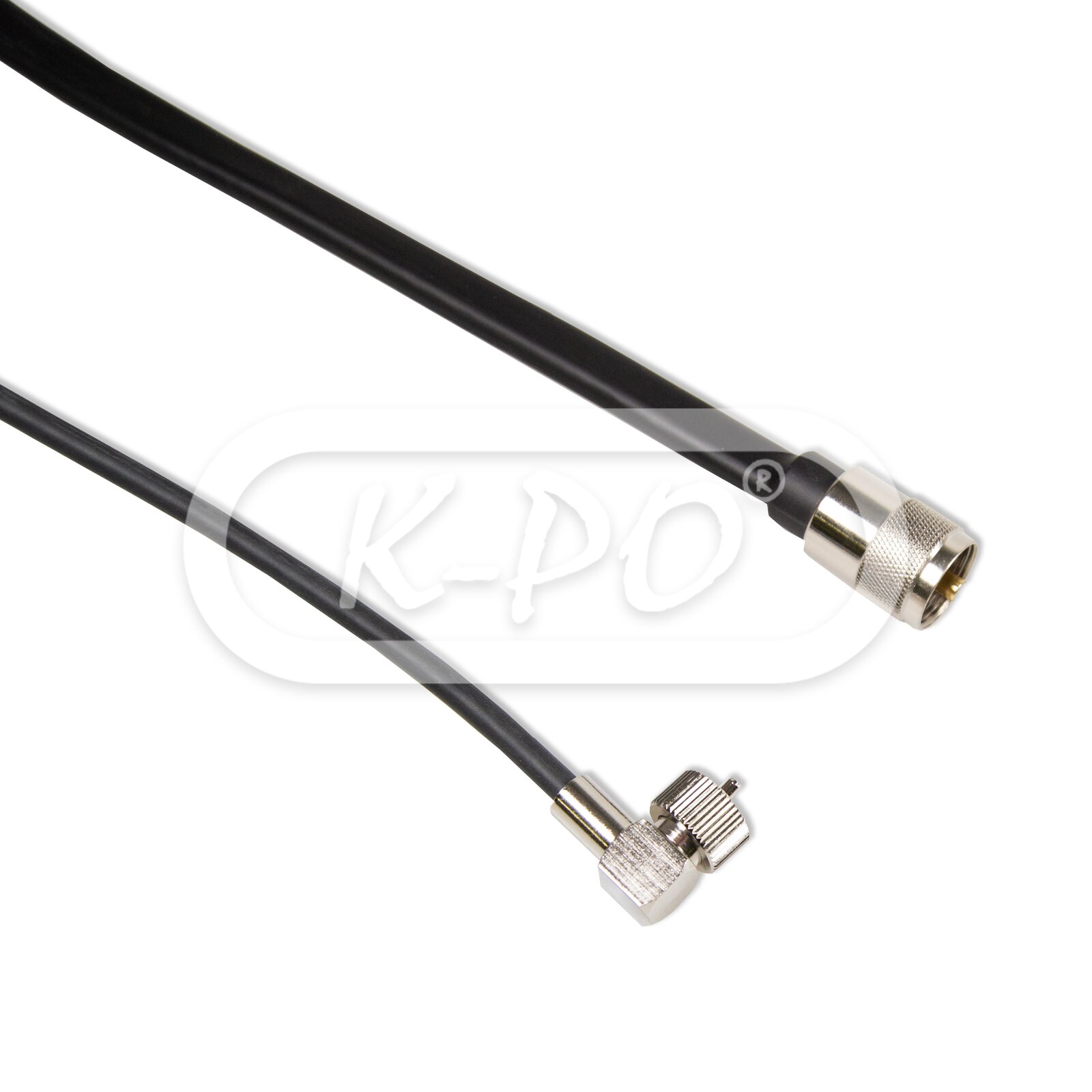

  • Radio connector: UHF-male (PL)

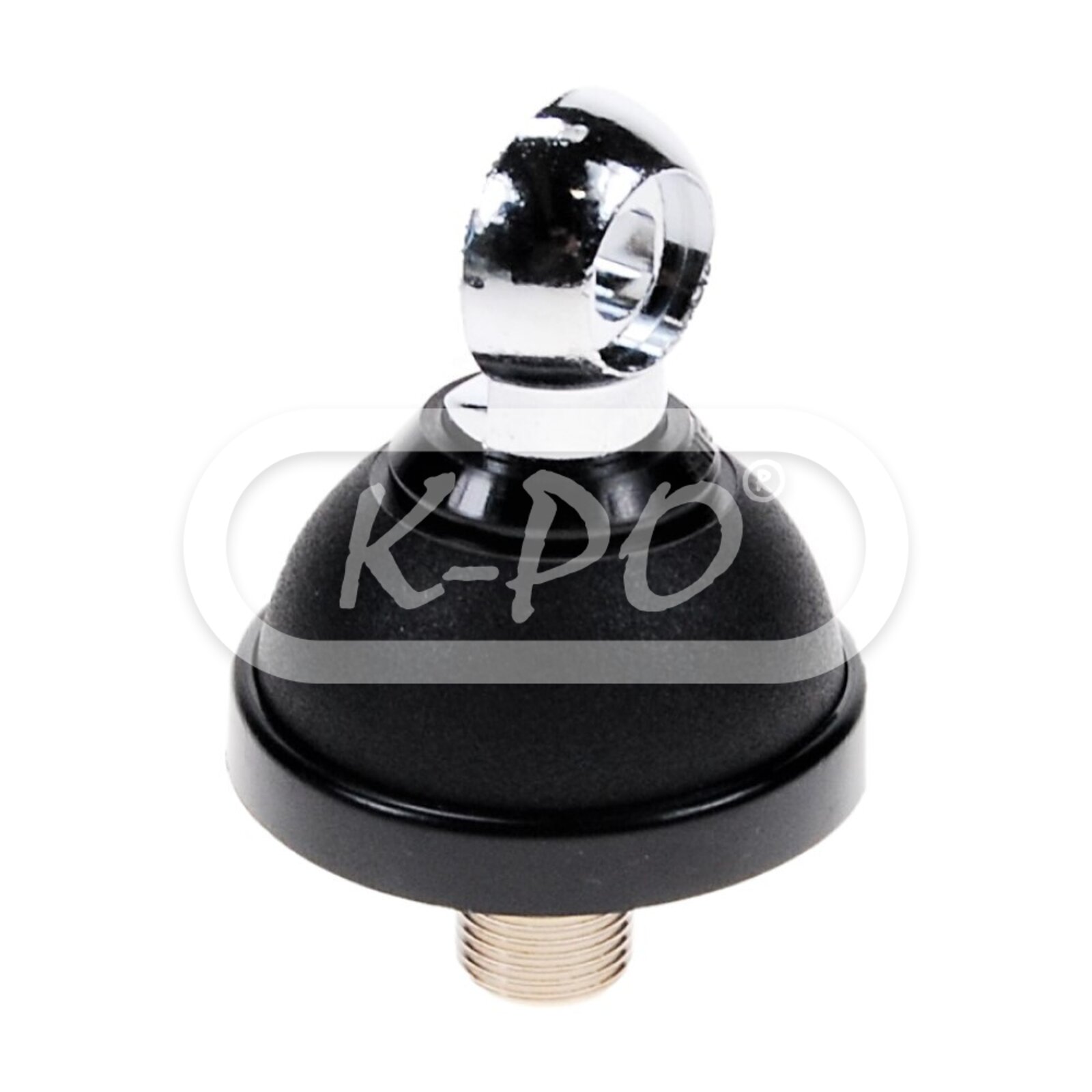

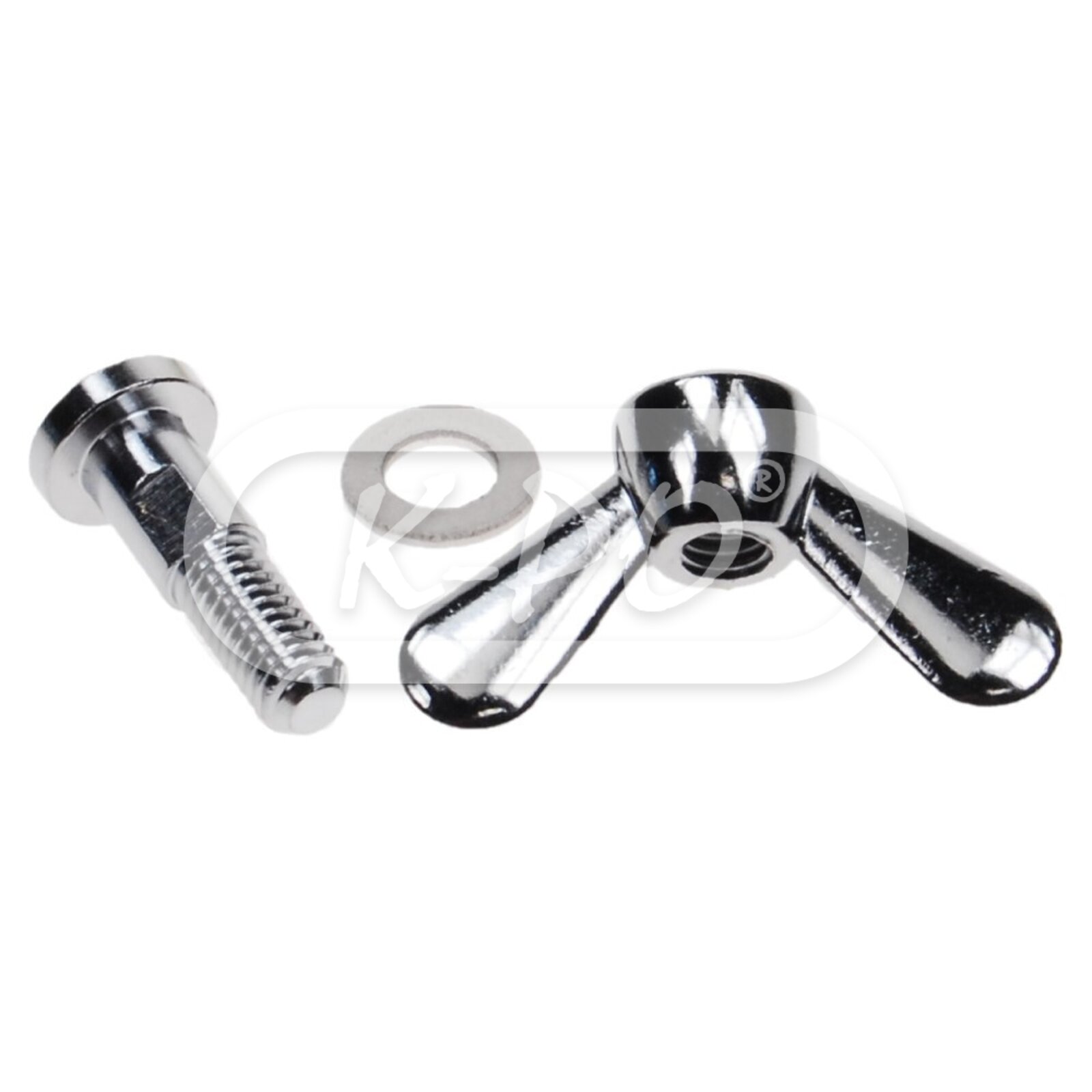

  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
