Kenwood - NX-1200AE3

Product code: 9580

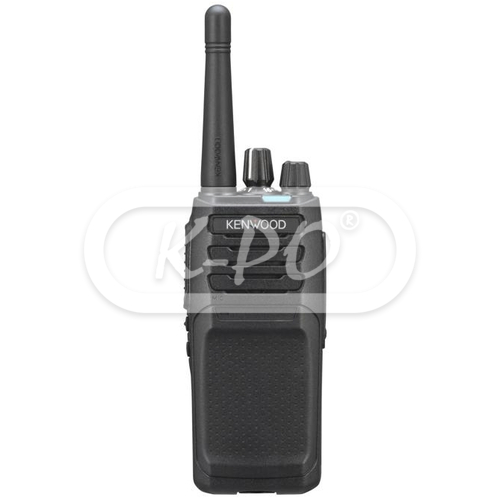

The Kenwood NX-1200AE3 is a VHF digital transceiver with NexEdge communcations. The package comes with a NX-1200AE3 transceiver, Kenwood KNB-45L rechargeable battery, Kenwood KRA-27M antenna. The Kenwood NX-1200AE3 is perfect for professional applications requiring a license, stylish, compact, light and easy to use digital two-way radio.

Features:
• FM Conventional Operation
• FleetSync: PTT ID, Stun/Revive, Talk back, Selcall
• 5-Tone Signalling (EEA, ZVEI, CCIR, ZVEI-2, EIA or KENWOOD)
• MDC1200: PTT ID, Radio Inhibit/Uninhibit, Radio check, Emergency
• QT / DQT, DTMF, 2-tone
• Built-in Programmable Voice Inversion Scrambler (per channel)
• Built-in Compander (per channel)

*Please note, license is required for this transceiver.

Frequency range: TX/RX: 136-174 MHz
Note - Price on request
€ -- (Price on request)

Features

  • Number of channels: 64
  • Number of zones: 4
  • Output power: 1 / 2.5 / 4 / 5 Watt
  • Channel spacing analogue: 25 / 20 / 12.5 kHz
  • Battery saver mode: Yes
  • Call alert: Yes
  • Low battery warning: Yes
  • Programmable function keys: Yes
  • CTCSS/DCS (analogue): Yes
  • Voice annunciation: Yes
  • VOX: Yes
  • PC programming: Yes
  • High/low power: Yes
  • Battery capacity: 2000 mAh
  • Accessory connector: 2-pin Kenwood connector (K)
  • Light bar indicator: Yes, 7 colors

Electrical data

  • Voltage: 7,4 VDC ±20 %
  • Operating temperature: -30°C to +60°C
  • Frequency stability: ±0.5 ppm

Transmitter

  • Spurious emission: <1GHz ≤ -36dBm / 1GHz - 4GHz ≤ -30dB
  • Hum & noise (analog 12.5 / 25 kHz): 45 / 45 / 40 dB
  • Audio distortion: 2%
  • DMR Digital protocol: ETSI TS 102 361-1 / -2 / -3

Receiver

  • Sensitivity Analogue (12 dB SINAD): 25 kHz: -5.7 dBμ Vemf (0.26 μV) / 20 kHz: -5.4 dBμ Vemf (0.27 μV) / 12.5 kHz: -7.1 dBμ Vemf (0.22 μV)
  • Sensitivity Analogue (20 dB SINAD): 25 kHz: -3.9 dBμVemf (0.32 μV) / 20 kHz: -3.6 dBμVemf (0.33 μV) / 12.5 kHz: -3.6 dBμVemf (0.33 μV)
  • Selectivity analogue 25 / 20 / 12.5 kHz: 74 / 72 / 67 dB
  • Intermodulation: 60 dB
  • Spurious rejection: 70 dB
  • Audio distortion: 7 %
  • Audio output: 1 Watt

Mechanical data

  • Length: 34 mm
  • Height: 123 mm
  • Width: 54 mm
  • Weight: 175 gram

Inside the box

  • Radio: 1 pcs
  • Batteries (pack): 1 pcs
  • Belt clip: 1 pcs
  • User manual: English
  • Antenna: 1 pcs
