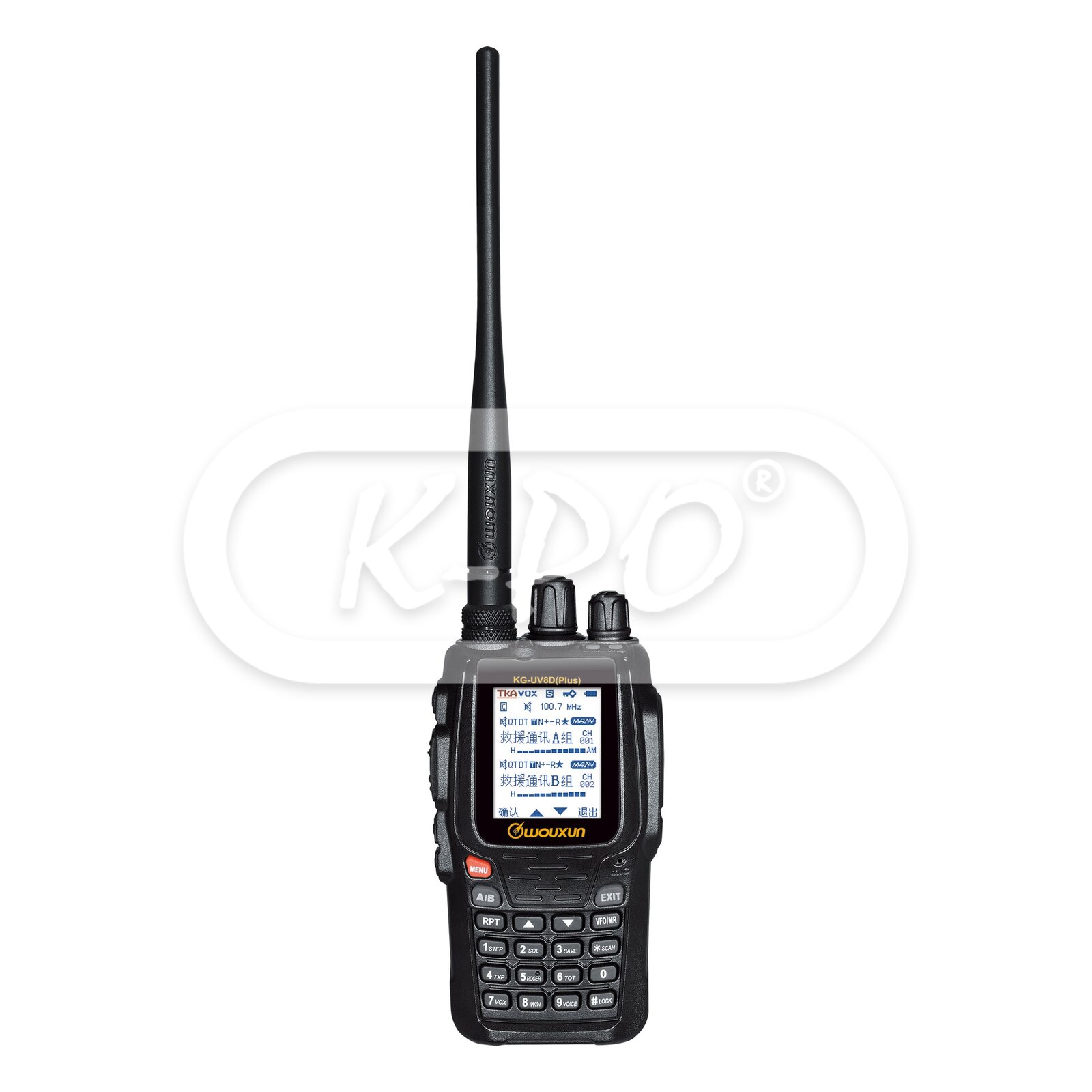

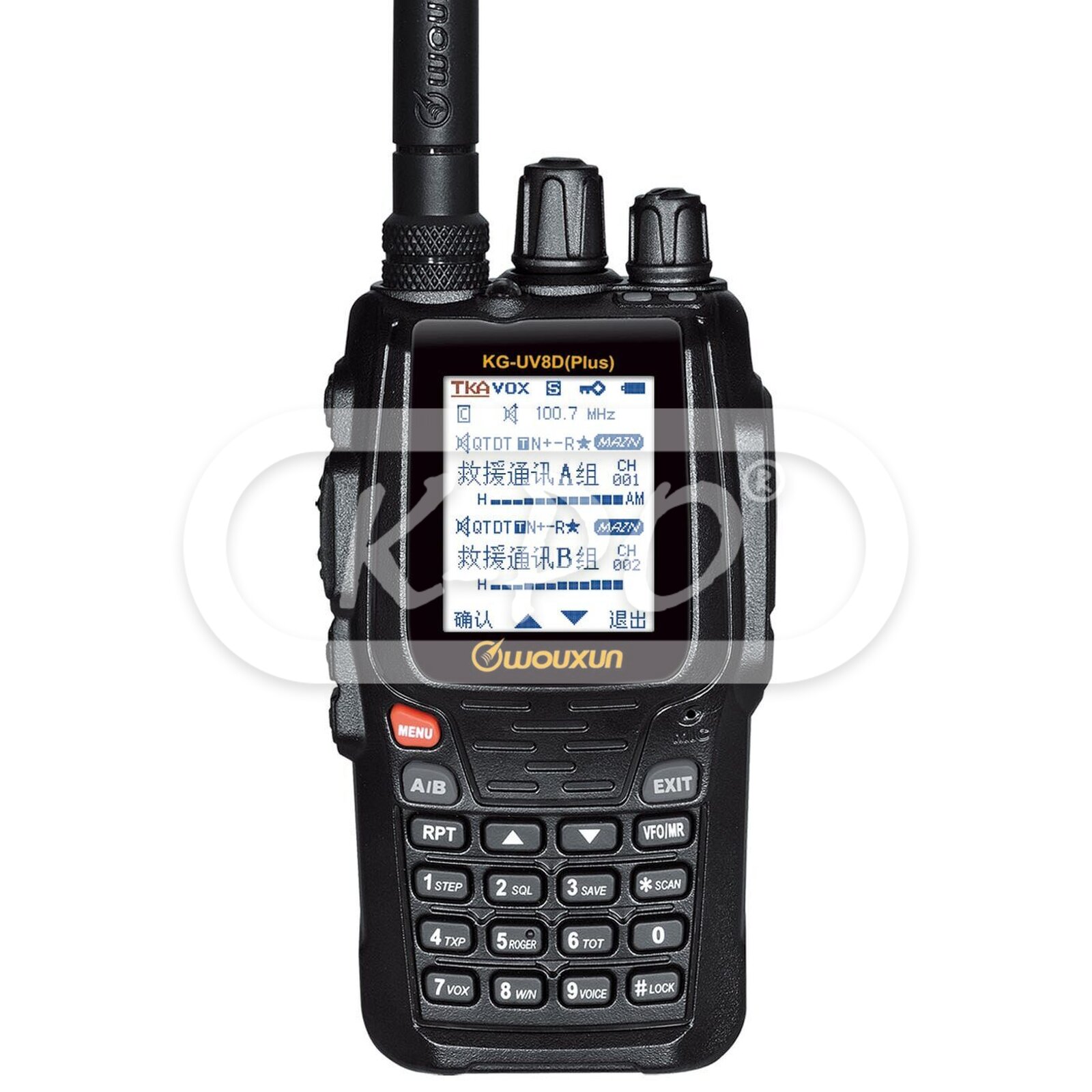

Wouxun - KG-UV8D Plus Wouxun - KG-UV8D Plus

Wouxun - KG-UV8D Plus

Product code: 34790
Barcode: 6946351703488

Duplex Work Mode and Dual Receiving
It can TX on one area while RX on the other area simultaneously , other, RX on the same or different bands of A&B areas simultaneously.

Cross Band Repeater
Frequency offset and direction programmable in repeater Mode UHF/VHF or VHF/UHF cross-band repeater.

Voice Encryption and Non-Standard CTCSS/DCS
CTCSS or DCS create a secret channel between radios , non-standard ctcss or dcs is stronger version , voice encryption function use password encrypt voice data.

Some Improve Functions
Voice compander , backlight intensity can be adjusted , FM radio can be stored and retrieved 20 sets of frequency , power-on message editable.

Frequency range: TX/RX: 144-146 / 430-440 MHz
Out of stock - Longer delivery time
€134.95 (111.53 excl. 21% VAT)

Features

  • Display: Yes,large color display
  • VOX function: Yes
  • DTMF: Yes, decoding and encoding
  • Crossband repeater function: Yes
  • Emergency (SOS) function: Yes
  • Flashlight: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • Voice guide: English and Chinese
  • Calls: Yes, group and selective calls
  • Single-tone pulse frequency: 1000 - 1450 - 1750 - 2100 Hz
  • QT/DQT: Yes, decoding, encoding and scan
  • Program: Yes, by computer
  • Stopwatch: Yes
  • Reverse frequency: Yes
  • Remote alarm: Yes

Electrical data

  • Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 999
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +40℃

Transmitter

  • Power output (Watts): VHF: 1-5 Watts / UHF: 1-4 Watts
  • Work mode: F2D / F3E
  • Antenna impedance: 50 Ohm
  • Frequency stability: ±2.5 PPM
  • Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
  • Max. frequency deviation: Wide: ±5 KHz / Narrow: ≤±2.5 KHz
  • Audio response: Wide: 300-3000 Hz +1 to -3 dB / Narrow: 300-2550 Hz +1 to -3 dB
  • Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
  • Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
  • Modulation distortion: ≤5%

Receiver

  • Audio distortion: ≤5%
  • Audio power output: ≤500 mW
  • Sensitivity (12dB SINAD): 0.25 µV
  • Audio response: 300-3000 Hz +1 to -3 dB
  • Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
  • Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
  • Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB
  • Spurious radiation: ≥60 dB

Mechanical data

  • Length: 62 mm
  • Height: 125 mm
  • Width: 34 mm
  • Weight: 490 gram
  • Antenna connector: SMA female

Inside the box

  • Transceiver: Yes
  • Battery: Li-Ion 2600 mAh
  • Charger: Desk charger with adapter and 12 V car charger
  • Antenna: Yes
  • Installation manual: English
  • Belt clip: Yes
  • Hand strap: Yes
