Midland - Alan 42 DS Multi starter pack

Product code: 7100022
Factory code: 7100022
Barcode: 8718375103005

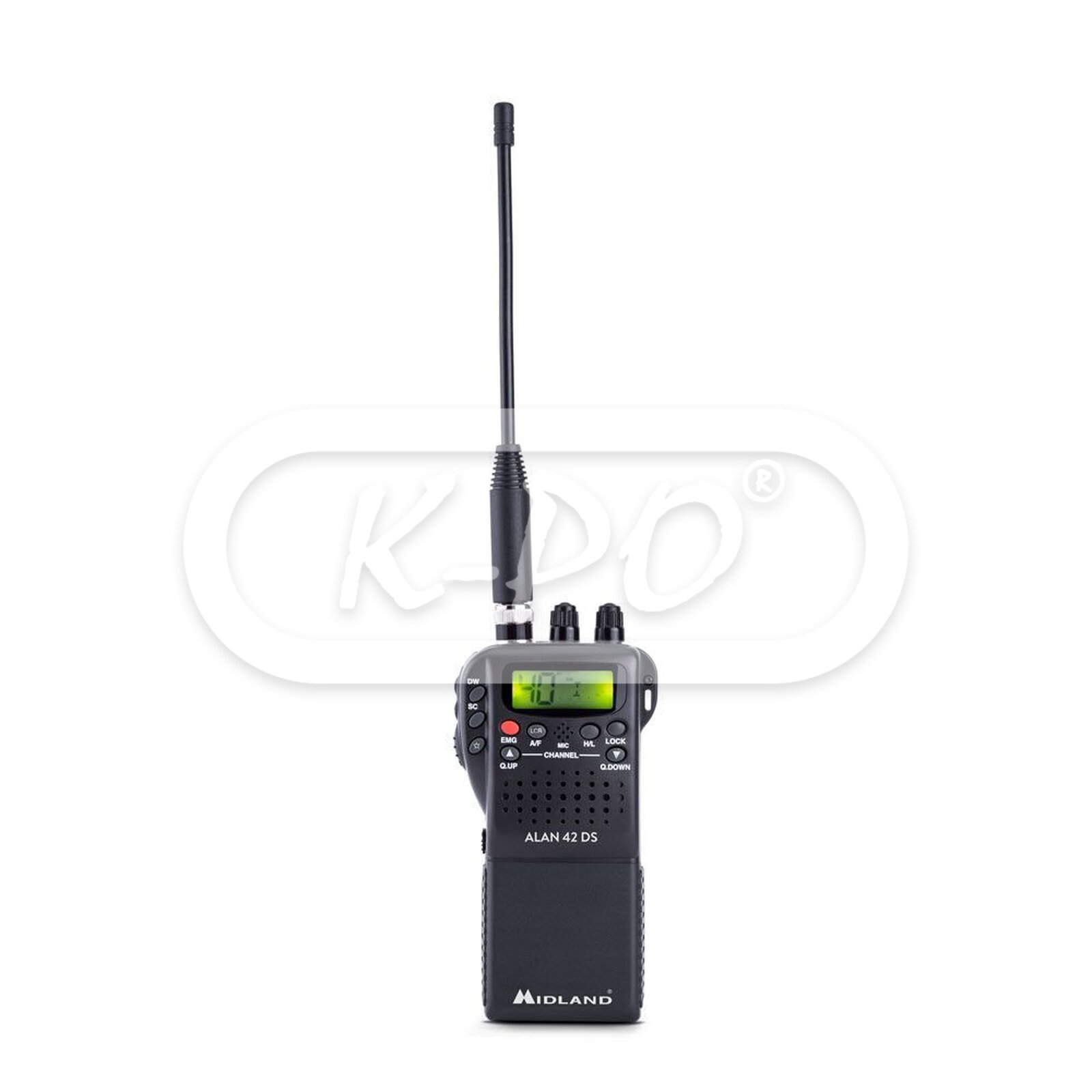

The Midland Alan 42 DS Multi handheld pack is a perfect plug and play CB handheld set. Use the Midland Alan 42 DS Multi with the supplied battery cases* as a handheld CB radio to walk around or connect it to the supplied car-antenna adapter and use it as a semi-mobile CB radio.

Please note that you always have to connect a CB antenna to the antenna connector of the car-antenna adapter when using it.

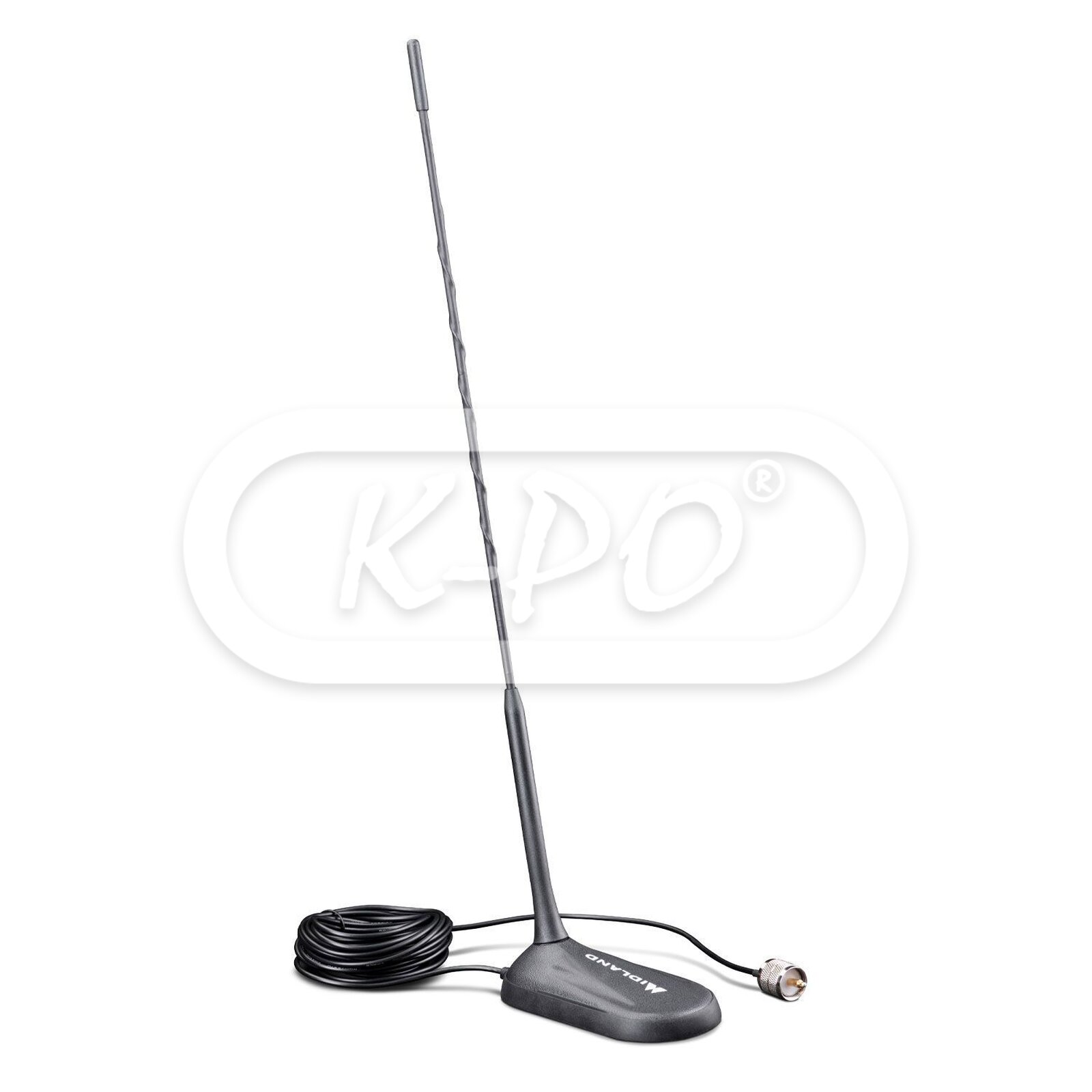

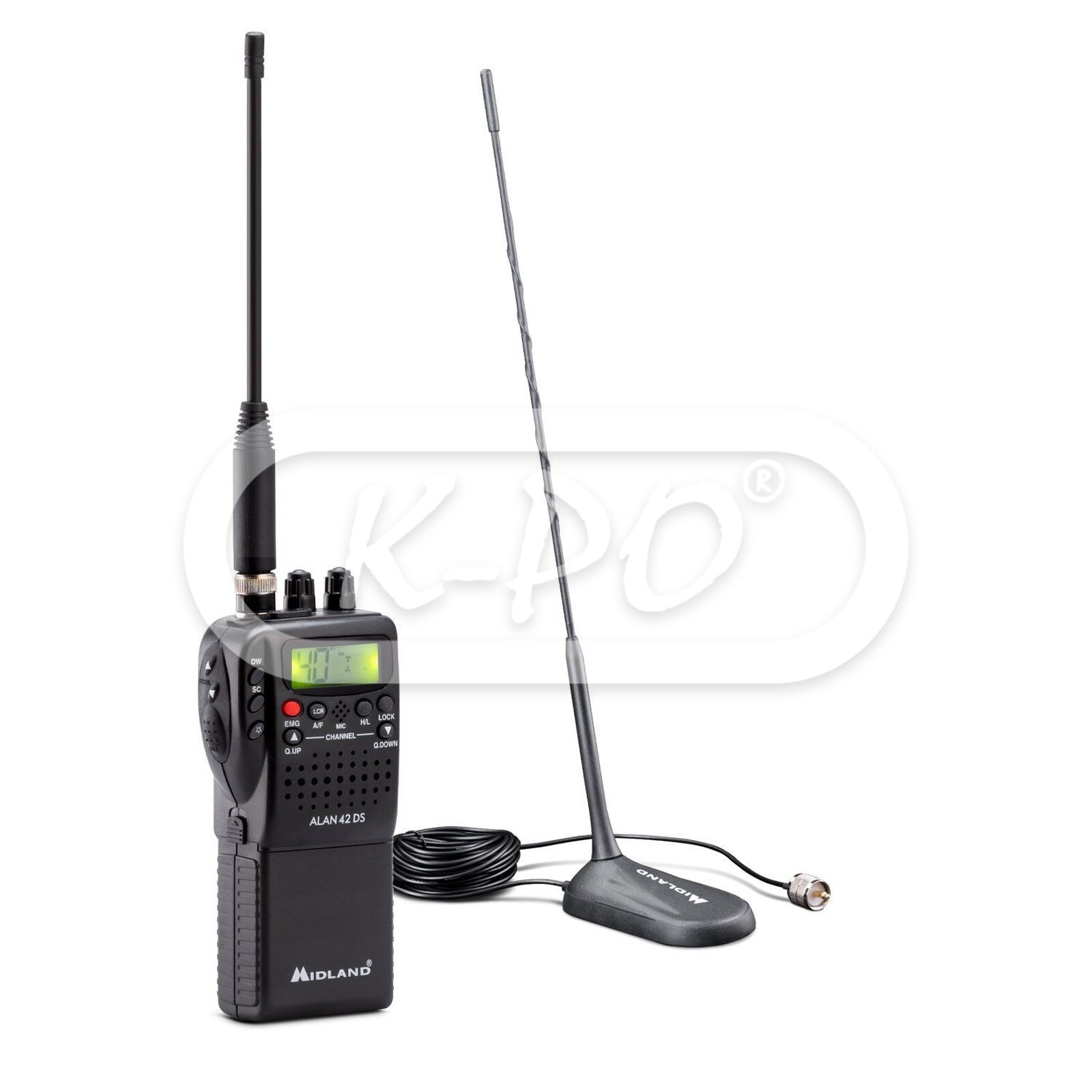

The package includes the very complete Midland Alan 42 DS Multi and the Midland MC45 streamlined magnet antenna.

*AA batteries not included

Frequency range: 26.965 - 27.405 MHz
Shipped next business day - Stock: 7
€169.94 (140.45 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1-4 Watt / duty cycle 10%
  • Channels: 40 AM / FM
  • Display type: Backlight
  • Display colors: Green
  • Noise blanker: Yes
  • Squelch: Digital squelch
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Hi/Lo power: Yes
  • Scan function: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • Car socket connector: Yes

Electrical data (radio)

  • Voltage: 7,4 Volt / 13,8 Volt
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency tolerance: 0.005 %

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: 90% (±5%)
  • Modulation FM: dev. 2.0 kHz
  • Harmonic suppression: More than 70 dB
  • Drain: 900 mA

Receiver

  • AM sensitivity: 0.5 µV
  • FM sensitivity: 0.25 µV
  • Frequency response: 300 Hz - 2.4 kHz
  • Adjacent channel selectivity: more than 60 dB
  • Maximum audio power: 0.5 Watt (10% distortion)
  • Internal speaker: 8 Ohm, round
  • Squelch range: 0.25 V - 500 μV
  • Distortion at 1000 μV: 3%
  • Spurious response: more than 60 dB
  • Drain with save mode on: 45 mA
  • Drain with save mode off: 100 mA

Mechanical data (radio)

  • Length: 70 mm
  • Height: 140 mm
  • Width: 30 mm
  • Weight: 220 gram (without batteries)
  • Antenna connector: BNC / UHF (PL)
  • Accessory connector: 2 pin Standard Icom (S)

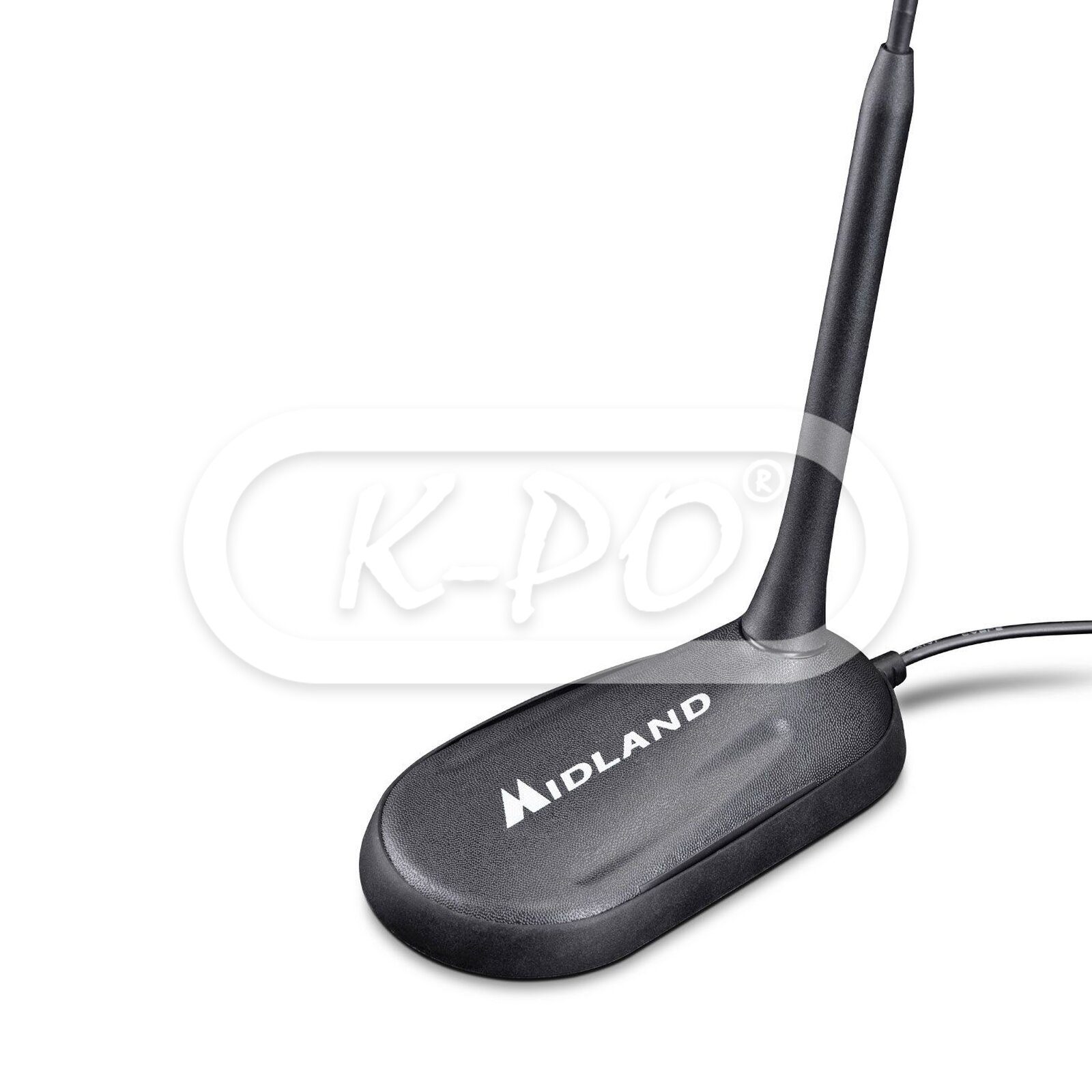

Electrical data (antenna)

  • Electrical type: Base loaded
  • Gain: 2-3 dBi
  • VSWR: ≤ 1.2:1
  • Power peak: 180 Watts (CW) short time
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes

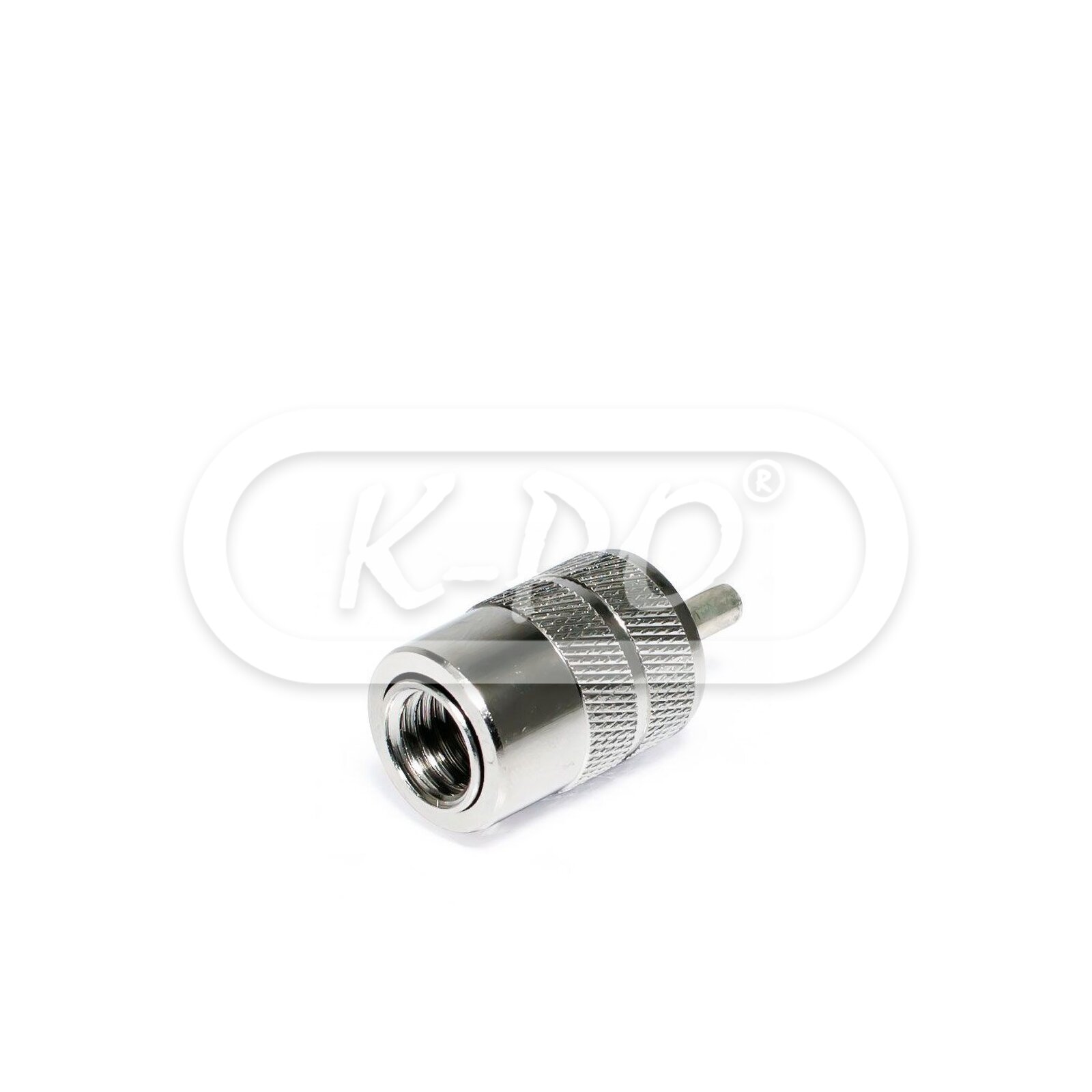

  • Cable length: 4 meter / RG 174

Mechanical data (antenna)

  • Materials: Stainless steel
  • Max wind resistance: 140 km/h
  • Height: 450 mm
  • Weight: 235 gram

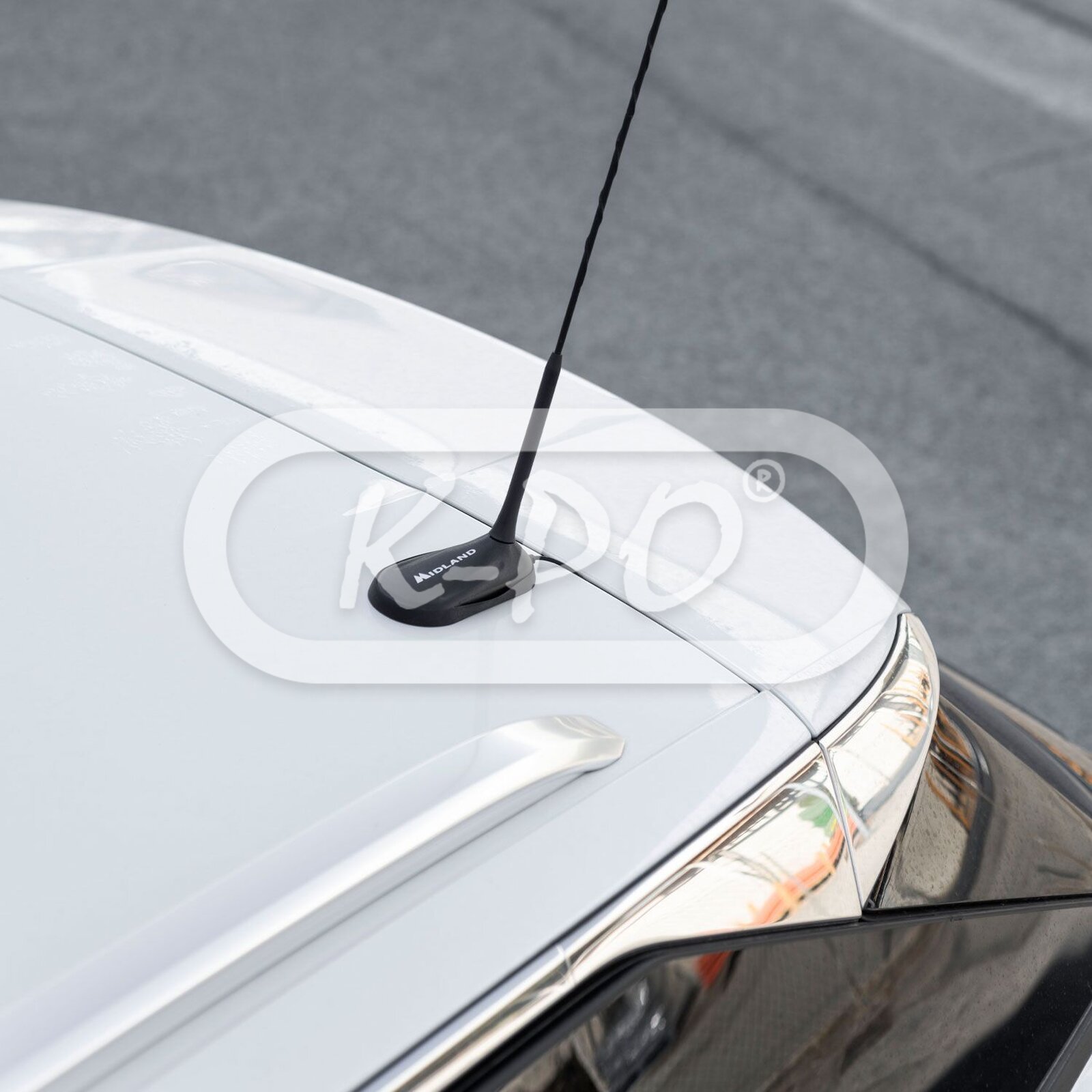

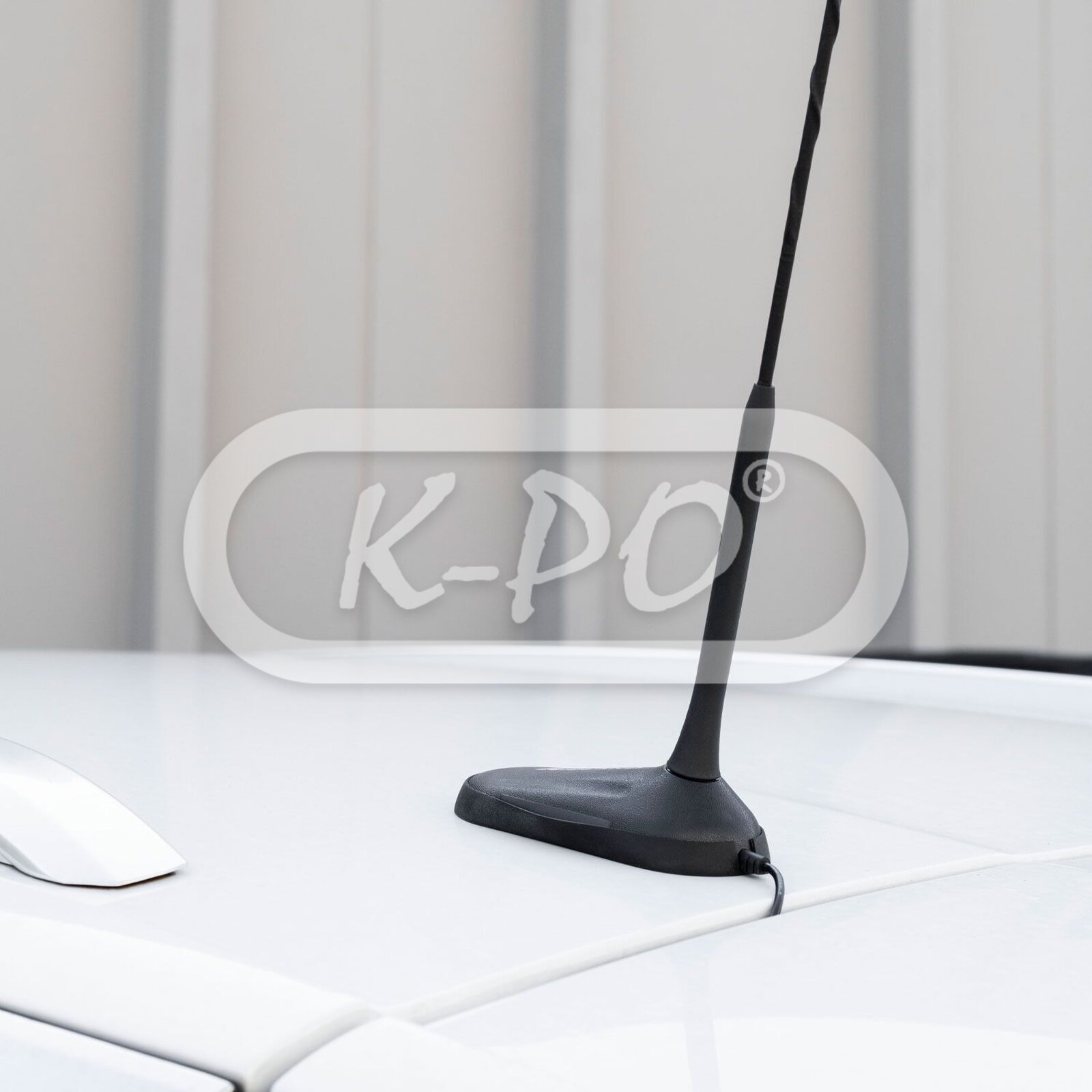

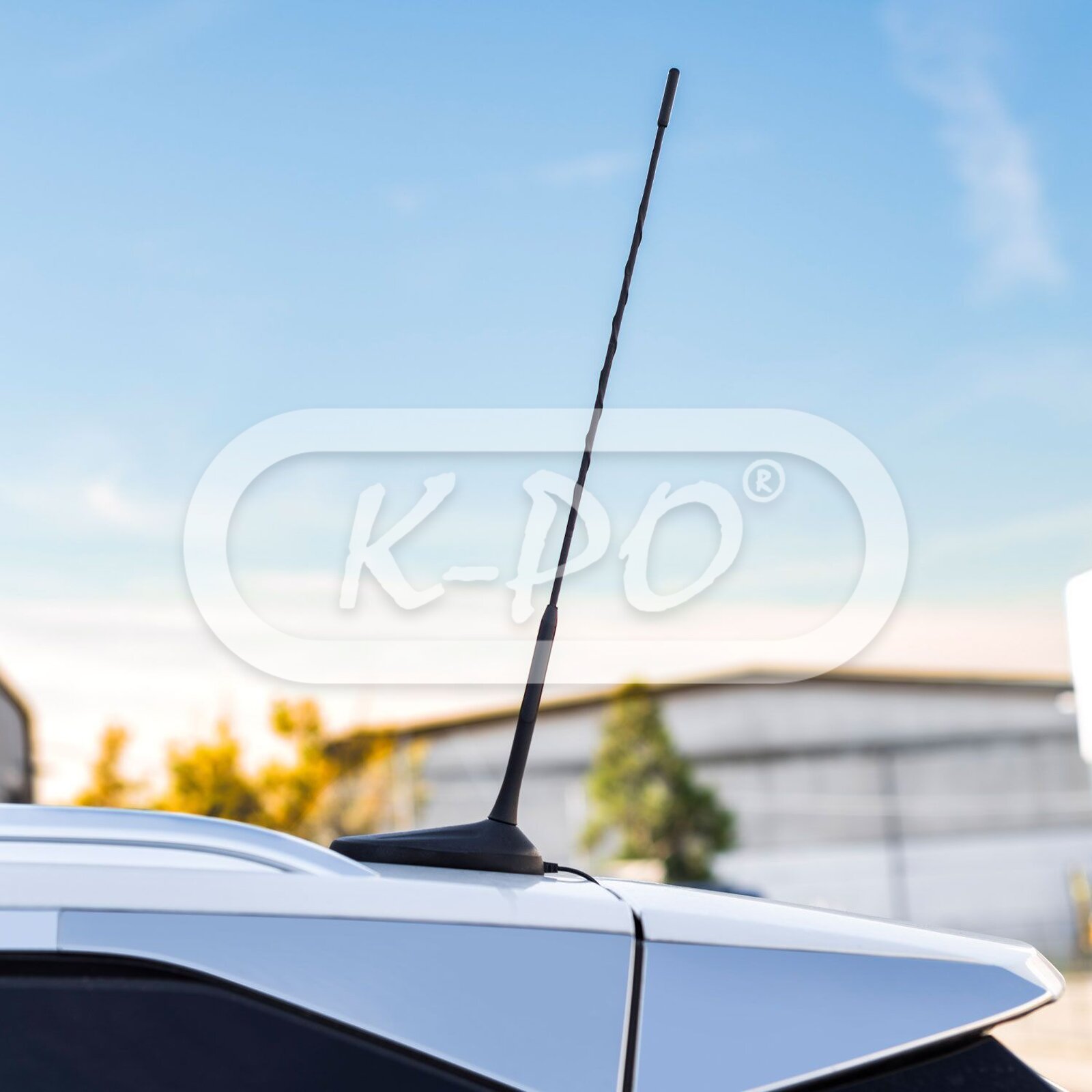

  • Mounting type: Magnet

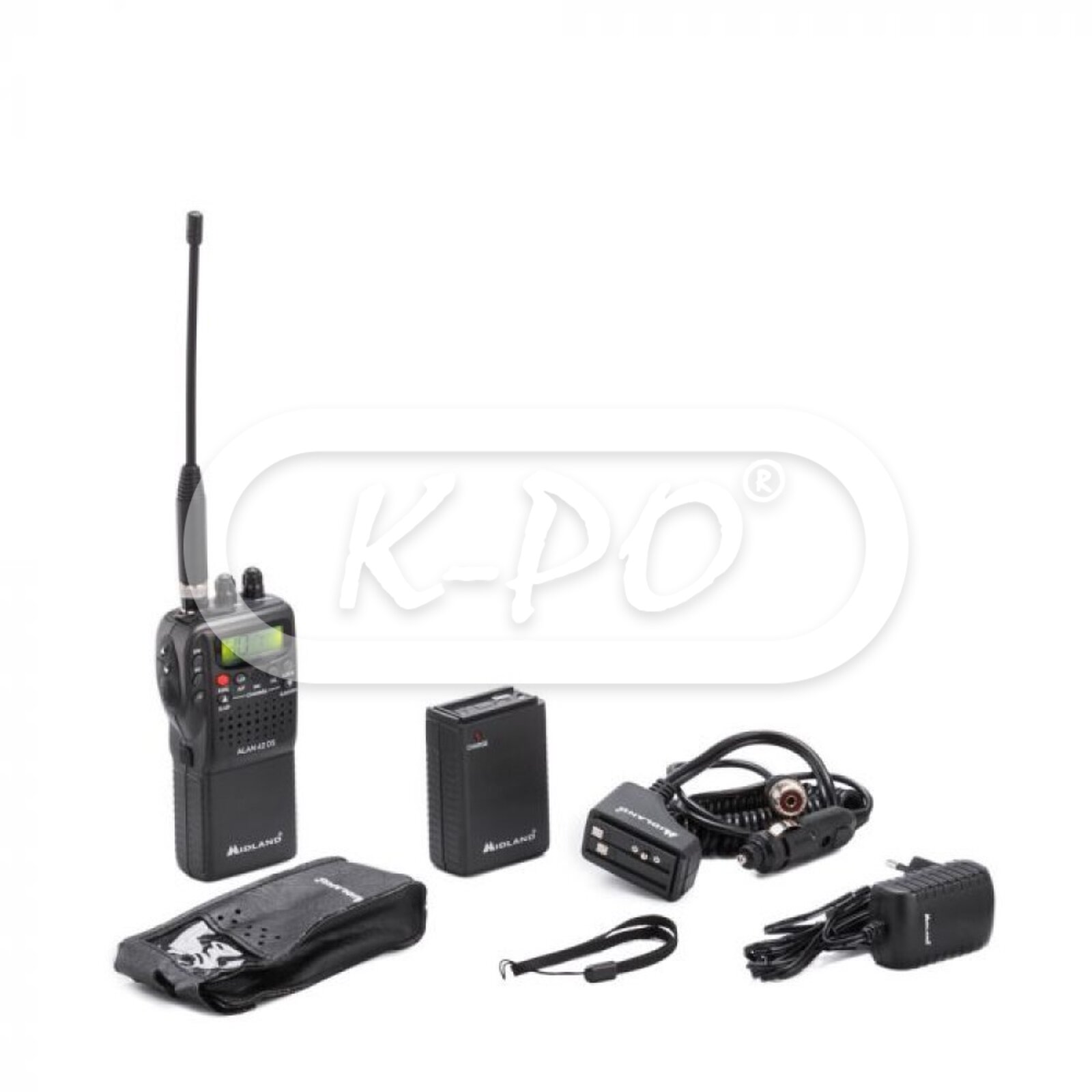

Inside the box

  • Transceiver: 1 pcs
  • Power lead: 12 Volt cigarette lighter plug
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
  • Wall charger: 1 pcs
  • Empty battery pack for 6 AA Alkaline battery: 1 pcs
  • Empty battery pack for 8 AA rechargeable batteries with charging socket: 1 pcs

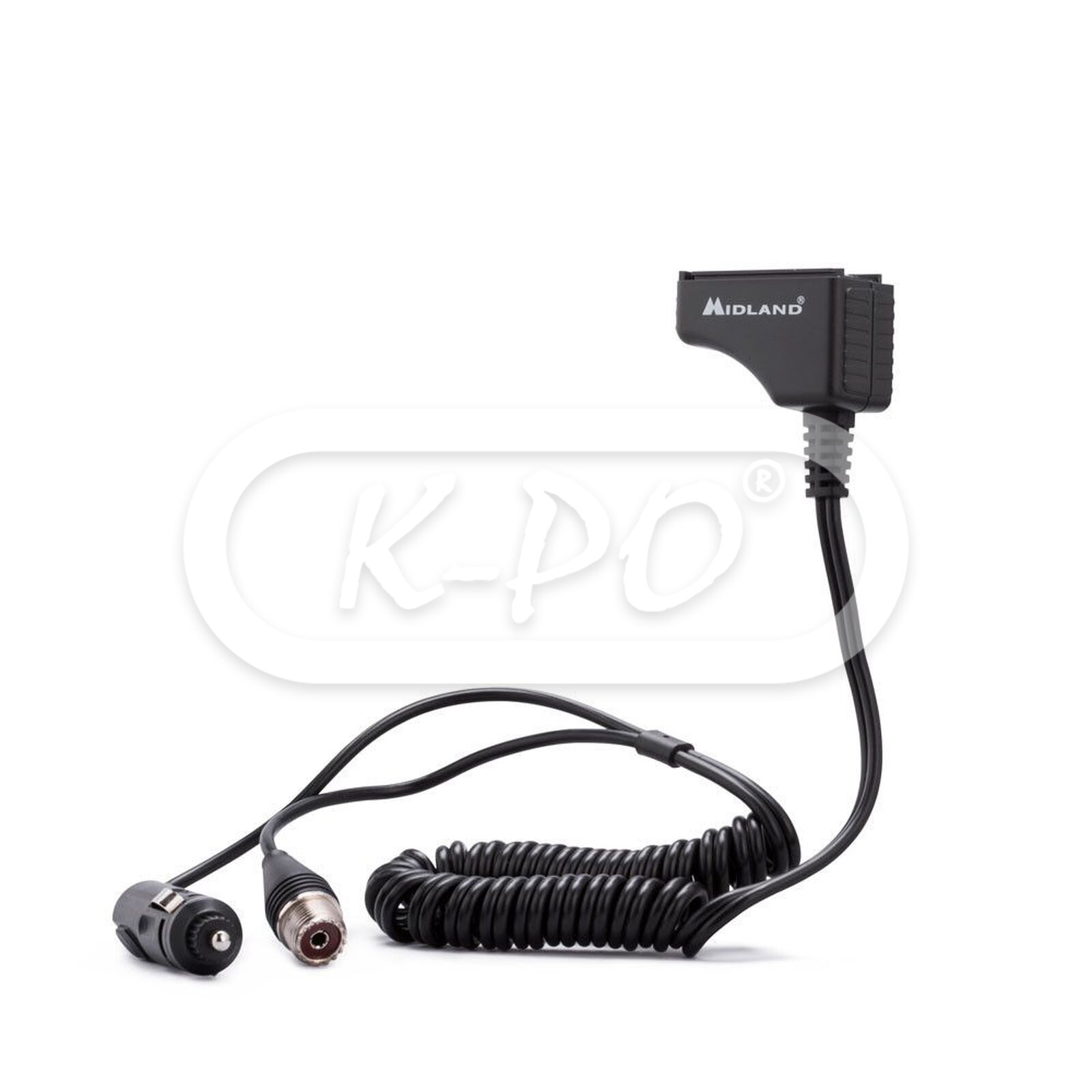

  • Adapter for car use with external SO 239 antenna socket: 1 pcs
  • Antenna: 2 pcs
  • Wrist strap: 1 pcs
