Nagara - TV-31J

Product code: 810004

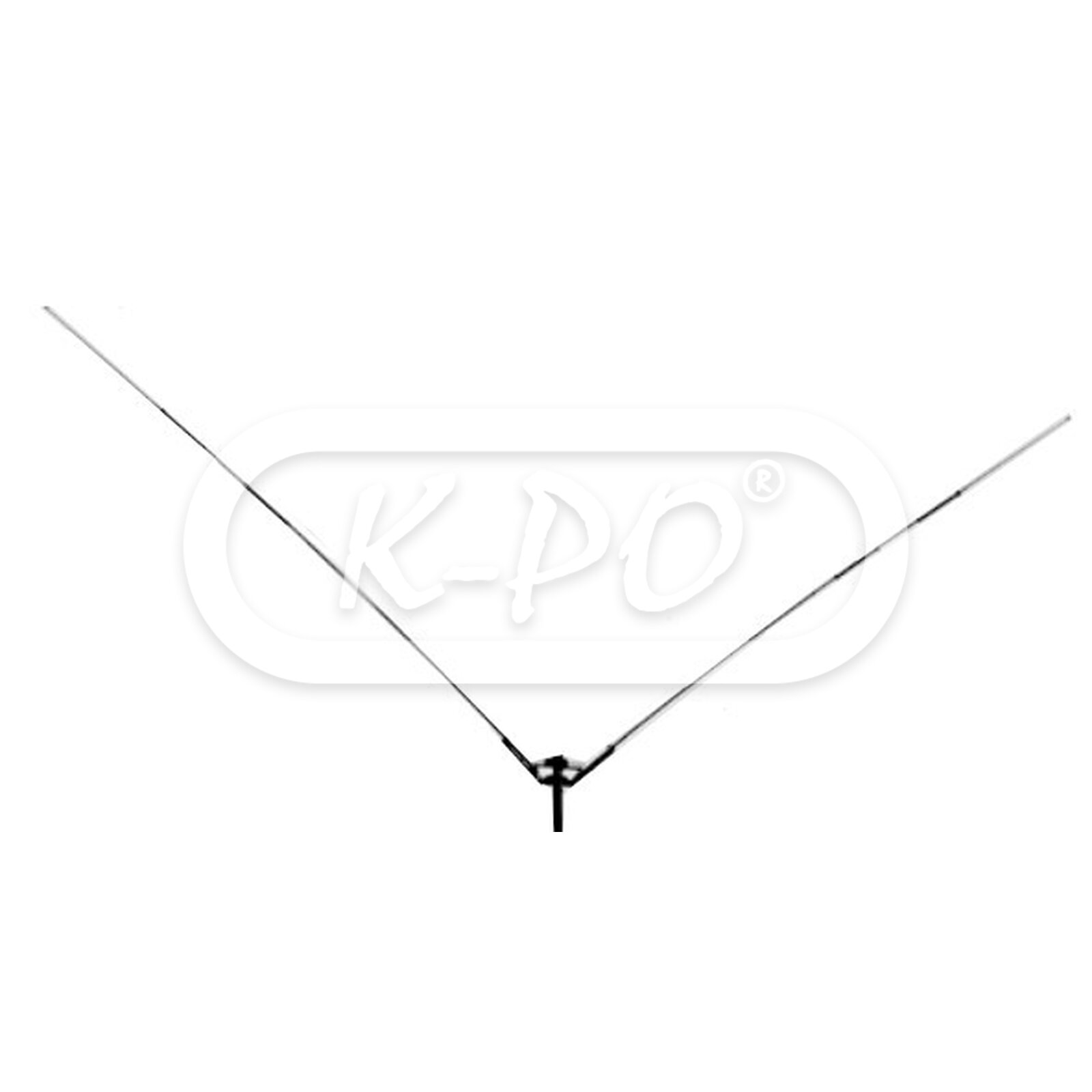

The Nagara TV-31J is a compact, lightweight, and carefully designed HF V-dipole for use on 7, 21 and 28 MHz. Can be installed as V-dipole, 90 degrees. Maximum input power is 300 Watts SSB.

Nagara antennas are fully made in Japan and well-known for their high quality in the Japanese market.

Frequency range: 7 / 14 / 28 MHz
Shipped next business day - Stock: 5
€269.95 (223.1 excl. 21% VAT)

Electrical data

  • Electrical type: V dipole

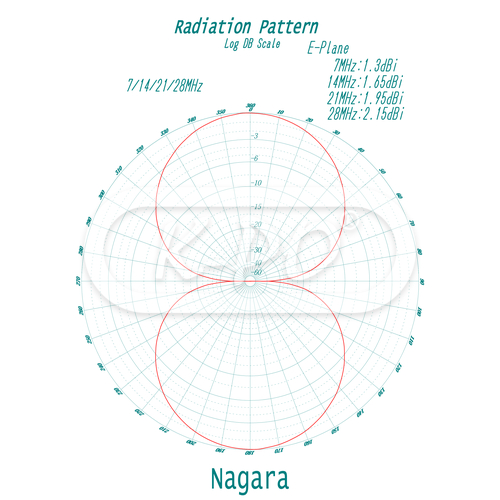

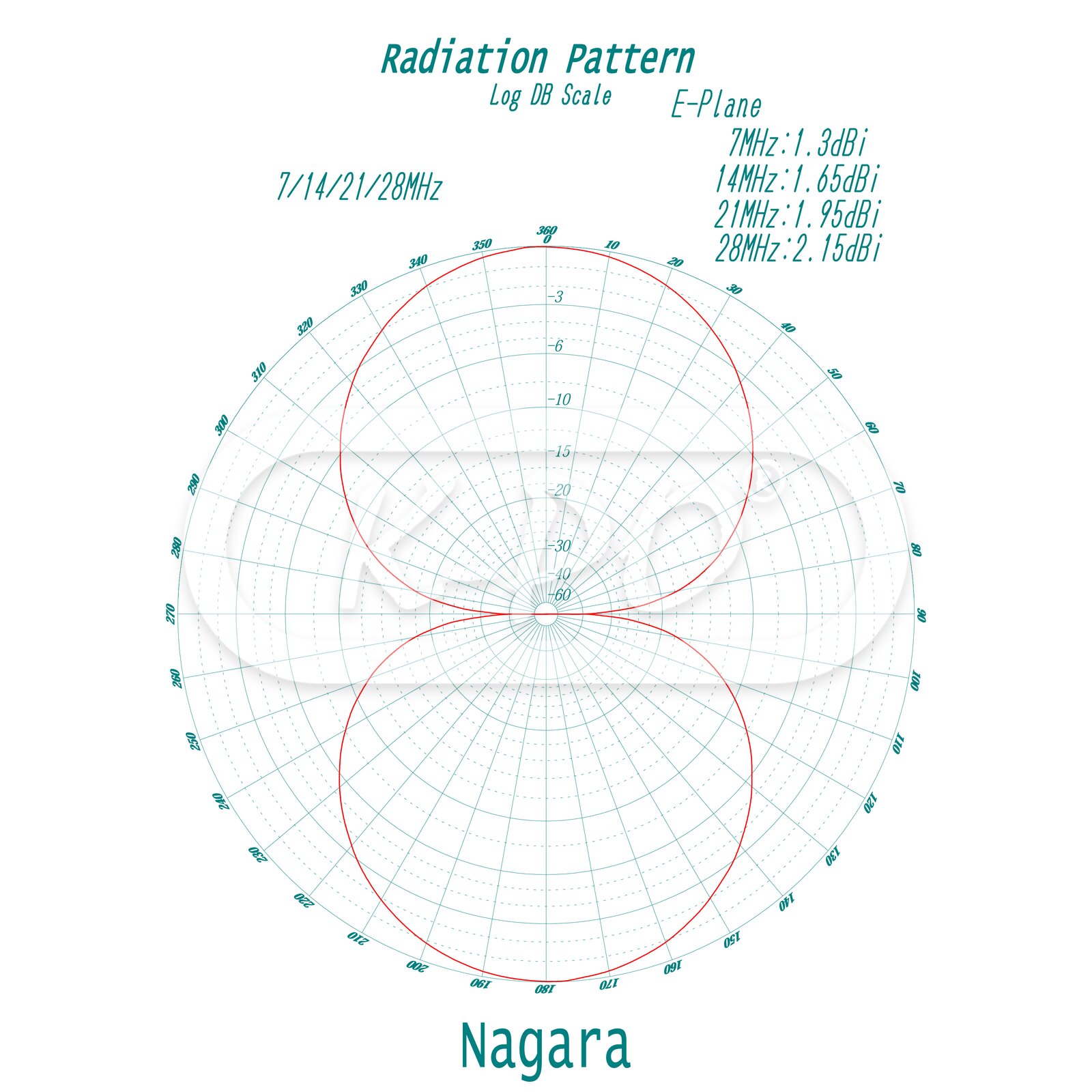

  • Gain: 7 MHz: 1.3 dBi / 14 MHz: 1.65 dBi / 28MHz: 2.15 dBi
  • Power peak: 300 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear horizontal / V-type dipole /

Mechanical data

  • Materials: High Spread Alminuim, Stainless Steel, Nylon
  • Mast Ø: 38 - 60 mm
  • Weight: 4200 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Assemble: 90°
  • 90° max. lentgh: 6.16 m

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: Japanese
