Polmar - ZX-40 starter pack

Product code: 60005
Factory code: 60005

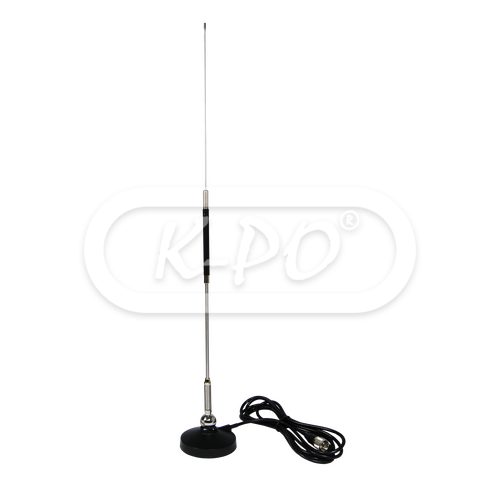

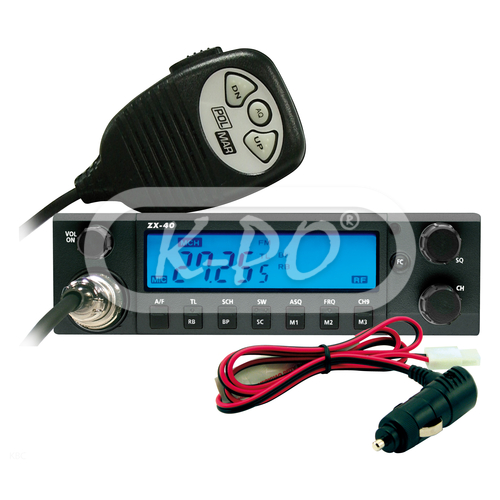

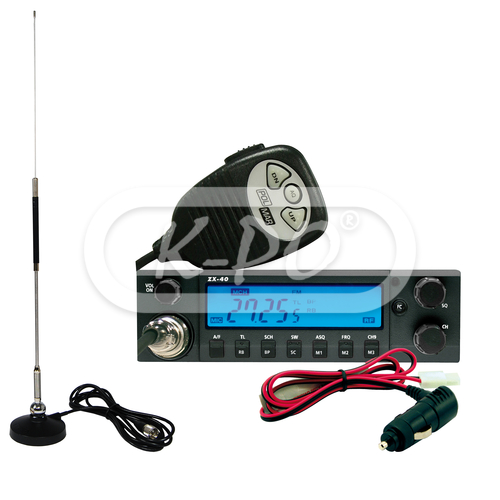

The Polmar ZX-40 starter pack is a more luxury plug and play CB set and easy to use. The Polmar ZX-40 radio comes with a cigarette lighter plug and in combination with the high-performance Sirio Mini Mag 27 magnet antenna makes this a perfect deal for starters and travellers.

Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€82.60 (82.6 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: Backlight
  • Display colors: Blue
  • Noise blanker: Yes
  • Squelch: Automatic squelch / Manual squelch /
  • Emergency channel: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • Car socket connector: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt

Transmitter

  • Microphone sensitivity: 3.0 mV
  • Frequency allowance: ± 300 Hz
  • Modulation AM: 90%
  • Modulation FM: 2.0 kHz

Receiver

  • AM sensitivity: 0.5 µV for 10 dB
  • FM sensitivity: 0.3 µV for 12 dB
  • Maximum audio power: 4 Watt
  • Squelch sensitivity: 1.0 μV max

Mechanical data (radio)

  • Length: 140 mm
  • Height: 40 mm
  • Width: 145 mm
  • Weight: 900 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 8 pin connector

Electrical data (antenna)

  • Electrical type: Central loaded
  • VSWR: ≤ 1.2
  • Bandwidth: 280 kHz ≤ 2.0
  • Power continues: 10 Watts (CW)
  • Power peak: 50 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3 meter / RG 58

Mechanical data (antenna)

  • Materials: Copper, brass, stainless steel, fiberglass
  • Height: 630 mm
  • Weight: 575 gram
  • Mounting type: 90 mm magnet

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 12 Volt cigarette lighter plug
  • User Manual: English, Italian
  • Antenna: 1 pcs
