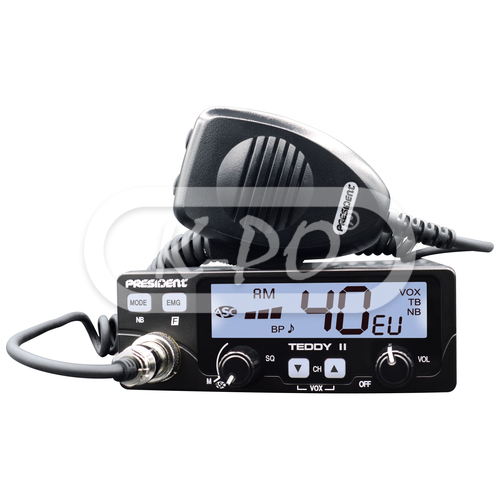

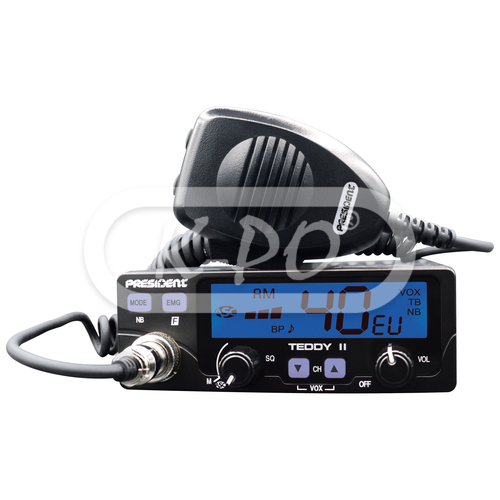

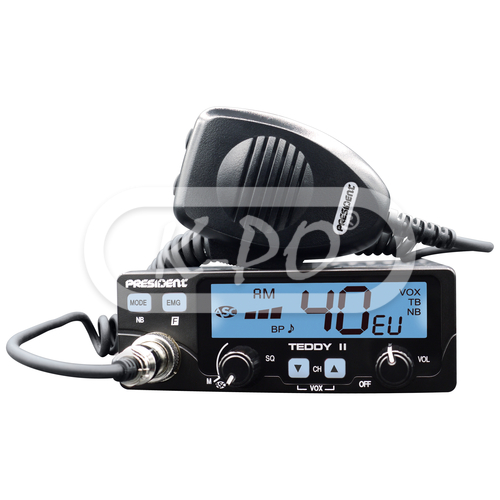

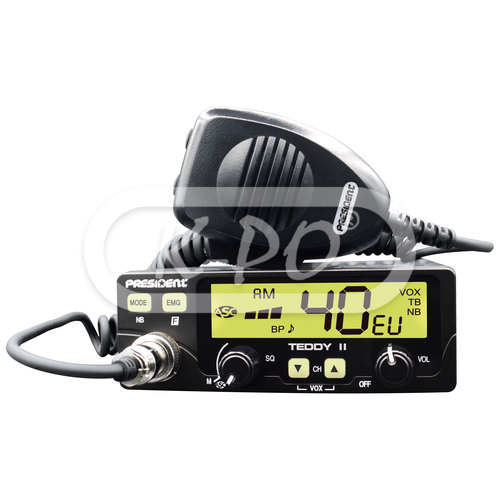

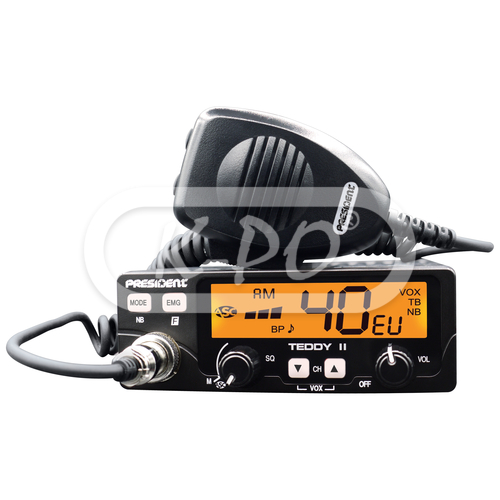

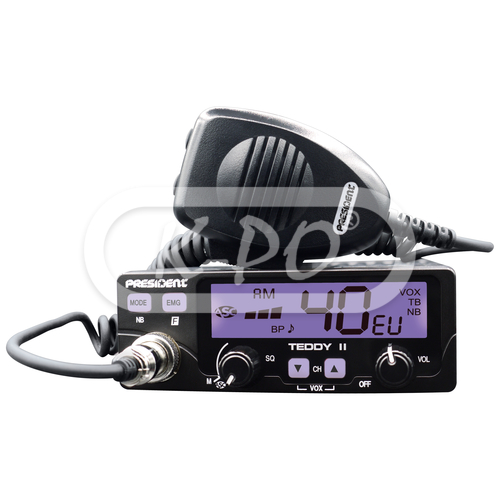

President - Teddy II ASC

Product code: 80084
Factory code: TXPR276
Barcode: 3435991130011

The Teddy II ASC is the successor of the Teddy and has now 7-color display. This ultra-compact mobile CB radio is easy to install and operate, just has the basic controls needed to get on the air and has the President name, so quality is assured. Fully programmable for most European countries.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day
€81.78 (81.78 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes
  • External VOX socket: Yes
  • Roger Beep: Yes

Electrical data

  • Voltage: 13,8 Volt

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: 7 mV
  • Frequency allowance: ± 200 Hz
  • Transmission interference: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW
  • Modulated signal distortion: 2 %
  • Drain: 13.2 Volt: 1.7 A

Receiver

  • AM sensitivity: 0.5 µV - 113 dBm
  • FM sensitivity: 0.35 µV - 116 dBm
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2.5 Watt
  • Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate image rejection rate: 70 dB
  • Drain: 13.2 Volt: 160 - 420 mA

Mechanical data

  • Length: 151 mm
  • Height: 45 mm
  • Width: 125 mm
  • Weight: 900 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Spanish, French, Polish
