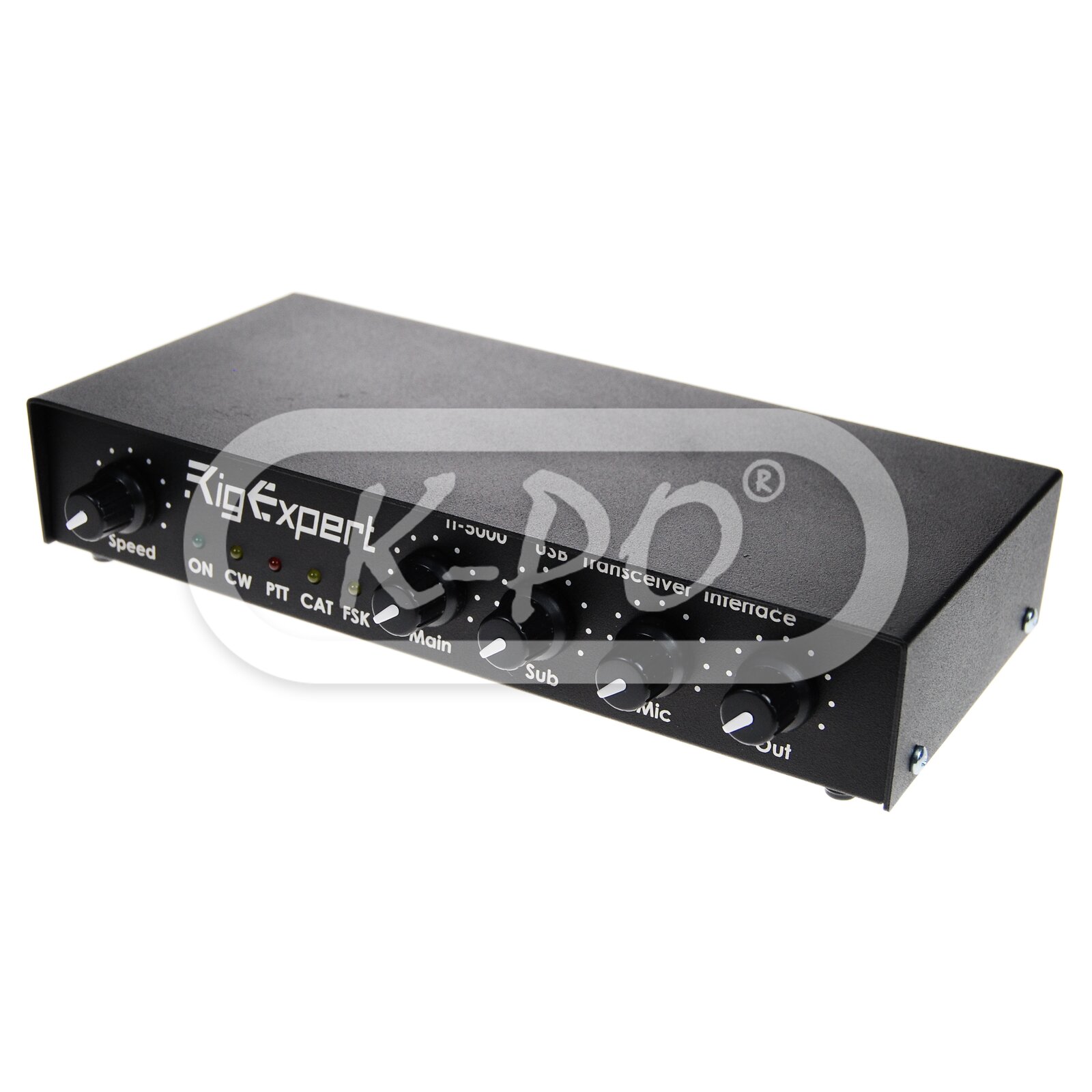

RigExpert - TI-5000

Product code: 13031
Barcode: 4820185420167

Plug, Run and Have Fun!

The RigExpert TI-5000 is a new and powerful USB transceiver interface based on high quality stereo codec IC, for operating phone, CW and digital modes using personal computer.

All in one through a single USB port. Ideal interface for FT8 and WSJT modes!

Ask your RigExpert distributor or reseller to provide pre-built cable for your new TI-5000 to connect it with your favorite transceiver. Or construct a cable yourself, using the diagrams published on our website here. Or use the cable you already have.

Transceiver audio interface:

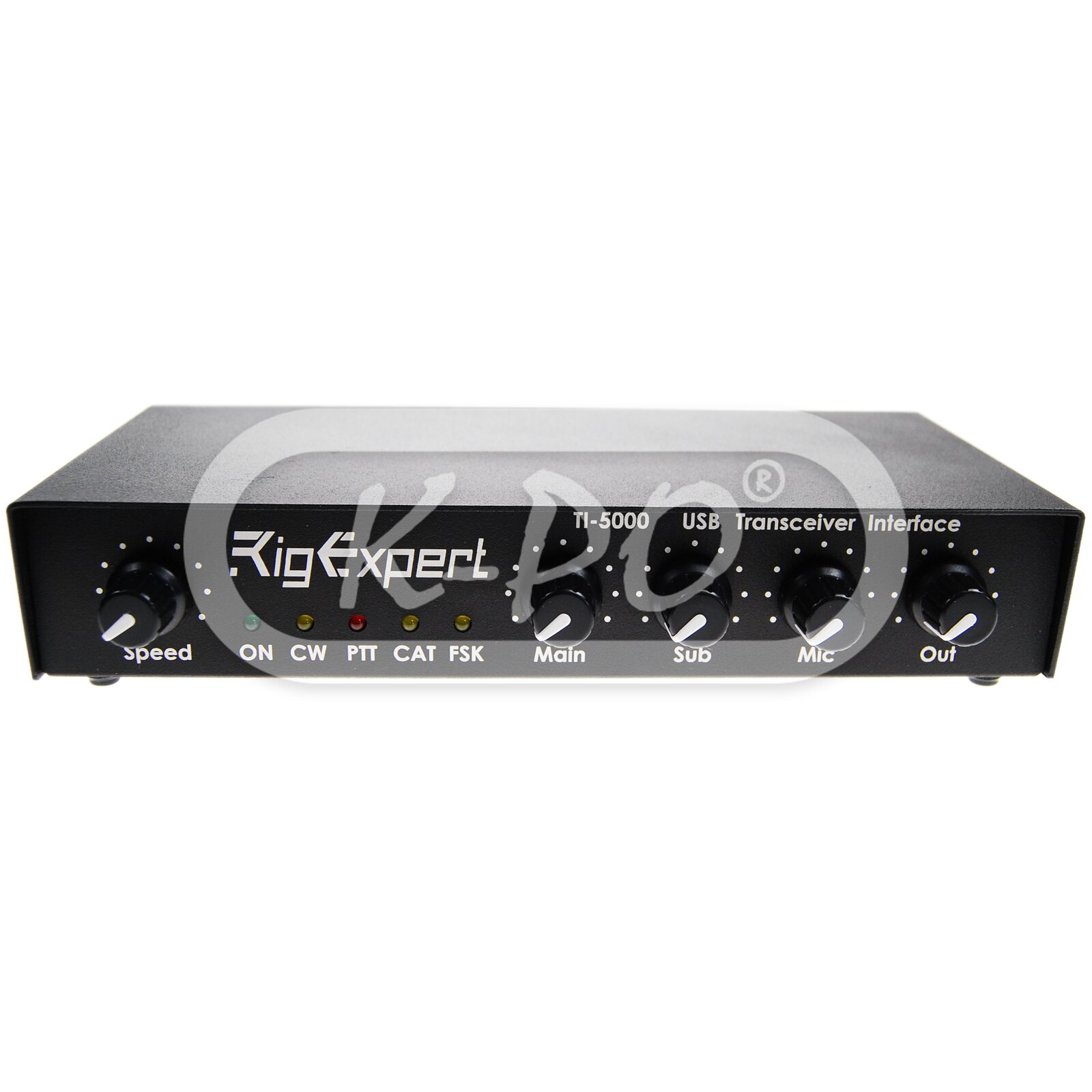

Analog audio interface is a connection to transceiver audio output (external speaker connector or line output) and transceiver audio input (microphone connector or line input). Audio interface enables operating digital modes, recording and playing voice, as well as other useful functions (such as measuring levels of a signal from the air) by using a computer. Input (two channels) and output volume levels are adjusted by potentiometers on the front panel of the device.

CAT interface for various transceiver models:

CAT(Computer Aided Transceiver) system provides control of transceiver frequency, operating mode and other functions by computer software. Normally, modern transceivers have serial (with various signal levels) link providing CAT interface.In RigExpert TI-5000, CAT interface port is recognized as a COM port by computer software.

FSK output:

FSK (Frequency Shift Keying) is a popular method of transmitting digital messages over radio primarily used in radioteletype (RTTY) mode. Most transceivers provide FSK modulator feature to make the RTTY signal stable and clear.A separate COM port is assigned for the FSK output when using RigExpert TI-5000.

PTT and CW output functions:

Transceivers provide PTT (Push To Talk) and CW (Continuous Wave) keyer inputs to allow setting the transmitter on or off.In RigExpert TI-5000, PTT and CW outputs are assigned to the RTS and DTR lines of a separate COM port.

CW keyer:

Independent keyer paddle input plus built-in RigExpert implementation of WinKey with separate virtual COM port for WinKey.

Footswitch input:
Microphone input with QSO Recording option and level control

Specifications:

  • Transceiver audio interface for operating digital modes, voice recording and playback
  • CAT (Computer Aided Transceiver) system
  • FSK output
  • PTT and CW outputs
  • CW keyer (WinKey)
  • Footswitch input
  • Microphone input

RigExpert TI-5000 is made in Ukraine.

Specifications are subject to change without notice.

Shipped next business day
€190.04 (190.04 excl. 0% VAT)

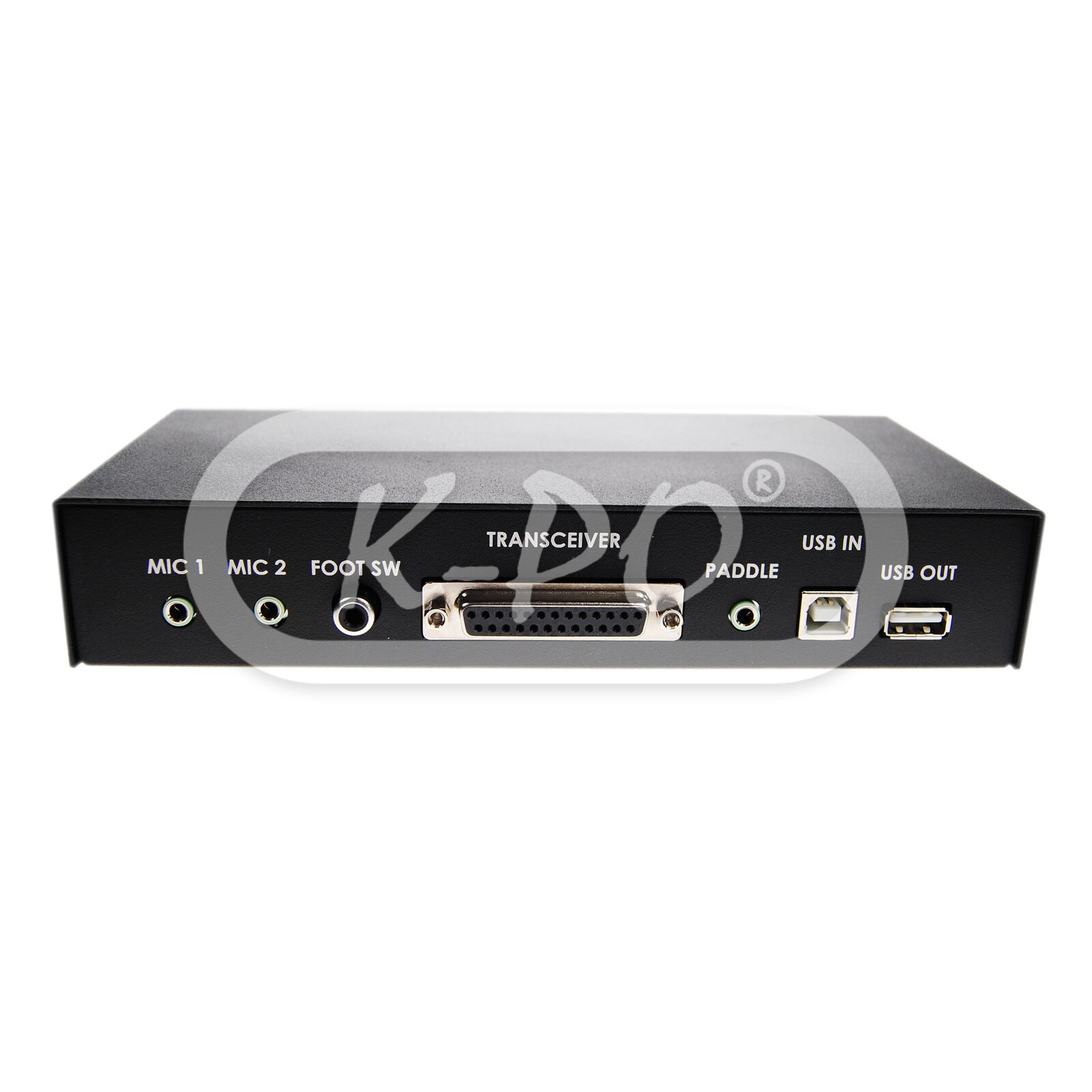

Computer connection

  • Connector: USB (Universal Serial Bus) connector
  • Powered from USB port: Yes,consuming 100 mA maximum
  • Power supply: No external power supply needed

Transceiver connection

  • Connector: Single 25-pin connector for transceiver cable
  • Suitable for: Various transceiver models supported

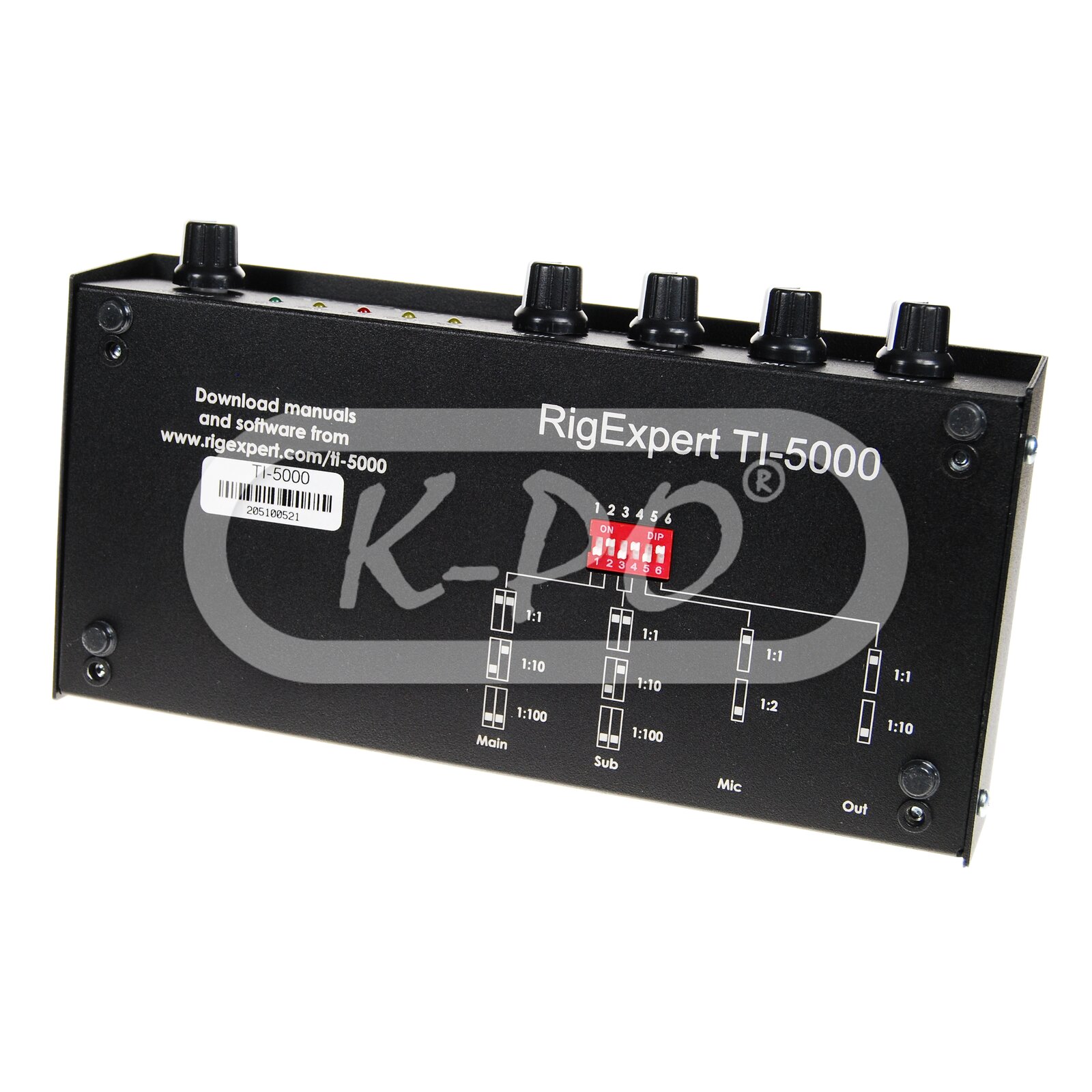

Audio interface

  • Insulated: Yes, from digital nets
  • Maximum input and output amplitude: 1 Volt
  • Input and output samplerate: 8 to 48 kHz
  • Hardware: True 16-bit DAC/ADC used
  • Volume levels: Adjustable on the front panel with potentiometers
  • External microphone input: Yes, with level control
  • QSO audio stream: Yes, with recording function

CAT serial port

  • Baudrate: 300-115200 baud
  • Electrical compatibility: RS-232, CI-V, TTL or inverted-TTL (Yaesu, Icom, Kenwood, Ten-Tec, Elecraft and JRC transceivers)

PTT and CW outputs

  • PTT output: Open collector and TTL-level
  • CW output: Open collector
  • Maximum current: 500 mA

System requirements

  • Desktop or laptop: Yes with USB 1, 2 or 3 compliant port
  • Operating system: MacOS / Linux / Windows 2000 / XP / 2003 / Vista / 7 / 8 / 10 (32- or 64-bit)
  • Drivers: No extra drivers required for systems on Windows 10 / MacOS and Linux
  • Extra Drivers: For Windows 7 and previous versions of Windows only FTDI drivers are required

Software

  • Supported software: MixW 2/3 and 4 / MMTTY / MMSSTV / WSJT / WSJT-X / WSPR and all other soundcard software

Mechanical data

  • Length: 100 mm
  • Height: 40 mm
  • Width: 200 mm
  • Weight: 300 gram
  • Working temperature: 0 to 40 °C

Inside the box

  • USB transceiver: Yes

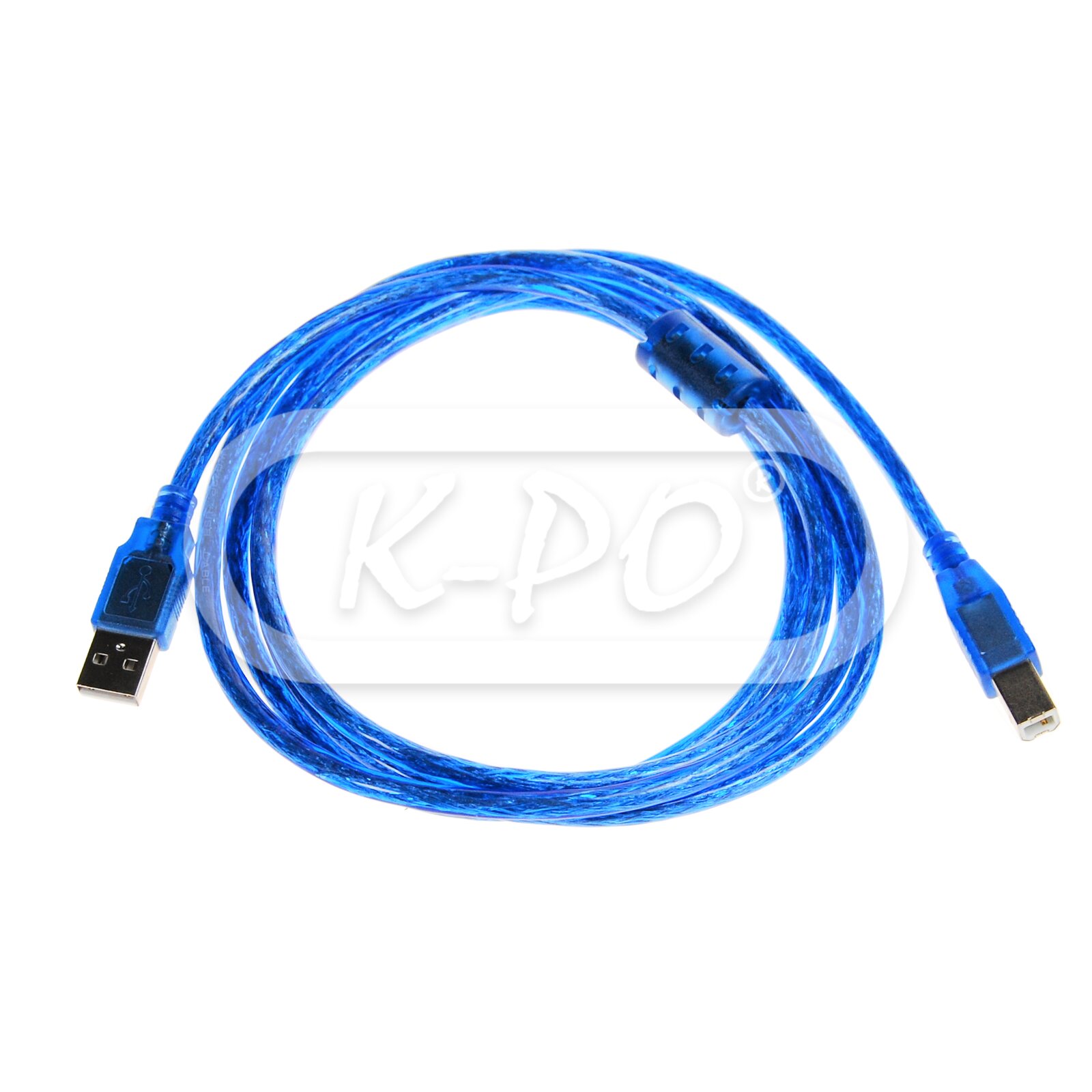

  • USB cable: Yes
  • Installation manual: English
