RM - HLA150V Plus

Product code: 1781

The RM HLA150V Plus 'black line' is a HF broadband linear amplifier with protection against polarity inversion, excessive temperature and excessive R.O.S.*. The max. output power off the amplifier is 150 Watts AM-FM and 250 Watts SSB (PEP) and is equipped with 2 cooling fans.

The amplifier has been designed to be used with transceivers with 10 Watts outputs but can be used equally well with any transceiver capable of producing 1-10 Watts output. It uses 2 RF power transistors in a parallel push pull circuit biased in class AB. There are 6 Low Pass Filters with cut-off frequencies of 3, 4, 5, 8, 15, 22 and 31 MHz that greatly reduce unwanted harmonic output to acceptable levels that may be selected manually or automatically. It features a microprocessor that controls all of the functions of the amplifier and its protection circuits. Protection is provided for excessive input power, excessive load VSWR and excessive heat sink temperature. The amplifier may be used either in a mobile / portable or fixed station installation.

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequency range: 1.8-30 MHz
Shipped today - Stock: 2
€516.95 (427.23 excl. 21% VAT)

Electrical data

  • Input power (Watts): 1-10 AM-FM / 2-20 SSB-CW
  • Max output power (Watts): 150 AM-FM
  • Max output power SSB (Watts): 250 (PEP)
  • Impedance: 50 Ohm
  • Max input SWR: 1.1 - 1.5
  • Fuse: 2x12.5A (Internal: 5x20mm Fast)
  • Inversion polarity protection: Yes
  • Electronic switch: Yes
  • Cooling fans: 2
  • Output power level: 2 (manual or autmatic)
  • Input energy/power: 24 A
  • Transistors: 2x M/A Com MRF455

Mechanical data

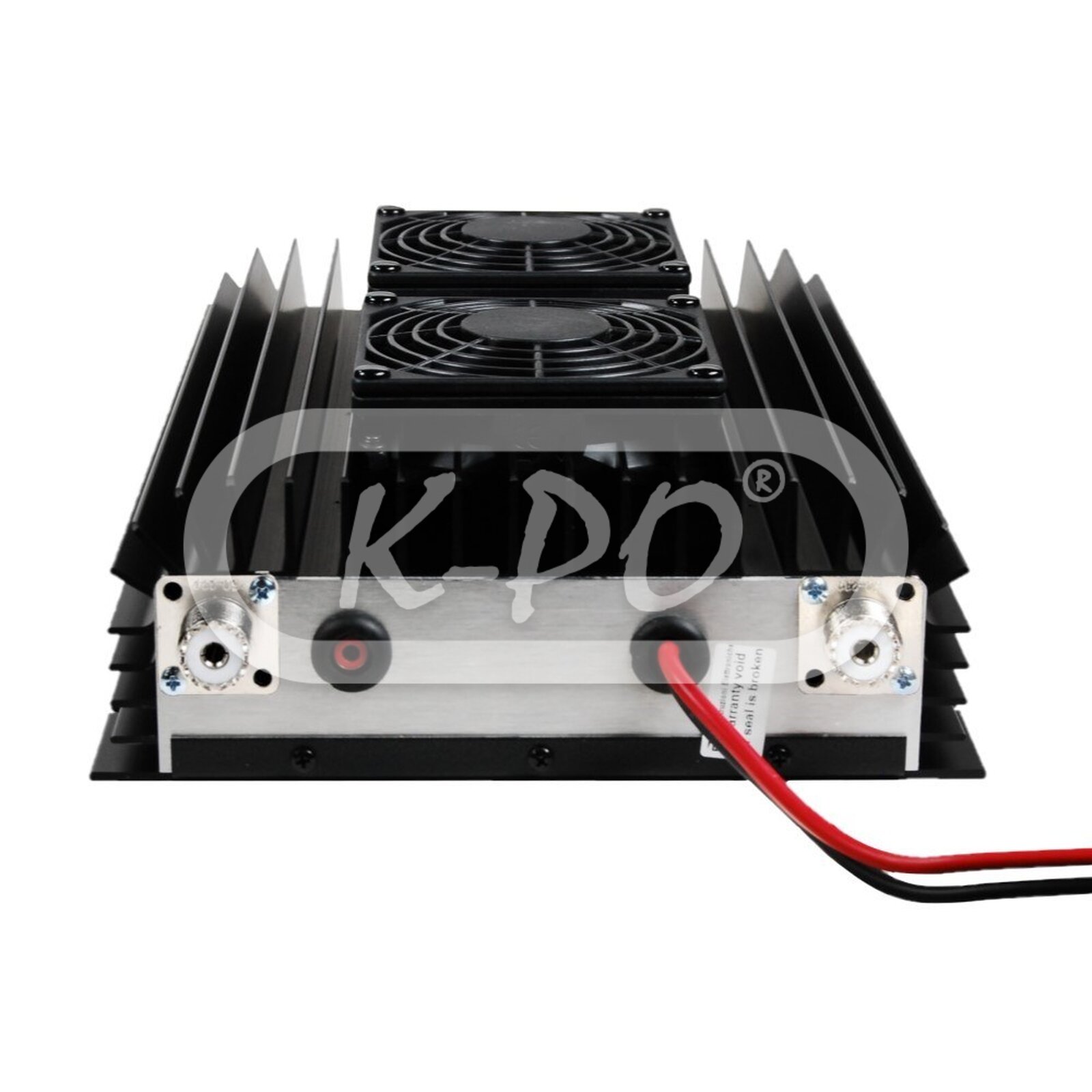

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 191 mm
  • Height: 66 mm
  • Width: 290 mm
  • Weight: 2000 gram
  • PTT input: Yes

Inside the box

  • Amplifier: Yes
  • Installation manual: English
