RM - KL200P

Product code: 1774
Factory code: 000000001106

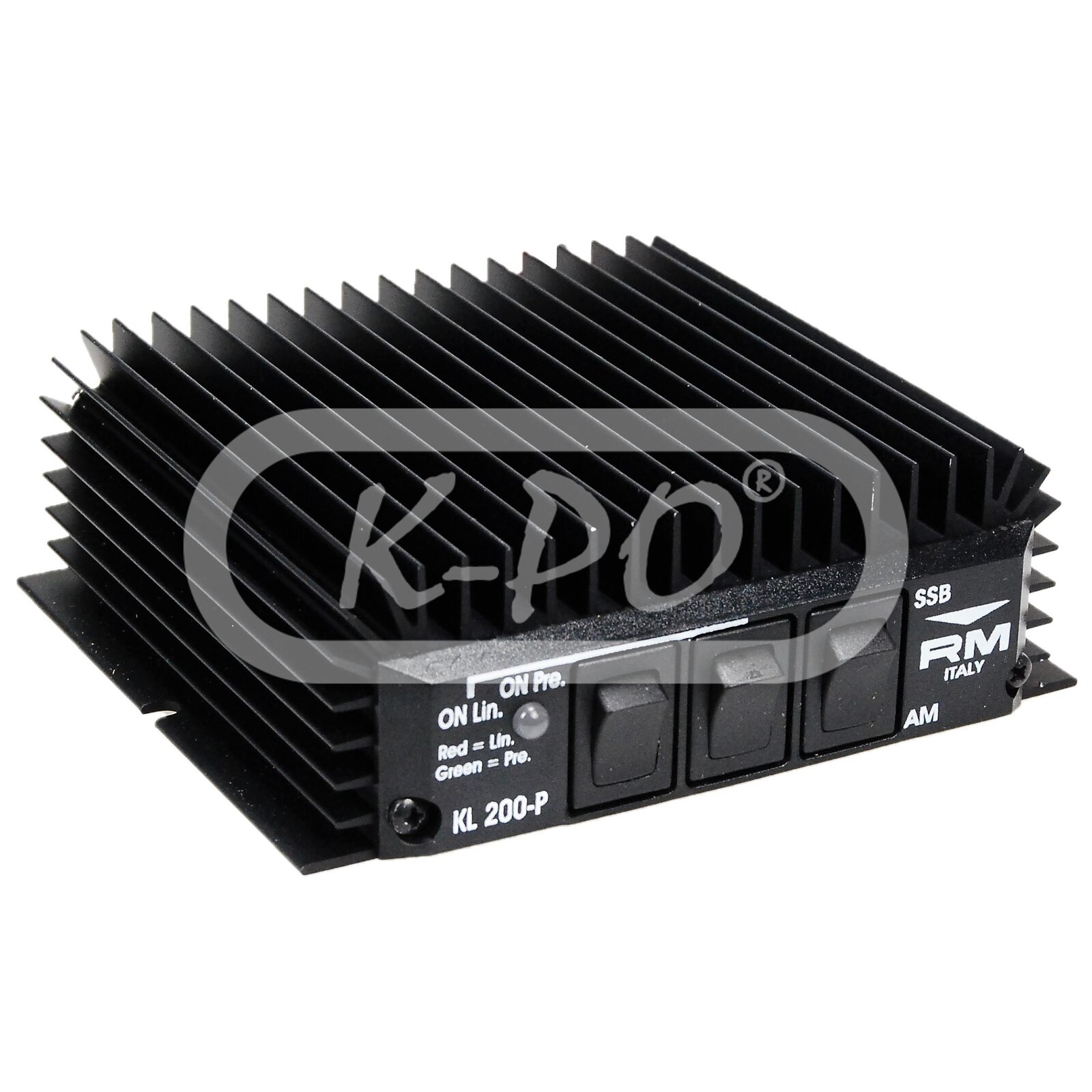

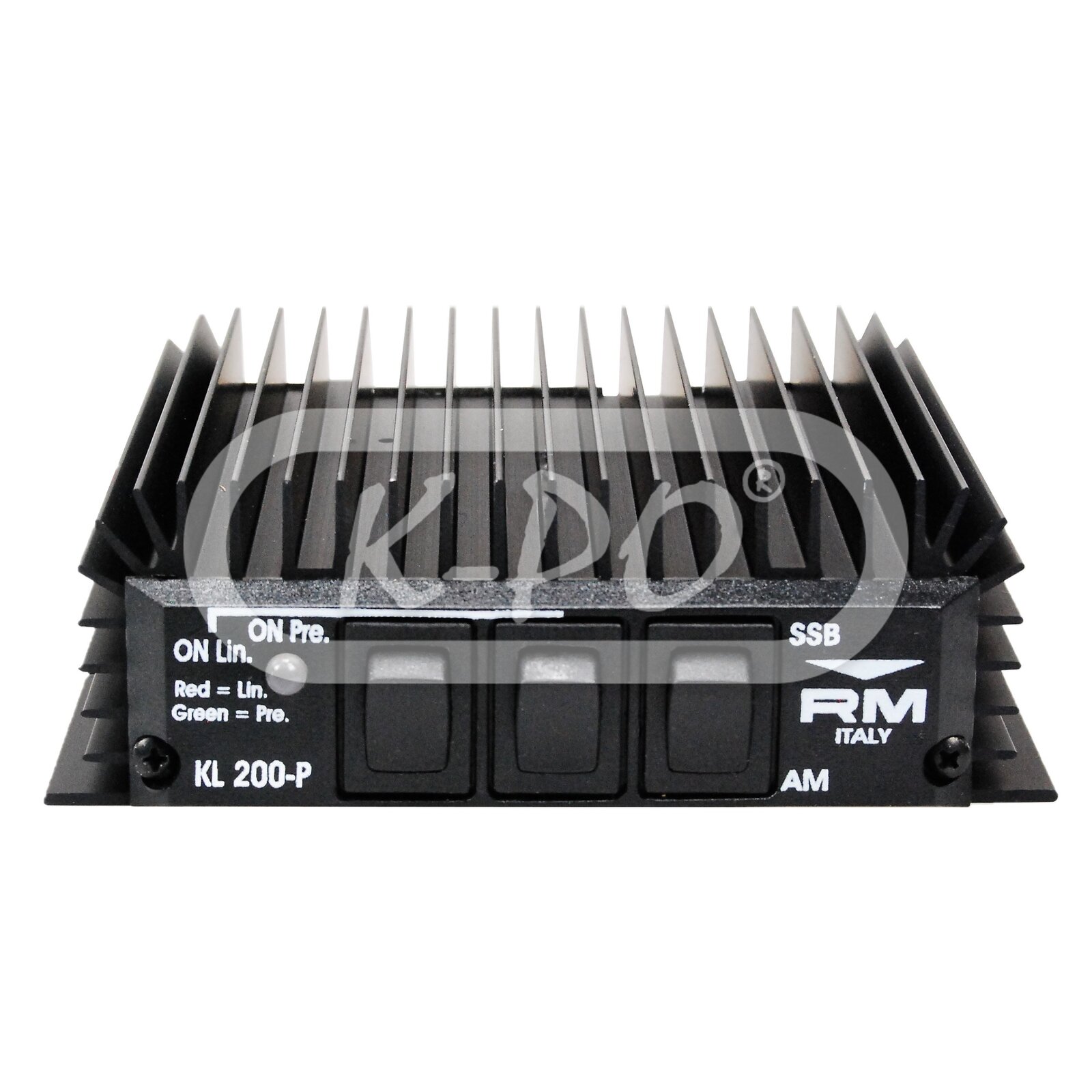

The RM KL200P 'black line' is a linear amplifier with inversion polarity protection and antenna pre-amplifier. The max. output power off the amplifier is 100 Watts AM-FM and 200 Watts SSB (PEP).

Frequency range: 25-30 MHz
Shipped today
€109.05 (109.05 excl. 0% VAT)

Electrical data

  • Input power (Watts): 1-5 AM-FM / 2-10 SSB - CW
  • Max output power (Watts): 100 AM-FM
  • Max output power SSB (Watts): 200 (PEP)
  • Impedance: 50 Ohm
  • Max input SWR: 1.1 - 1.5
  • Fuse: 12 A
  • Inversion polarity protection: Yes
  • Electronic switch: Yes
  • Pre-amplifier: Yes
  • Cooling fans: No
  • Input energy/power: 8-11 A
  • Antenna pre-amplifier: 26 dB

Mechanical data

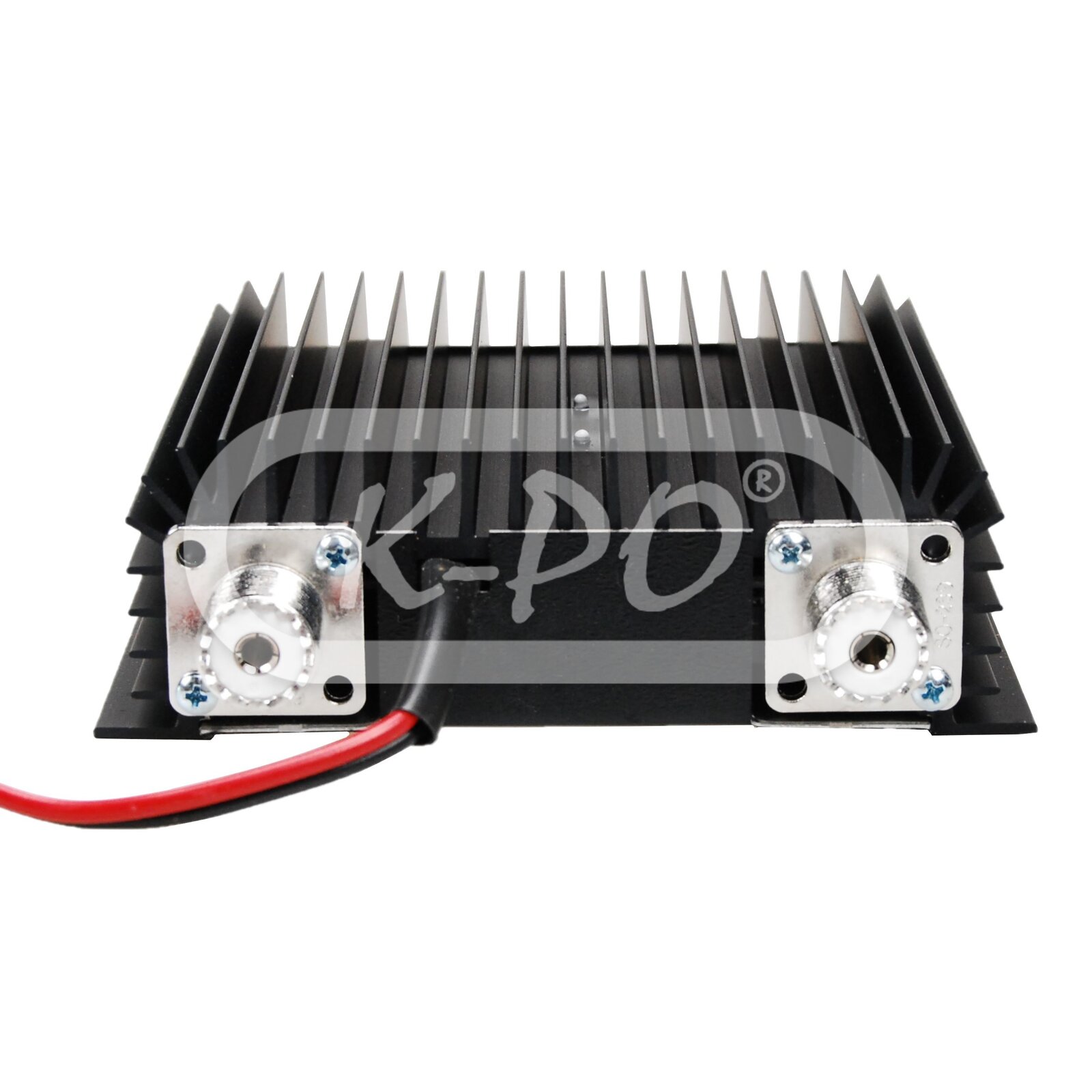

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 109 mm
  • Height: 35 mm
  • Width: 125 mm
  • Weight: 305 gram
  • Color: Red or Blue

Inside the box

  • Amplifier: Yes
  • DC power cord: Yes
  • Installation manual: English
