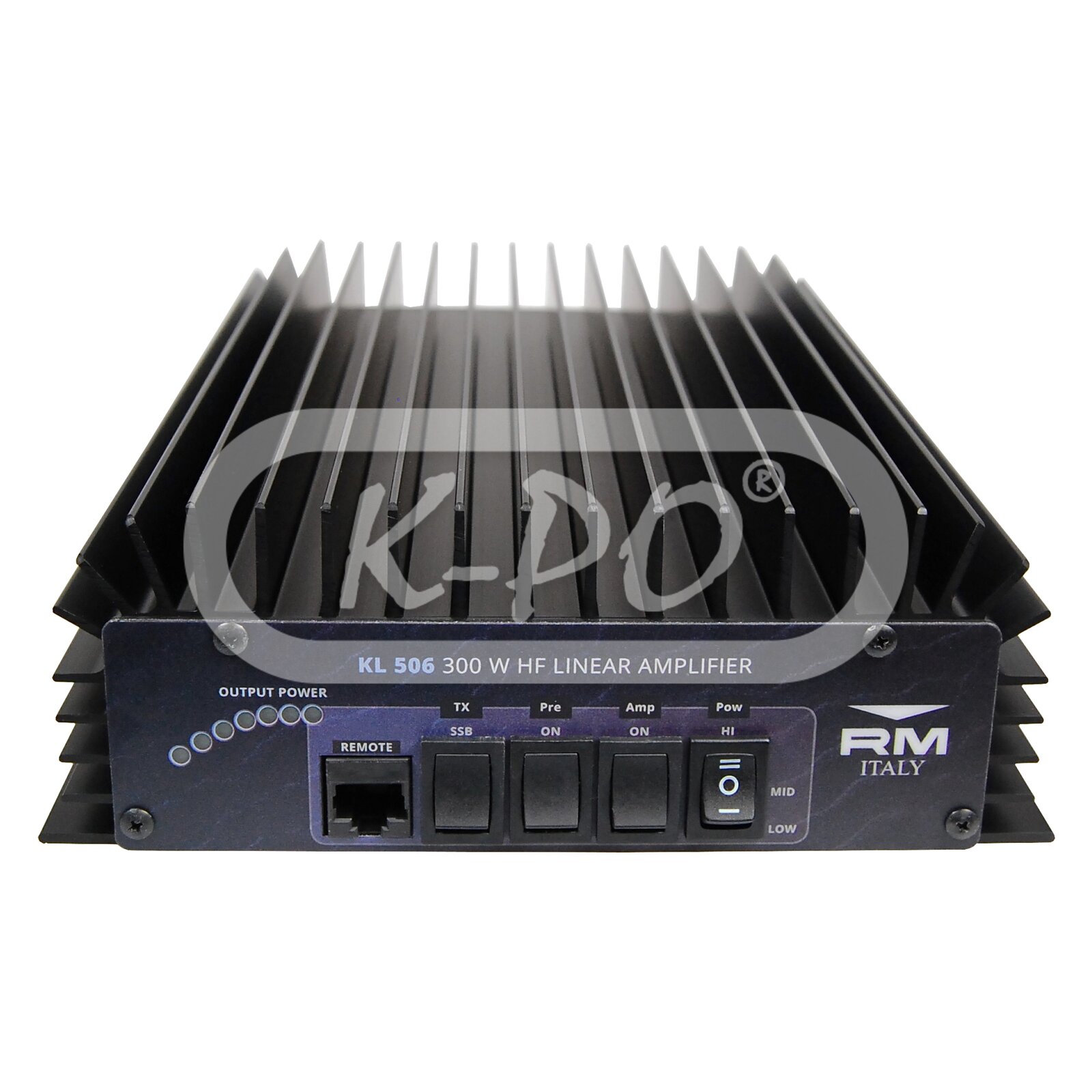

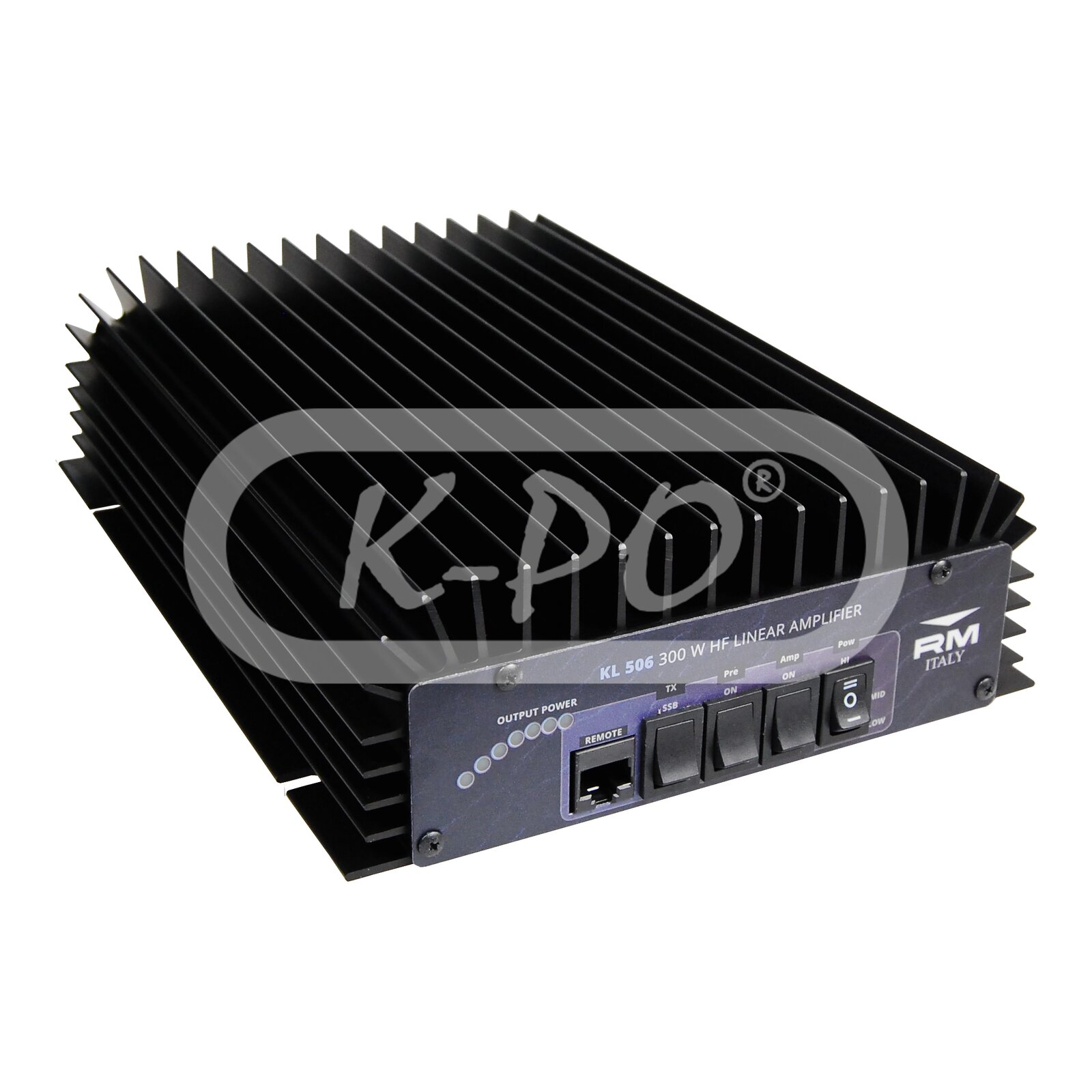

RM - KL506

Product code: 1784
Factory code: 000000001229

The RM KL506 'black line' is a linear amplifier with inversion polarity protection. The max. output power off the amplifier is 230 Watts AM-FM-SSB (max).

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequency range: 25-30 MHz
Out of stock - Longer delivery time
€408.22 (408.22 excl. 0% VAT)

Electrical data

  • Input power (Watts): 1-10 AM-FM-SSB-CW
  • Max output power (Watts): 230 AM-FM
  • Max output power SSB (Watts): 230 (PEP)
  • Impedance: 50 Ohm
  • Max input SWR: 1.1 - 1.5:1
  • Fuse: 3x 12 A (5x 20mm Fast Blow Glass Fuse)
  • Electronic switch: Yes
  • Pre-amplifier: Yes
  • Cooling fans: No
  • Output power level: 3
  • Input energy/power: 10 - 35 A
  • Antenna pre-amplifier: 26 dB
  • Transistor: 16x RM SD1446
  • Max output SWR: 2.5:1
  • Max bypass power (amplifier off): 50 Watts (max)

Mechanical data

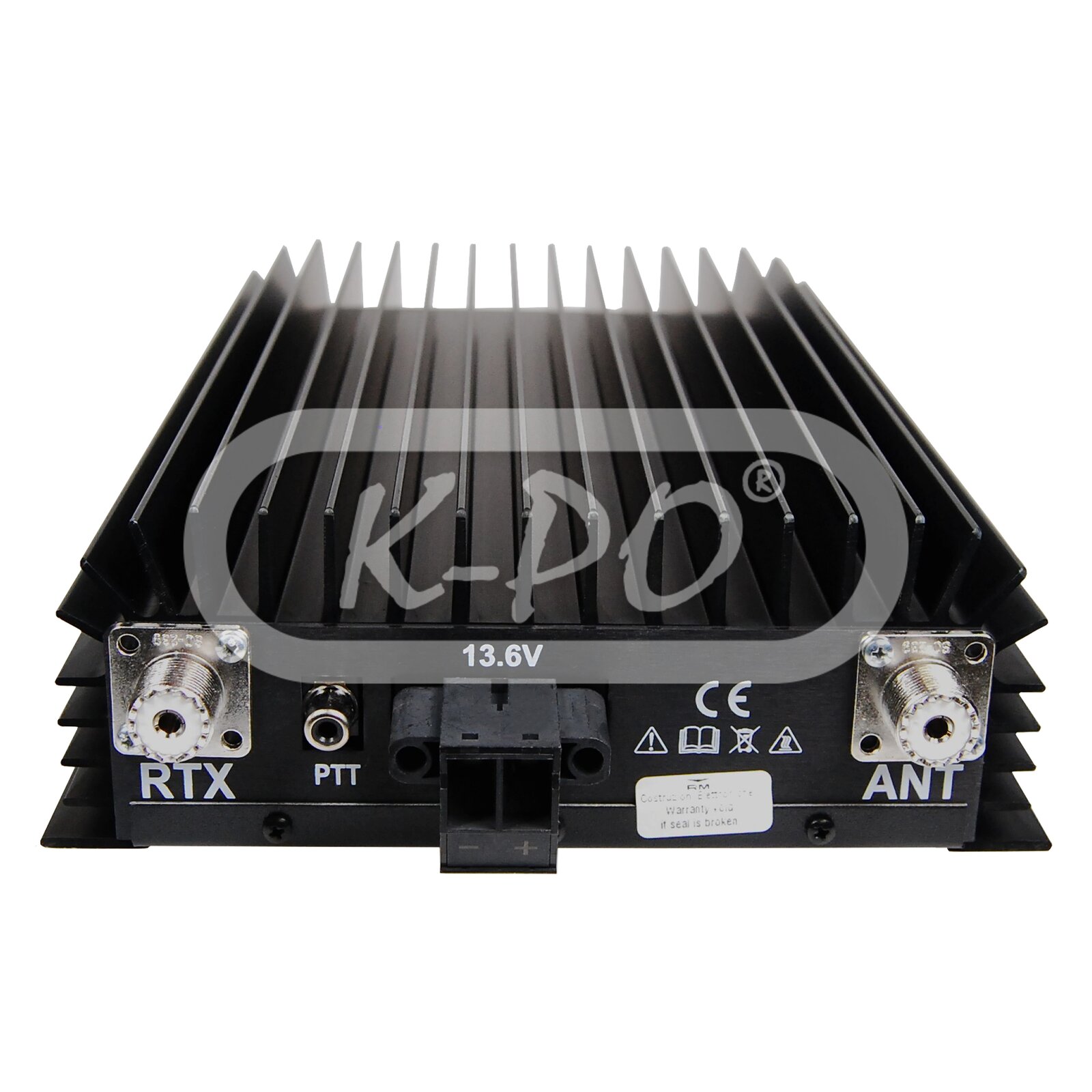

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 225 mm
  • Height: 35 mm
  • Width: 109 mm
  • Weight: 605 gram

Inside the box

  • Amplifier: Yes
  • Installation manual: English
