RM - LA145

Product code: 1762
Factory code: 050400005

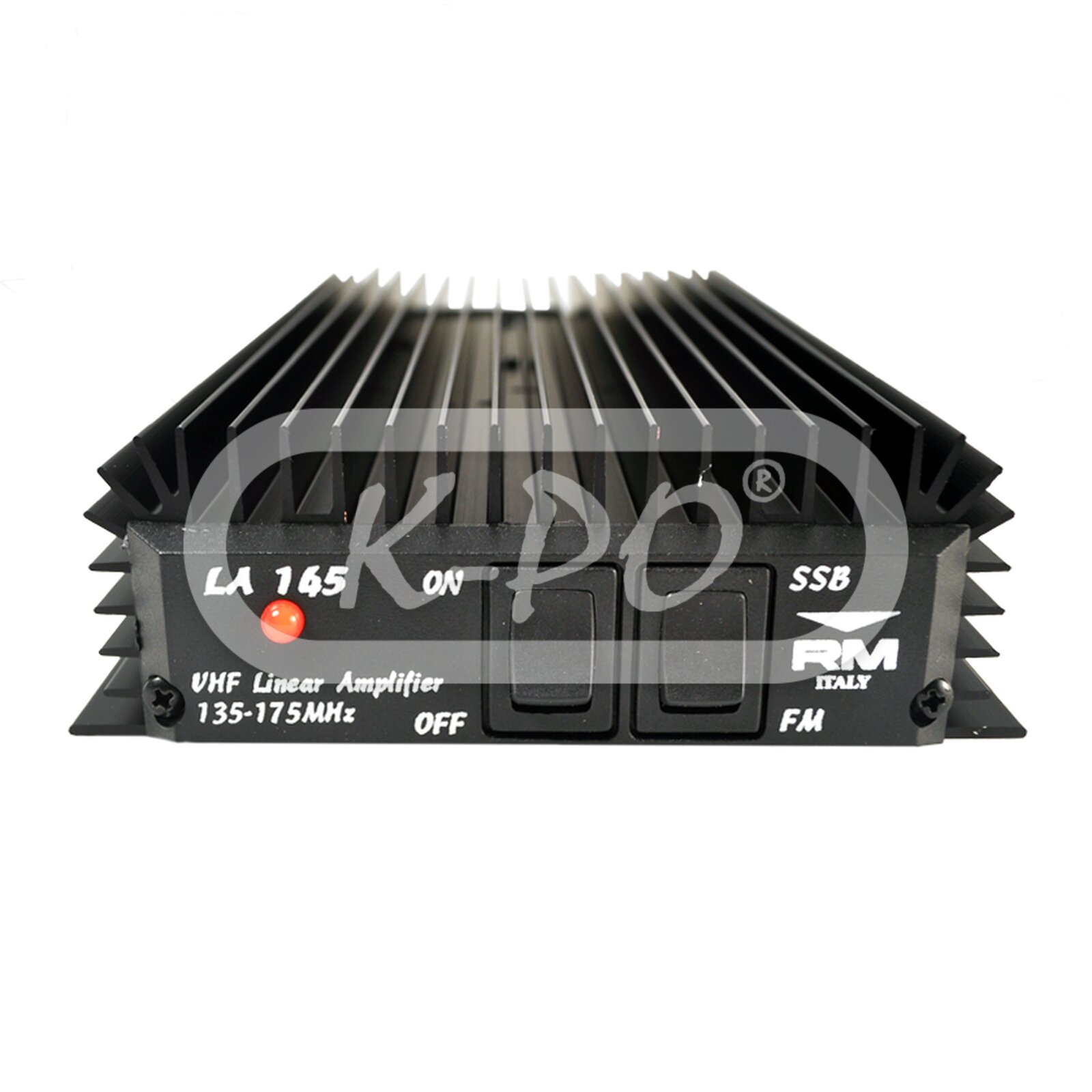

The RM LA145 'black line' is a wideband and compact amplifier for the VHF band, covering 135 till 175 MHz. The output at full power is 80 Watts. Input drive from 0.5-4 Watts, ideally suited to low power handheld transceivers. Output power depends both on input power and frequency of use. The amplifier features automatic RF switching between RX and TX.

Frequency range: 135-175 MHz
Shipped today - Stock: 1
€249.95 (206.57 excl. 21% VAT)

Electrical data

  • Input power (Watts): 0.5-4W max
  • Max output power (Watts): 80W
  • Max output power SSB (Watts): 80W
  • Impedance: 50 Ohm
  • Max input SWR: 1.1-1.5
  • Fuse: 12 A (5x20mm Fast)
  • Electronic switch: Yes
  • Power Supply: 12-14Vdc

Mechanical data

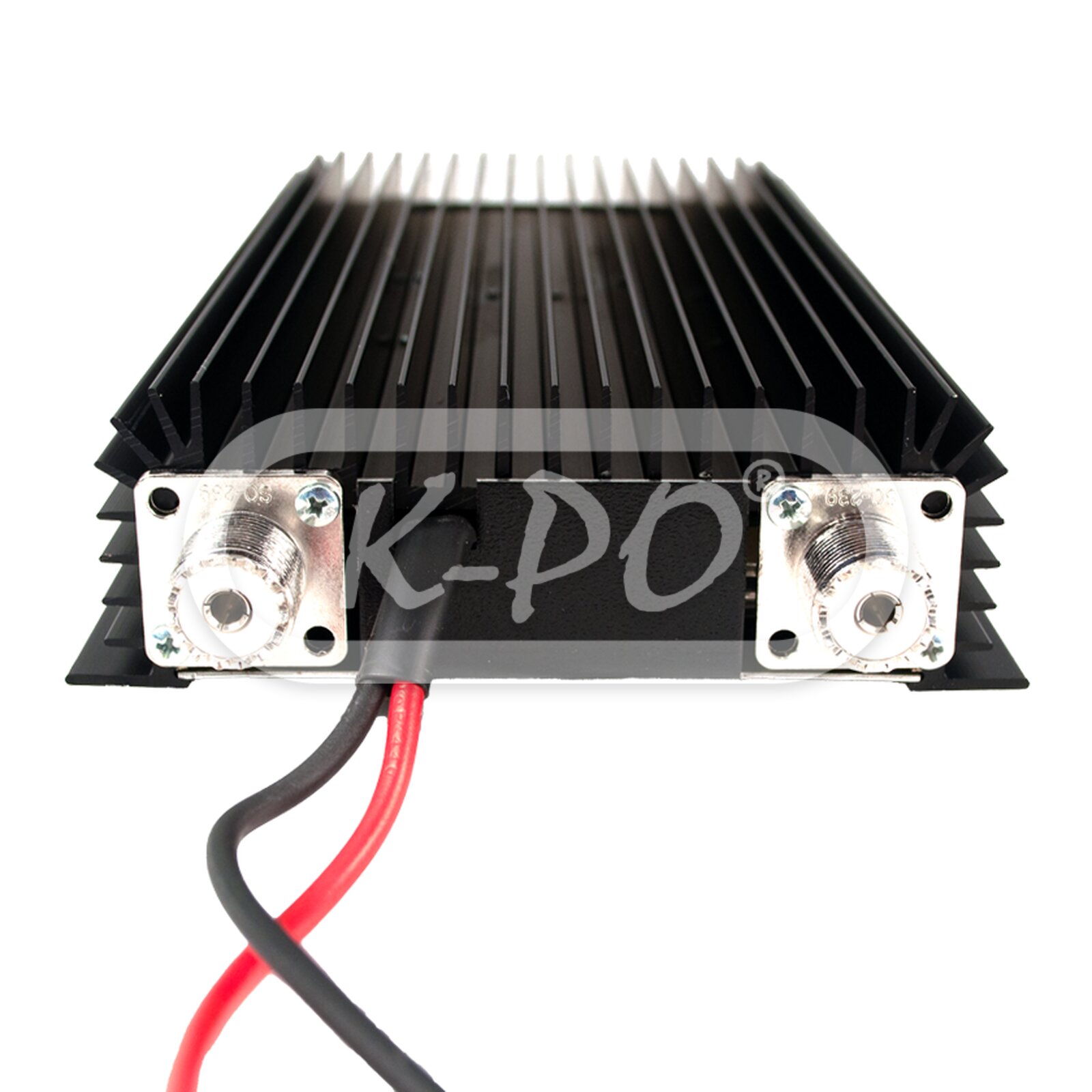

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 230 mm
  • Height: 40 mm
  • Width: 120 mm
  • Weight: 735 gram
  • Color: Black

Inside the box

  • Amplifier: Yes
  • DC power cord: Yes
  • Installation manual: English

Downloads
