Shakespeare - 5247-A-D

Product code: 805247
Barcode: 719441100926

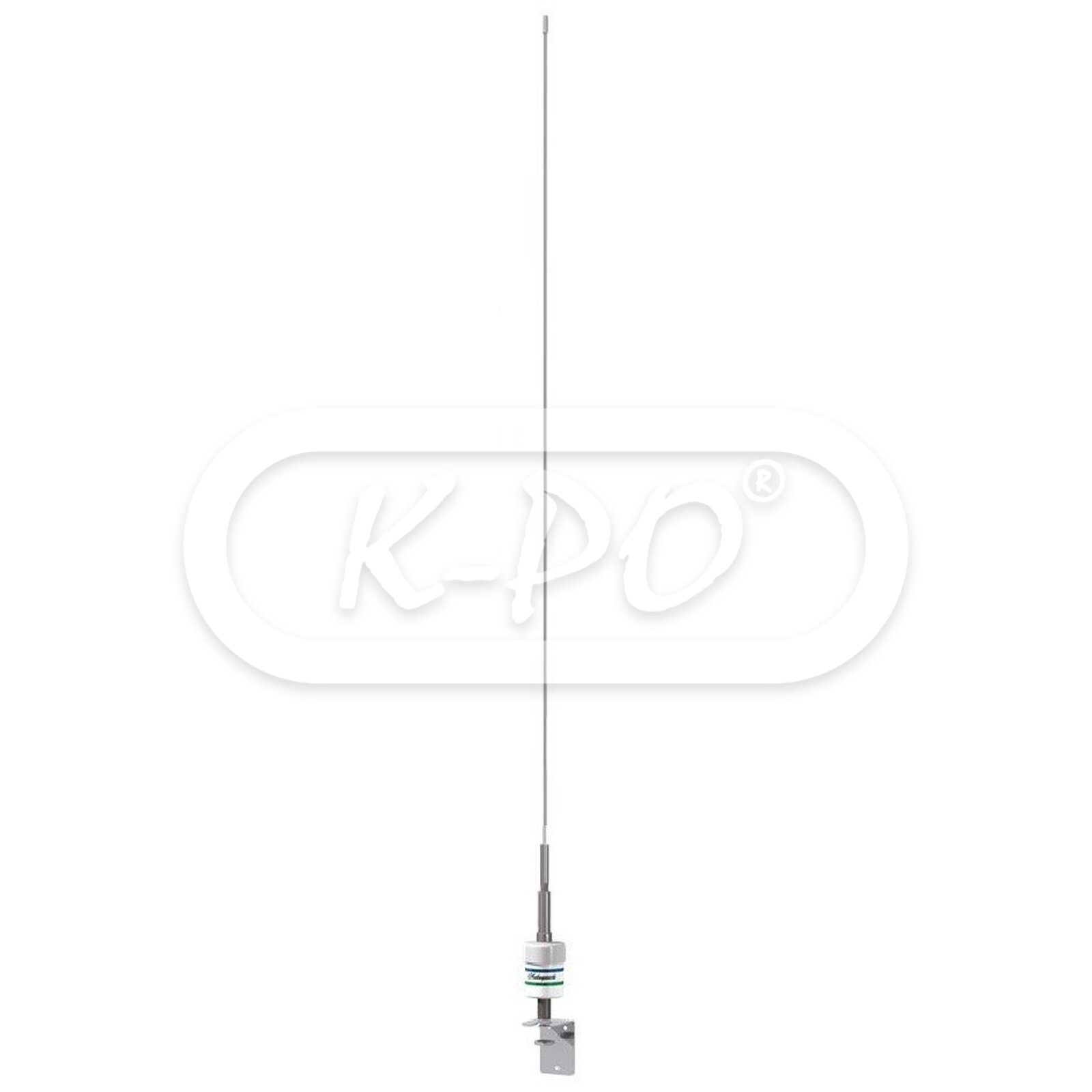

Low Profile with Heavy-Duty Lift-N-Lay Whip.

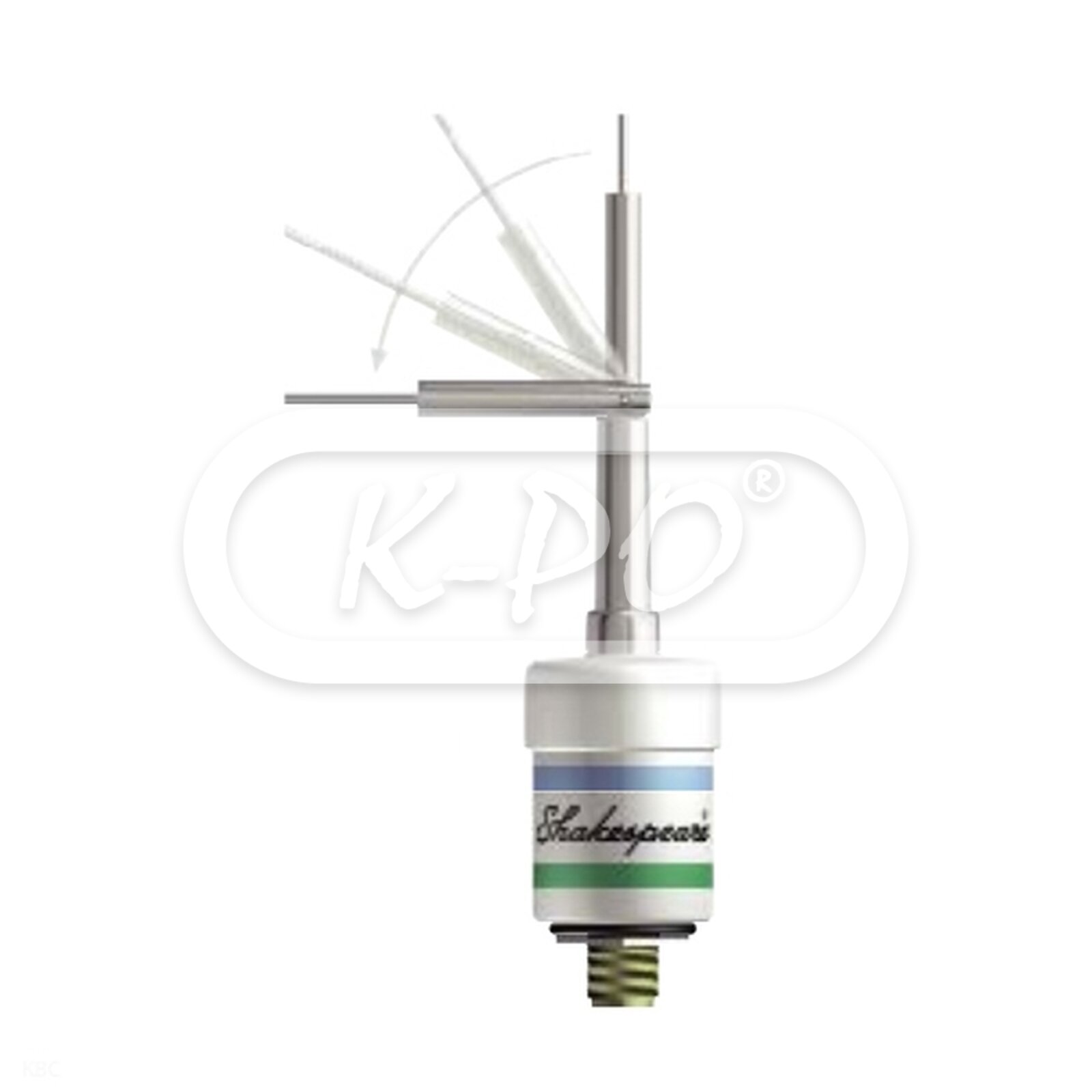

The style 5247-A-D is a 3 db base load antenna with a three-foot, extra heavy-duty, stainless steel whip that Lifts-N-Lays down so that it is out of the way for fishing, trailering, boat covers or storage. The Lift-N-Lay feature makes the antenna extra easy to set up and lay down. Superb value, performance and convenience. A right-angle
"L" bracket is included for side mounting.

  • Sealed copper wire coil
  • 36" (91 cm) extra heavy-duty stainless steel whip minimizes flexing at high speeds
  • SO-239 connector
  • "L" bracket included for mounting to a vertical surface
  • Coax and PL-259 connector sold separately
  • One section
Frequency range: 156 - 162 MHz
Out of stock - Longer delivery time
€63.95 (52.85 excl. 21% VAT)

Electrical data

  • Gain: 3 dB
  • VSWR: ≤ 1.5 at 156.8 MHz
  • Bandwidth: 7 MHz ≤ 2.0
  • Maximum continuous power: 50 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Height: 910 mm
  • Mounting type: Mast/side mount
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Installation manual: English
