Sirio - HP 2000

Product code: 992000

Factory code: 2210105.05

Barcode: 8056182114532

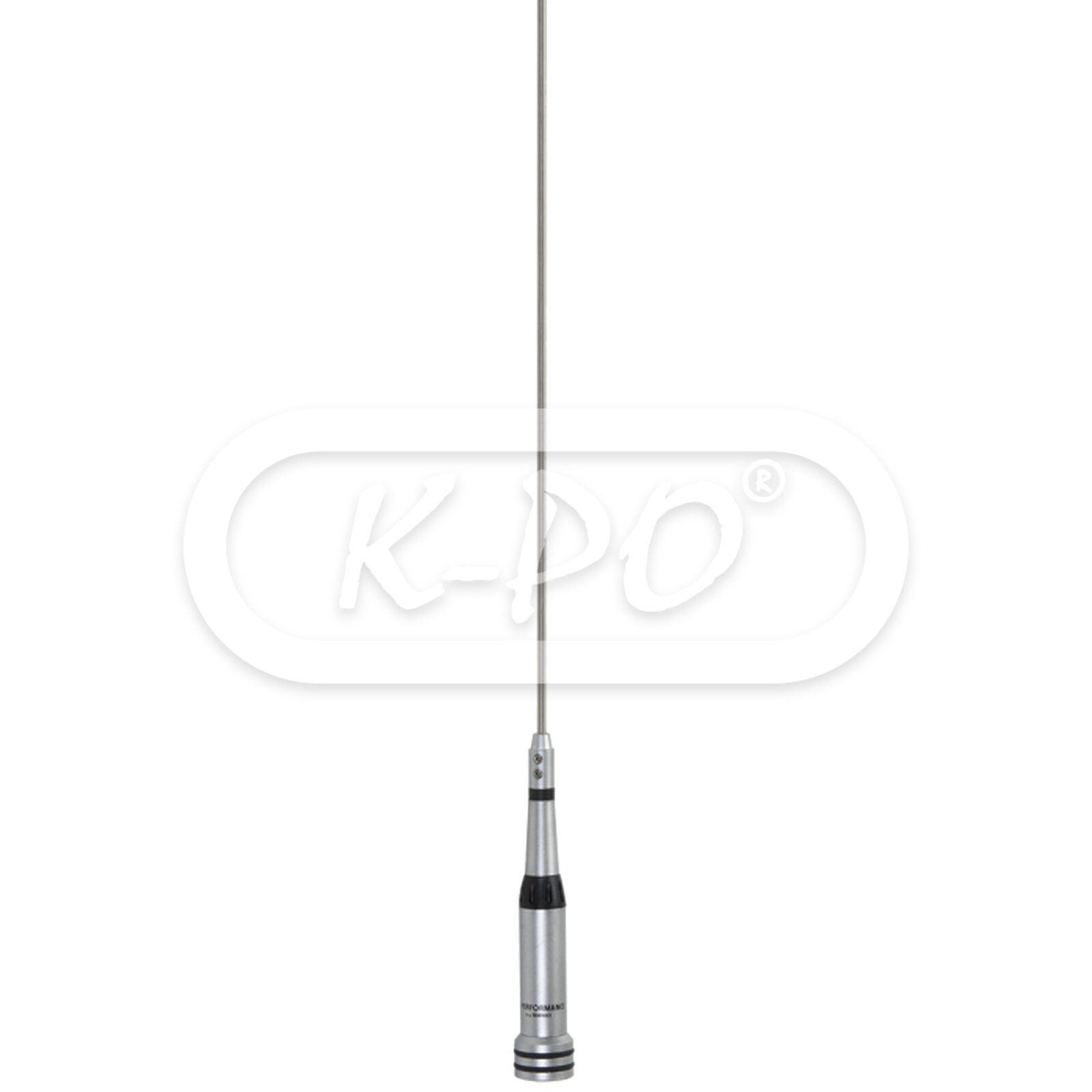

VHF radialless vehicular antenna working on the 2 meter band, 142 - 149 MHz @ ≤ 2.0, without tuning. The very best materials have been used to guarantee the maximum strength and the best performance. The whip made of 17/7 PH stainless steel, has an inclination system that allows the 90 tilting without using keys or tools. Also a particular attention has been paid to the UHF-male connector with a gold plated center pin, PTFE insulator and silicone rubber gasket for a perfect waterproofing.

Frequency range: 142 - 149 MHz

Note - Discontinued

€ -- (Discontinued)

Electrical data

• Electrical type: 1/2 λ
• Gain: 1 dB
• VSWR: ≤ 1.2 on center frequency / ≤ 2.0 @ 142 - 149 MHz
• Maximum continuous power: 150 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 1060 mm
• Weight: 320 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English

Downloads

• Datasheet: Id 100 18 06 2015 hp2000
