Sirio - Mini Mag 27

Product code: 220490574

Factory code: 2204905.74

Barcode: 8056182110060

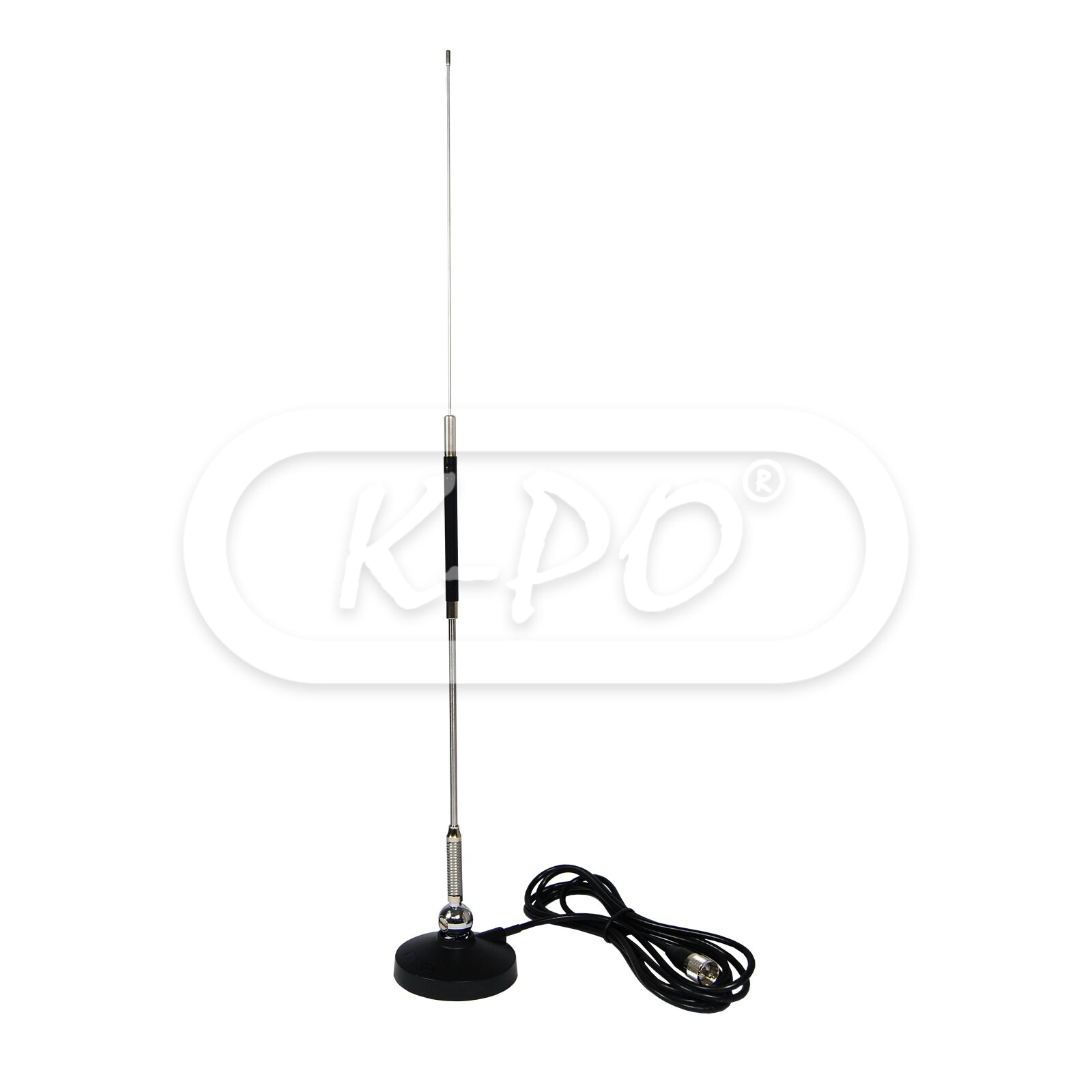

The Sirio Mini Mag 27 is a mobile magnet antenna working on 27 MHz. The whip is made of 17/7 PH stainless steel whit a stainless steel spring and all the metallic parts are of chromed brass to get the best robustness. Supplied with magnetic mount and 3 meter cable for a temporary installation or for use with holiday kits.

Frequency range: 26.9 - 27.4 MHz

Out of stock - Longer delivery time

€33.95 (28.06 excl. 21% VAT)

Electrical data

• Electrical type: Central loaded
• VSWR: ≤ 1.2
• Bandwidth: 280 kHz ≤ 2.0
• Maximum continuous power: 10 Watts (CW)
• Power peak: 50 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 3 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel, fiberglass
• Height: 630 mm
• Weight: 575 gram
• Mounting type: 90 mm magnet

Inside the box

• Antenna: Yes
• Radio connector: UHF-male (PL)
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 381 minimag 20 11 2007
