Sirio - New Delta 27-M-95

Product code: 200109
Factory code: 2203415.01
Barcode: 8056182110046

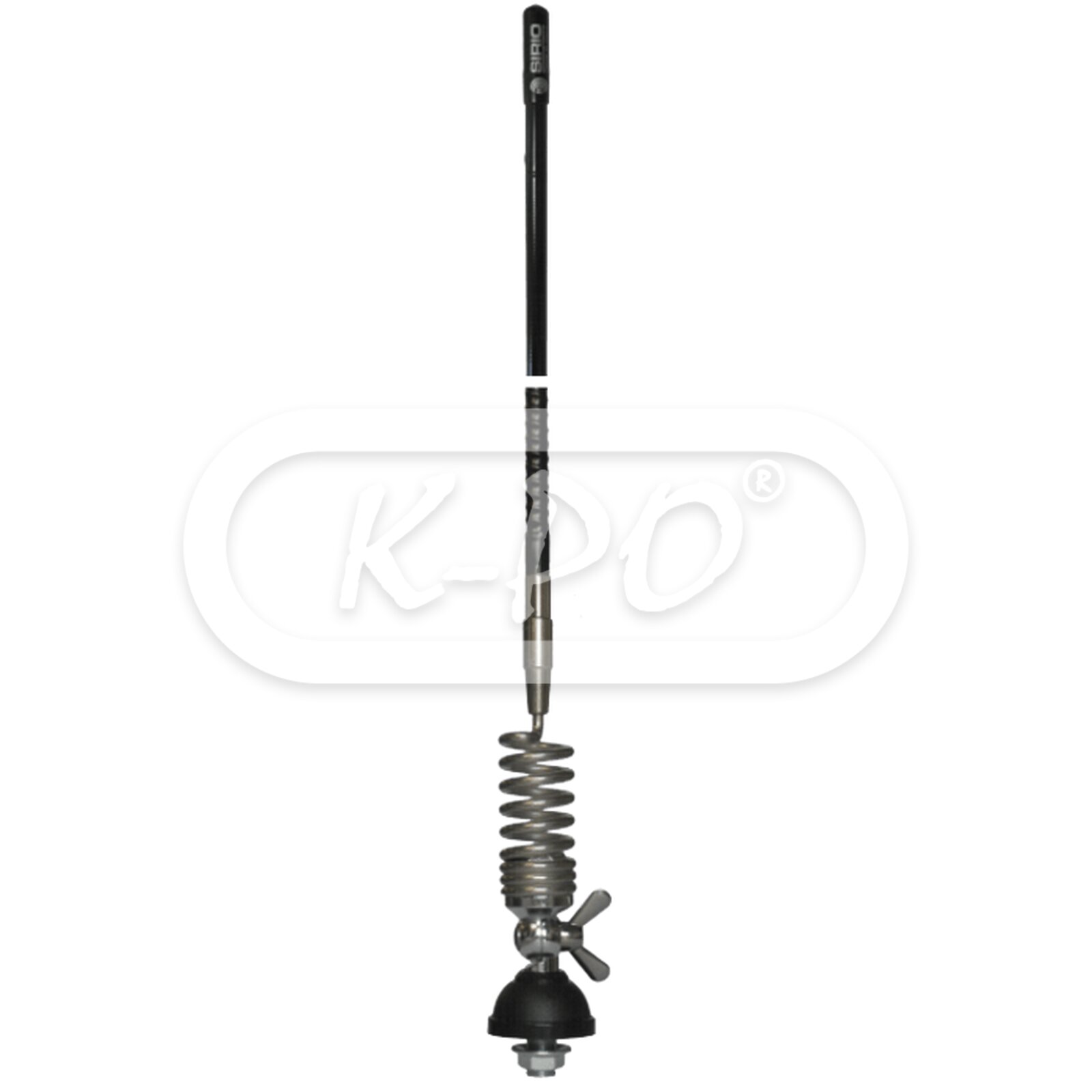

The New Delta 27 M 95 is a wide bandwidth CB antenna conceived for vehicular use. Thanks to its new double pitch helical coiling, it has been improved to get a wider bandwidth and an excellent SWR. The New Delta 27 M 95 is also supplied with a new tuning system placed on the top of the radiator for an easy tuning and flexible installation.

Frequency range: 26.7 - 27.6 MHz
Shipped today - Stock: 9
€33.95 (28.06 excl. 21% VAT)

Electrical data

  • Electrical type: Helical loaded
  • VSWR: ≤ 1.2
  • Bandwidth: 900 kHz (80 channels) ≤ 2.0
  • Maximum continuous power: 35 Watts (CW)
  • Power peak: 100 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes

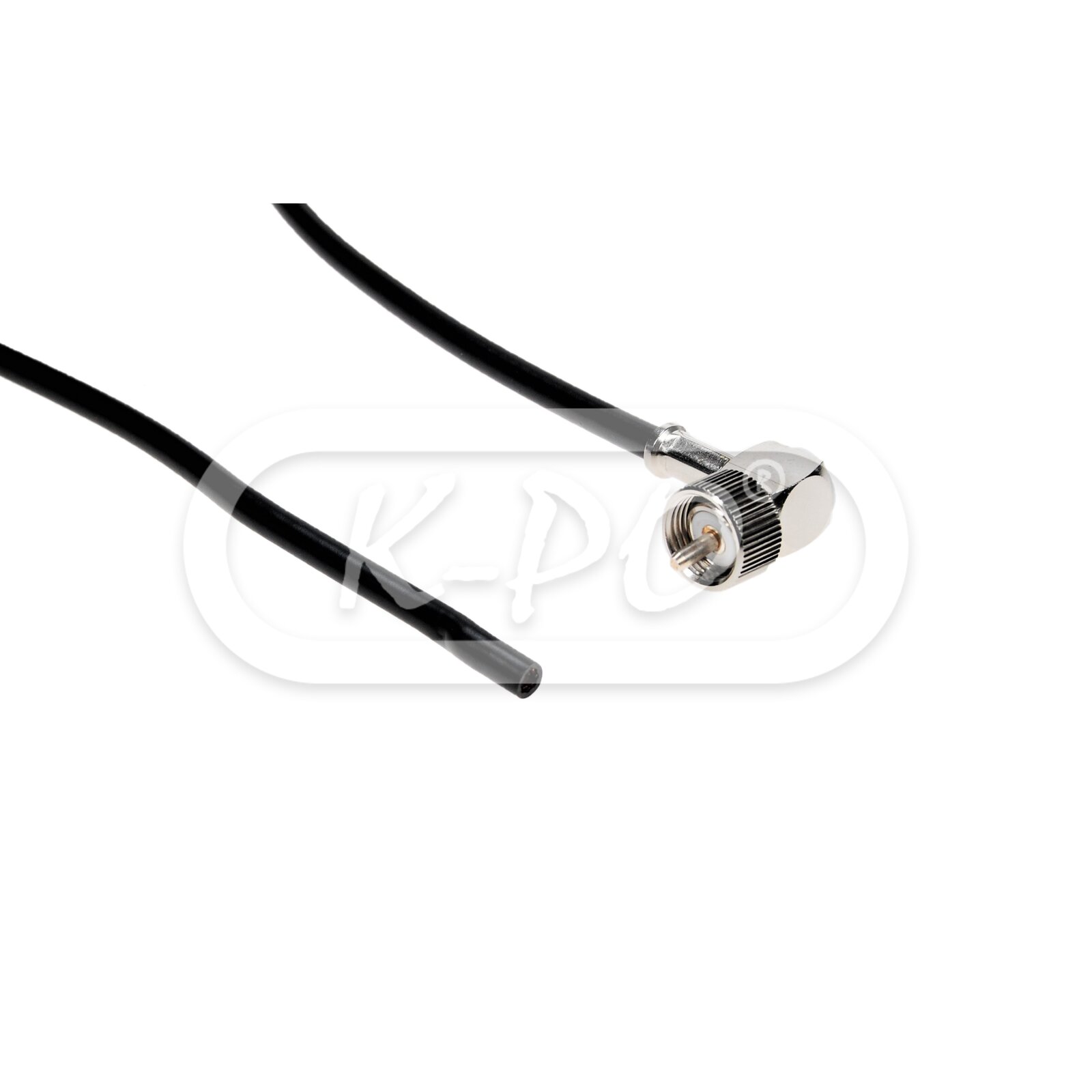

  • Cable length: 4 meter / RG 58

Mechanical data

  • Materials: Copper, brass, stainless steel, fiberglass
  • Height: 950 mm
  • Weight: 500 gram
  • Mounting type: Thru-hole

Inside the box

  • Antenna: Yes
  • Radio connector: Not included, optional

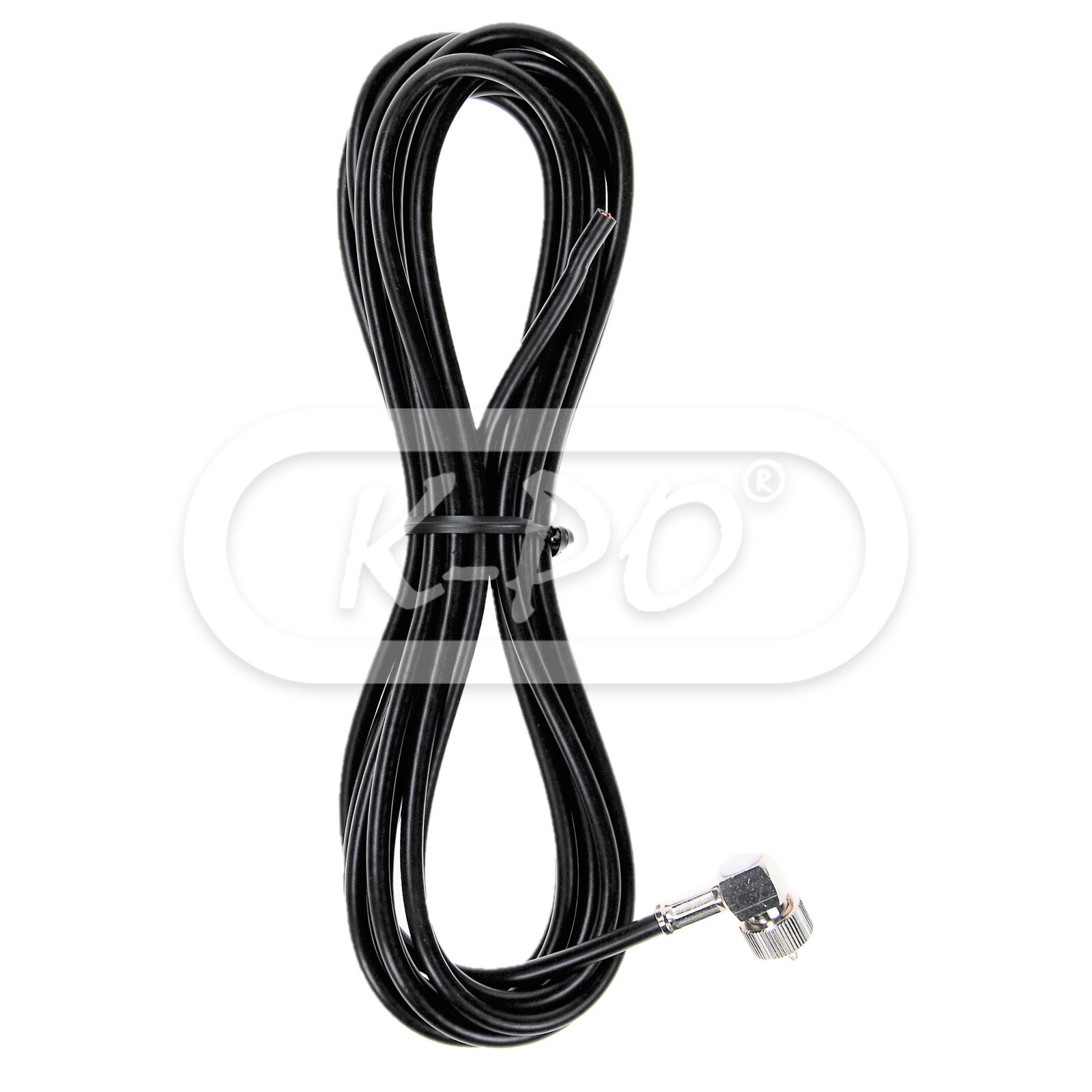

  • Antenna cable: Yes
  • Installation manual: English, Italian
