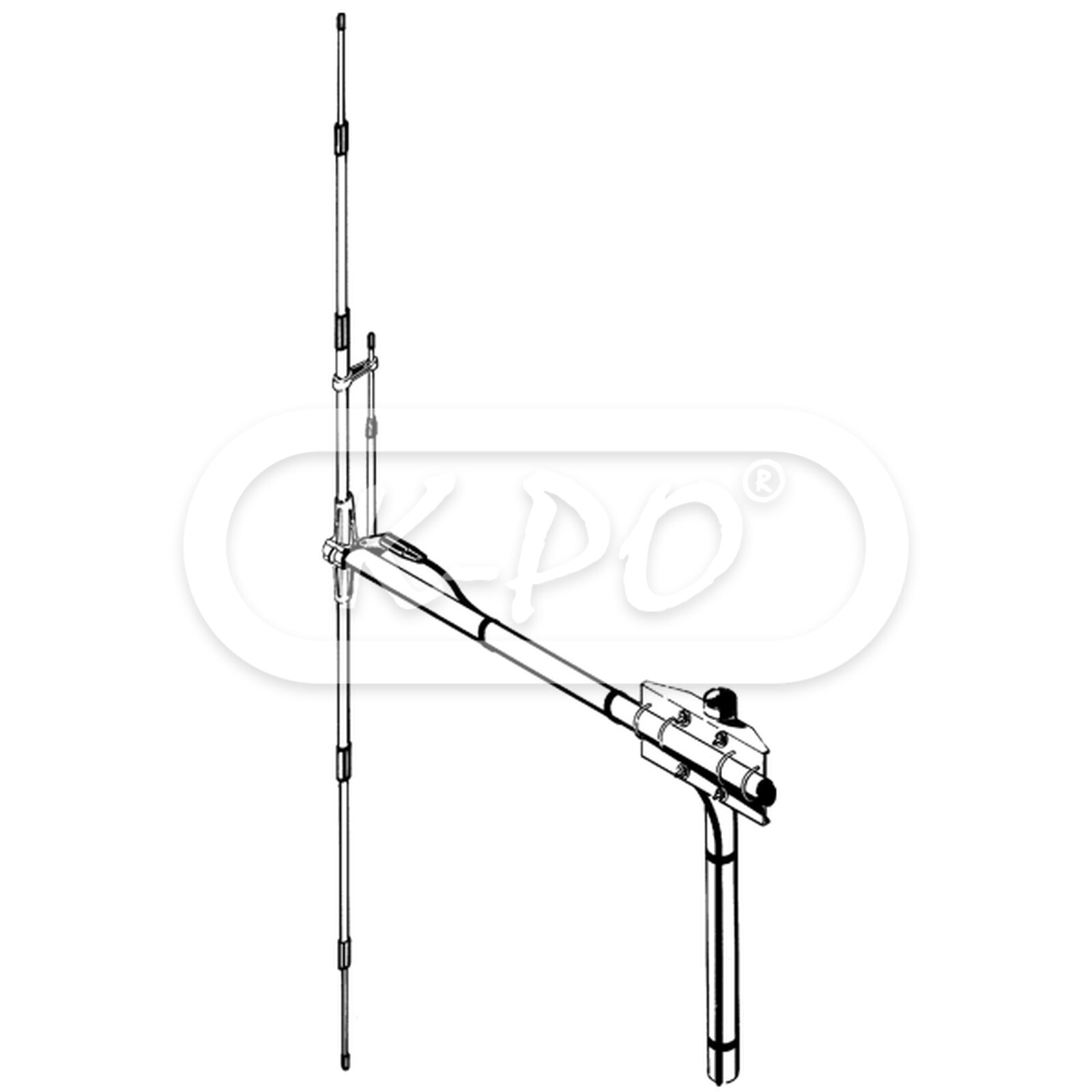

Sirio - SD-Dipole

Product code: 20027

Factory code: 2105301.00

Barcode: 8056182112798

CB and 10 meter band dipole. High power handling. Tunable between 26.5 - 30.0 MHz.

Frequency range: 26.5 - 30.0 MHz tunable

Shipped next business day - Stock: 1

€89.95 (74.34 excl. 21% VAT)

Electrical data

• Electrical type: 1/2 λ dipole
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.1
• Bandwidth: 3500 kHz @ 26.5 MHz ≤ 2.0
• Maximum continuous power: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Aluminium, galvanized steel, zamak
• Mast Ø: 35 - 50 mm
• Max wind resistance: 130 km/h
• Height: 5582 mm
• Weight: 2560 gram
• Mounting type: On mast
• Antenna connector: UHF-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 097 sd dipole 10 09 2011
