TTI - TCB-H100 UK

Product code: 48101
Barcode: 8809075192311

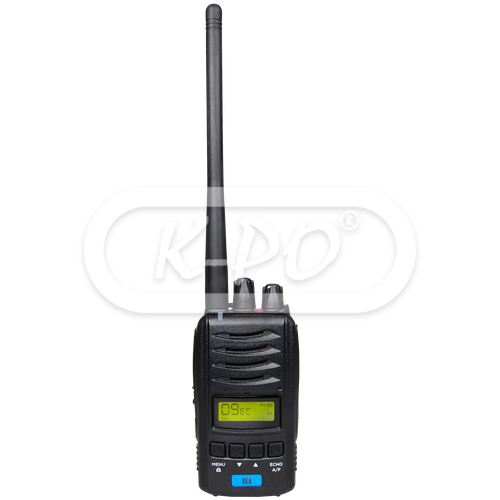

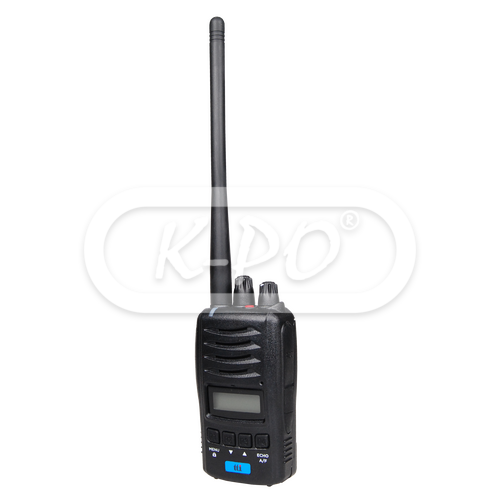

The TTI TCB-H100 is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colors, 2600 mAh battery packand many more functions. Optional are a 12/24 volt car charger and a 12/24 volt battery eliminator with external antenna connector.

Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€134.95 (111.53 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
  • Channels: 40 AM / FM

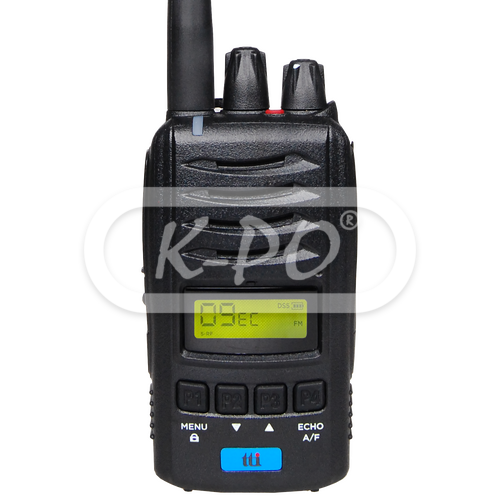

  • Display type: Multi-color backlight

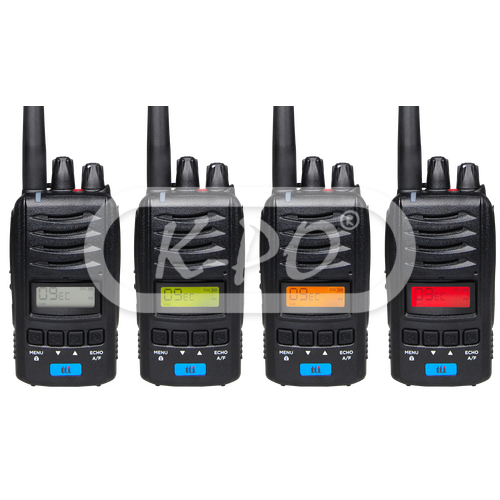

  • Display colors: Green / Orange / Red
  • VOX Function: Yes
  • Squelch: DSS (Dynamic Squelch System) / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Hi/Lo power: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • Battery capacity: Li-ion 2600 mAh
  • Echo: Yes
  • Roger Beep: Yes

Electrical data

  • Voltage: 7,4 Volt
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002 %

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz ± 0.2 kHz
  • Harmonic suppression: Less than-54 dBm
  • Drain: AM full Mod. 1.6 A Max.

Receiver

  • AM sensitivity: 1.4 µV for 10 dB
  • FM sensitivity: 0.8 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 3 kHz
  • Maximum audio power: 1 Watt @ 16 Ohm
  • Internal speaker: 16 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: More than 60 dB
  • Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Mechanical data

  • Length: 57 mm
  • Height: 116 mm
  • Width: 39 mm
  • Weight: 224 gram
  • Antenna connector: SMA
  • Accessory connector: 2 pin Standard Icom (S)

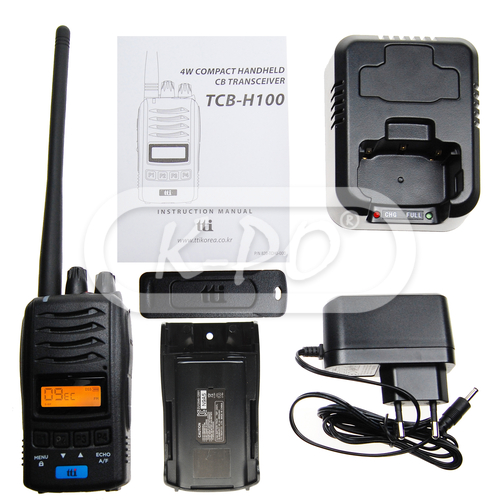

Inside the box

  • Transceiver: 1 pcs
  • User Manual: English
  • Belt clip: Yes

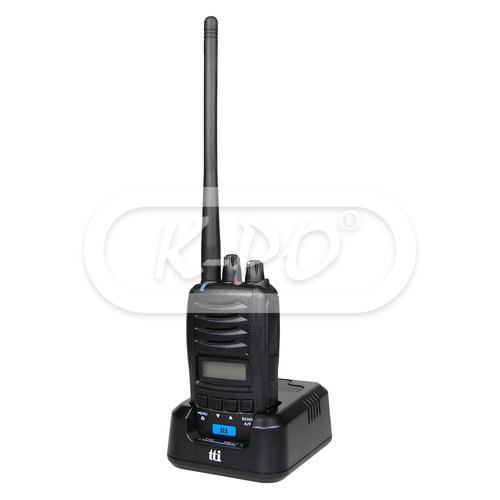

  • Desktop charger: Yes
  • Antenna: Yes
  • UK wall adapter: Yes
