Wilson - 5000 Roof Top

Product code: 1200146
Factory code: 880-200154B
Barcode: 020126200184

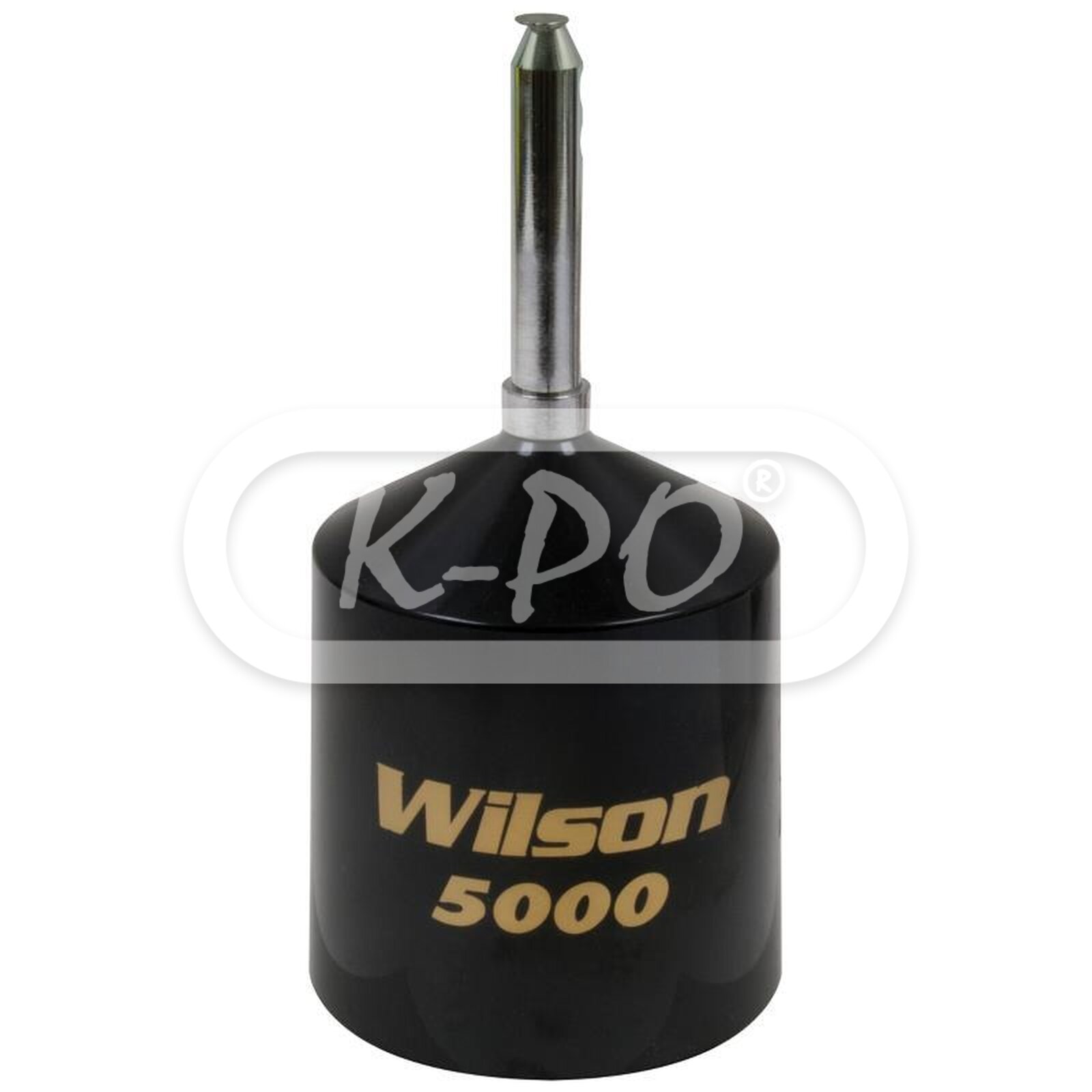

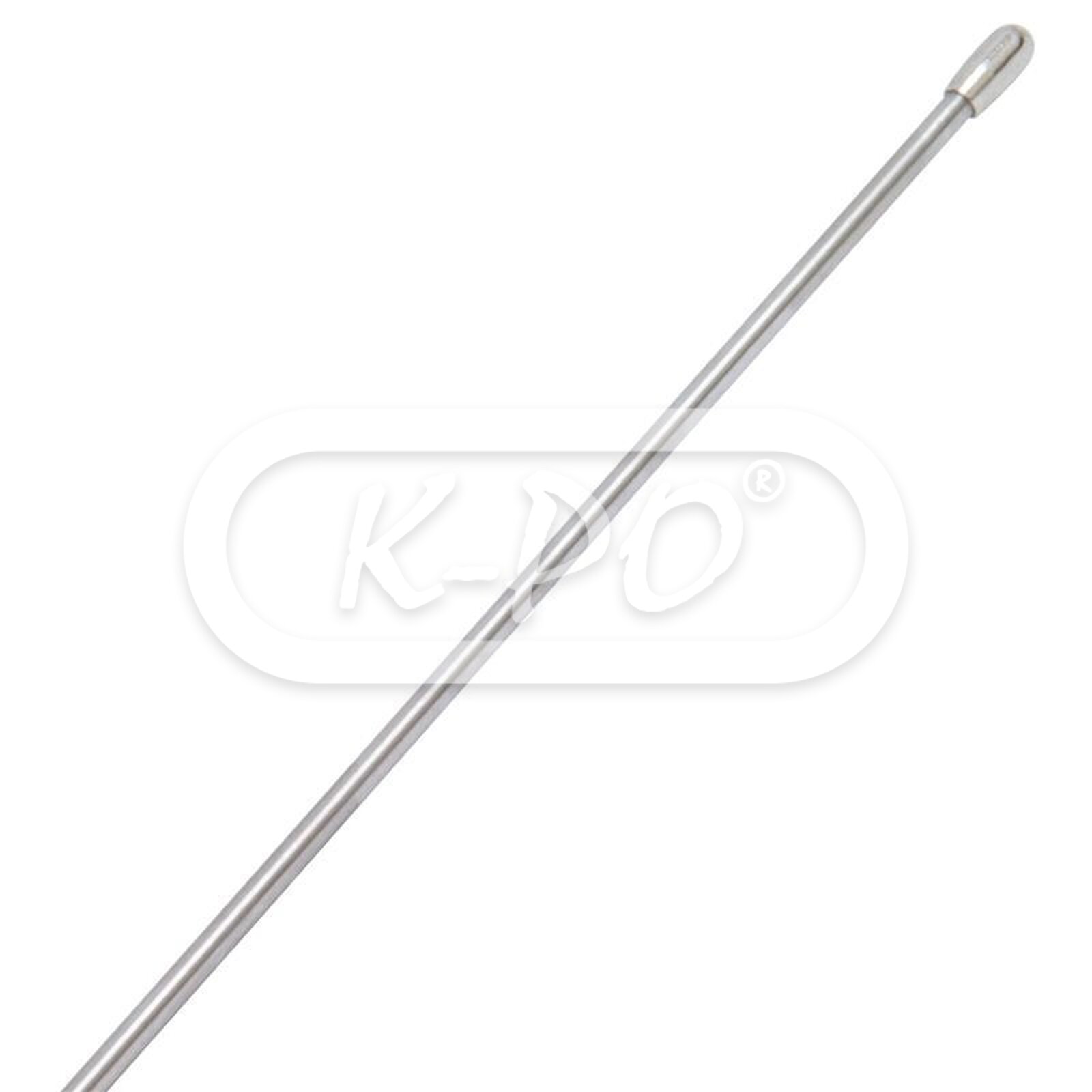

The original Wilson 5000 Roof Top mount mobile CB and 10 meter antenna kit is one of the most powerful base loaded mobile CB antennas on the market. Featuring a roof top mount antenna base with a 62.5 inch (160 cm) whip it has 5000 AM and 20000 SSB Watts of power handling capability (ICAS) as is made with high impact Mobay thermoplastic. With a low loss coil design it has a 17-7-PH tapered spring stainless steel whip. Frequency range is 26 to 30 MHz with a removable coil for safe storage or low entrance.

Frequency range: 26 - 30 MHz
Out of stock - Longer delivery time
€145.95 (120.62 excl. 21% VAT)

Electrical data

  • Electrical type: Base loaded
  • Power peak: 5000 Watts (ICAS)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 5.20 meter / RG 58

Mechanical data

  • Materials: Mobay thermoplastic, stainless steel 17/7 PH
  • Height: 1750 mm
  • Mounting type: Thru-hole

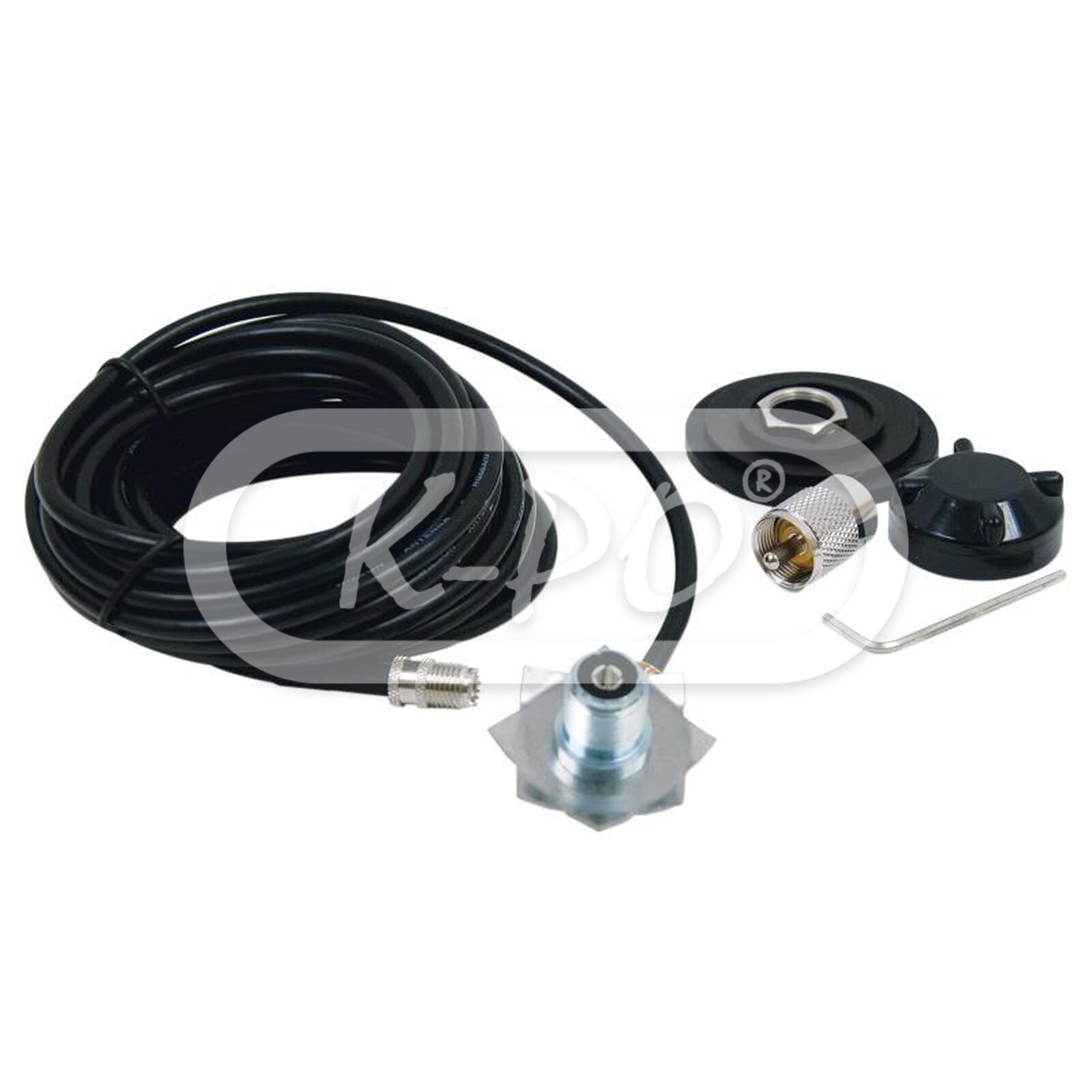

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
