Yaesu - ATAS-120A

Product code: AAC81X002
Factory code: AAC81X002
Barcode: 4909959098723

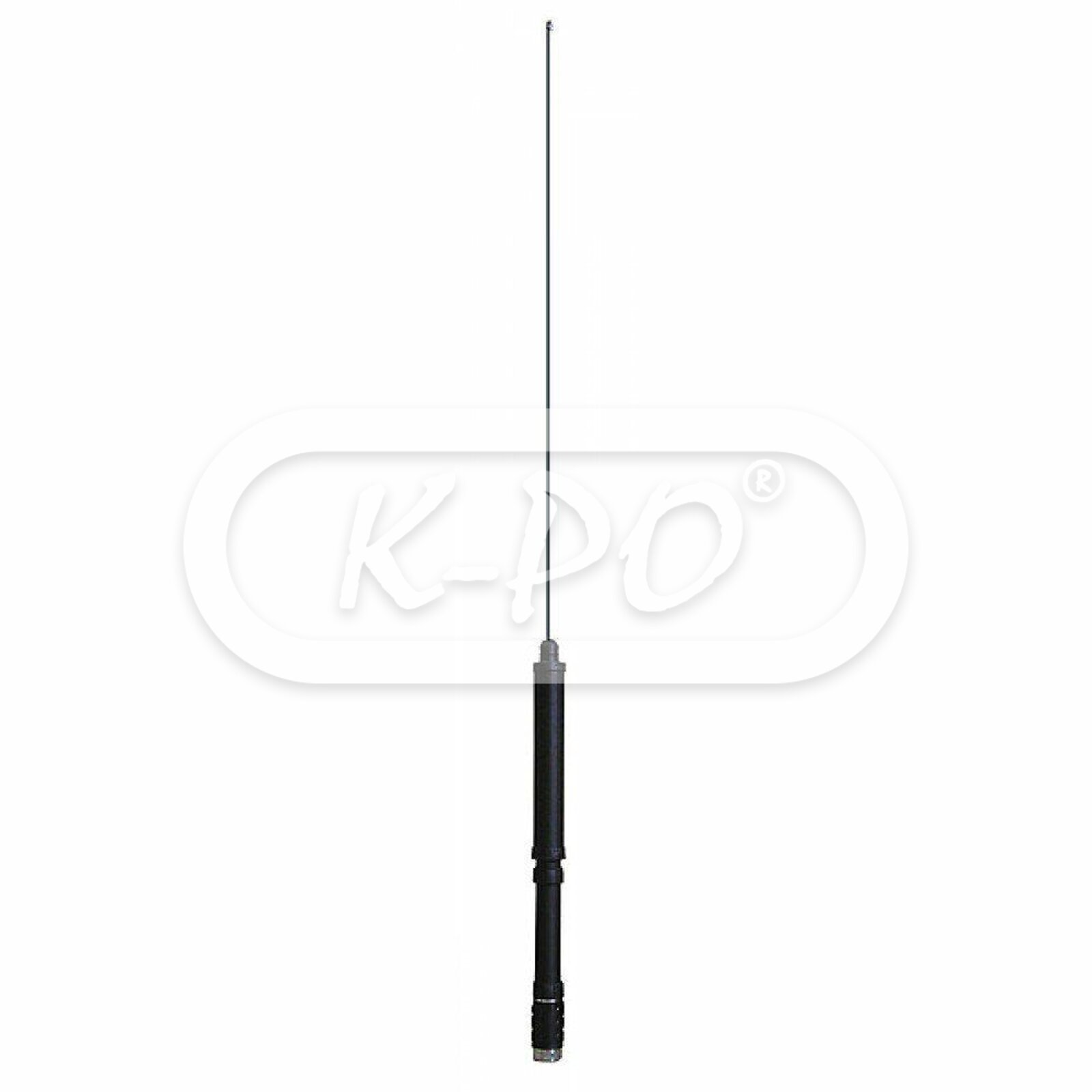

The ATAS-120A is an unique mobile antenna designed for use with Yaesu transceivers that support the by Yaesu patented ATAS (Active Tuning Antenna System) system, such as the FT-897, FT-847, FT-857 and FT-100.

The ATAS-120A utilizes a motorized tuning system which resonates the radiating element for the lowest possible SWR.

The ATAS-120A is designed to be mounted directly onto a standard fixed mobile antenna UHF (PL) mount (not supplied), a magnet mount is not recommended.

Sometimes a du- of triplexer is advised, to avoid continuously changing the coaxial cable to the appropriate antenna jack of your transceiver.

Frequency range: 7 / 14 / 21 / 28 / 50 / 144 / 430 MHz
Shipped today
€339.95 (280.95 excl. 21% VAT)

Electrical data

  • VSWR: Less than 2.0:1
  • Maximum continuous power: 120 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Height: 1400 - 1600 mm
  • Weight: 900 gram
  • Mounting type: On UHF-female (PL) connector (not included)
  • Antenna connector: UHF-male (PL)

Inside the box

  • Antenna: Yes
  • Installation manual: English
  • Waterproof cap: 1 pcs
  • Allen wrench: 1 pcs
