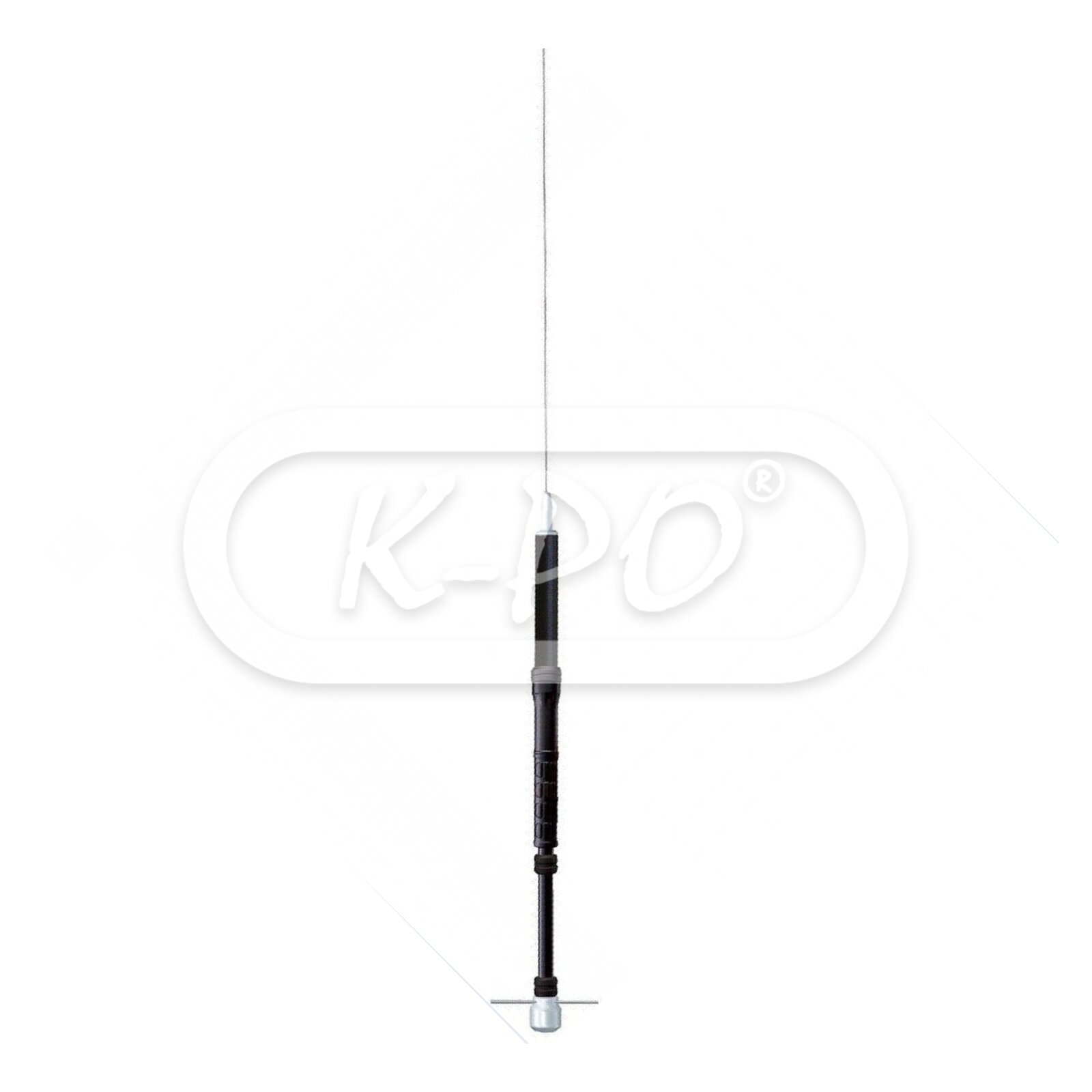

Yaesu - ATAS-25

Product code: AAC82X001
Factory code: AAC82X001

The Yaesu ATAS-25 utilizes a manual tuning system which resonates the radiating element for lowest SWR without the need for expensive, inconvenient mono-band resonating whip assemblies. The ATAS-25 allows dual-frequency operation (on HF or 50 MHz and either 144 or 430 MHz), if two transceivers are combined via a suitable diplexer (not supplied). The ATAS-25 is designed to mount directly onto a standard camera tripod (not supplied)

Frequency range: 7 / 14 / 21 / 28 / 50 / 144 / 430 MHz
Note - Price on request
€ -- (Price on request)

Electrical data

  • VSWR: Less than 2.0:1
  • Maximum continuous power: SSB/CW: 100 Watts / AM/FM: 50 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Height: 600 - 2200 mm
  • Weight: 930 gram
  • Mounting type: On 1/4 female (Designed to be mounted on a standard camera tripod, not included)
  • Antenna connector: 1/4 male

Inside the box

  • Antenna: Yes
  • Installation manual: English
  • Radiating elements: 3 pcs
  • Radial element (for VHF band): 1 pcs
  • Radial element (for UHF band): 1 pcs
  • Radial wires 2m/3m/6m: 1 pcs
  • Spare radial wire 10m: 1 pcs
  • Capacitor tube: 1 pcs
  • Allen wrench: 1 pcs
