Yaesu - FC-40 antenna tuner

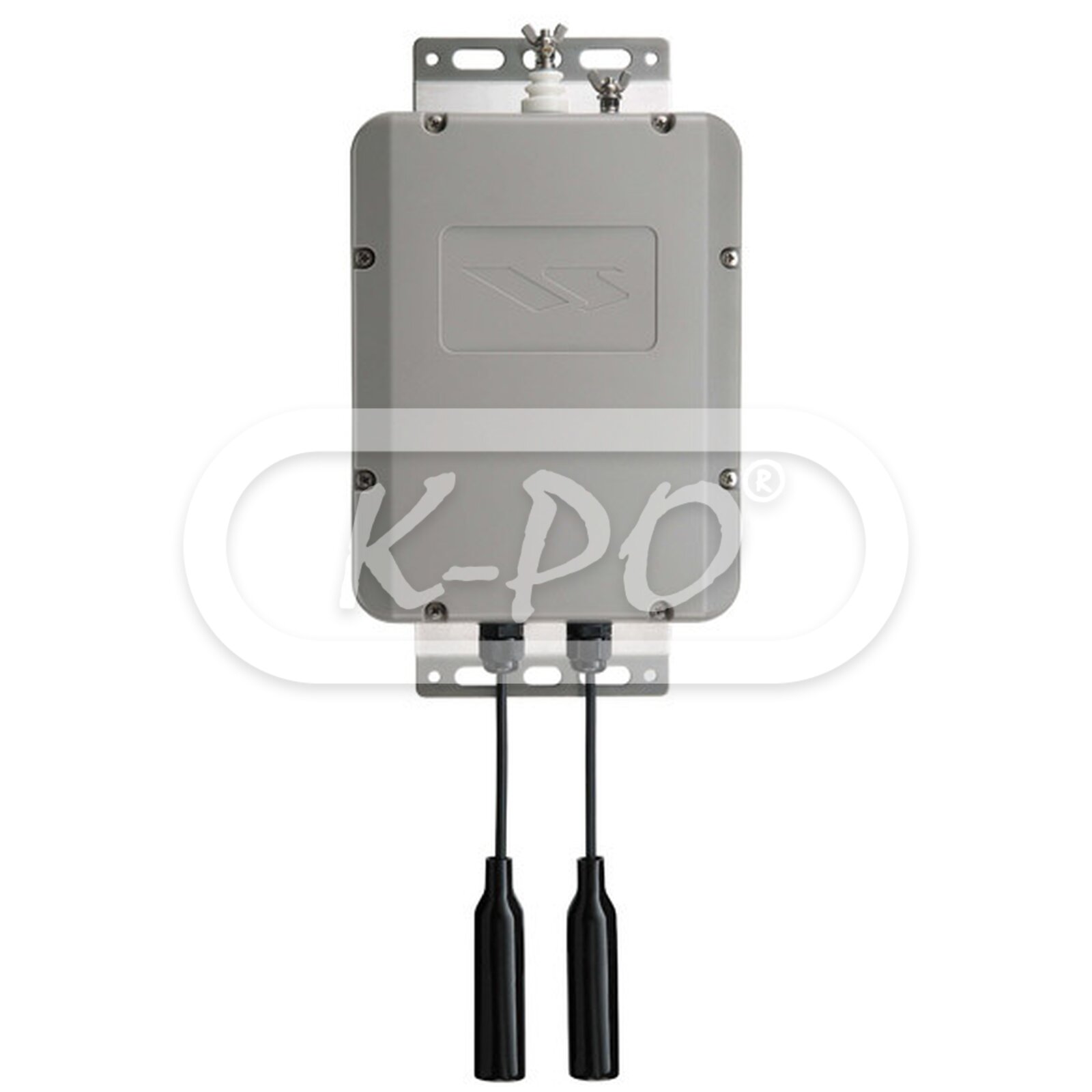

The Yaesu FC-40 is a automatic matching 200 memory antenna tuner. The FC-40 microprocessor controlled antenna impedance matching network is designed to provide wideband transmitting capability for many Yaesu transceivers, when used with an endfed random wire or long whip antenna.
The FC-40 makes use of the control circuitry built into the transceiver, which allows the operator to control and monitor automatic operation of the FC-40, which mounts near the antenna feedpoint. The FC-40 uses specially selected, thermally-stable components, and
is housed in a waterproof case to withstand severe environmental conditions with high reliability.
A carefully chosen combination of solid-state switching components and high-speed relays allows the FC-40 to match a wide variety of antennas to within a 2:1 SWR on 1.6 - 54 MHz, typically in less than eight seconds. Transmitter power required for matching may be aslittle as 4 - 60 Watts, and matching settings are automatically stored in memory for instant recall when the same frequency range is selected later. The FC-40 is a current feed design and may not be able to match frequencies that are near 1/2 wavelength (or multiple) of the antenna element.
- Impedance: 50 Ohm
- Power range: 100 Watts
- Voltage: 13.8 Volt
- Tune Up power: 4 - 60 Watts
- Memories: 200
- SWR: 2.0:1 or less
- Tuning time: 8 seconds max.
- Input connector: UHF (PL) female
- Output connector: UHF (PL) female
- Length: 55 mm
- Height: 175 mm
- Width: 228 mm
- Weight: 1200 gram
