Yaesu - M-1

Product code: ABA33X002
Factory code: ABA33X002
Barcode: 4909959159820

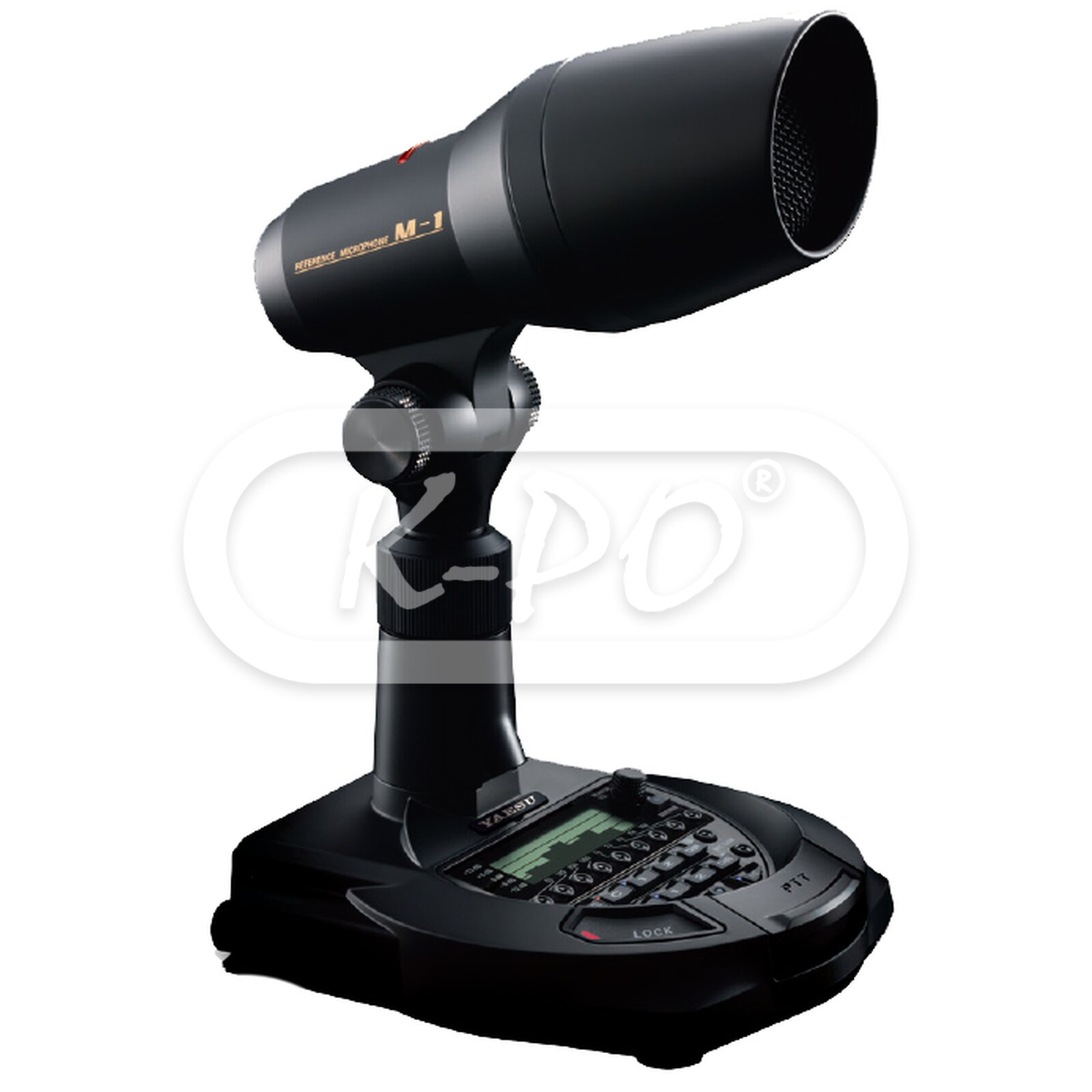

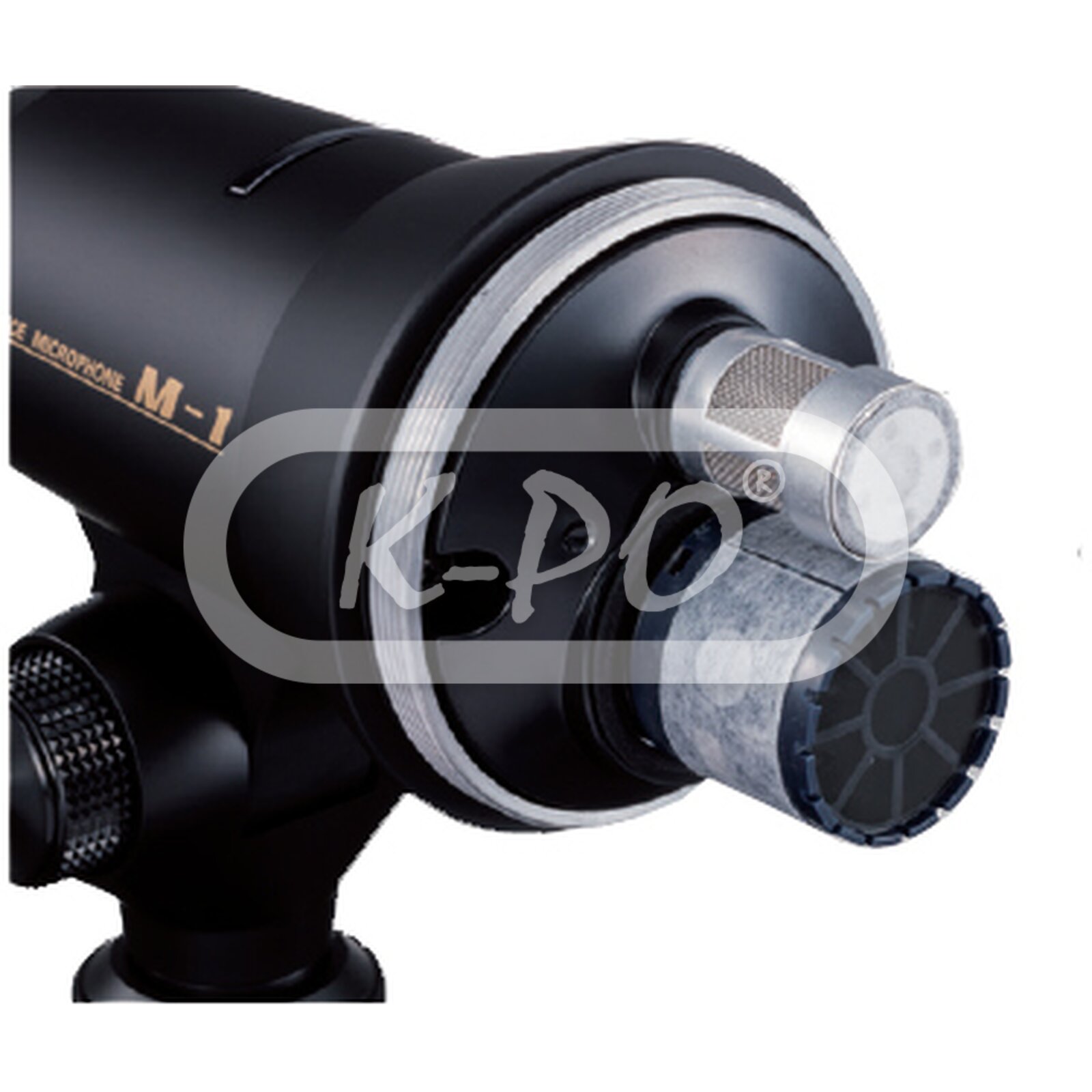

The Yaesu M-1 features two built-in microphone elements, one dynamic and one condensor. The unique output signals may be individually crafted and then blended to produce a single rich voice signal. The condensor microphone responds to a broad frequency range including the distinctive crisp highs, while the dynamic microphone adds depth and warmth; desirable qualities for a congenial conversation. The M-1 lets you fine-tune and balance the two microphone sources to create a sound that is just right for your voice.

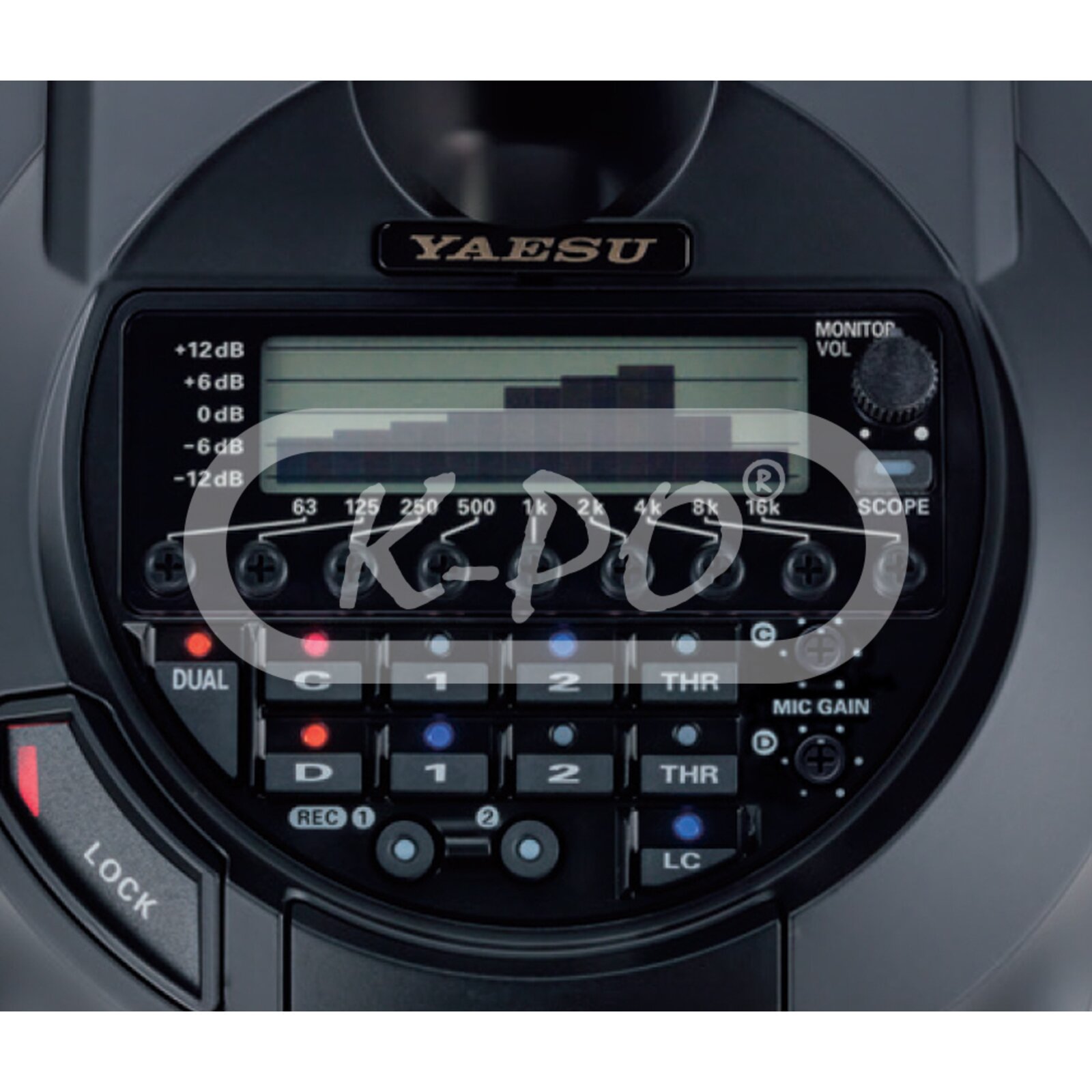

The nine-band graphic equalizer is applied to each microphone element independently, giving total flexibility to accentuate and enhance the frequency characteristics of both output signals. Distinguish the outputs of the dynamic and condensor microphones as you please. The nine individual frequency bands of each graphic equalizer can be adjusted with rotary encoders located on the base control panel below the display (a dedicated alignment tool is provided).

The built-in memory can store two different groups of settings for each microphone. Stored settings can be accessed instantly. A through (flat) preset is also provided. By blending the two microphone outputs together, you can create your own unique tonal quality. The M-1 add a new level to the audio creative process.

The simple clip-on cowling enhances the high-frequency response. The cowling serves to concentrate voice input with a peak at around 1-1.5 kHz, producing a unique tonal texture.

The PTT key has been designed with optional balance between key weight and stroke to provide the perfect level of responsiveness. The Air-Cylinder construction delivers smooth fingertip-sensitive operation over an extended stroke distance. Meanwhile, the contactless magnetic switch provides years of fault-free operation with minimal mechanical degradation.

Out of stock - Longer delivery time
Available from - 03-07-2024
€629.95 (520.62 excl. 21% VAT)

Features

  • Suitable for: Yaesu FT-891 / Yaesu FT-991A / Yaesu FT-DX10 / Yaesu FT-DX101D / Yaesu FT-DX101MP /
  • Microphone type: Dynamic and Condenser
  • Materials: Solid aluminum die cast
  • On air indicator: Yes
  • Display: Graphic equalizer, audio scope mode
  • Record and playback key: Yes

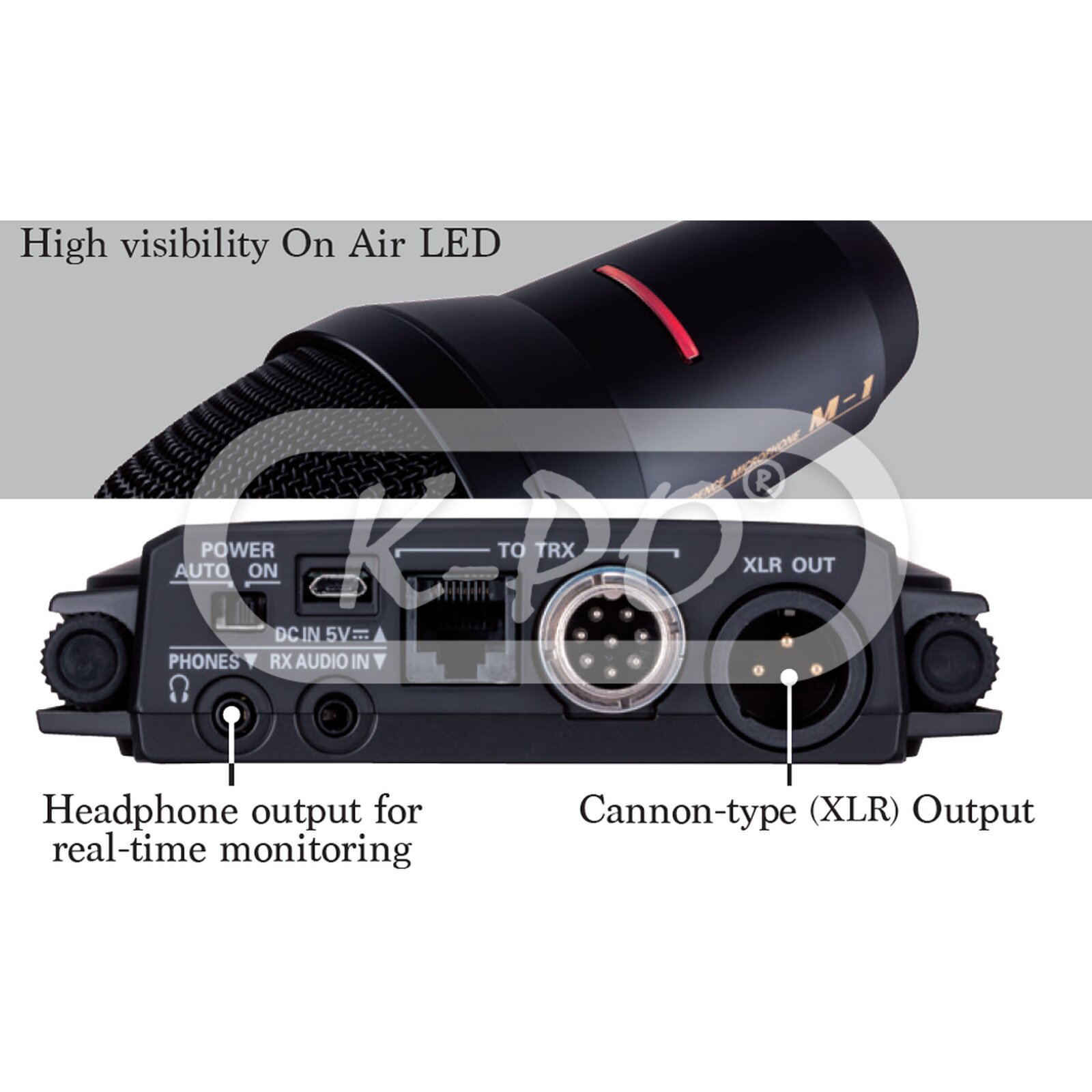

  • Headphone connector: Yes, 3.5 mm mono jack (to check the microphone sound in real-time, listen to test recordings or monitor the transceiver signal)
  • PTT keylock: Yes
  • Low Cut key: Yes
  • Thru key: Yes
  • Scope key: Yes
  • Microphone connectors: 8-pin / Modular / XLR (output only)
  • Memory keys: Yes, 2x Condensor, 2x Dynamic
  • Mic gain knobs: Yes, 1x Condensor, 1x Dynamic

Electrical data

  • Impedance: 600 Ohms
  • Sensitivity: -60 dB
  • Supply voltage: DC 5.0V ±5%
  • Current consumption: 160 mA ±30 mA
  • Frequency response: 30 - 17000 Hz
  • Sensitivity: -60 dB (1 kHz 0 dB - 1V/1Pa
  • Microphone impedance: 600 Ohms
  • Headphone output impedance: 16 Ohms
  • Headphone output level: 15 mW
  • RX audio in (input level): 100 mVrms

Mechanical data

  • Length: 140 mm
  • Height: 280 mm
  • Width: 152 mm
  • Weigth: 960 gram (without cable)

Inside the box

  • Yeasu M-1 microphone: Yes
  • AC adapter: Yes
  • Microphone cable: Yes
  • Treble boost cowling: Yes
