Zetagi - HP 28 Zetagi - HP 28 Zetagi - HP 28

Zetagi - HP 28

Product code: 30

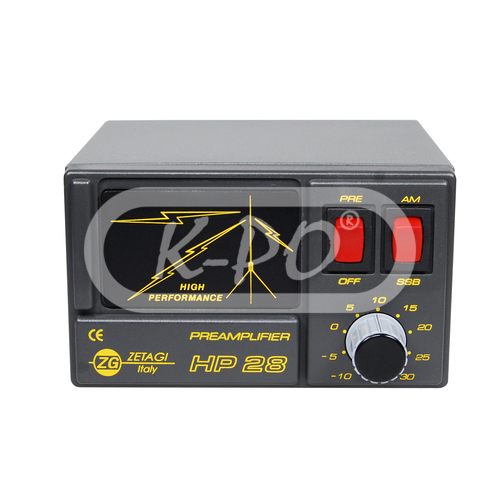

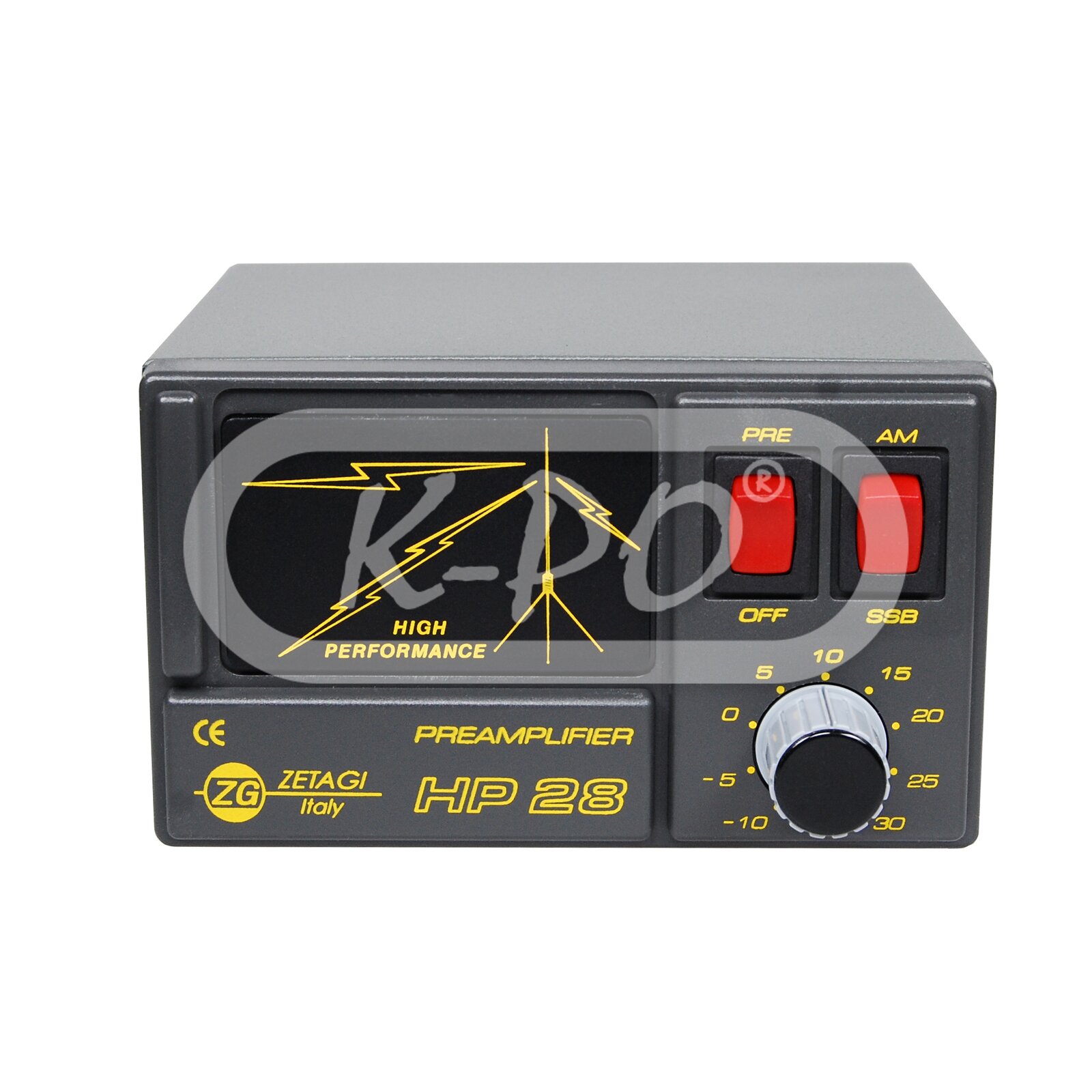

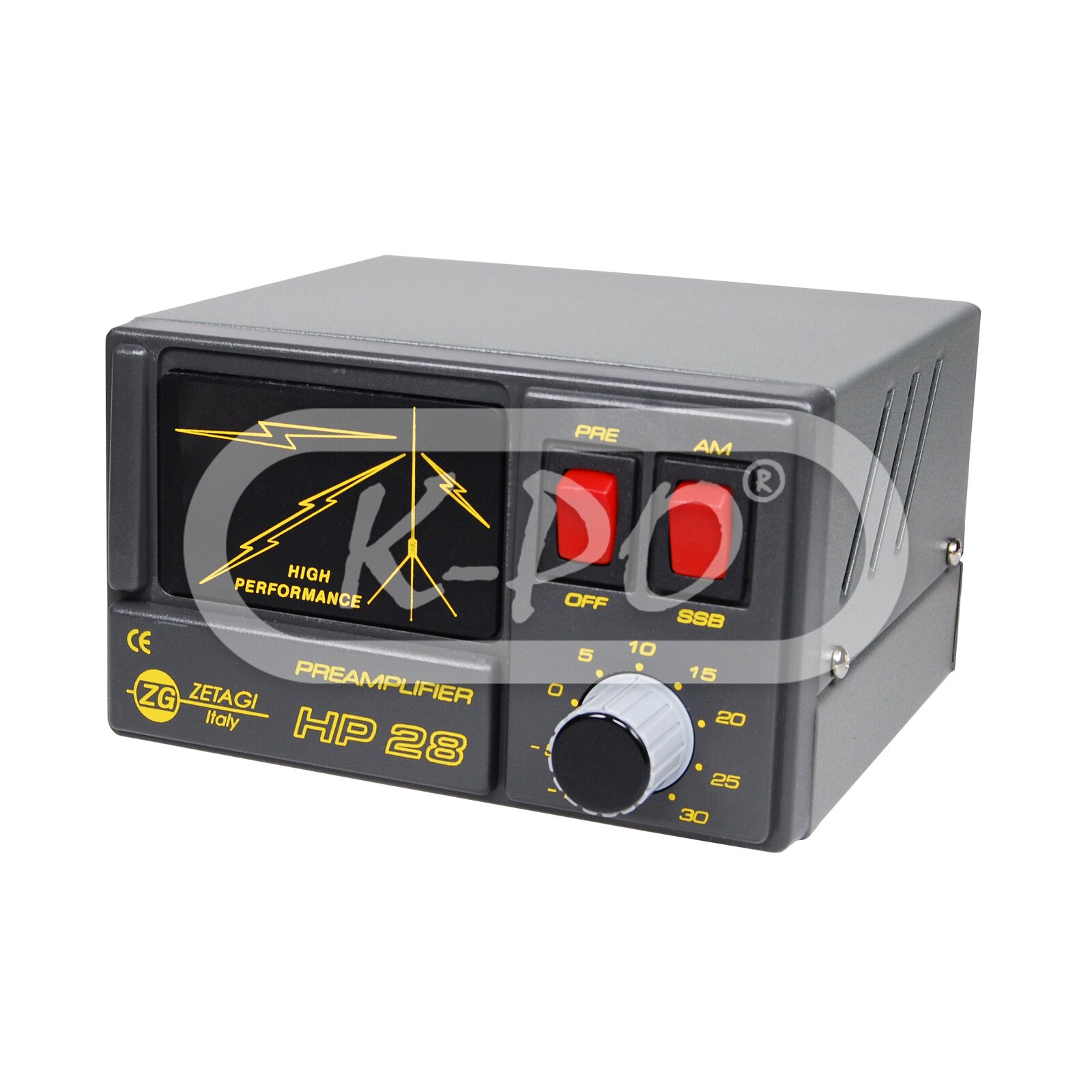

The Zetagi HP 28 is an antenne pre-amplifier escpecially suitable for CB radios. The pre-amplifier is equiped with an AM luminous modulation meter and several switches to adjust. This product can be used on AM-FM-SSB and has 2 UHF (PL) connectors

Frequency range: 26-30 MHz
Shipped next business day
€52.02 (52.02 excl. 0% VAT)

Electrical data

  • Input power (Watts): 1-15 AM-FM
  • Max output power (Watts): 50 (PEP)
  • Max output power SSB (Watts): 50 (PEP)
  • Pre-amplifier: Yes
  • AM luminous modulation meter: Yes
  • Transmission Insertion Loss: 0.2 dB
  • Current drain: 100 mA
  • Gain: 25 dB (adjustable)

Mechanical data

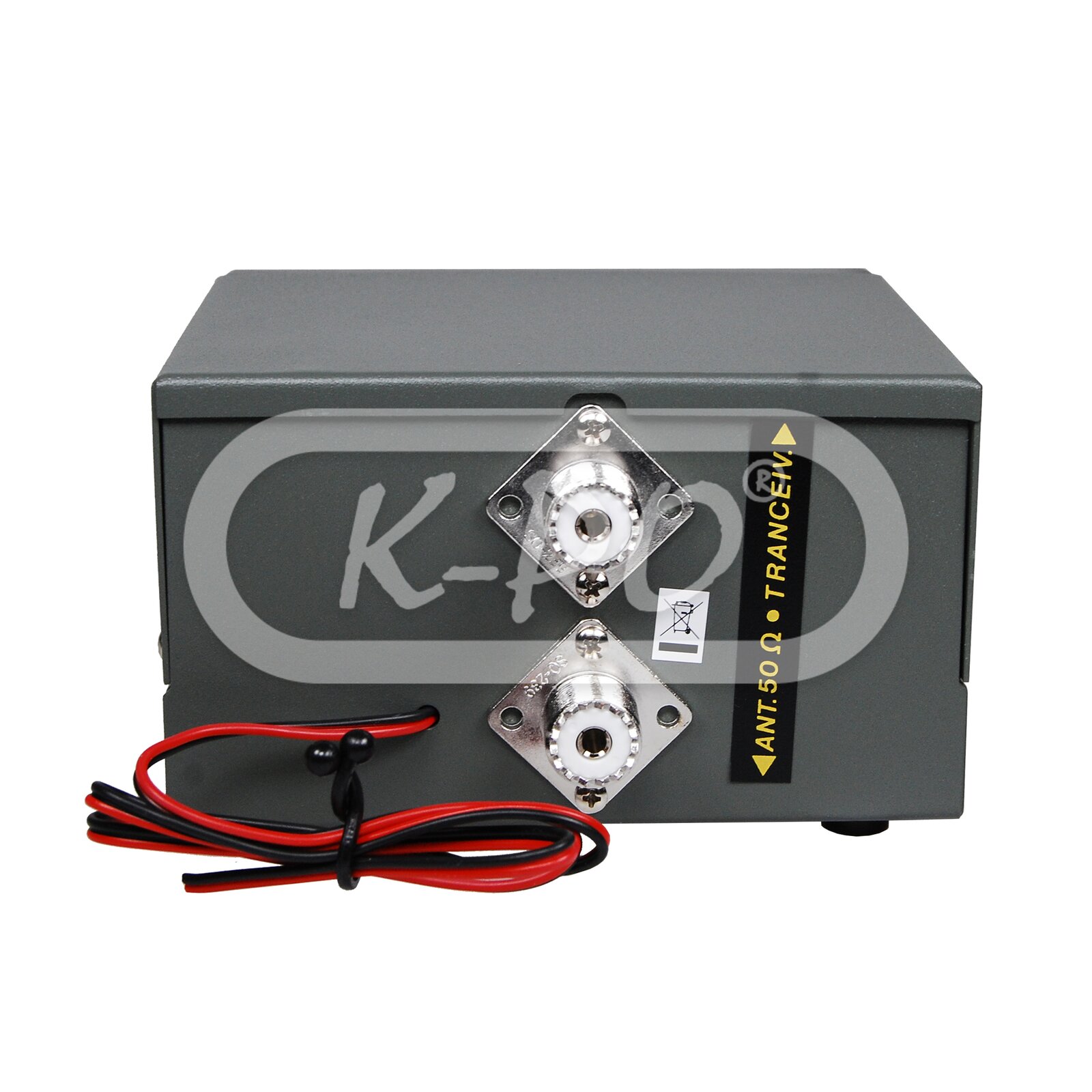

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 130 mm
  • Height: 80 mm
  • Width: 130 mm
  • Weight: 600 gram

Inside the box

  • Amplifier: Yes
  • DC power cord: Yes
  • Installation manual: English
