Zetagi - MB+4 E4 Zetagi - MB+4 E4 Zetagi - MB+4 E4

Zetagi - MB+4 E4

Product code: 910023

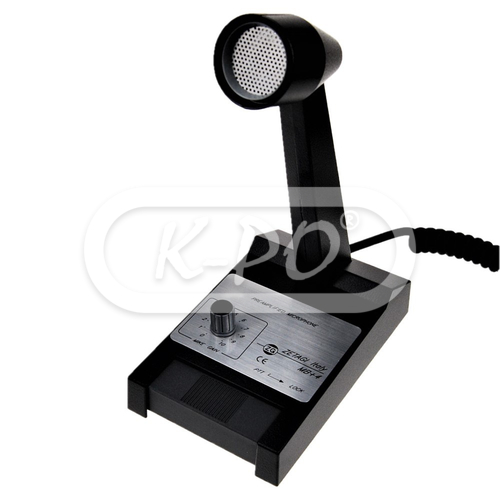

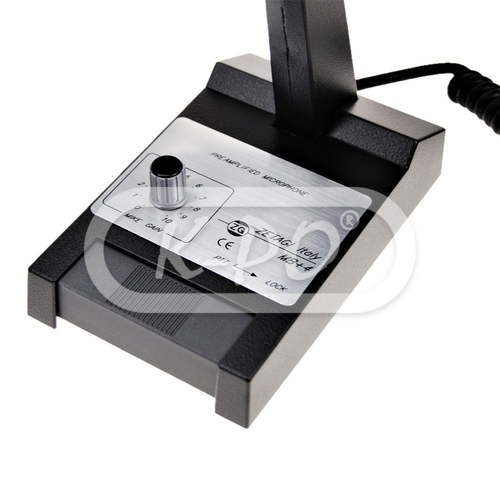

The Zetagi MB+4 4-Pin is a very solid and robust desk microphone. The MB+4 has a rotary knob to adjust the mike gain and has a E4 pin microphone connector. The MB+4 works on a 9 Volt battery (not included).

Note - Discontinued
€ -- (Discontinued)

Features

  • Suitable for: 4-pin P4 connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Wilson /
  • Lock button: Yes
  • Mike gain function: Yes
  • Microphone type: Power microphone

Electrical data

  • Frequency response: 250 – 3500 Hz
  • Output level: -23 (0 dB = 1V/μB)
  • Impedance: 0 – 5000 Ohm
  • Battery: 9 Volt battery 6LR61 (not included)

Mechanical data

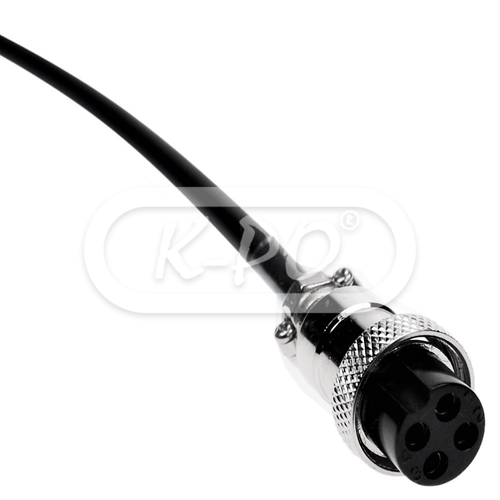

  • Microphone connector: 4-pin
  • Length: 95 mm
  • Height: 230 mm
  • Width: 160 mm
  • Weigth: 1005 gram

Microphone wiring

  • Receive: Pin 3
  • Transmit: Pin 4
  • Mic Audio: Pin 1
  • Ground: Pin 2
