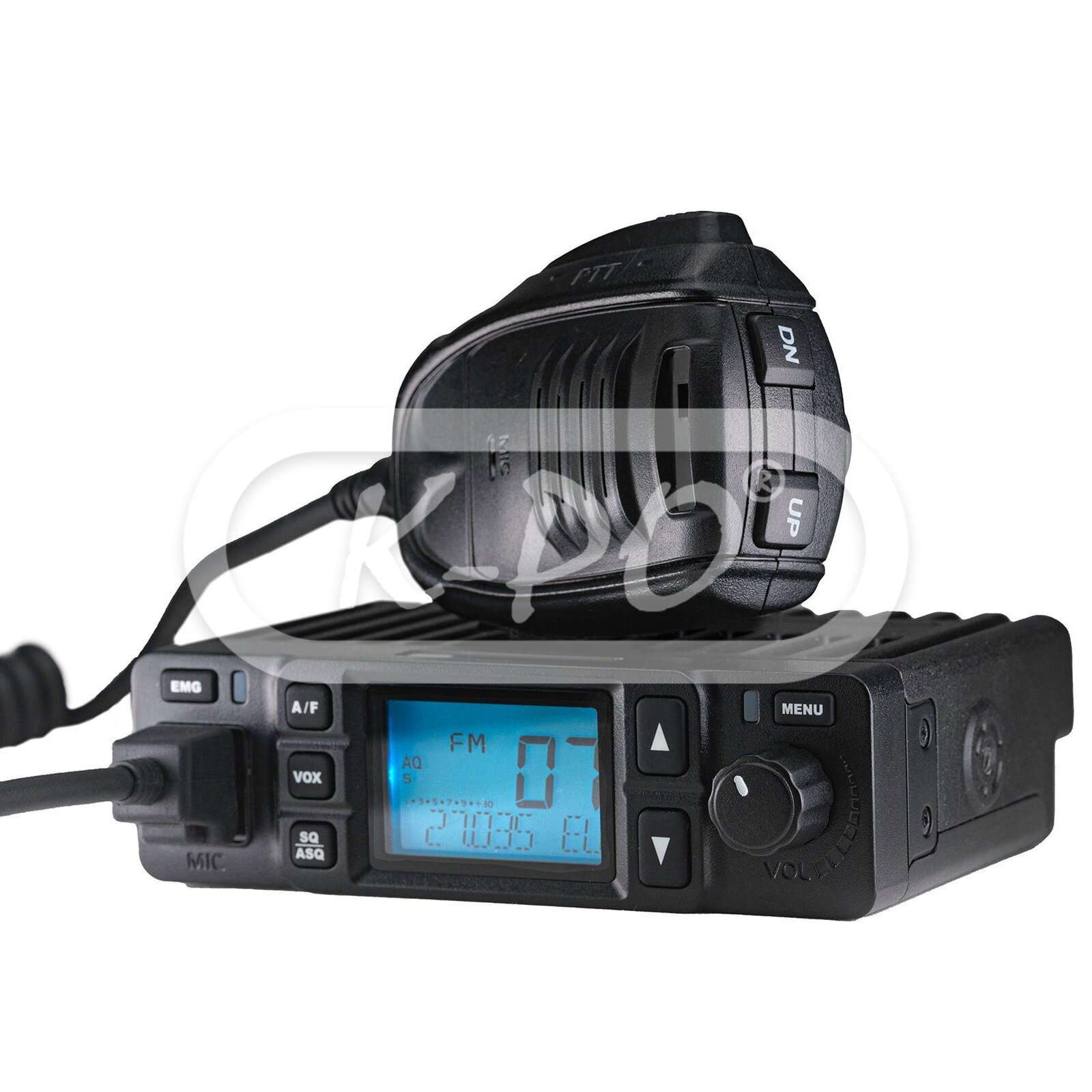

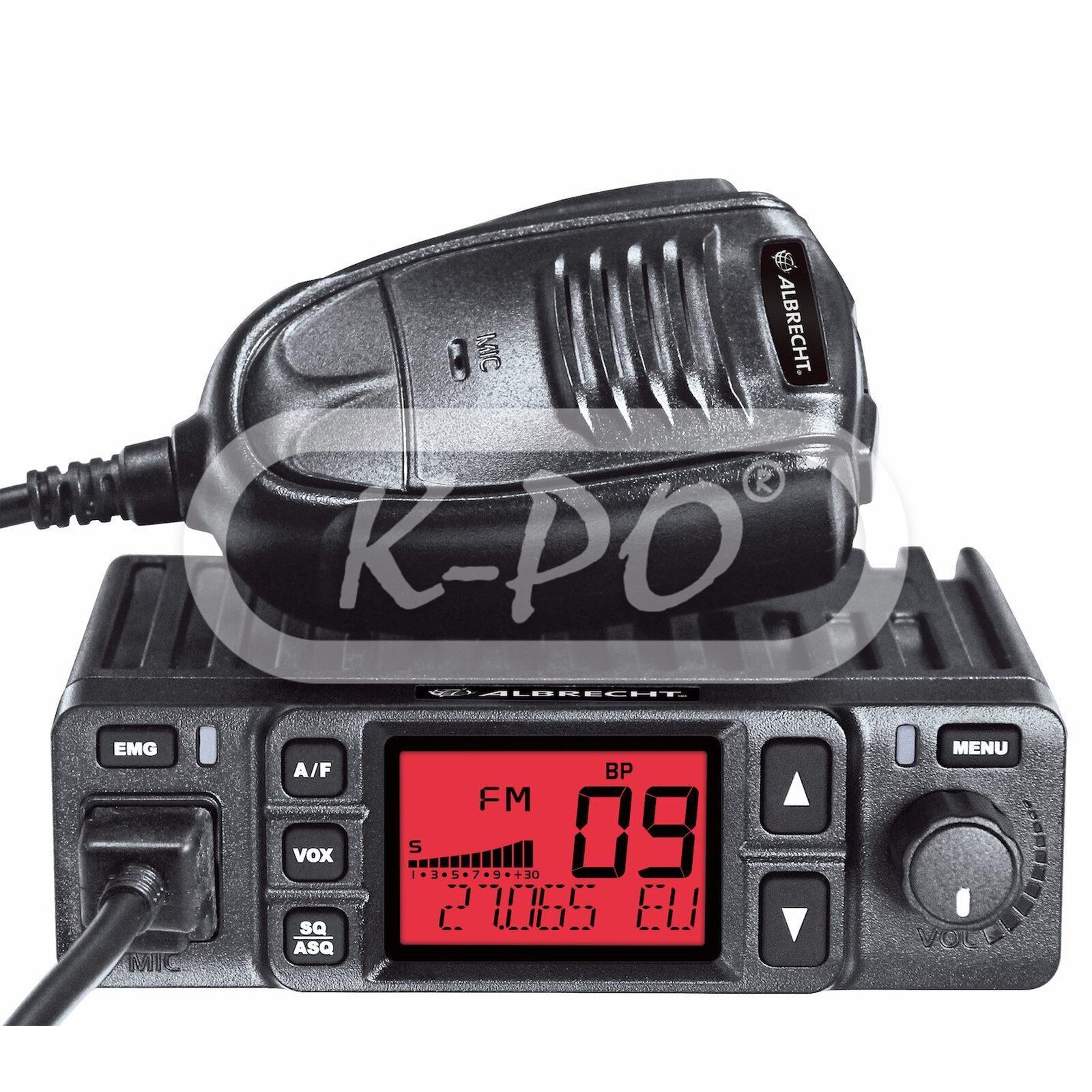

Albrecht - AE 6290 VOX

Product code: 12629
Factory code: 12629
Barcode: 4032661126290

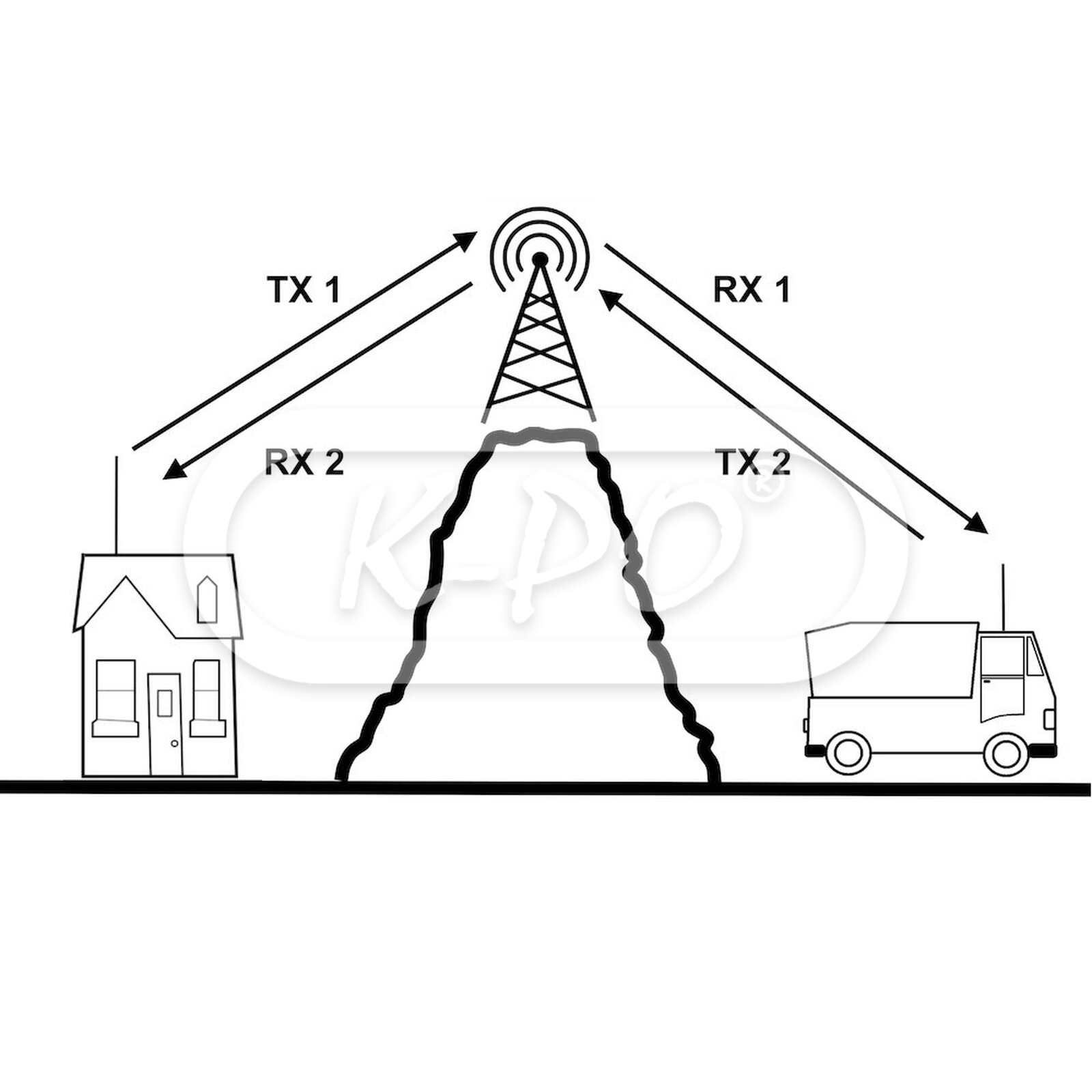

The first Albrecht CB radio with integrated repeater/relay function. The AE 6290 transmits on one channel and receives on a second channel. The radio automatically switches back and forth between the two channels. This allows communication with weaker, more distant radio stations that are within the range of a relay

Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€99.95 (82.6 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1-4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: 8 colours
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • Repeater function: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -20° to +55° C
  • Frequency control: PLL synthesizer

Transmitter

  • Frequency allowance: ± 300 Hz
  • Drain: 13.2 Volt: 3.0 A

Mechanical data

  • Length: 101 mm
  • Height: 36 mm
  • Width: 124 mm
  • Weight: 428 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: RJ45 connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, German, Italian, French
