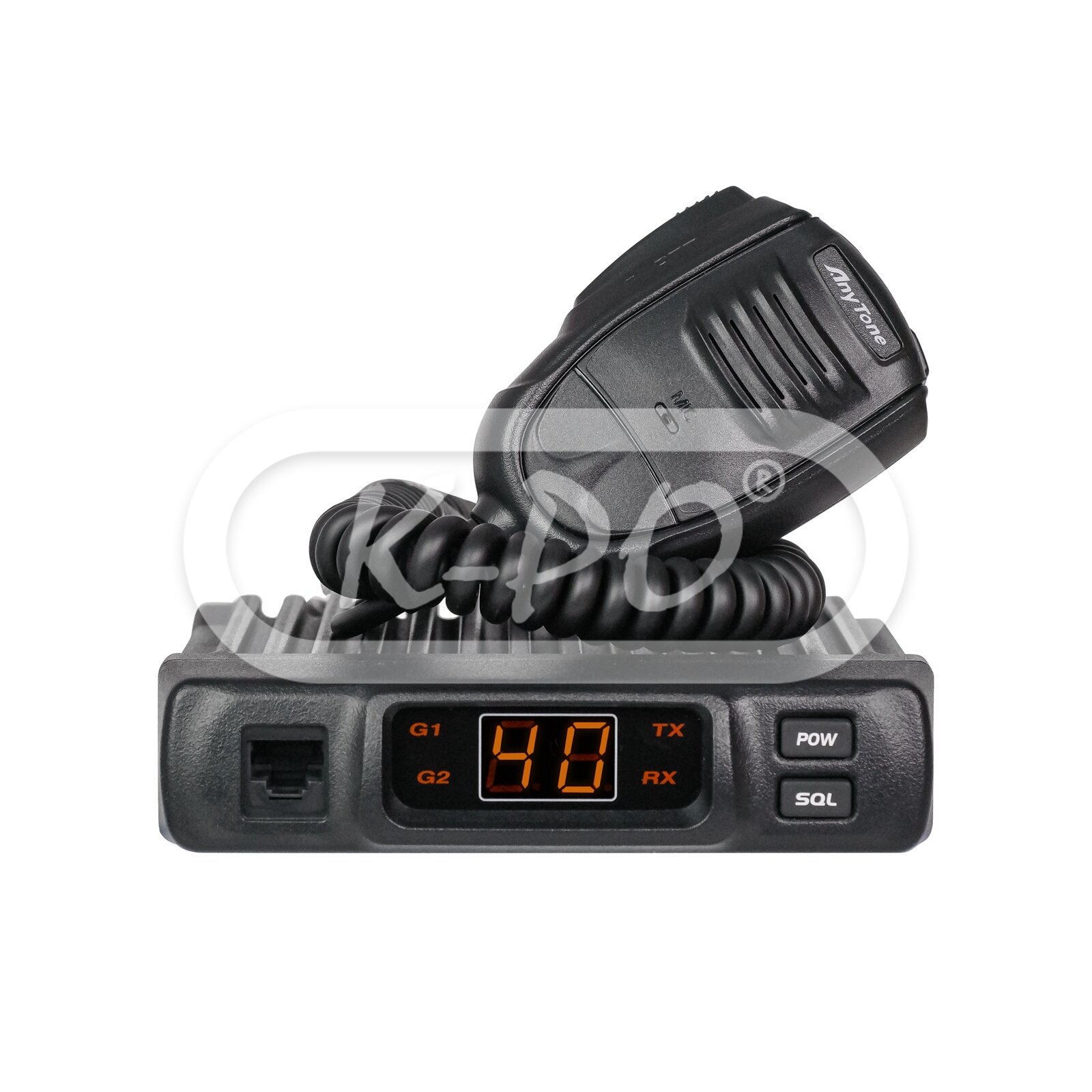

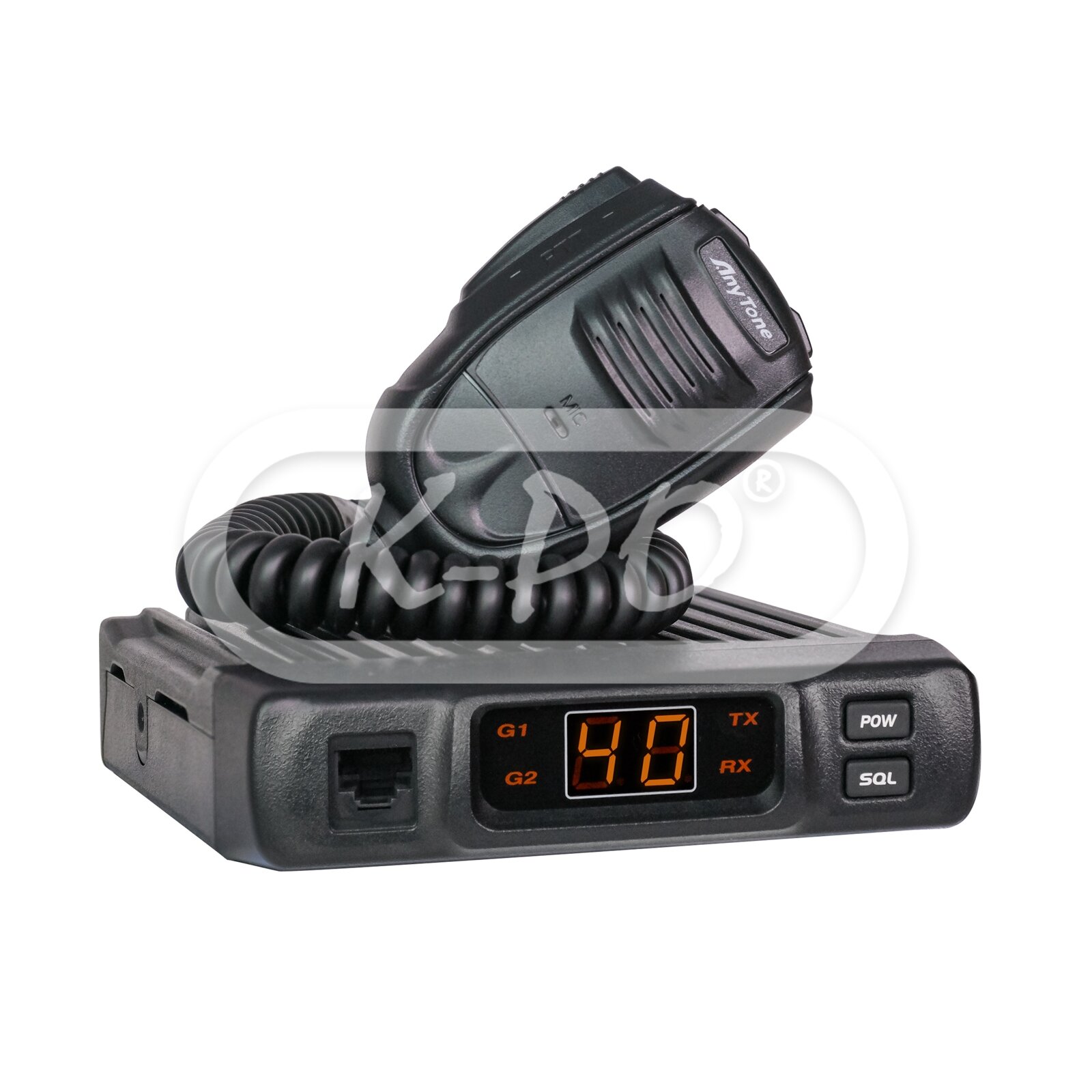

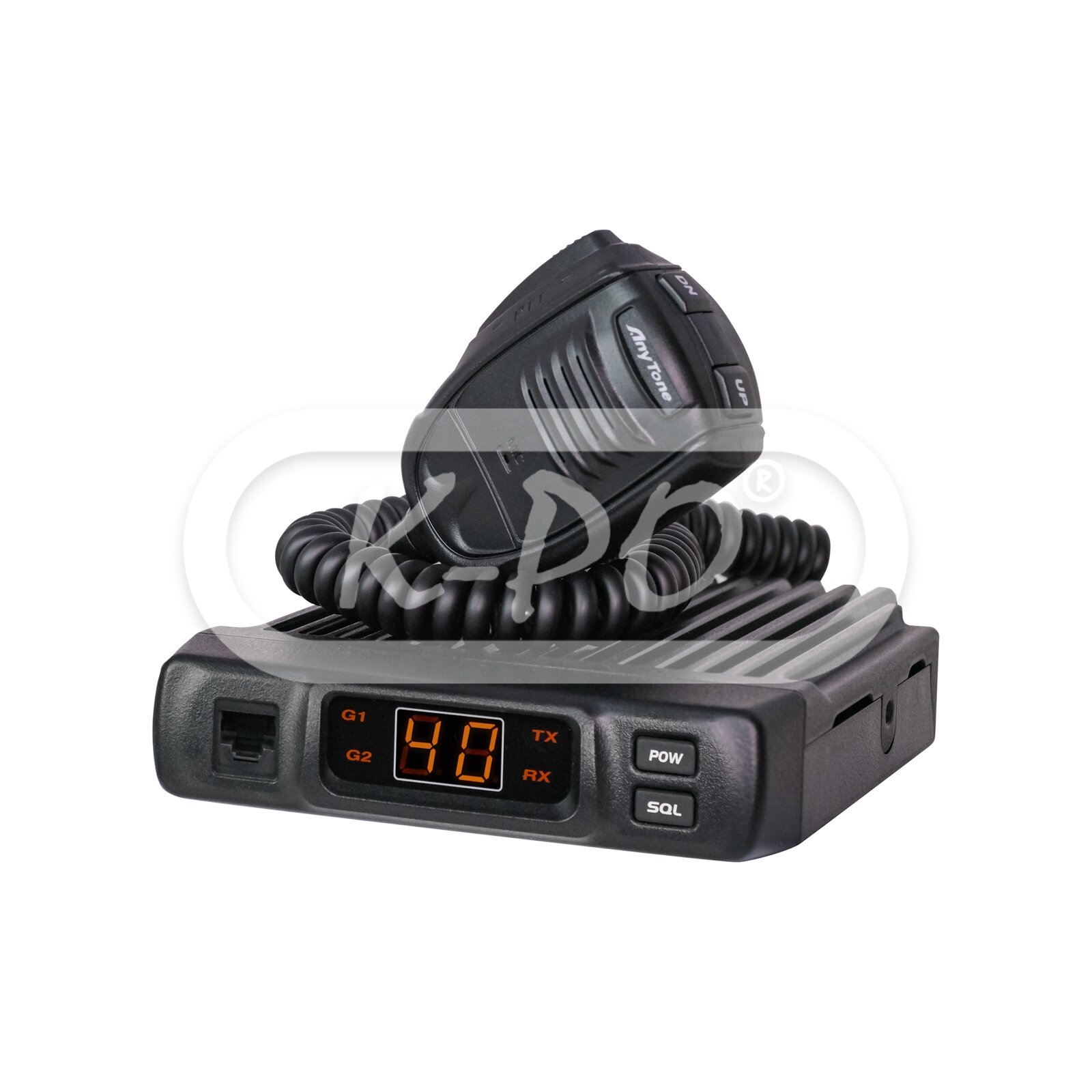

AnyTone - AT-888 VHF

Product code: 34885

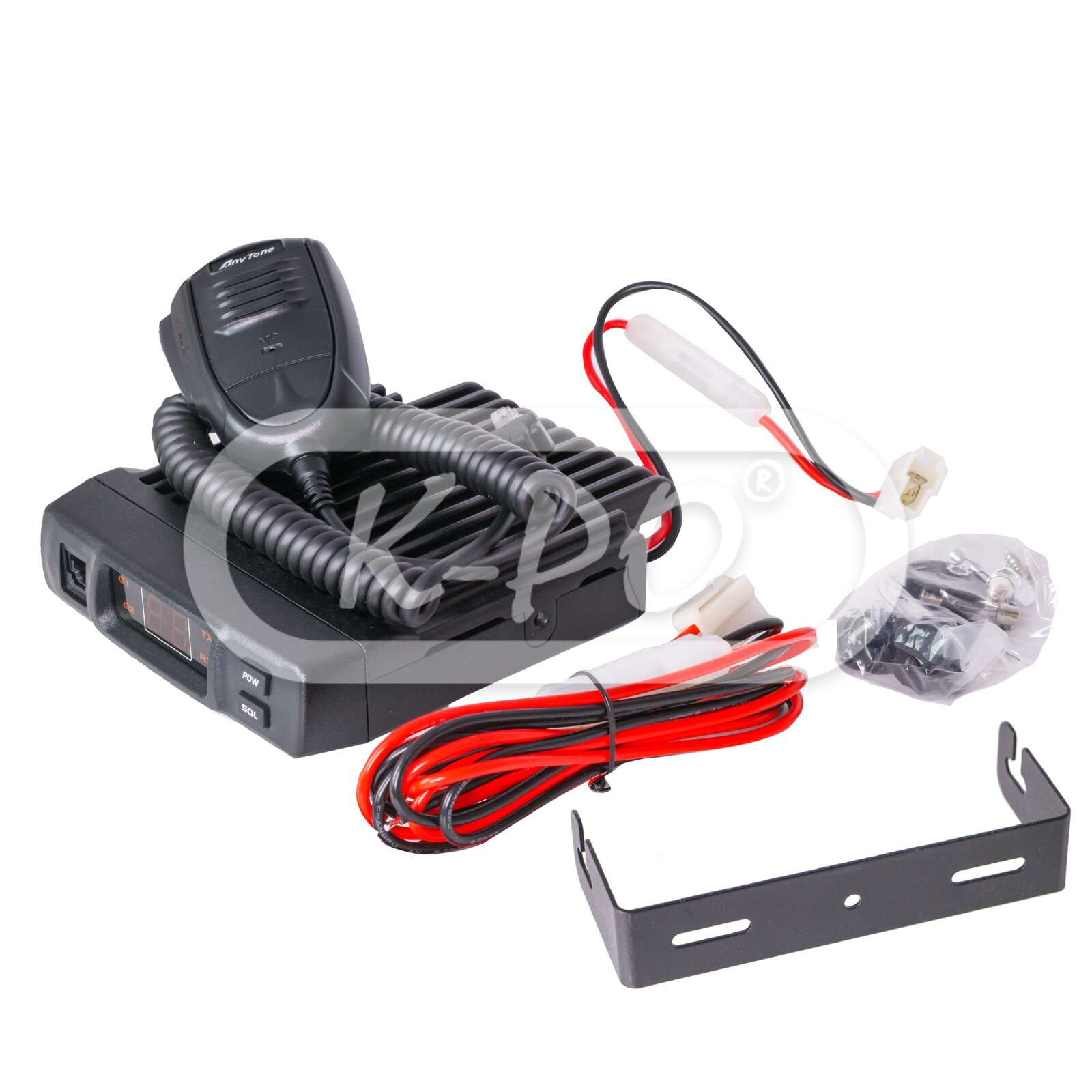

The Anytone AT-888 VHF is a mobile transceiver and is suitable for 136-174 MHz. The AT-888 VHF will be deliverd complete with microphone and mounting bracket.

Frequency range: TX/RX: 136-174 MHz
Shipped next business day
€144.59 (144.59 excl. 0% VAT)

Features

  • Display: Yes with backlight
  • DTMF: Yes
  • 2-tone/5-tone: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • Carrier: Yes
  • DCS: Yes
  • CTCSS: Yes
  • Program: Yes, by computer

Electrical data

  • Frequency step: 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
  • Channels: 200
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +60℃
  • Channel spacing: Wide: 25 kHz / Narrow: 12.5 kHz

Transmitter

  • Power output (Watts): VHF: 60/25/10 Watts
  • Adjacent channel power: Wide: ≥70 dB / Narrow: ≥70 dB
  • Spurious Emission: Wide: ≥60 dB / Narrow: ≥60 dB
  • Audio distortion: ≤5%
  • Frequency stability: ±2.5 PPM
  • Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
  • Hum & noise: Wide: ≥40 dB / Narrow: ≥36 dB
  • Audio response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-2.55 kHz +1 to -3 dB

Receiver

  • Spurious rejection: Wide: ≥70 dB / Narrow: ≥70 dB
  • Hum & noise: Wide: ≥45 dB / Narrow: ≥40 dB
  • Audio distortion: ≤5%
  • Audio power output: 2 Watts @10%
  • Sensitivity (12 dB Sinad): Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Adjacent channel selectivity: Wide: ≥70 dB / Narrow: ≥60 dB
  • Intermodulation: Wide: ≥65 dB / Narrow: ≥60 dB
  • Audio Response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-2.55 kHz +1 to -3 dB

Mechanical data

  • Length: 140 mm
  • Height: 33 mm
  • Width: 165 mm
  • Weight: 760 gram

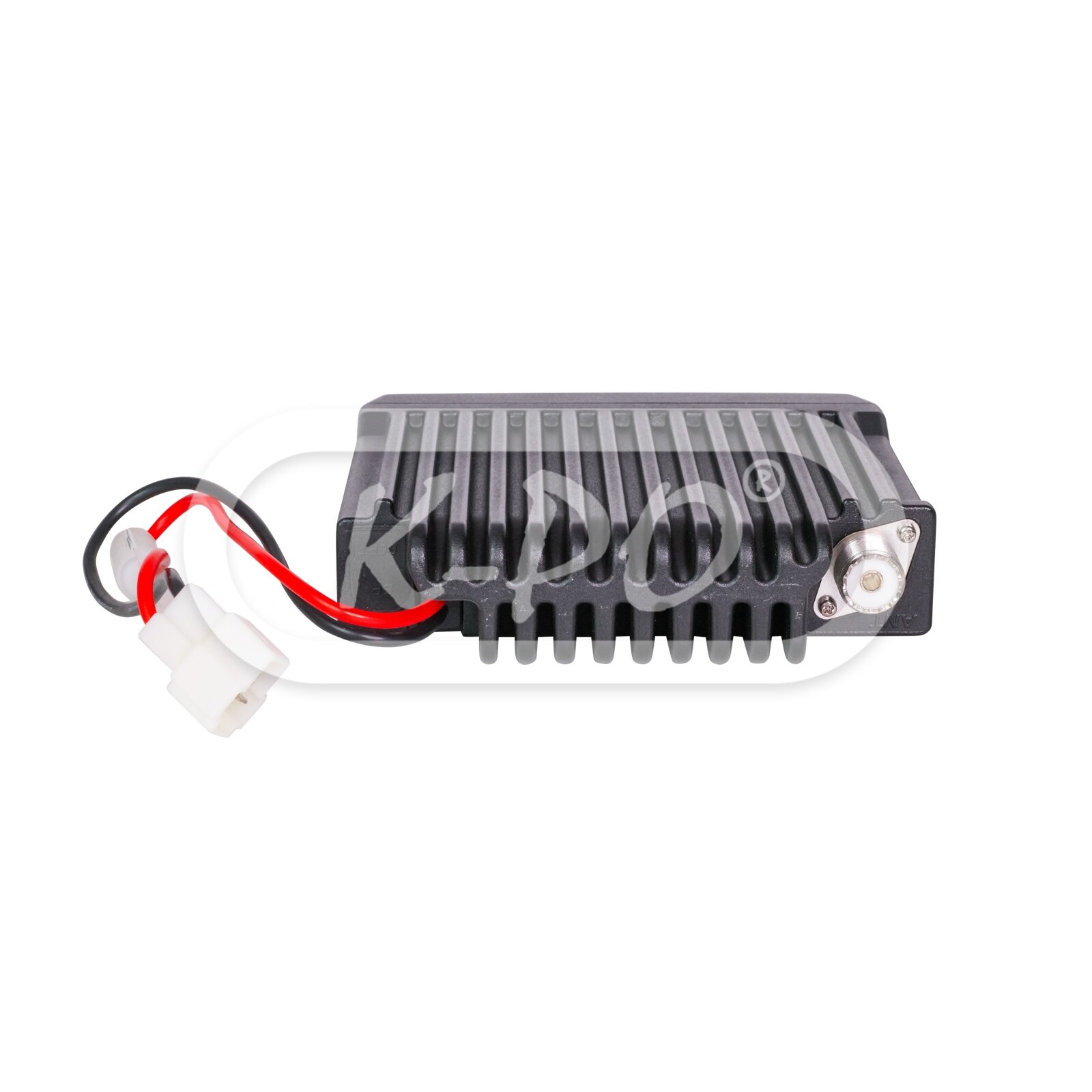

  • Antenna connector: UHF (PL) female (SO-239)

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Installation manual: English
  • DC cable: Yes
