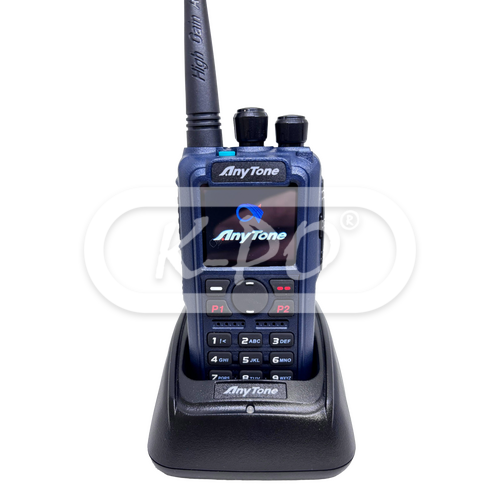

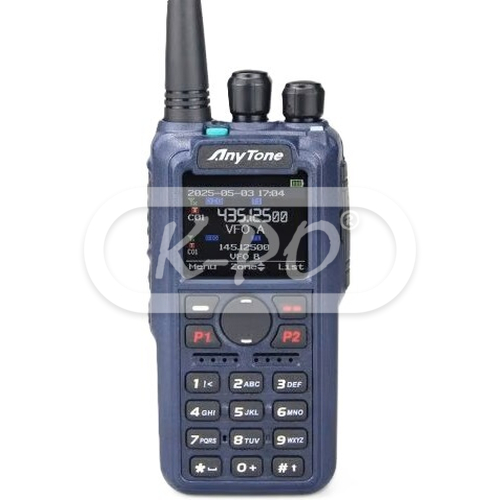

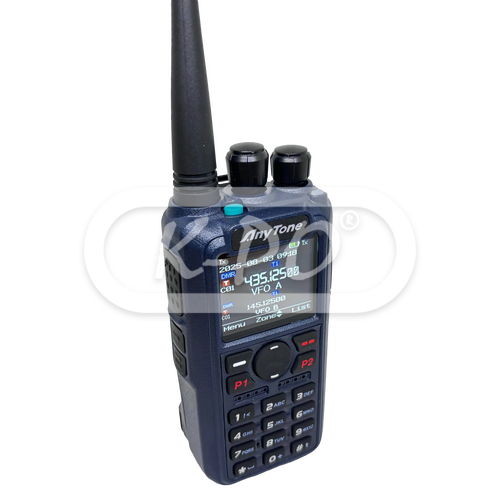

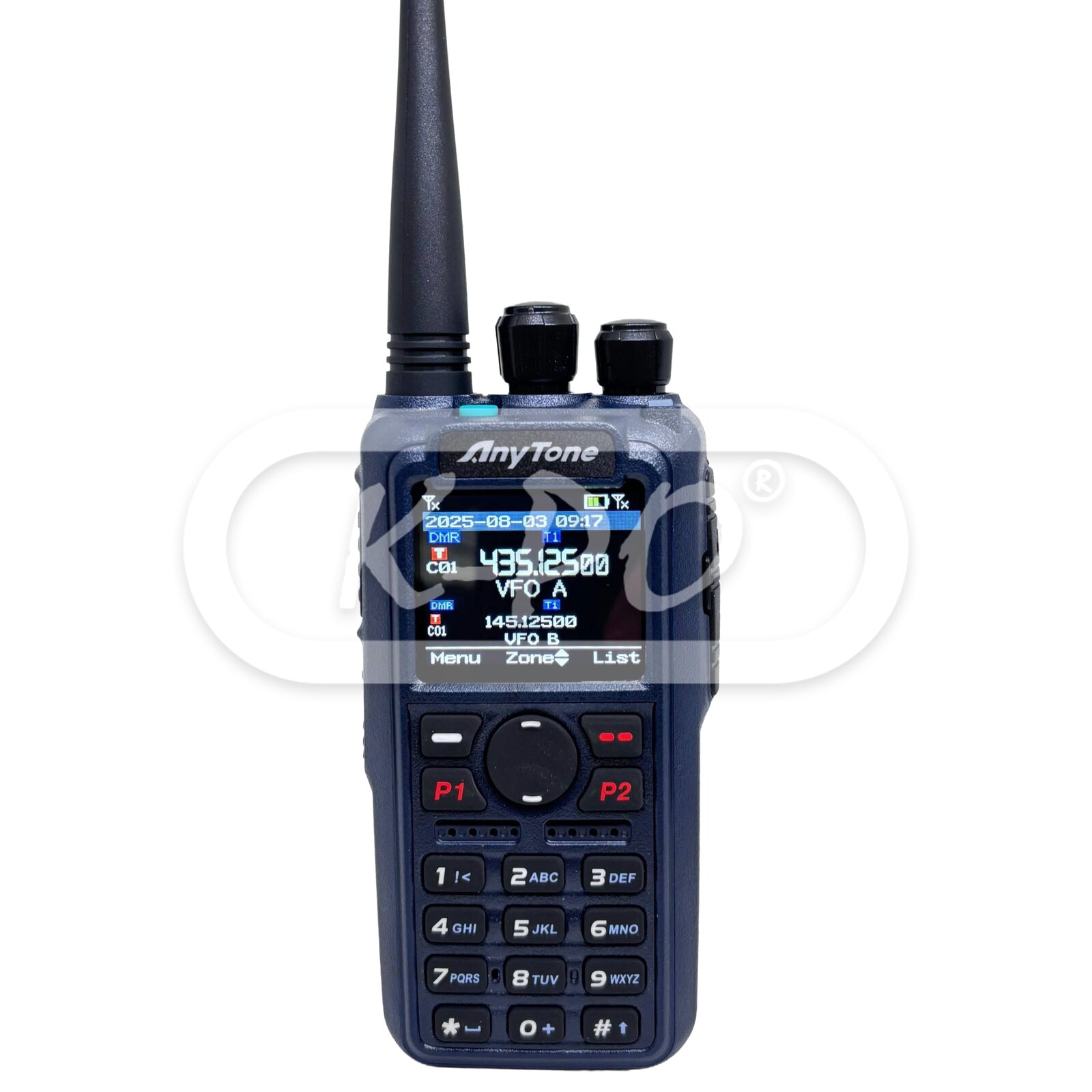

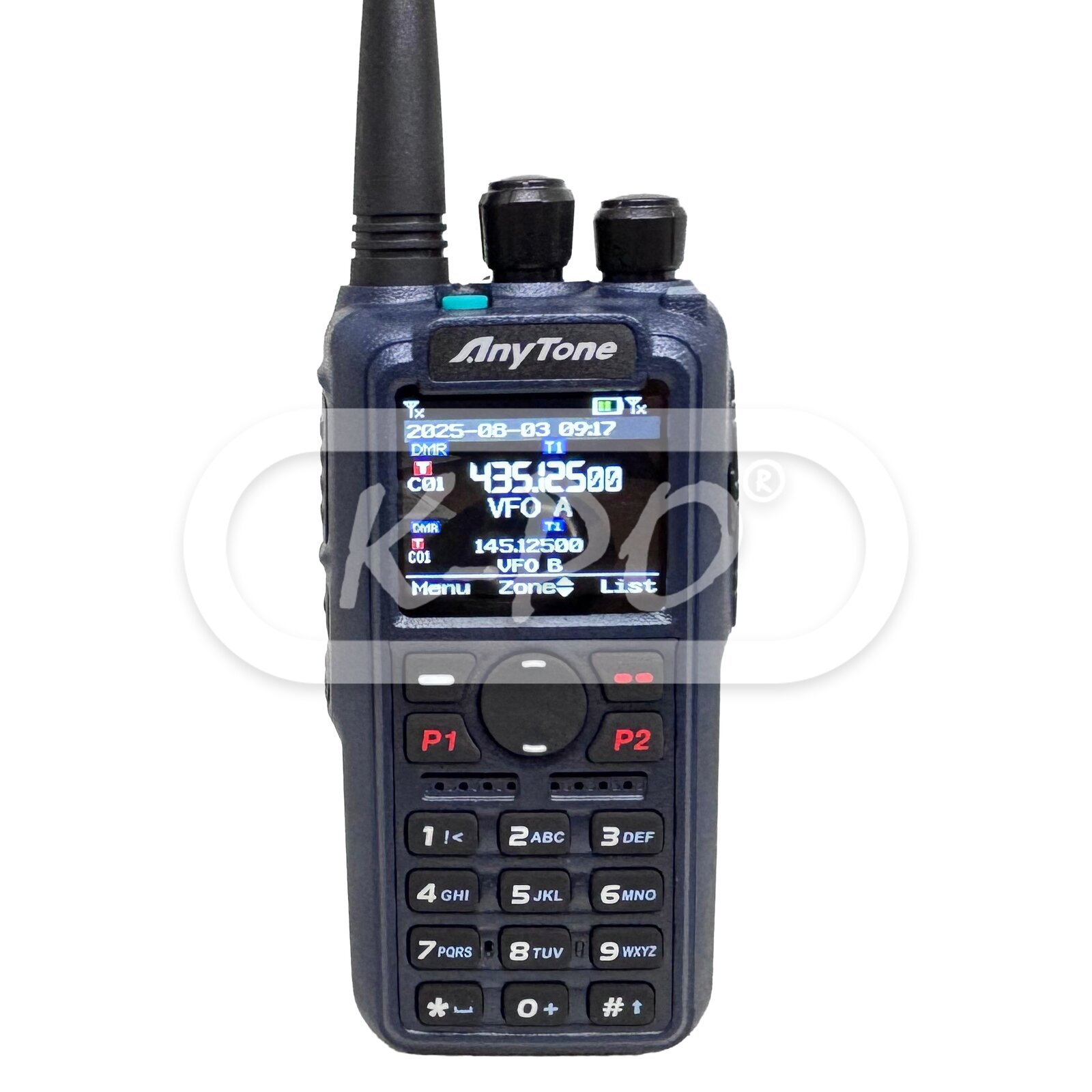

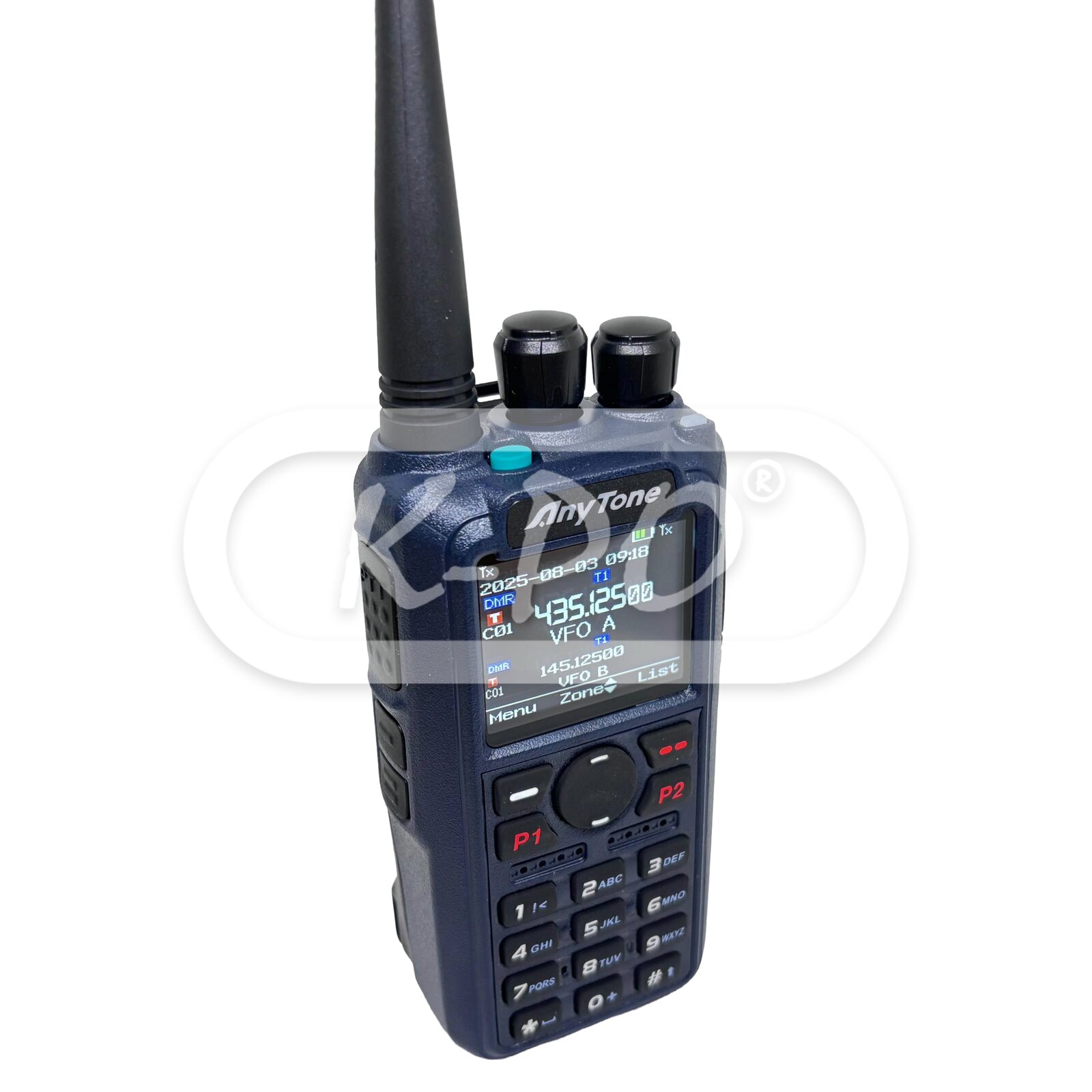

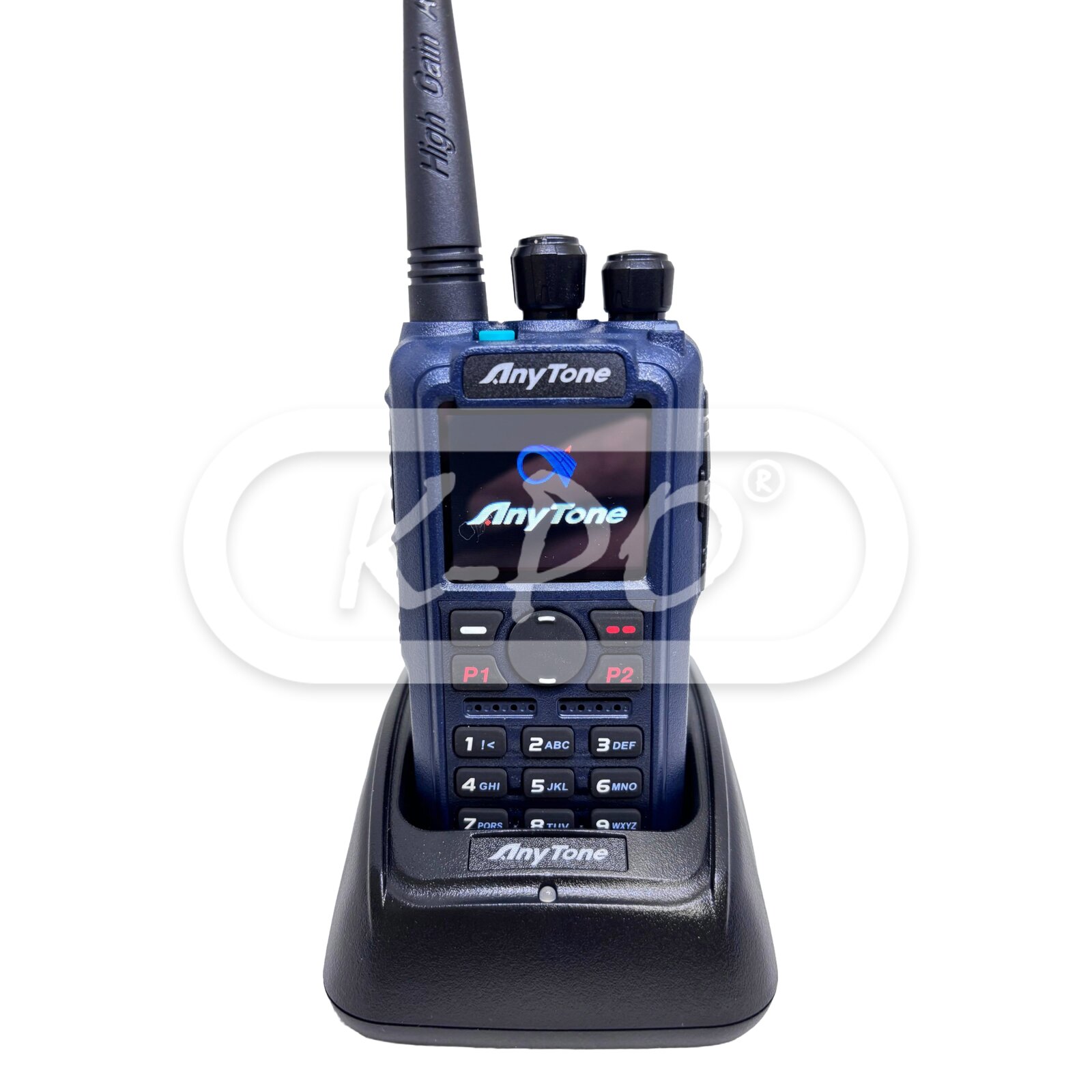

AnyTone - AT-D890UV

Product code: 30890

First batch is sold out, new stock around the mid of January 2026.

Please note: NXDN functionality is currently not available, as the required authorization has not yet been approved. Once authorization is obtained, NXDN support will be enabled through a firmware or software update by AnyTone.

The AnyTone AT-D890UV is a feature-packed dual-band handheld for analog and DMR digital use. It offers cross-band repeating, true 2-slot DMR, AES256/ARC4 encryption, Bluetooth, GPS/APRS, and air-band reception. With 4000 channels, 10,000 talk groups, long voice recording, and IP54 water resistance, it’s built for reliable communication anywhere.

New features and functions compared to the popular AT-D878UVII PLUS are:

RX AM Airband: 108-145 MHz
Compander function
Analog scrambler
Mic AGC: Automatic Gain Control
RX DRC: RX audio leveling
Enhanced NR: improved Noise Reduction
Digital and analog recording 14 hours
Support U-V or V-U cross-band repeater
Support U-V or V-U analog-analog dual receive
Support U-V or V-U digital-analog dual receive
MDC1200 transceiver
Multi language: allows input channel name/zone name in different language in CPS
TX interrupt

General features and technical specifications:

Frequency Range: RX/TX: 144-146 / 430-440 MHz, RX FM: 87.6-108 MHz, RX AM Airband: 108-145 MHz
True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
Power: VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W
Auto-senses digital or analog reception
4000 channels + VFO; 10,000 talk groups with 500,000 digital contacts
Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
Fixed and defined CTCSS/DCS encode and decode
DTMF/2TONE/5TONE encode and decode
Four different Tone-pluse frequencies
Individual/Group/All call
Support Contact Manager
Display the Caller ID and name
SMS via keyboard, One touch call/text
Zone selection; Ranging function between radios with GPS
ANI function and PTT ID; VOX; Digital Recording and Play
Roaming function; Talker alias function
Emergency alarm (with GPS data transmission)
Built-in Bluetooth module
GPS with APRS location reporting

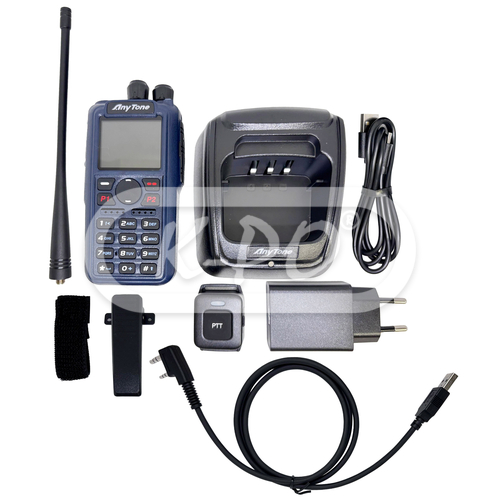

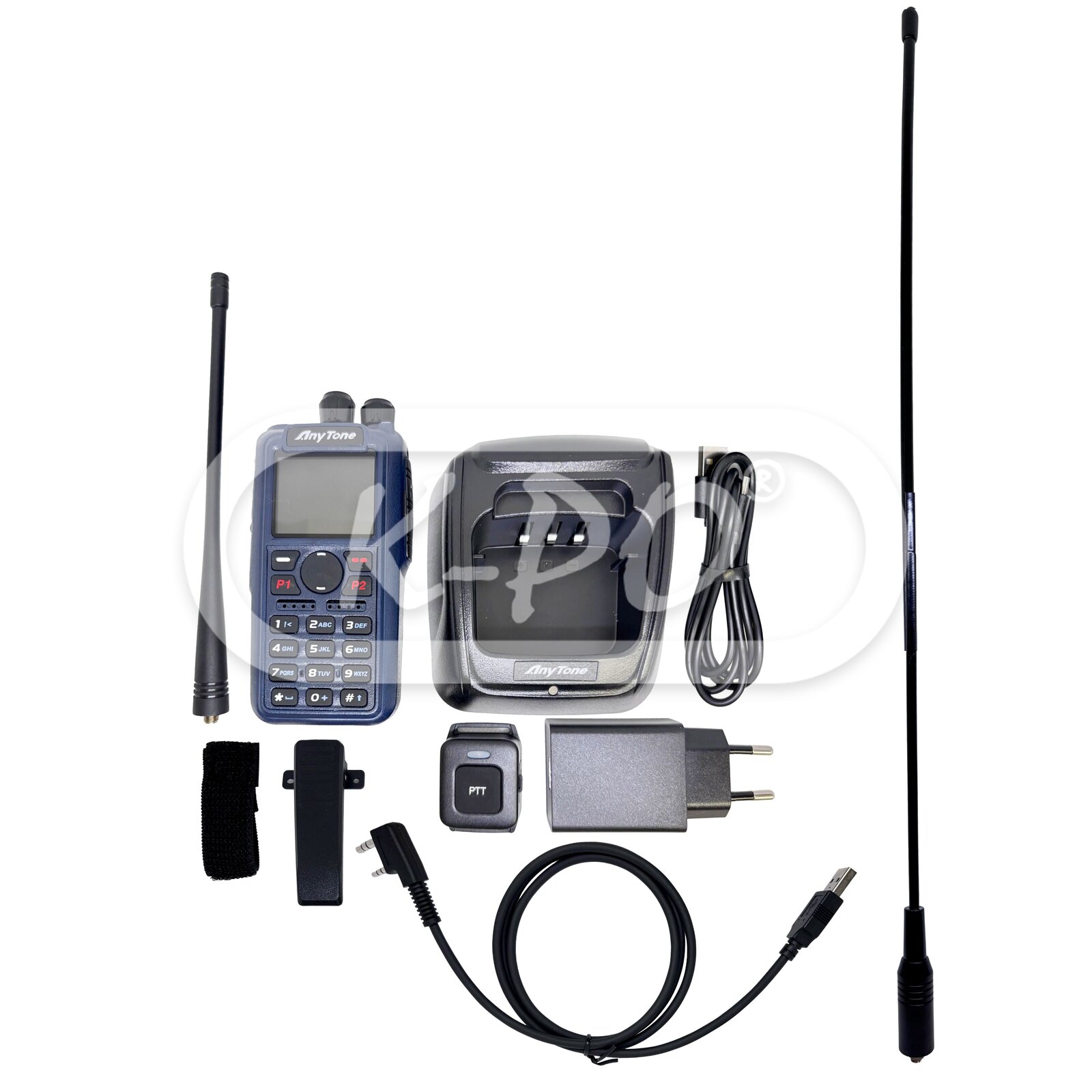

BT wireless PTT button BP-03 included
AES256 and ARC4 digital encryption
Air band AM RX
Cross band repeater and SFR repeater
Scrambler and compander in analog mode
Accessories connector: Kenwood 2-pin connector
Waterproof: IP54
Battery: 3100 mAh Li-ion battery with type C charge (standard)

Frequency range: RX/TX: 144-146 / 430-440 MHz, RX FM: 87.6-108 MHz, RX AM Airband: 108-145 MHz

Out of stock - Longer delivery time

Available from - 21-01-2026

€258.95 (214.01 excl. 21% VAT)

Features

True-2-slot: Yes
Display: Yes, LCD color display
VOX function: Yes
DTMF: Yes
2-tone/5-tone: Yes
Ranging function: Yes
Emergency (SOS) function: Yes
High/low power selection: Yes

Electrical data

Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
Channels: 4000 + VFO; 10,000 Talk groups with 500,000 digital contacts
Wide and narrow bandwidth selection: Yes
Phase-locked Step: 5 and 6.25 kHz
Operating temperature: -20℃ to +55℃
Operating voltage: 7.4 Volt, DC ± 20% / (2100 mAh/ 3100 mAh)

Transmitter

Power output (Watts): VHF: 1/2.5/5/7 Watts / UHF: 1/2.5/5/6 Watts
Modulation limit: ± 5.0 kHz @ 25 kHz / ± 2.5 kHz @ 12.5 kHz
Adjacent channel power: Wide: ≥ 70 dB / Narrow: ≥ 60 dB
Spurious Emission: Wide: ≤ -36 dB / Narrow: ≤ -36 dB
Audio distortion: ≤ 5%
Frequency stability: ± 2.5 PPM
Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 36 dB
Error rate: ≤ 3%
4FSK Digital modulation: 7K60FXD: 12.5 kHz (data) / 7K60FXE: 12.5 kHz (data+voice)

Receiver

Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
Digital sensitivity: Wide: 0.3 uV/-117.4 dBm (BER 5%) / Narrow: 0.7 uV/-110 dBm (BER 1%)
Spurious emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
Spurious rejection: Wide: ≥ 70 dB / Narrow: ≥ 70 dB
Blocking: 84 db
Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
Audio distortion: ≤5%
Audio power output: 1000 mW / 16Ω
Adjacent channel selectivity: Wide: ≥ 70 dB / Narrow: ≥ 60 dB
