Astatic - 636L Carbon P4 Astatic - 636L Carbon P4 Astatic - 636L Carbon P4

Astatic - 636L Carbon P4

Product code: 1722
Factory code: 302636LCF
Barcode: 045464803187

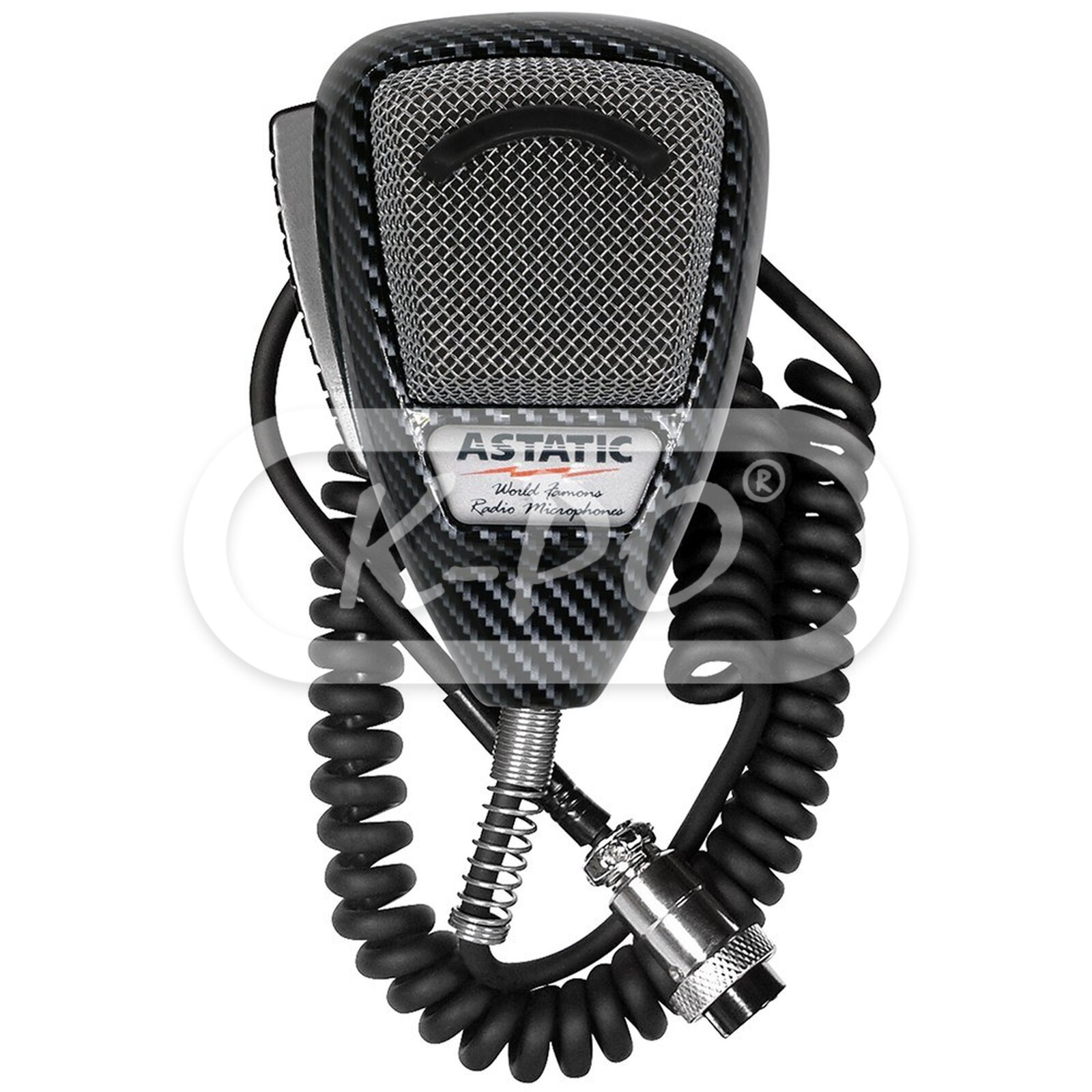

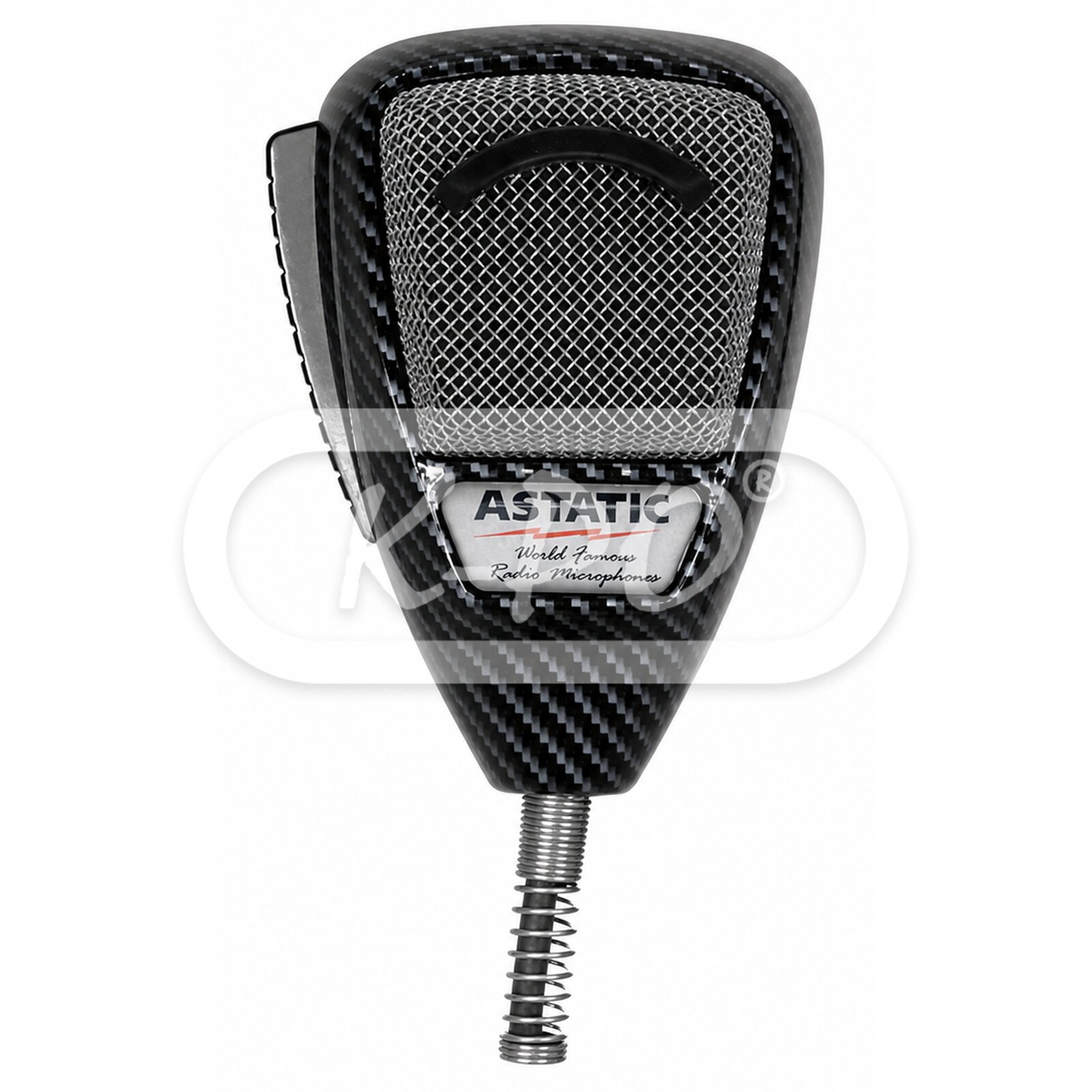

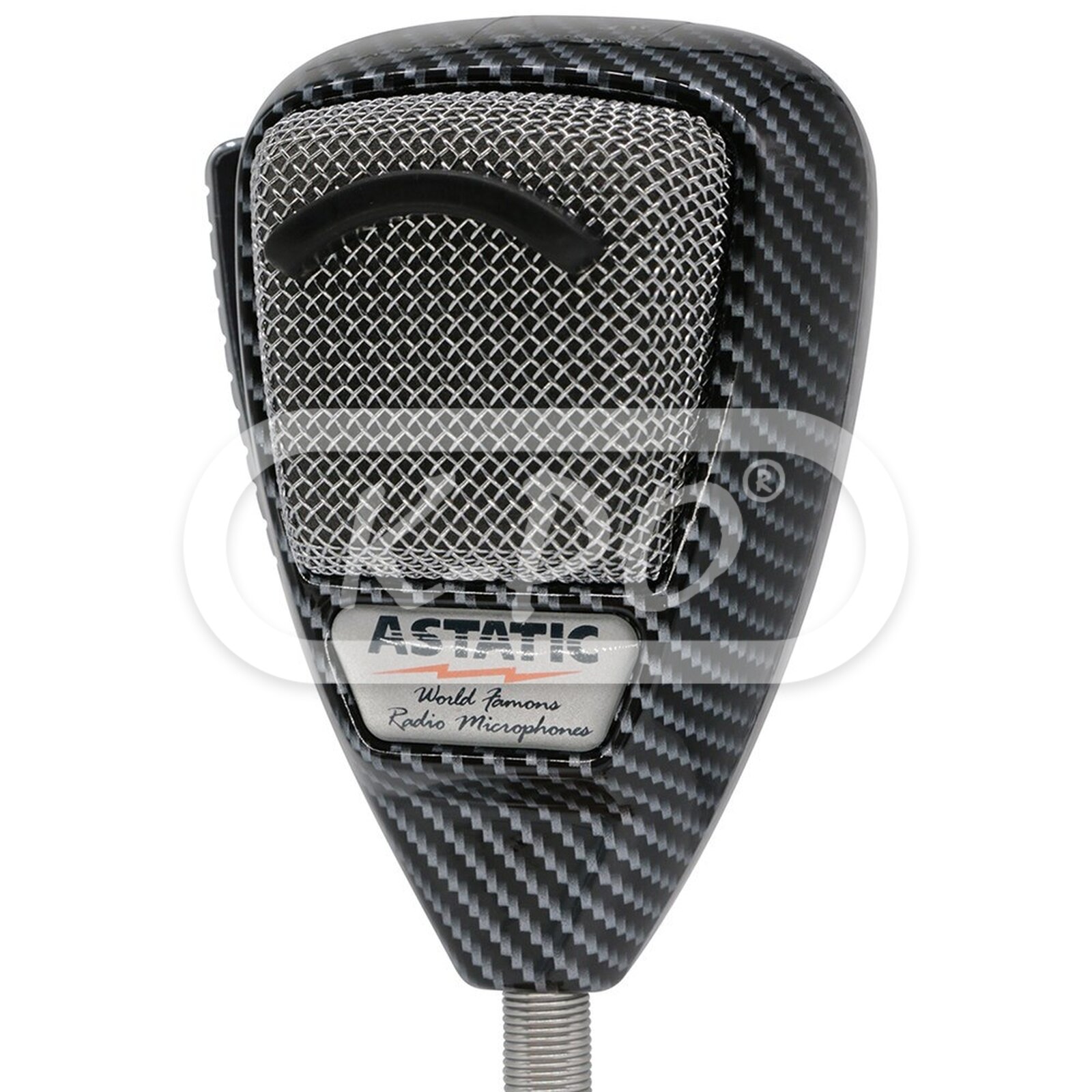

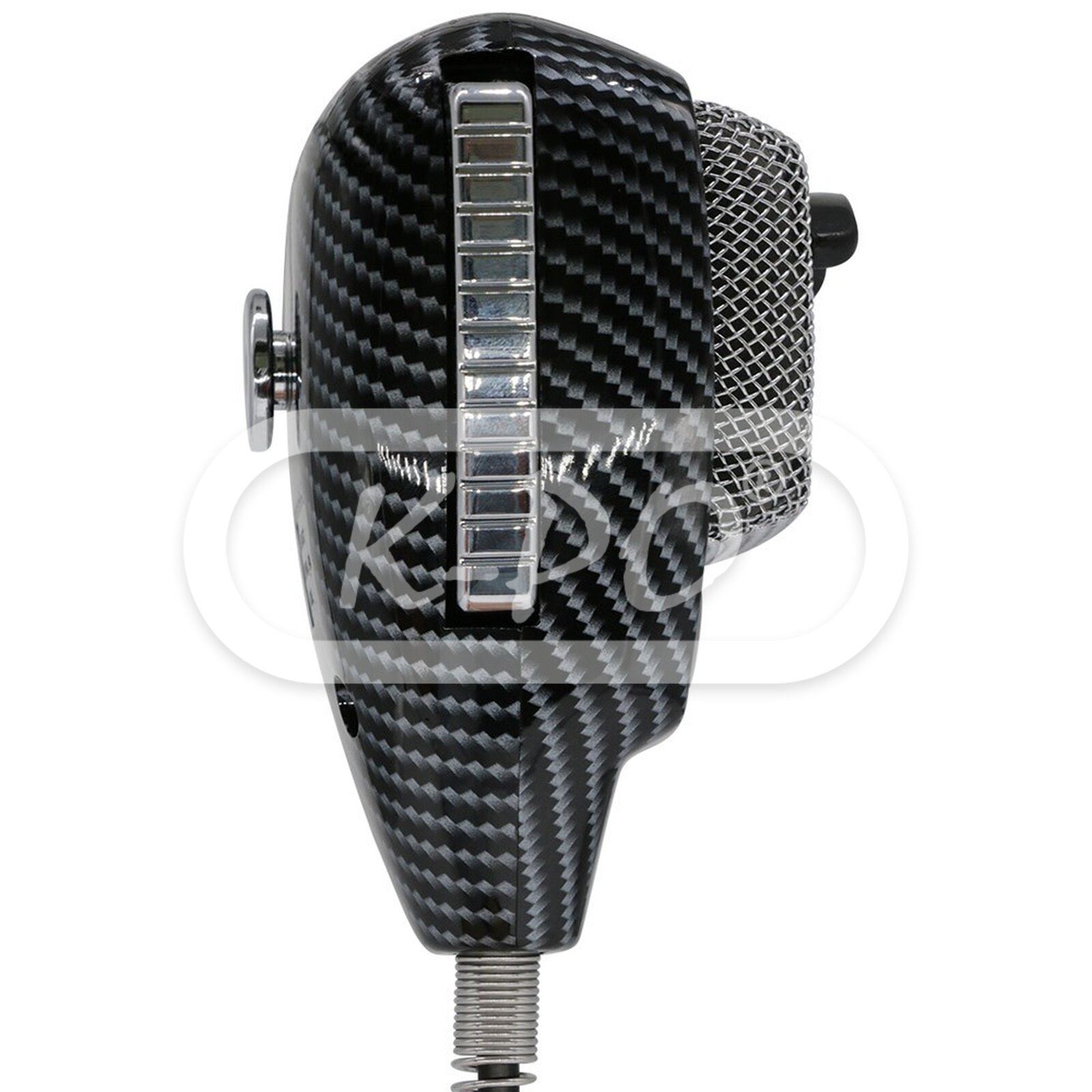

The 636L Carbon design handheld microphone is an original Astatic microphone. The microphone features a carbon design look and a rugged housing with polyurethane coated steel grille screen, coiled cord and 4-pin connection. The 636L is designed for close talking handheld applications with CB,amateur radio and SSB communications.

Shipped next business day
€58.95 (48.72 excl. 21% VAT)

Features

  • Suitable for: 4-pin P4 connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President Wilson /
  • Microphone type: Dynamic microphone

Electrical data

  • Frequency response: 100 - 5000 Hz
  • Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
  • Impedance: 200 Ohm

Mechanical data

  • Cable Length: 2.3 meter
  • Microphone connector: 4-pin
  • Cable: Six wire, five conductors, one conductor shielded, coil cord with durable strain relief
  • Housing: Durable molded carbon look ABS Cycolac®

Microphone wiring

  • Receive: Pin 4
  • Transmit: Pin 3
  • Mic Audio: Pin 2
  • Ground: Pin 1
