Astatic - 636L Stars n' Stripes P4

Product code: 30210309
Factory code: 302-10309
Barcode: 631922103090

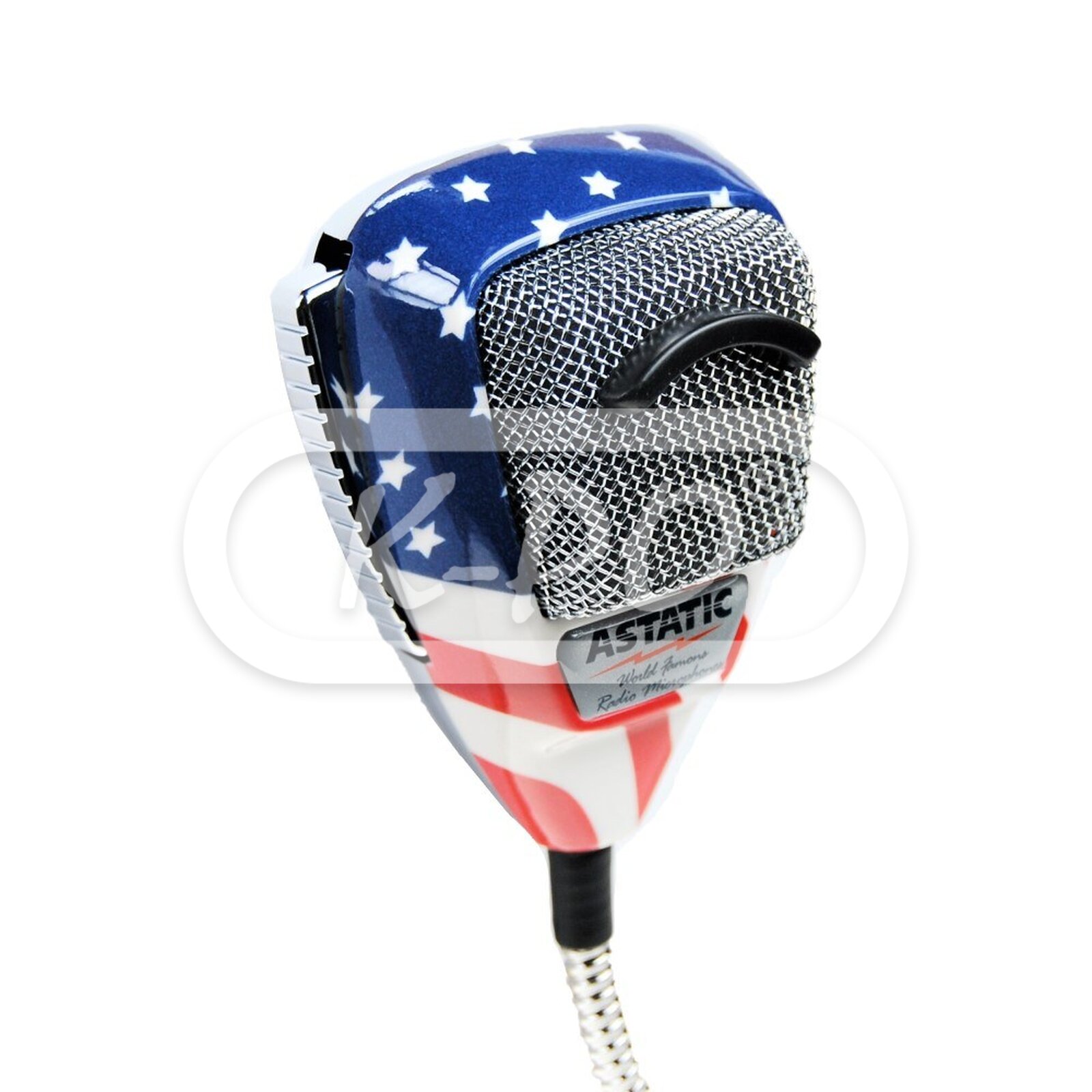

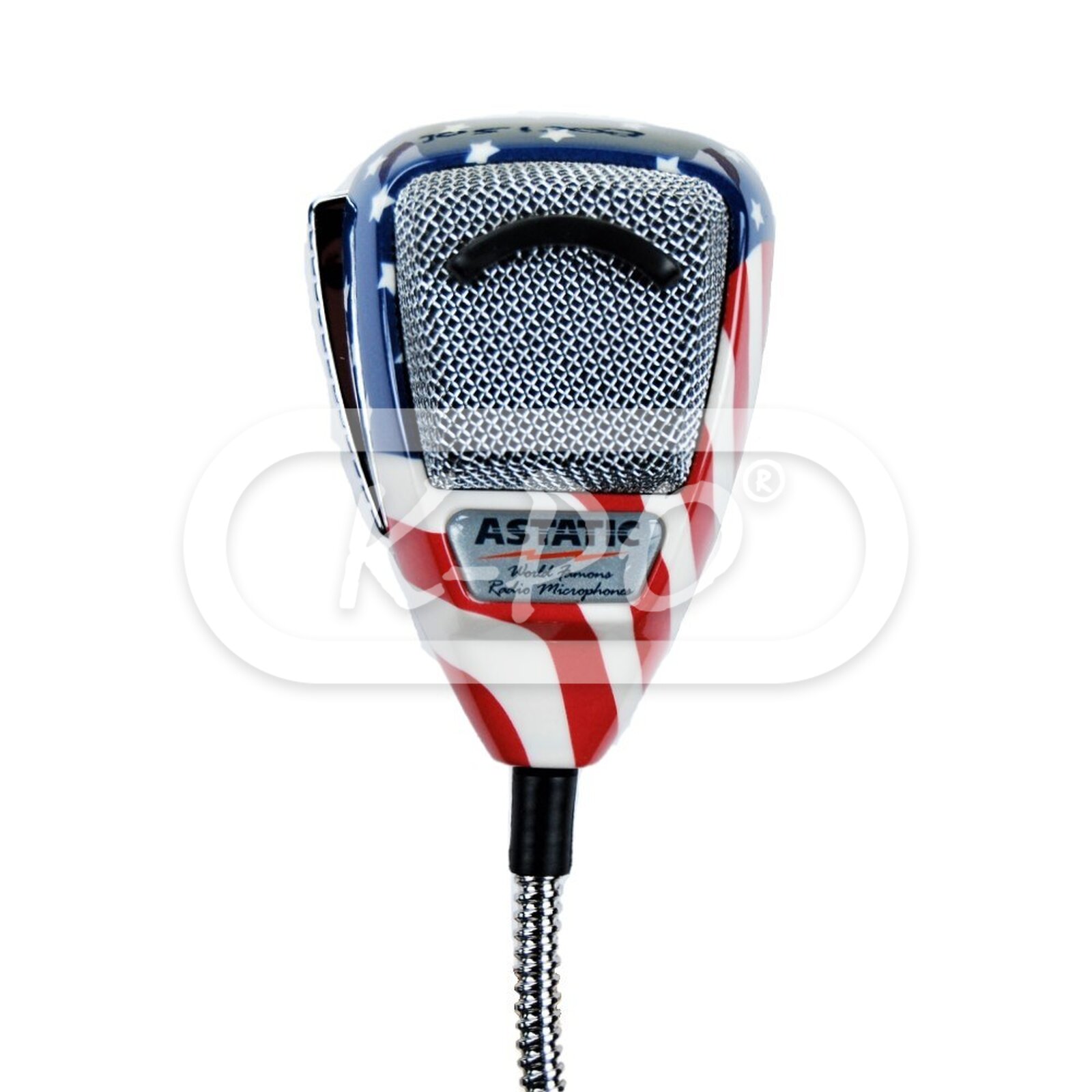

The Astatic 636L Stars n' Stripes handheld microphone is an original Astatic microphone. The microphone 4 Pin CB Microphone is the ultimate noise canceling CB microphone. The 636L Stars n' Stripes boasts heavy duty construction, grille screen, and a smooth operating, long life switch with spring return. Select models also feature a stainless steel cord. The 636L Stars n' Stripes is stylish and sleek making it the perfect noise canceling microphone for CB, Amateur radio, and SSB communications

Out of stock - Longer delivery time
€41.28 (41.28 excl. 0% VAT)

Features

  • Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President Valery Classic / President Wilson /
  • Microphone type: Dynamic microphone

Electrical data

  • Frequency response: 100 - 5000 Hz
  • Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
  • Sensitivity: 400 Ohm

Mechanical data

  • Cable Length: 2.3 meter

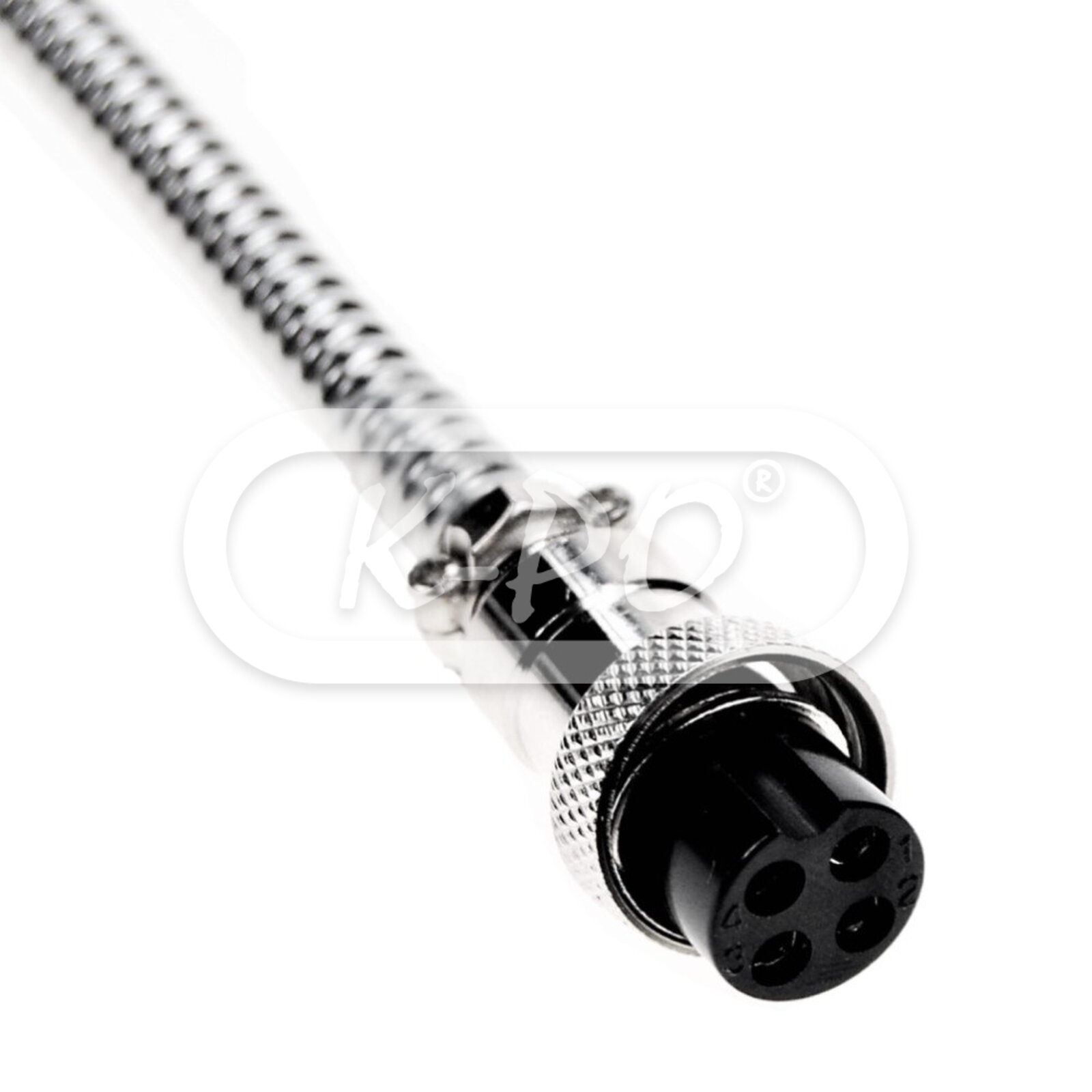

  • Microphone connector: 4-pin
  • Cable: Chrome cable with six wire, five conductors, one conductor shielded, coil cord with durable strain relief

Microphone wiring

  • Receive: Pin 4
  • Transmit: Pin 3
  • Mic Audio: Pin 2
  • Ground: Pin 1
