Astatic - 878DM P4

Product code: 878
Factory code: 302-AST878DM
Barcode: 631922103564

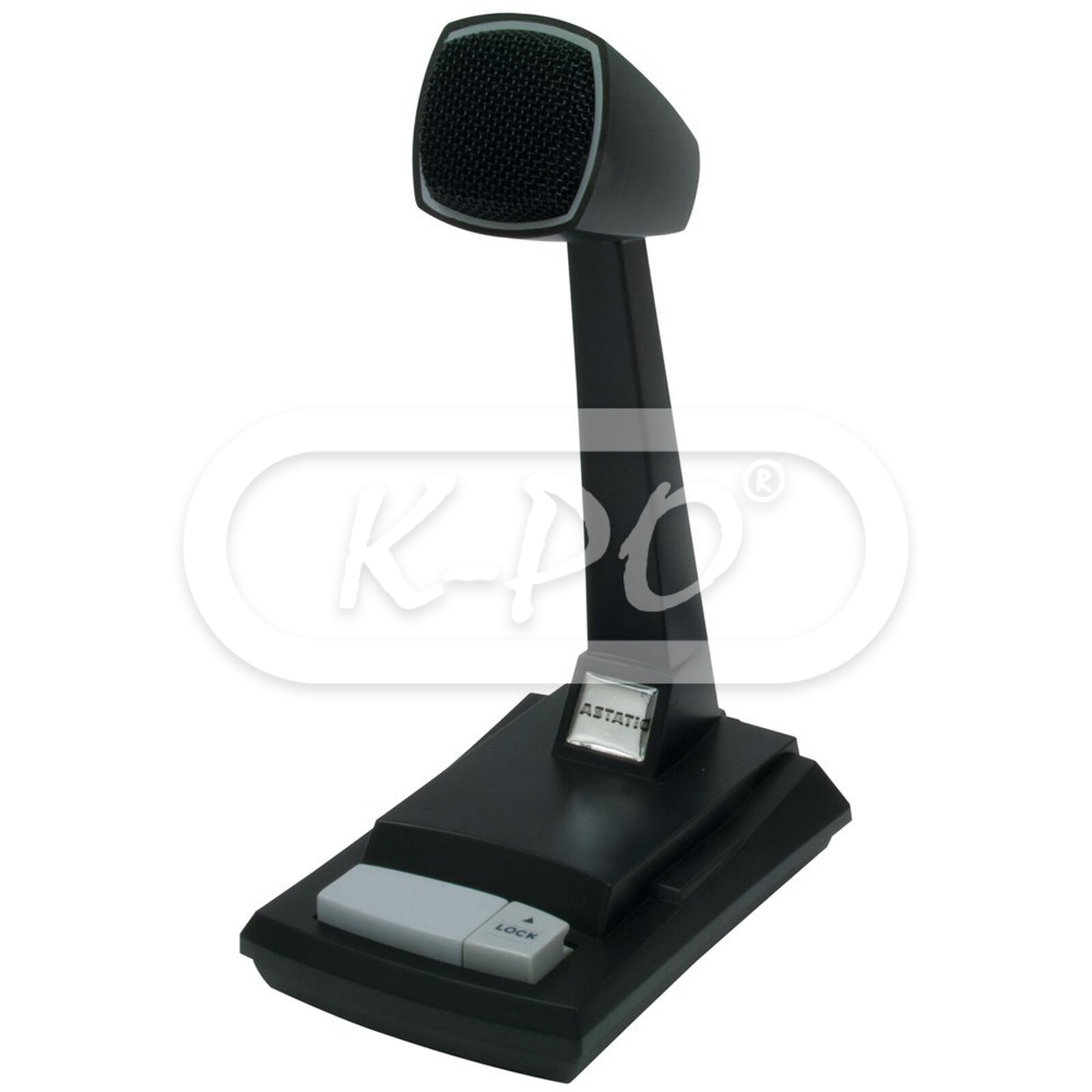

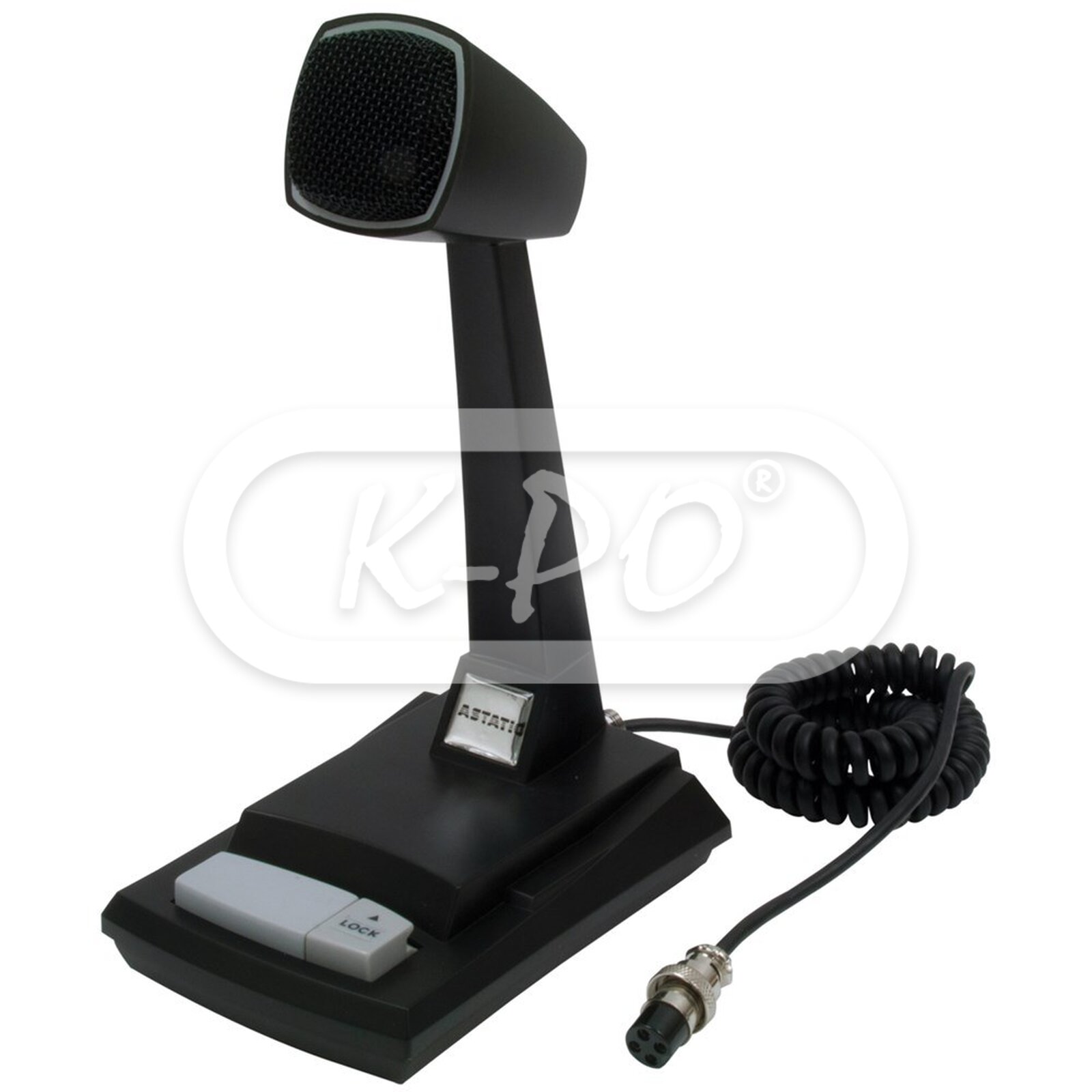

This desktop CB microphone features rugged cycolac resin housing and standard push-to-talk and lock-to-talk buttons. A high-quality omni directional ceramic cartridge and 5 conductor shielded standard astatic color-coded cable with 4-pin connector. Used for industrial and commercial applications.

Out of stock - Longer delivery time
€82.60 (82.6 excl. 0% VAT)

Features

  • Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Valery Classic / President Wilson /
  • Lock button: Yes
  • Push to talk: Yes
  • Microphone type: Power microphone

Electrical data

  • Frequency response: 100 - 10.000 Hz
  • Output level: -44 dB below 1 Volt microbar at 1 kHz
  • Impedance: 5000 Ohm
  • Output adjustment: Approx 40 dB range

Mechanical data

  • Cable Length: 60 cm

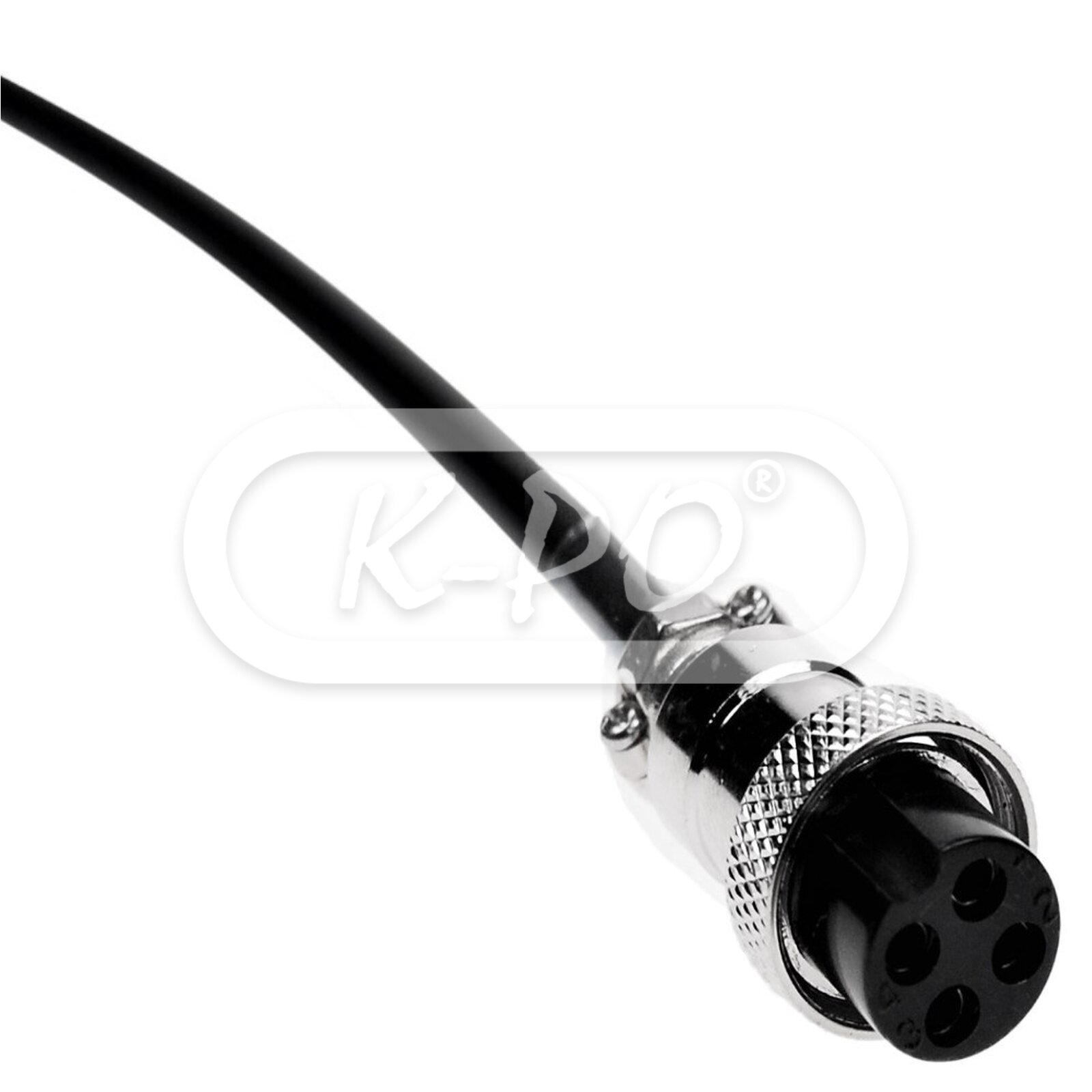

  • Microphone connector: 4-pin
  • Weight: 550 gram
  • Battery: 9 Volt battery 6LR61 (not included)
  • Housing: Durable molded black cycolac

Microphone wiring

  • Receive: Pin 4
  • Transmit: Pin 3
  • Mic Audio: Pin 2
  • Ground: Pin 1
