Astatic - D104M6B P4 Astatic - D104M6B P4 Astatic - D104M6B P4

Astatic - D104M6B P4

Product code: 1719
Factory code: 302-10005
Barcode: 631922100051

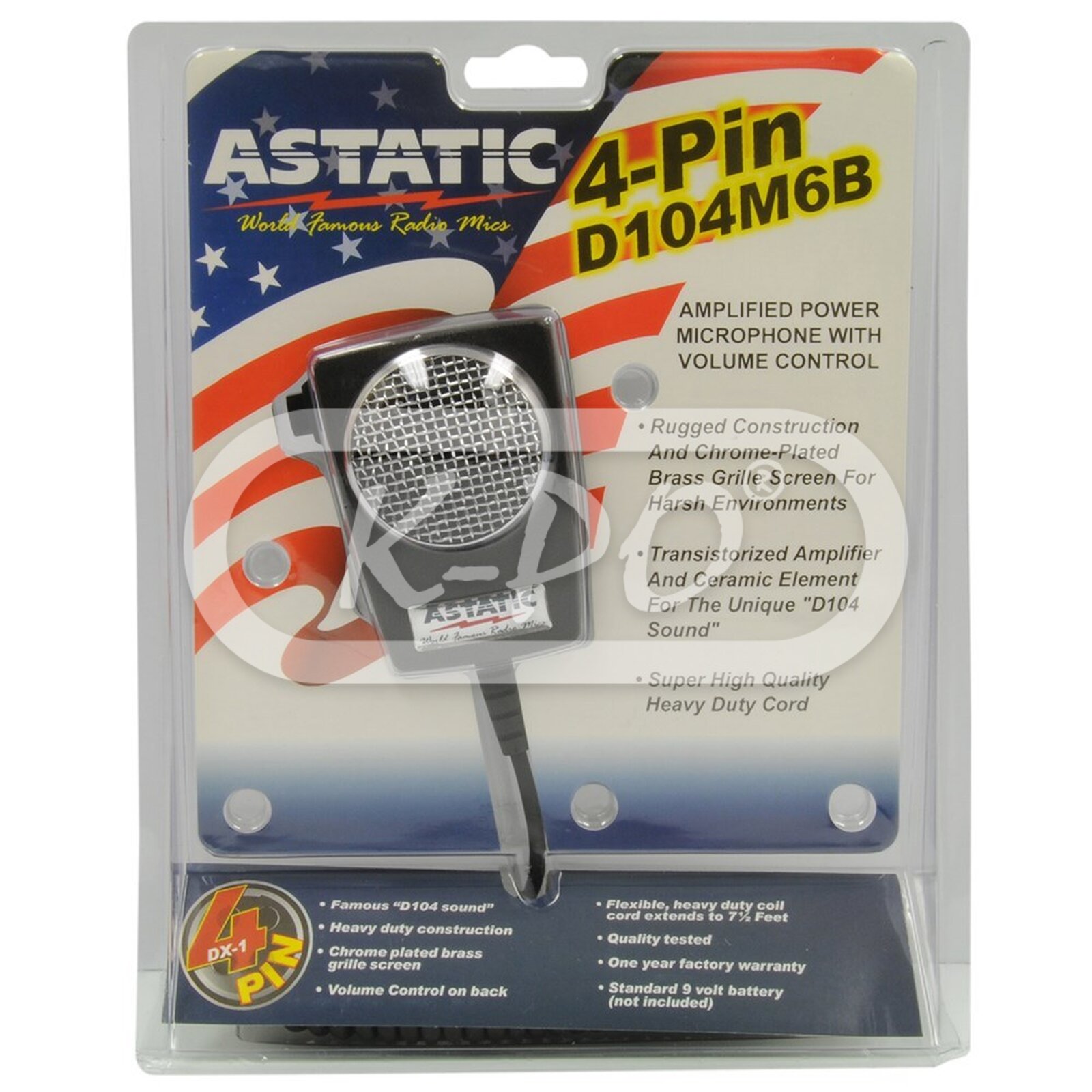

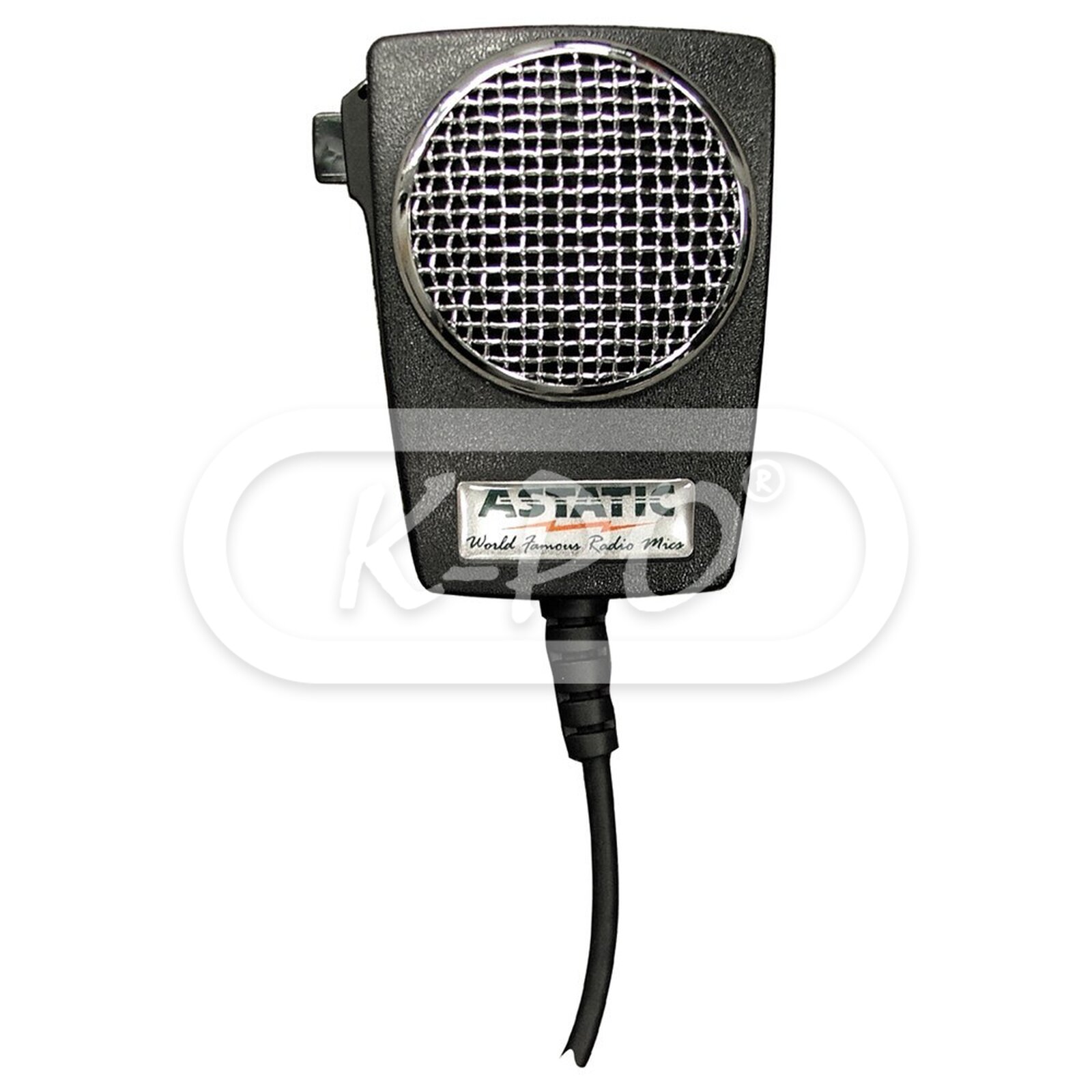

This amplified ceramic power microphone is a handheld version of classic D104 desk microphone. Designed for harsh mobile environments, it includes a transistor amplifier and external gain control.

Out of stock - Longer delivery time
€45.41 (45.41 excl. 0% VAT)

Features

  • Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Valery Classic / President Wilson /
  • Volume control: Yes
  • Microphone type: Power microphone

Electrical data

  • Frequency response: 100 - 10.000 Hz
  • Output level: -44 dB below 1 Volt microbar at 1 kHz
  • Impedance: 5000 Ohm
  • Output adjustment: Approx 40 dB range

Mechanical data

  • Cable Length: 2.2 meter

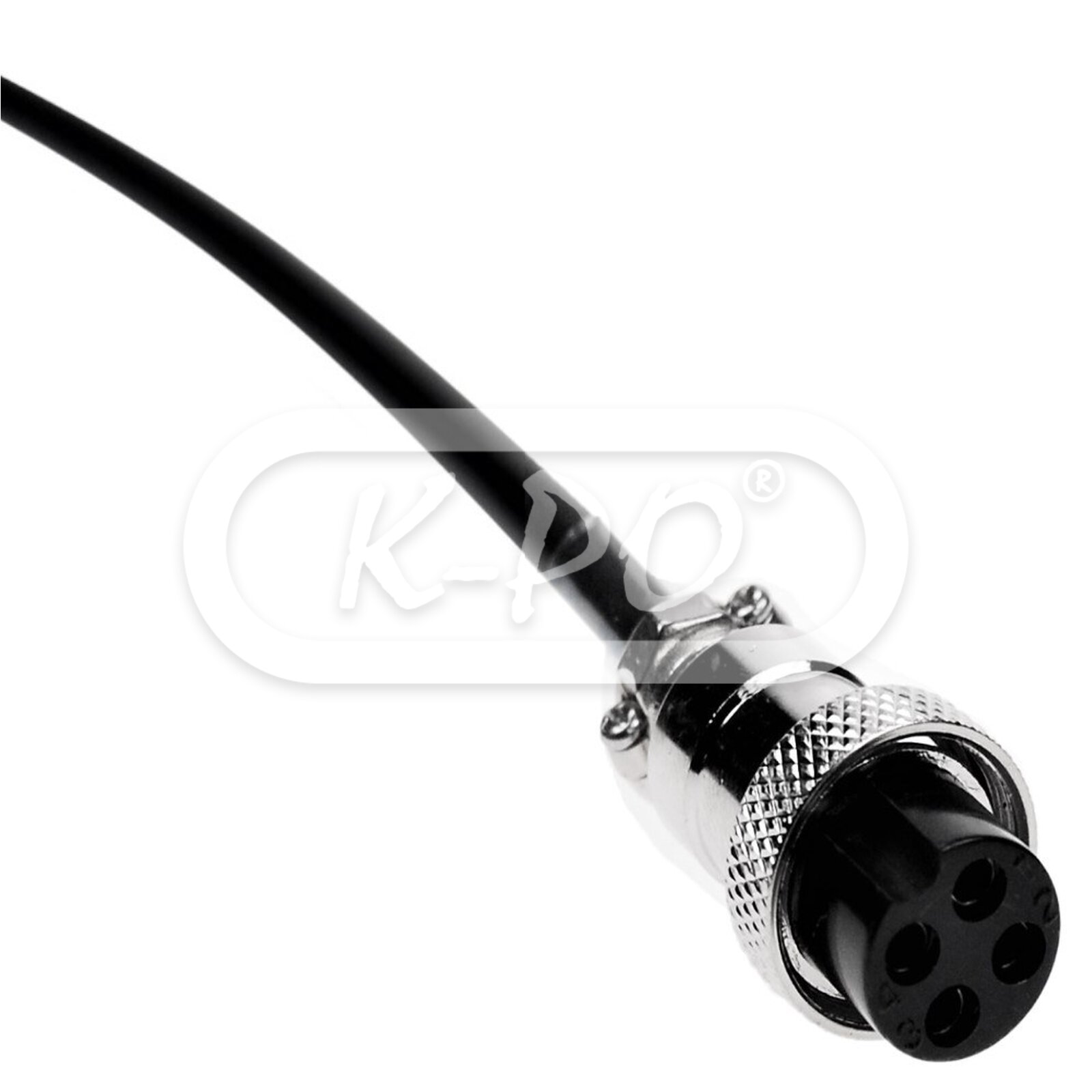

  • Microphone connector: 4-pin
  • Battery: 9 Volt battery 6LR61 (not included)
  • Weight: 125 gram
  • Housing: Durable molded black ABS Cycolac

Microphone wiring

  • Receive: Pin 4
  • Transmit: Pin 3
  • Mic Audio: Pin 2
  • Ground: Pin 1
