Astatic - Road Devil RD-104 P4

Product code: 1595
Factory code: 302-10036
Barcode: 631922100365

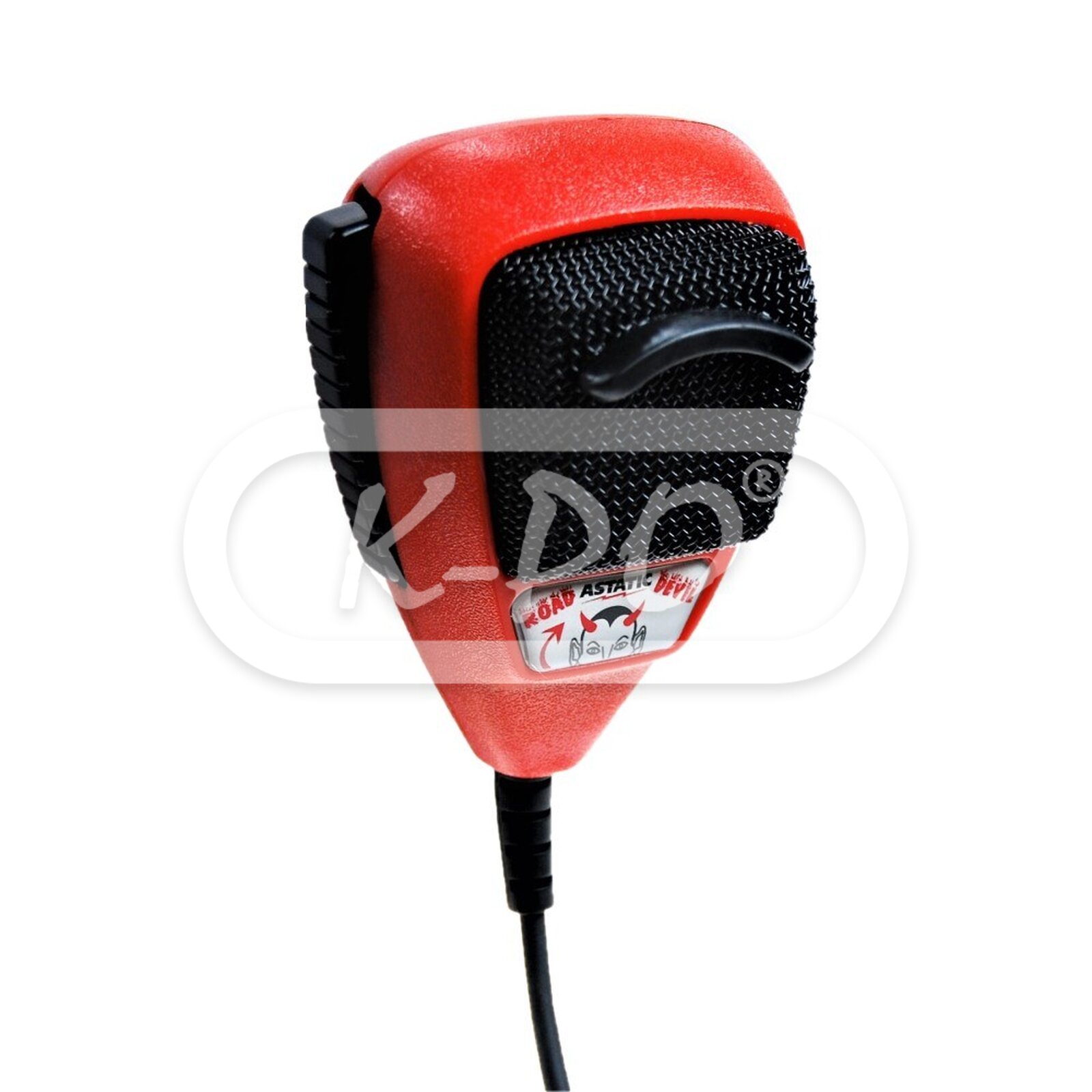

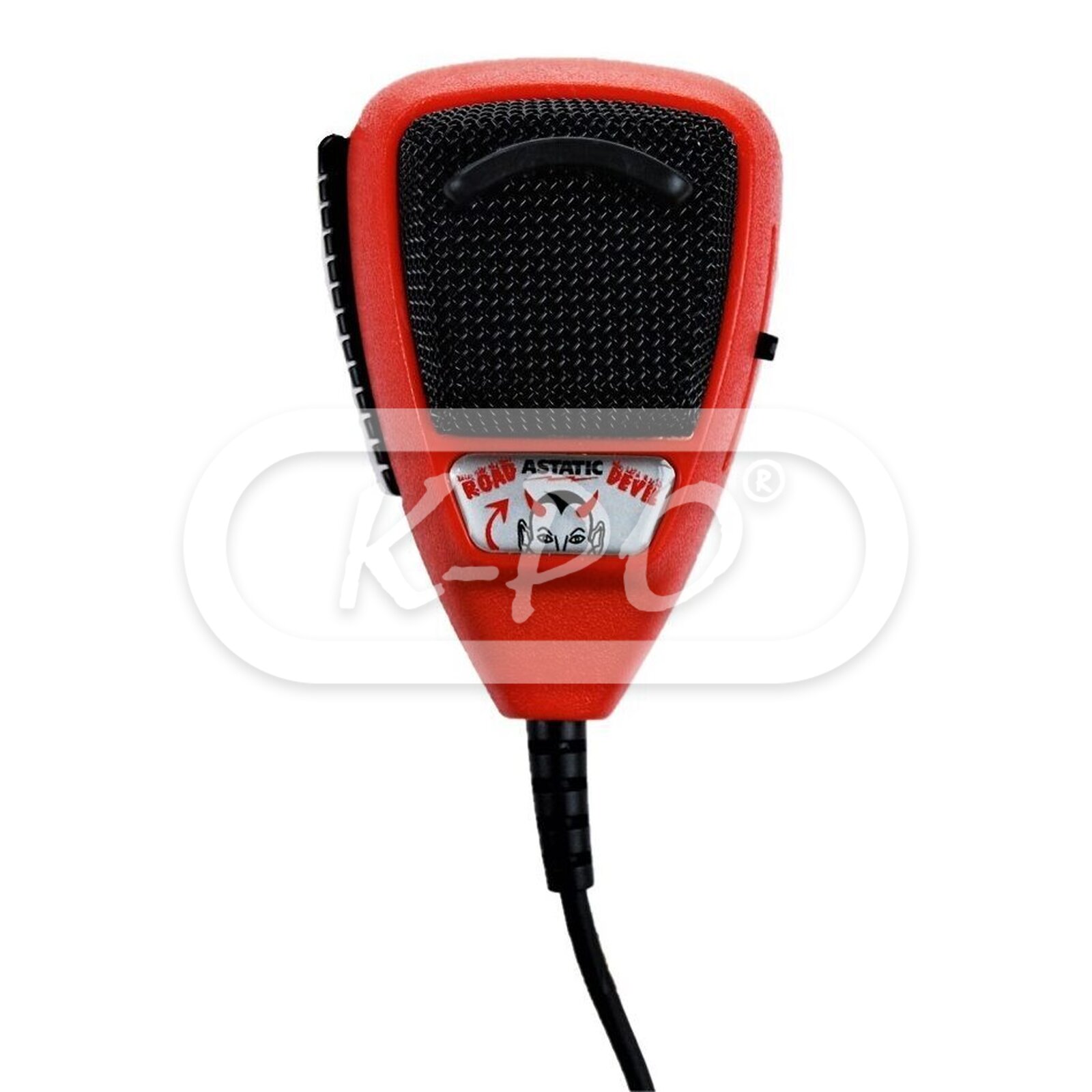

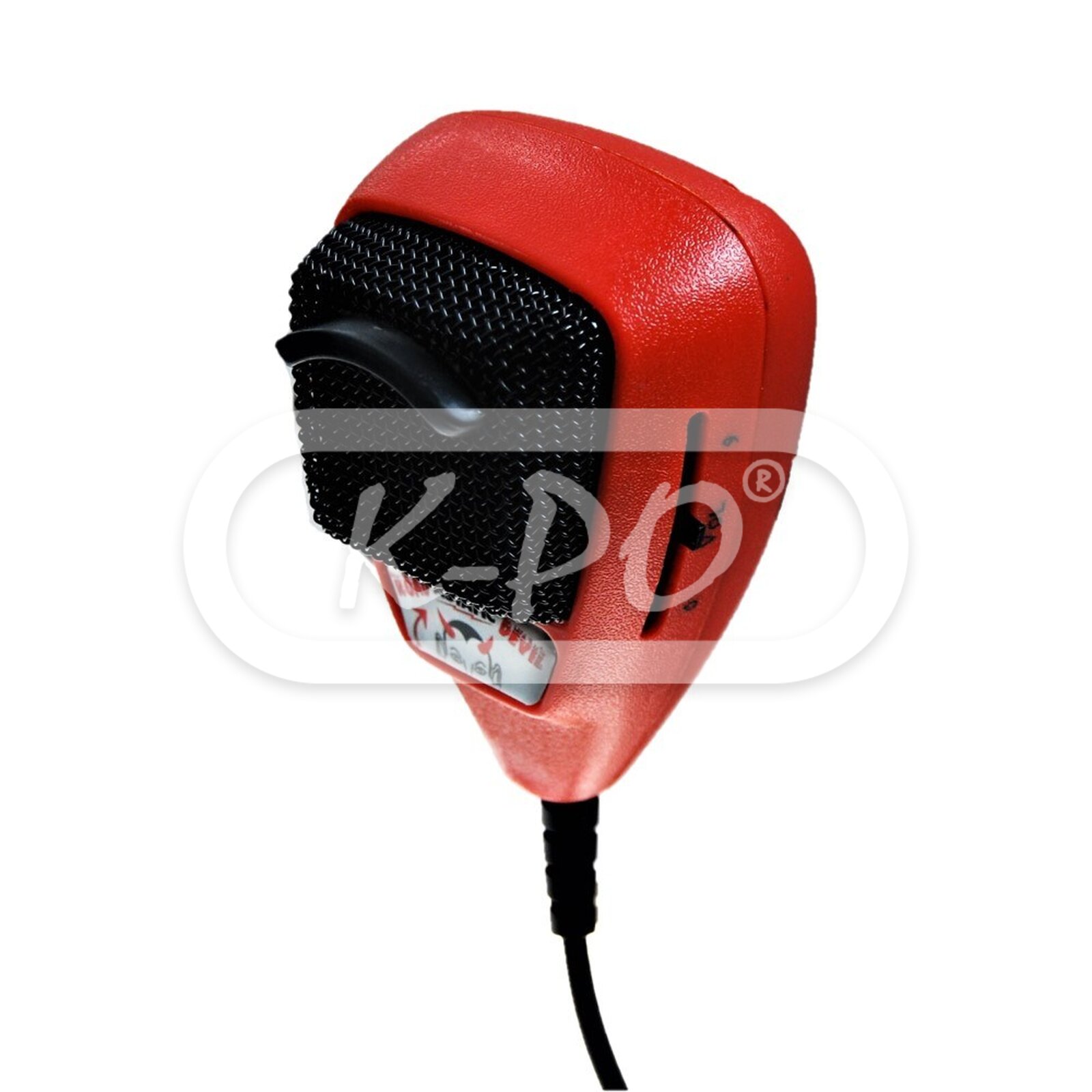

The Road Devil RD-104 handheld power microphone is an original Astatic microphone. The microphone features a rugged housing with polyurethane coated steel grille screen, coiled cord and 4-pin connection. The Road Devil is designed for close talking handheld applications with CB,amateur radio and SSB communications. The microphone requires a 9V battery (not included).

Out of stock - Longer delivery time
€49.55 (49.55 excl. 0% VAT)

Features

  • Suitable for: 4-pin standard connector / Danita 640 / Midland Alan 121 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President Valery Classic / President Wilson /
  • Volume control: Yes
  • Microphone type: Power microphone

Electrical data

  • Output level: -42 dB (0 dB=1 volt/microbar)
  • Impedance: 100 Ohm

Mechanical data

  • Cable Length: 2.2 meter

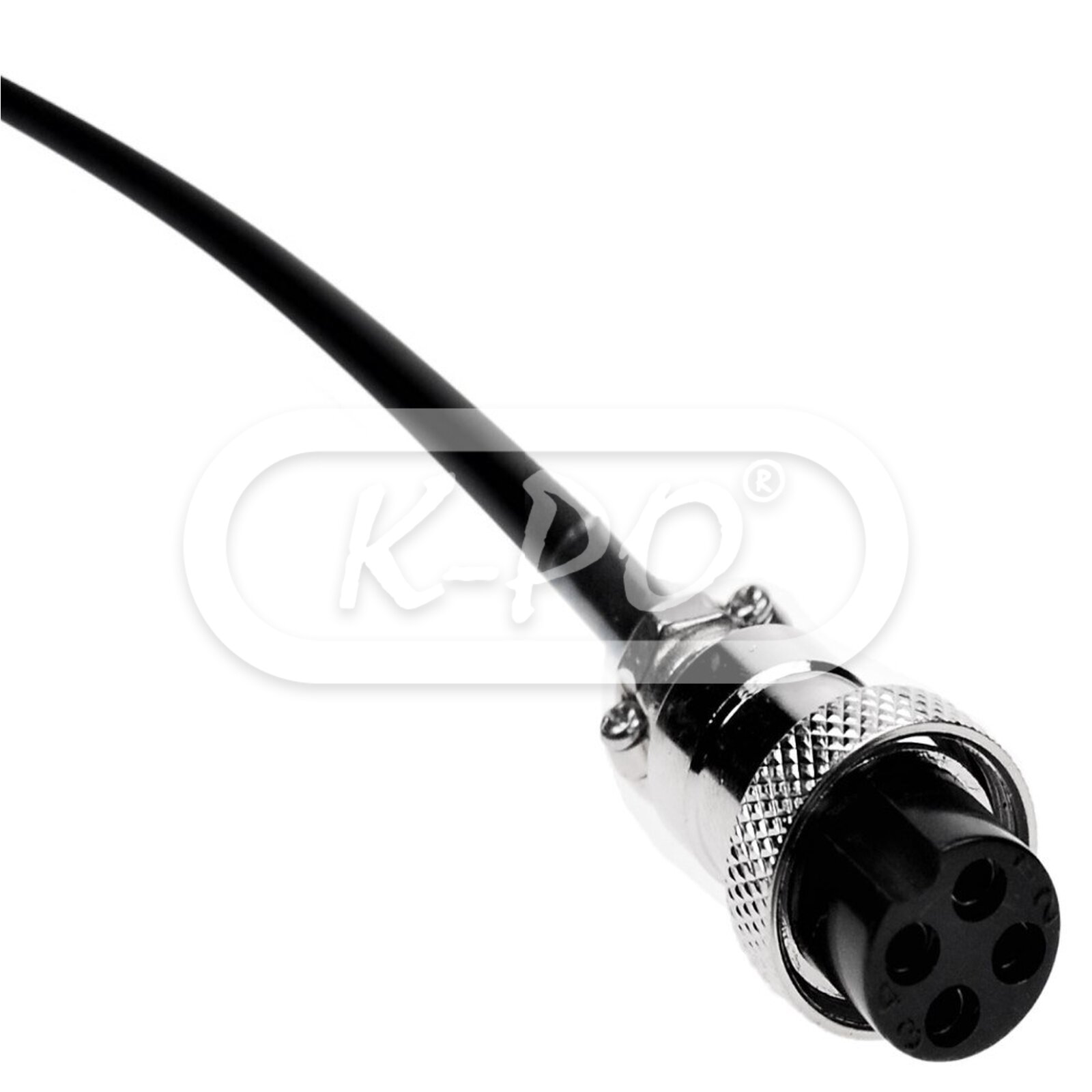

  • Microphone connector: 4-pin
  • Cable: Six wire, five conductors, one conductor shielded, coil cord with durable strain relief
  • Battery: 9 Volt battery 6LR61 (not included)
  • Housing: Durable high impact molded black ABS

Microphone wiring

  • Receive: Pin 4
  • Transmit: Pin 3
  • Mic Audio: Pin 2
  • Ground: Pin 1
