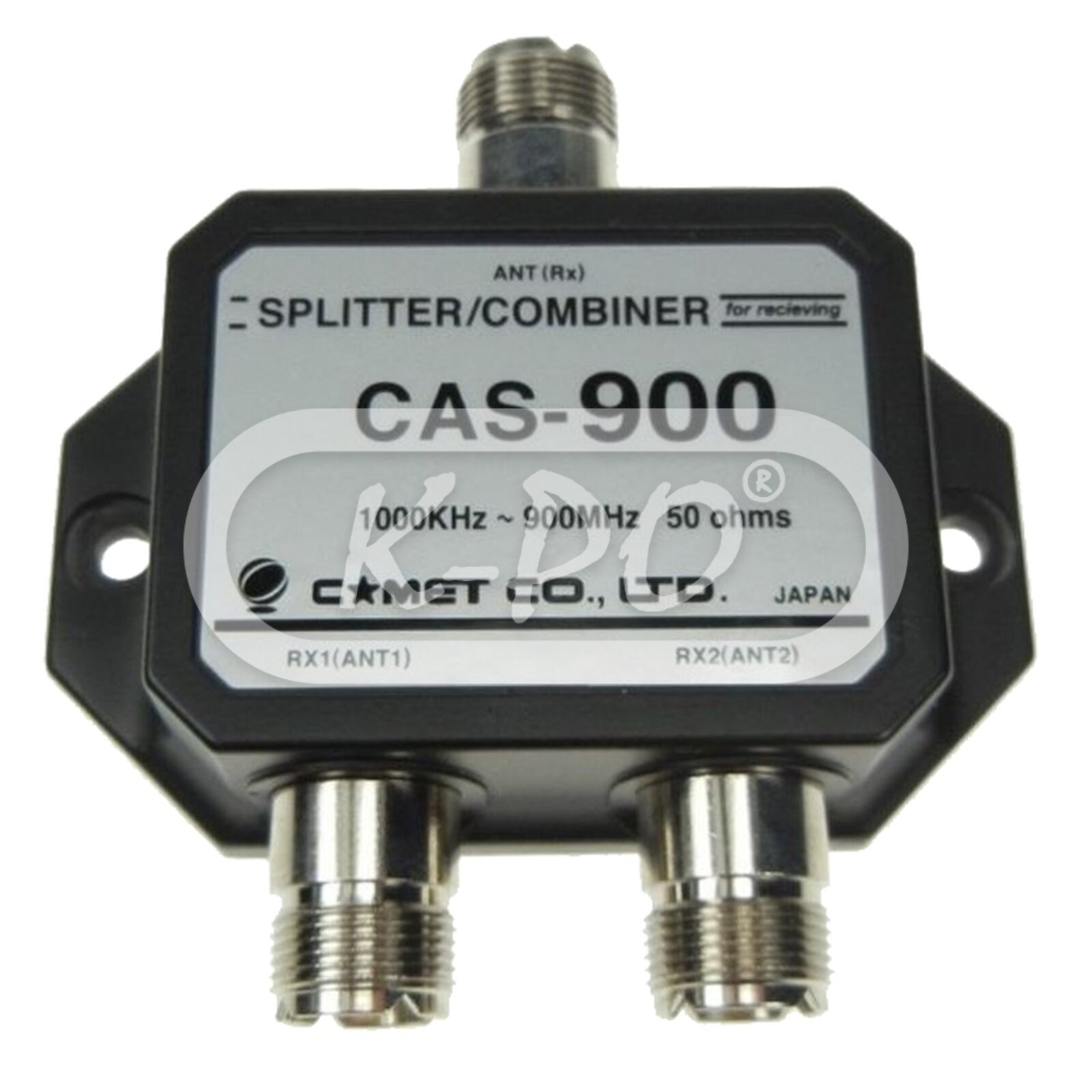

Comet - CAS-900

Product code: 805900

The Comet CAS-900 allows two receivers to be connected to one antenna without interaction and with minimal signal loss. A high degree of isolation (20 dB typ.) between both receivers ensures that each receiver can be tuned and operated as if it were connected to its own antenna. The CAS-900 can also be used in reverse. That is, as an antenna combiner for two antennas to one receiver. This device is operational from medium wave to 900 MHz. This is passive (not amplified) device. The CAS-900 uses three SO-239 jacks.

Frequency range: 1 - 900 MHz
Shipped next business day
€78.47 (78.47 excl. 0% VAT)

Electrical data

  • Power peak: 2 Watts (PEP)
  • VSWR: less than 1.5 (less than 2.0 at 900 MHz)
  • Impedance: 50 Ohm
  • Insertion loss: 0.5 dB typical
  • Isolation: 20 dB typical

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 90 mm
  • Height: 88 mm
  • Width: 27 mm
  • Weight: 170 gram
