Comet - CAT-283

Product code: 805283

Barcode: 4932273180850

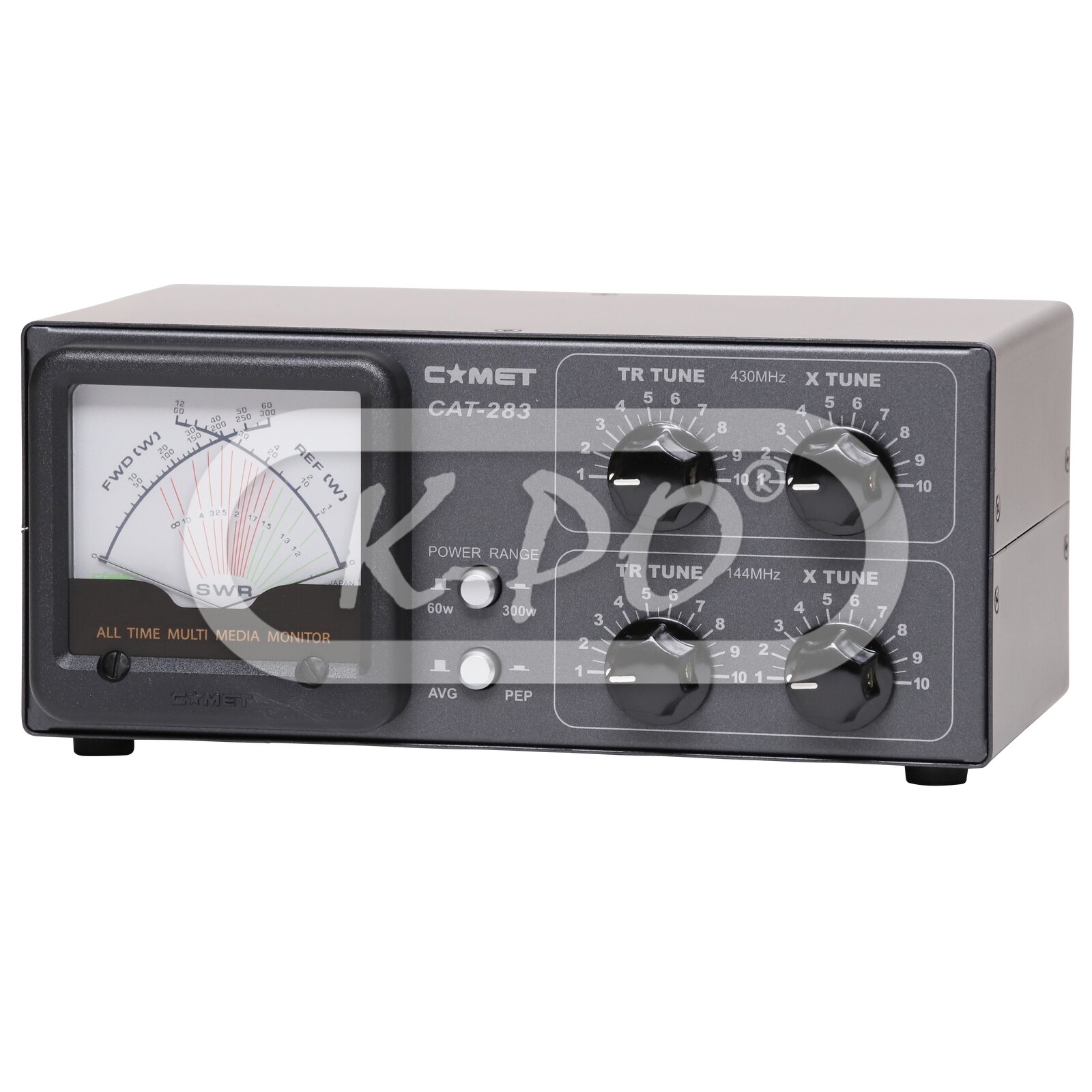

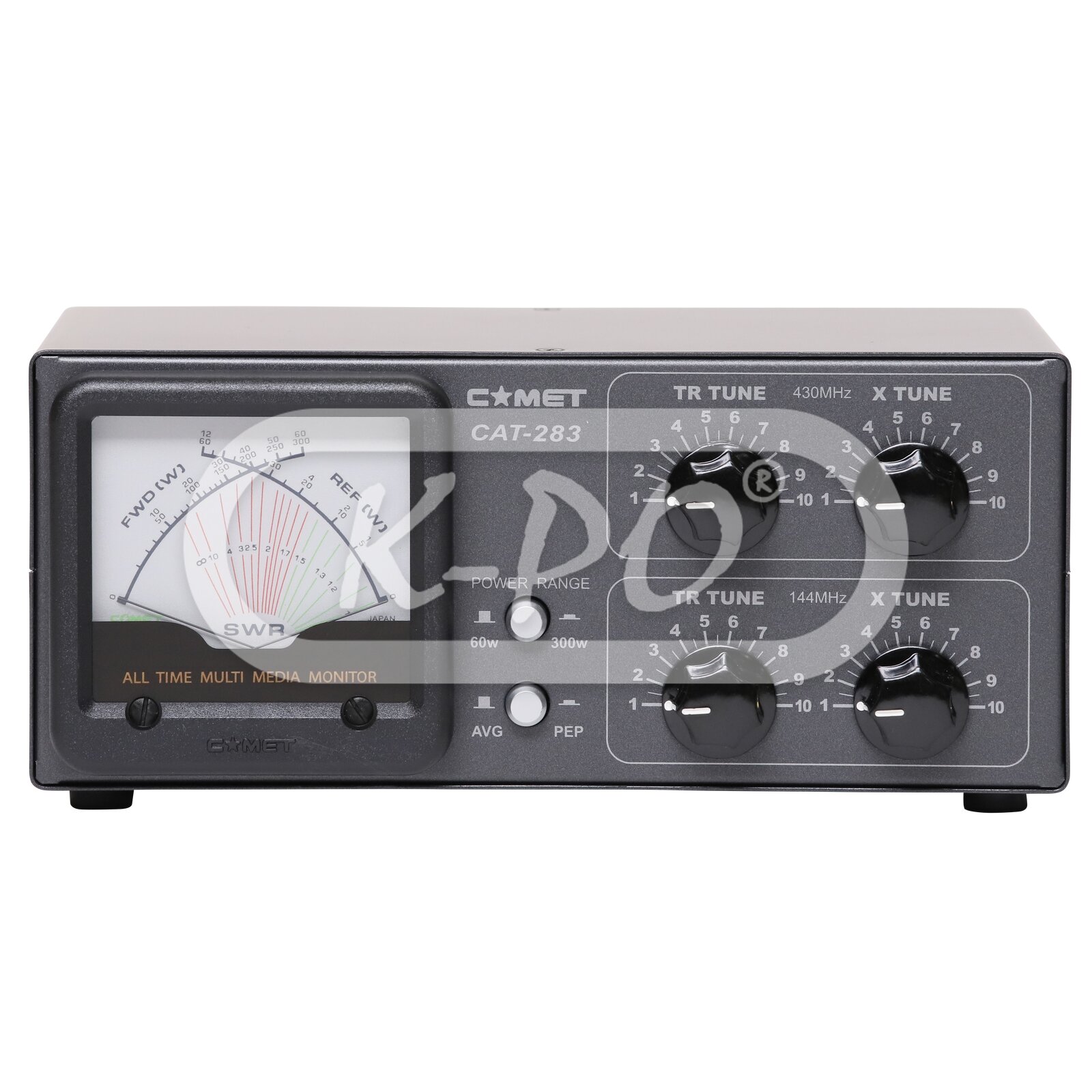

The Comet CAT-283 is an antenna tuner for 125 - 210 / 400 - 450 MHz. Which makes the tuner extremely suitable for the 2m and 70cm bands. With a maximum pass-band power handling of 200 Watts (FM). Also for measuring your SWR and output power. The cross needle meter measures Forward Power, Reflected Power and SWR simultaneously. AVG / PEP switch to select average power or SSB / PEP. The cross needle meter is illuminated by 13.8V DC.

Frequency range: 125 - 210 / 400 - 450 MHz

Shipped next business day - Stock: 7

€359.95 (297.48 excl. 21% VAT)

Electrical data

• Backlight display / meter: Yes
• Power range: 60 / 300 Watts (SSB / PEP)
• Minimum Power for SWR: 6 Watts
• Testing function: SWR and Power (FWD and REF / AVG and PEP)
• Voltage: 13.8 Volt, for display lightning only
• Power supply for display lightning: Yes
• Input impedance: 50 Ohm
• Output impedance: 15 - 200 Ohm
• Pass-band power rating: Below 200 Watts (FM)

Mechanical data

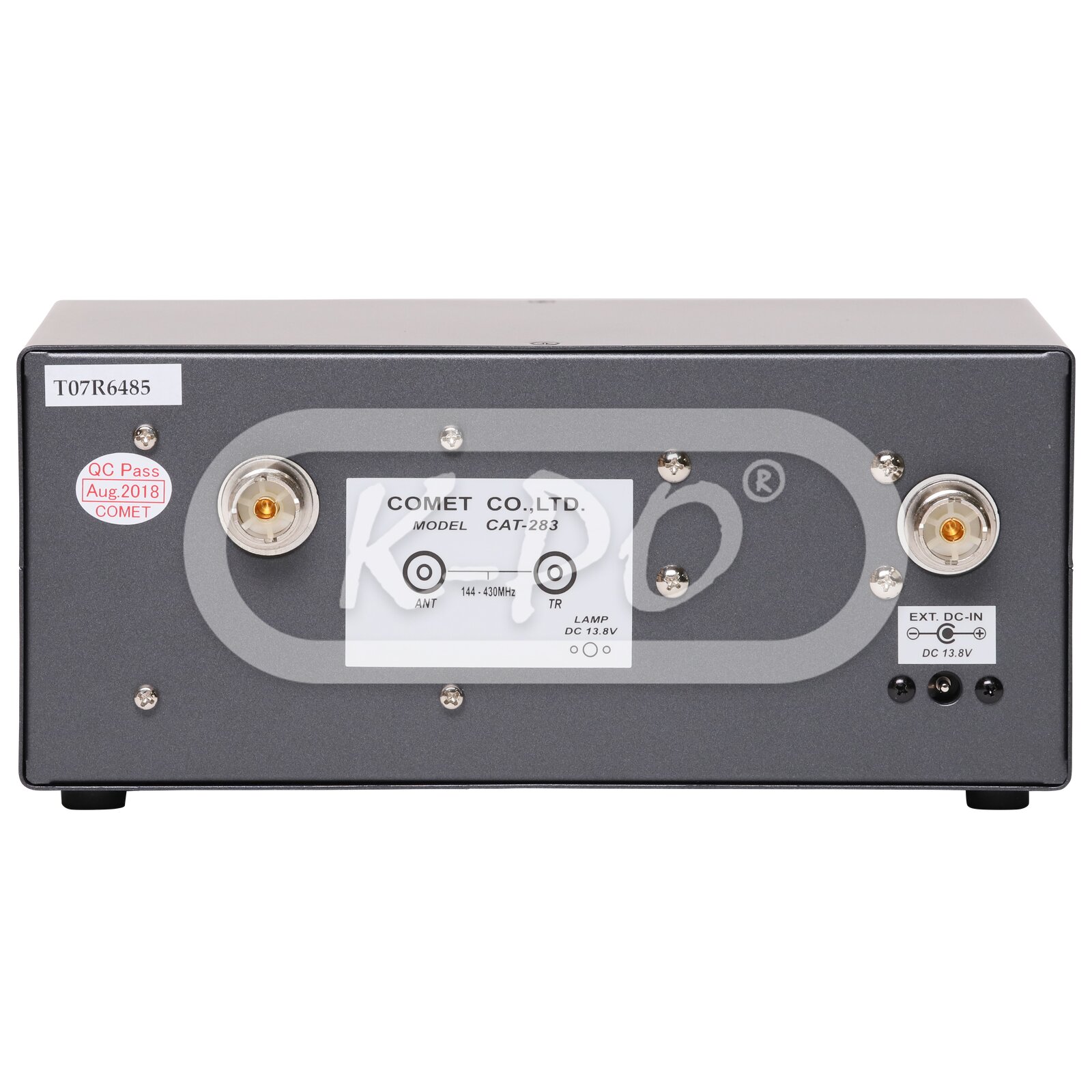

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 218 mm
• Height: 93 mm
• Width: 120 mm
• Weight: 1400 gram

Inside the box

• Tuner: Yes
• DC power cable: Yes
• Installation manual: English

Downloads

• Datasheet: CAT 283 Eng
