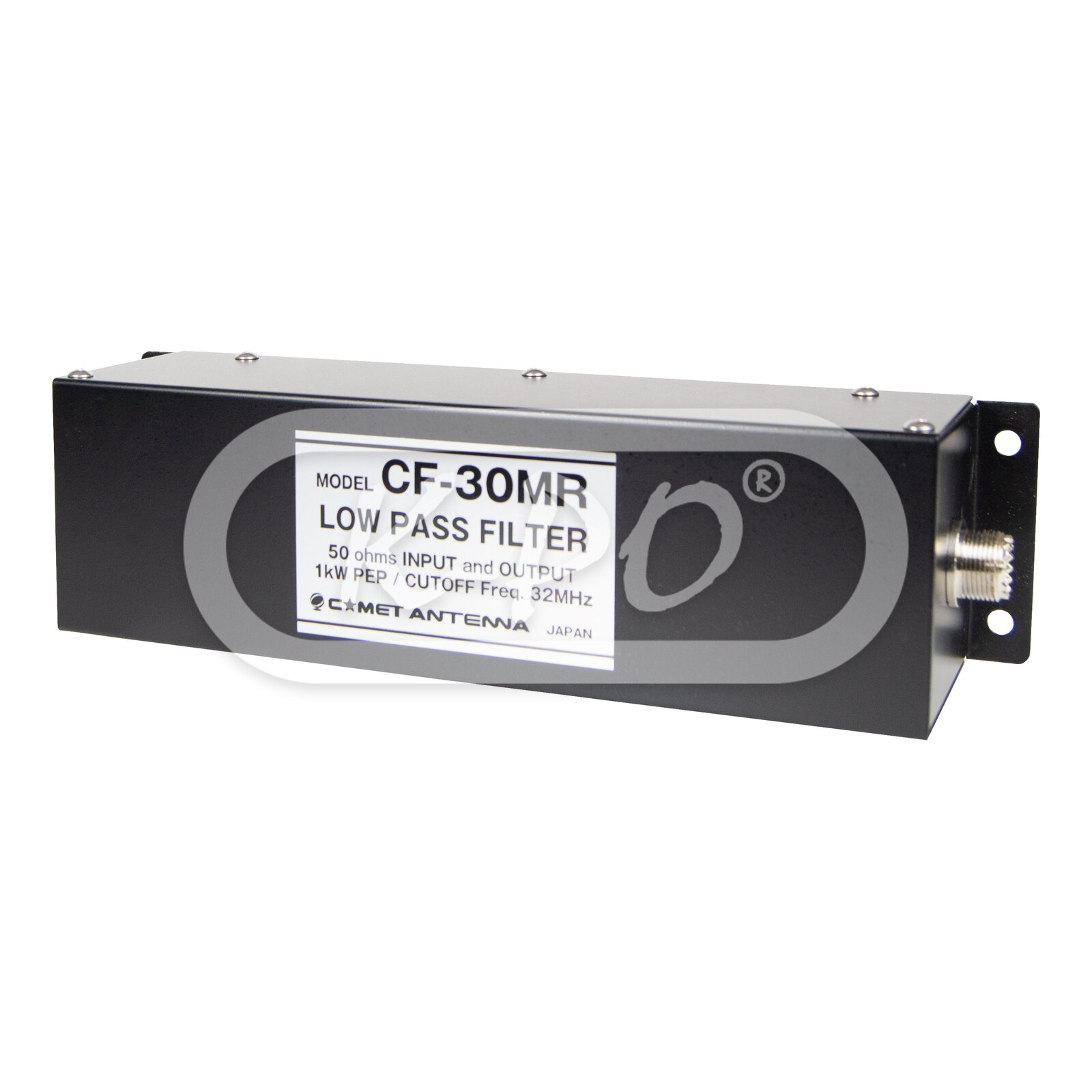

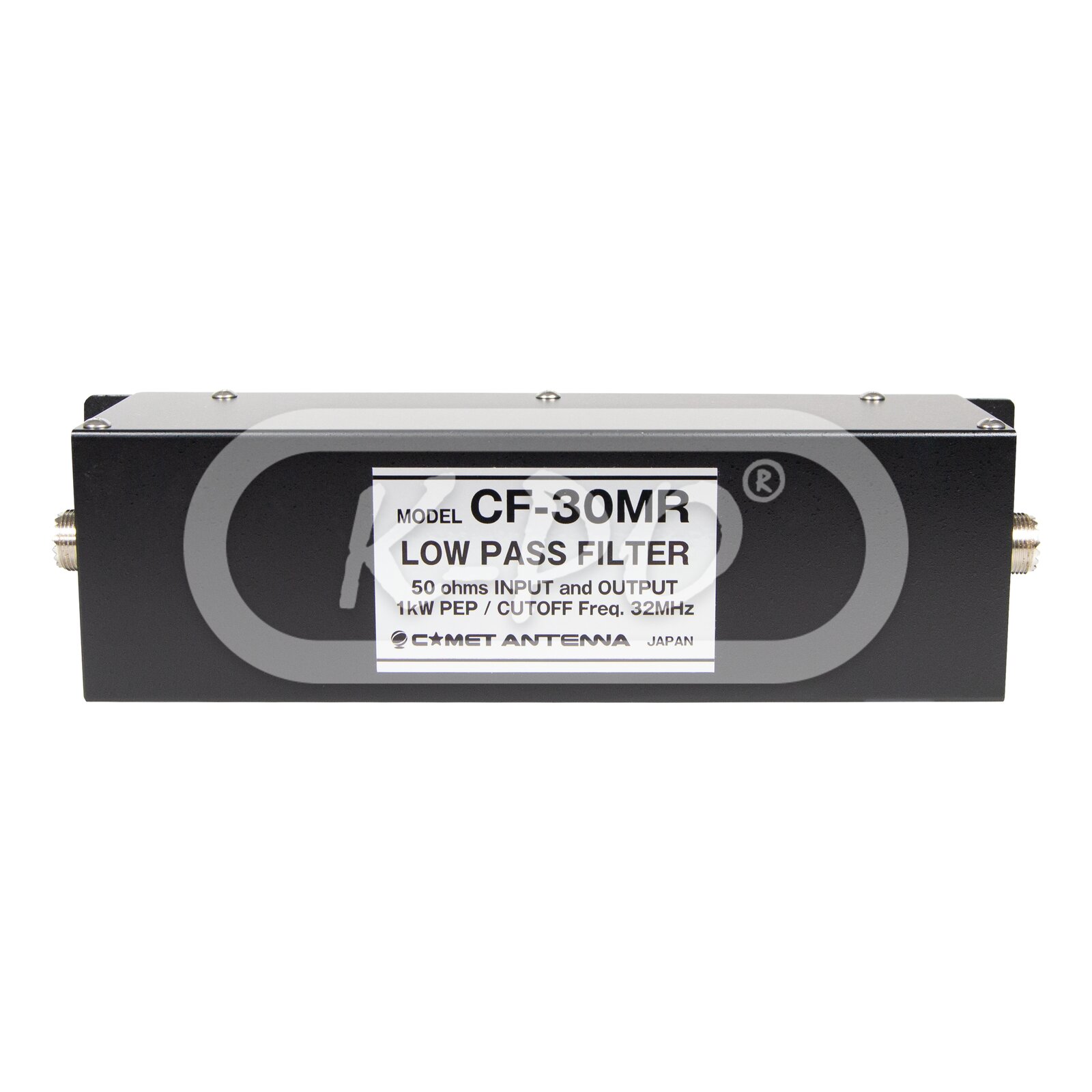

Comet - CF-30MR

Product code: 805030
Barcode: 4932273007041

The Comet CF-30MR is a Low Pass Filter for distortion-free noise removal from transmission signals. Optimized for transmission of high quality signals

Frequency range: Up to 30 MHz
Shipped today
€82.60 (82.6 excl. 0% VAT)

Electrical data

  • Power continues: 500 Watts
  • Power peak: 1 kW
  • VSWR: 1.2 or less
  • Impedance: 50 Ohm
  • Insertion loss: Within 0.4dB
  • Attenuation: >60dB at 42~250MHz

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 250 mm
  • Height: 64 mm
  • Width: 66 mm
  • Weight: 800 gram
