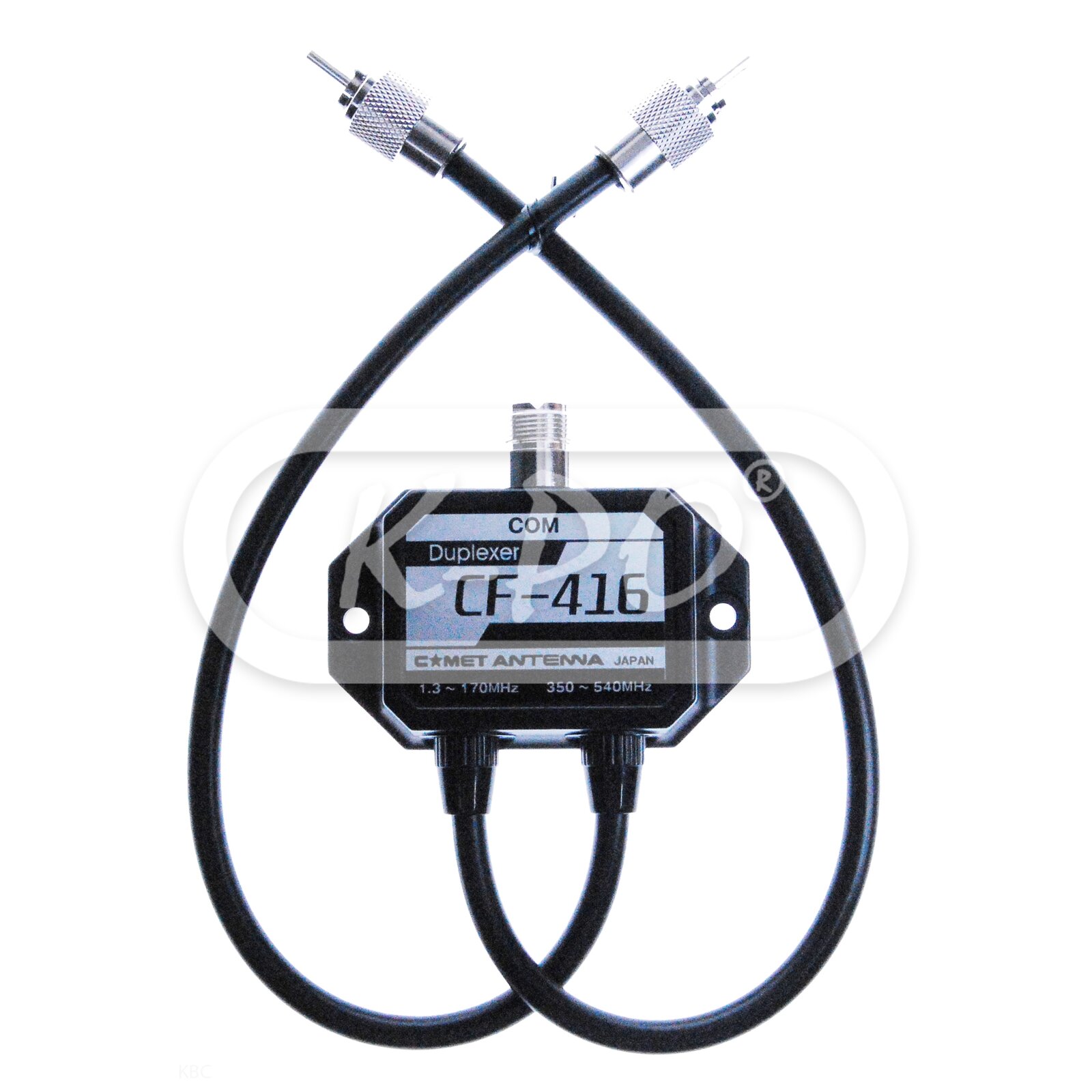

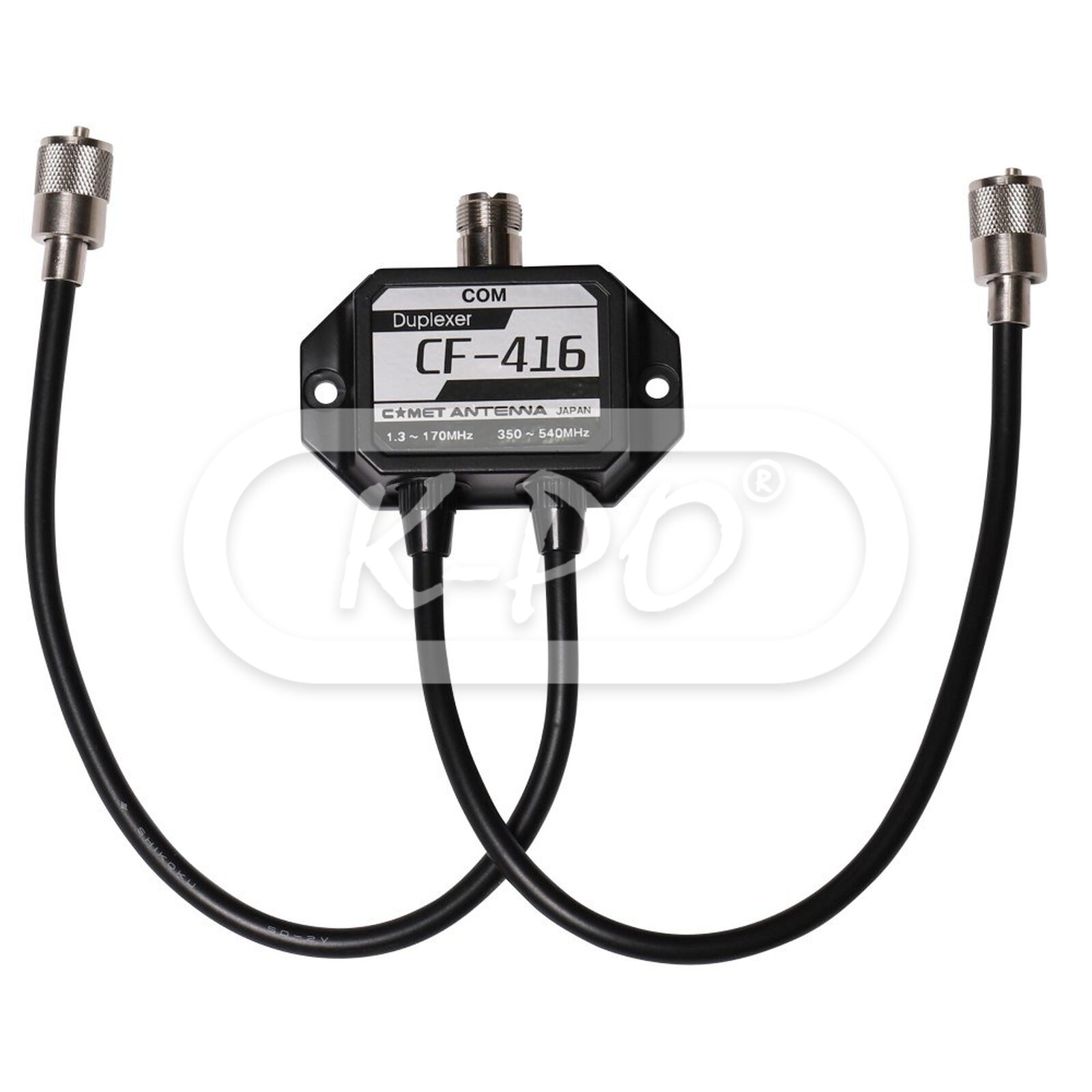

Comet - CF-416A

Product code: 805417

Barcode: 4932273007478

Model CF-416A is the duplexer for transmitting/receiving all 2 bands of 144 MHz (included HF to 50 MHz) and 430, 440 MHz at the same time. Using one, or two CF-416A, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-416A work to prevent of occurrence of TVI on the other hand (isolation of each connectors are over 60 dB). When using CF-416A for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Frequency range: 1.3-170 / 350-540 MHz

Shipped next business day - Stock: 6

€67.95 (56.16 excl. 21% VAT)

Electrical data

• Power peak: 1.3-60 MHz: 1000W (PEP) / 100-170 MHz: 800W (PEP) / 350-540 MHz: 500W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-170 MHz: 0.15 dB or less / 350-540 MHz 0.25 dB or less
• Isolation: more than 60 dB

Mechanical data

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: 1.3-170 MHz: UHF (PL) male / 350-540 MHz: UHF (PL) male /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram
