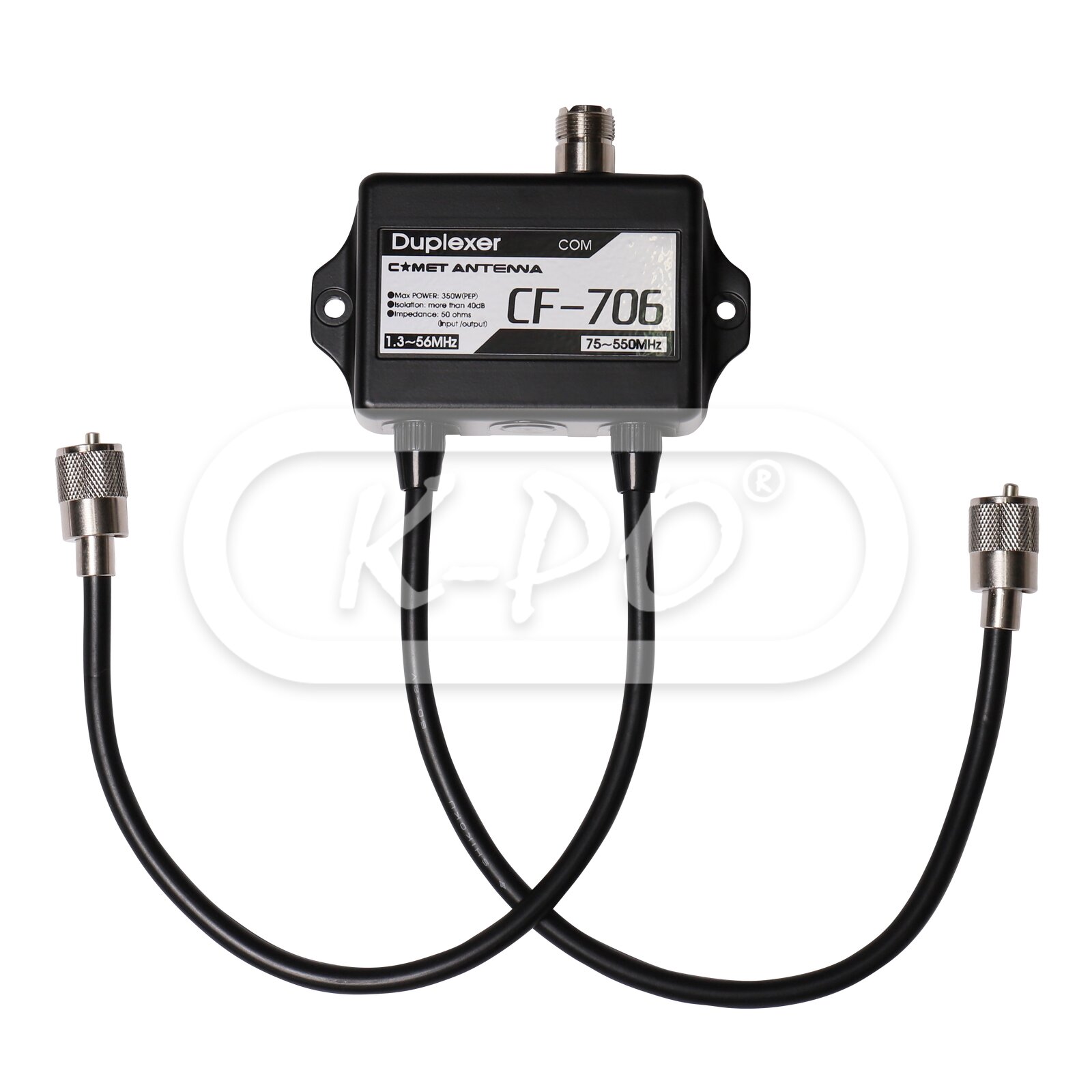

Comet - CF-706

Product code: 805706
Barcode: 4932273180362

Duplexer for Transmitting and receiving both 1.3-57 & 75-550Mhz at the same time. Combined high quality filters for preventing TVI at the same time. The isolation between the two connectors is more than 45 dB, In the case of using the CF-706 for one frequency, the other connector can remain open, although an additional Dummy Load would be preferred. Fitted with the popular combination of 2 x output leads with PL259 plugs, and input of SO239 socket. This model is well suited for the Icom IC-706 range of transceivers with its 2 antenna outputs.

Frequency range: 1.3-56 / 75-550 MHz
Shipped next business day - Stock: 3
€72.95 (60.29 excl. 21% VAT)

Electrical data

  • Power peak: 1,3-56 MHz: 350 Watts (PEP) / 75-550 MHz: 350 Watts (PEP)
  • VSWR: 1.2 or less
  • Impedance: 50 Ohm
  • Insertion loss: 1.3-56 MHz: 0,4 dB less than / 75-550 MHz: 0,4 dB less than
  • Isolation: more than 50 dB

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: 1.3-56 MHz: UHF (PL) male / 75-550 MHz: UHF (PL) male /
  • Length: 66 mm
  • Height: 26 mm
  • Width: 90 mm
  • Weight: 325 gram
