Comet - CFX-4310C

Product code: 805718
Factory code: 805718

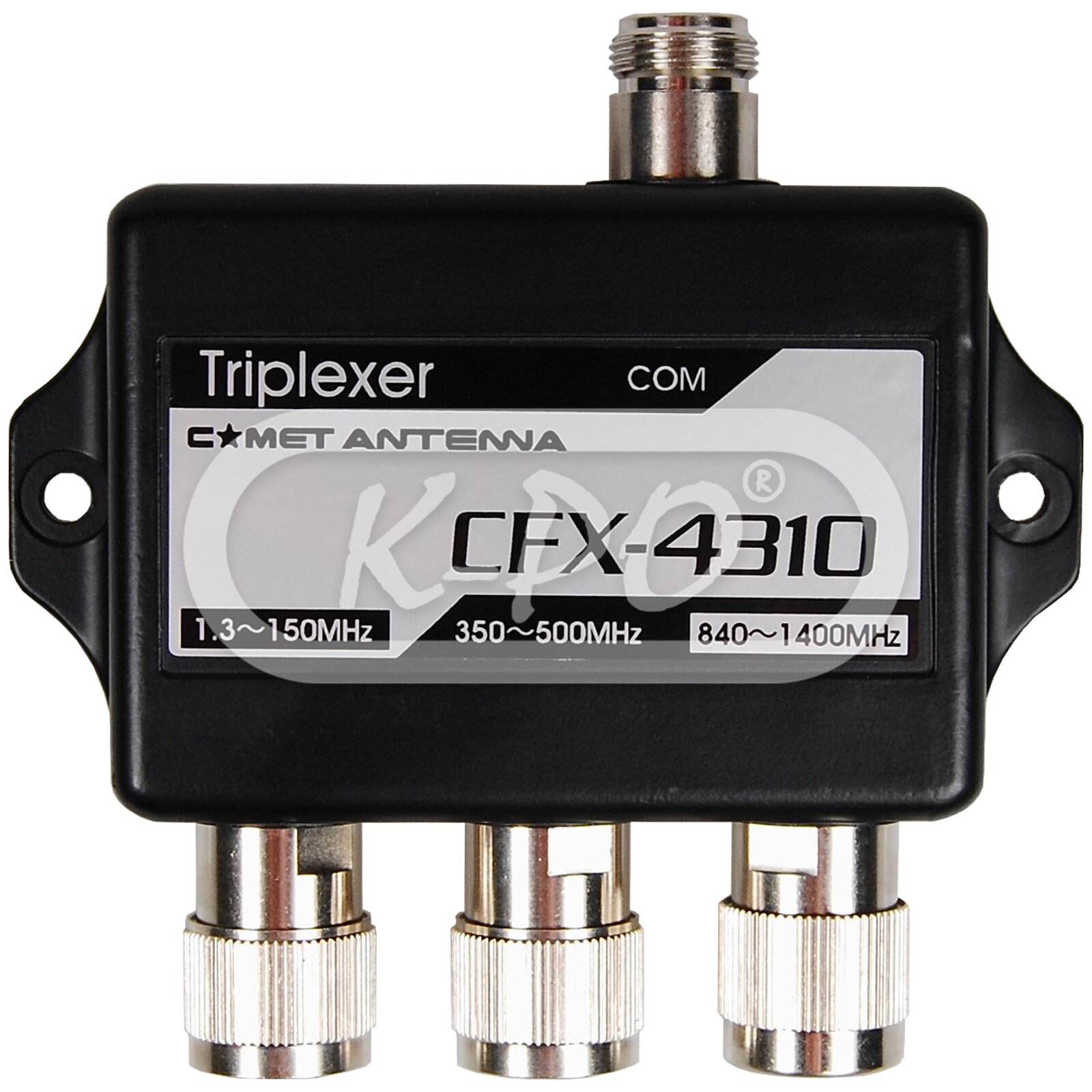

The Comet CFX-4310C is the triplexer for transmitting and receiving on all 3 bands of HF 150 / 400 and 900 MHz bands at the same time. Using one or two CF-4310C you can connect transceivers and antennas by one coaxial cable. The combined high quality filters work to prevent occurrence of TVI. Isolation of each connector is over 50dB. With N connector on the COM and 840-1400 MHz sides.

Frequency range: 1.3-150 MHz / 350-500 MHz / 840-1400 MHz
Shipped next business day
€61.11 (61.11 excl. 0% VAT)

Electrical data

  • Power peak: 1.3-60 MHz: 1000W (PEP) / 100-150 MHz: 800W (PEP) / 350-500 MHz: 500W (PEP) / 840-1400 MHz: 200W (PEP)
  • VSWR: 1.2 or less
  • Impedance: 50 Ohm
  • Isolation: more than 50 dB

Mechanical data

  • Connector(s) type in: N female
  • Connector(s) type out: 840-1400 MHz: N male / 1.3-150 MHz: UHF (PL) male / 350-500 MHz: UHF (PL) male /
  • Length: 66 mm
  • Height: 26 mm
  • Width: 90 mm
  • Weight: 327 gram
