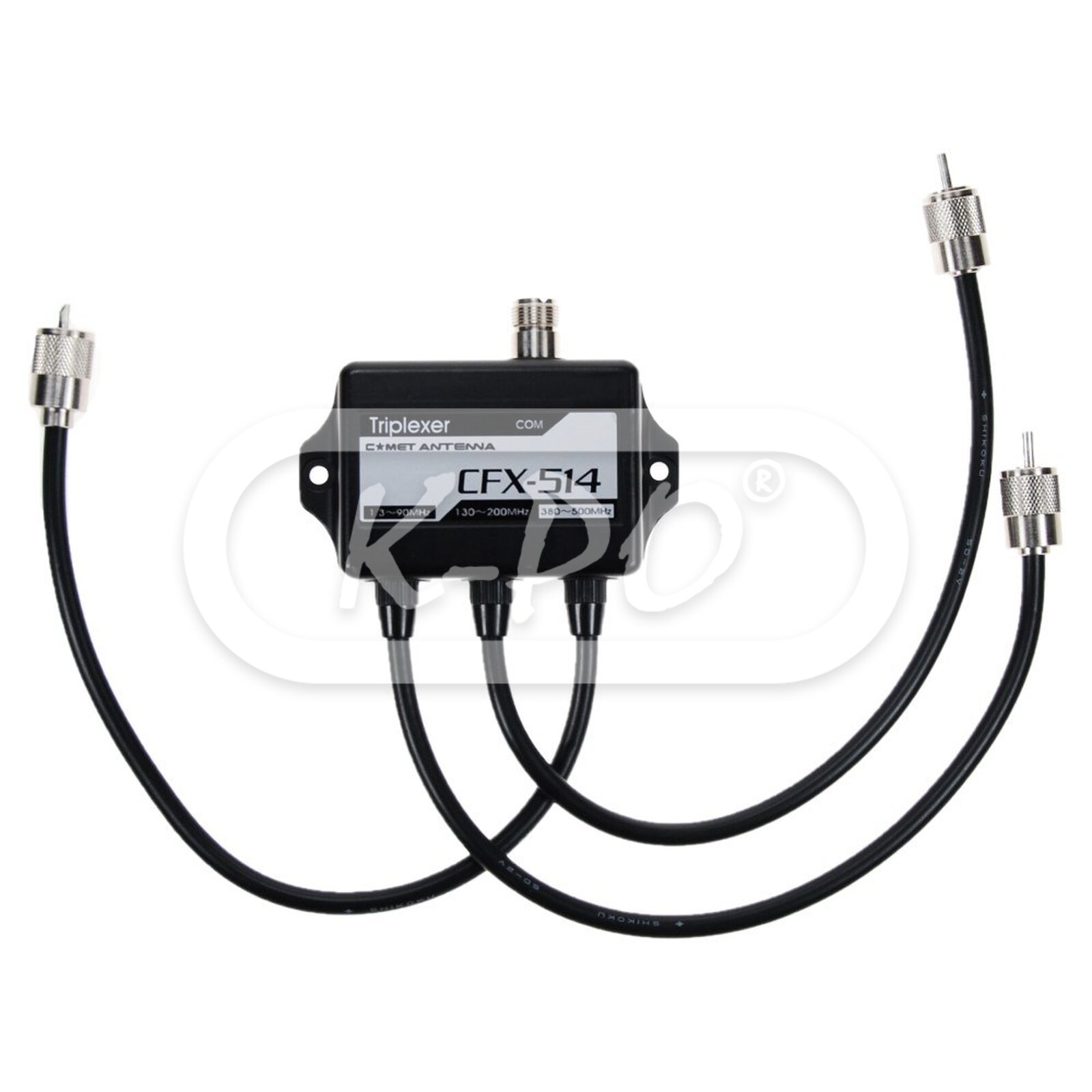

Comet - CFX-514

Product code: 805715
Barcode: 4932273007607

Model CFX-514 is the triplexer for transmitting/receiving all 3 bands of HF-90 MHz, 2m band and 70cm band at the same time. Using one, or two CF-514, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CFX-514 work to prevent occurrence of tvi on the other hand (isolation of each connectors are over 55 dB). When using CFX-514 for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Frequency range: 1.3-90 MHz / 130-200 MHz / 380-500 MHz
Shipped next business day
€82.60 (82.6 excl. 0% VAT)

Electrical data

  • Power peak: 1.3-90 MHz: 800W (PEP) / 130-200 MHz: 800W (PEP) / 380-500 MHz: 500W (PEP)
  • VSWR: 1.2 or less
  • Impedance: 50 Ohm
  • Insertion loss: 1.3-90 MHz: 0.15 dB or less / 130-200 MHz: 0.2 dB or less / 380-500 MHz: 0.25 dB or less
  • Isolation: more than 55 dB

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: 1.3-90 MHz: UHF (PL) male / 130-200 MHz: UHF (PL) male / 380-500 MHz: UHF (PL) male /
  • Length: 66 mm
  • Height: 26 mm
  • Width: 90 mm
  • Weight: 325 gram
